Engine Control Module

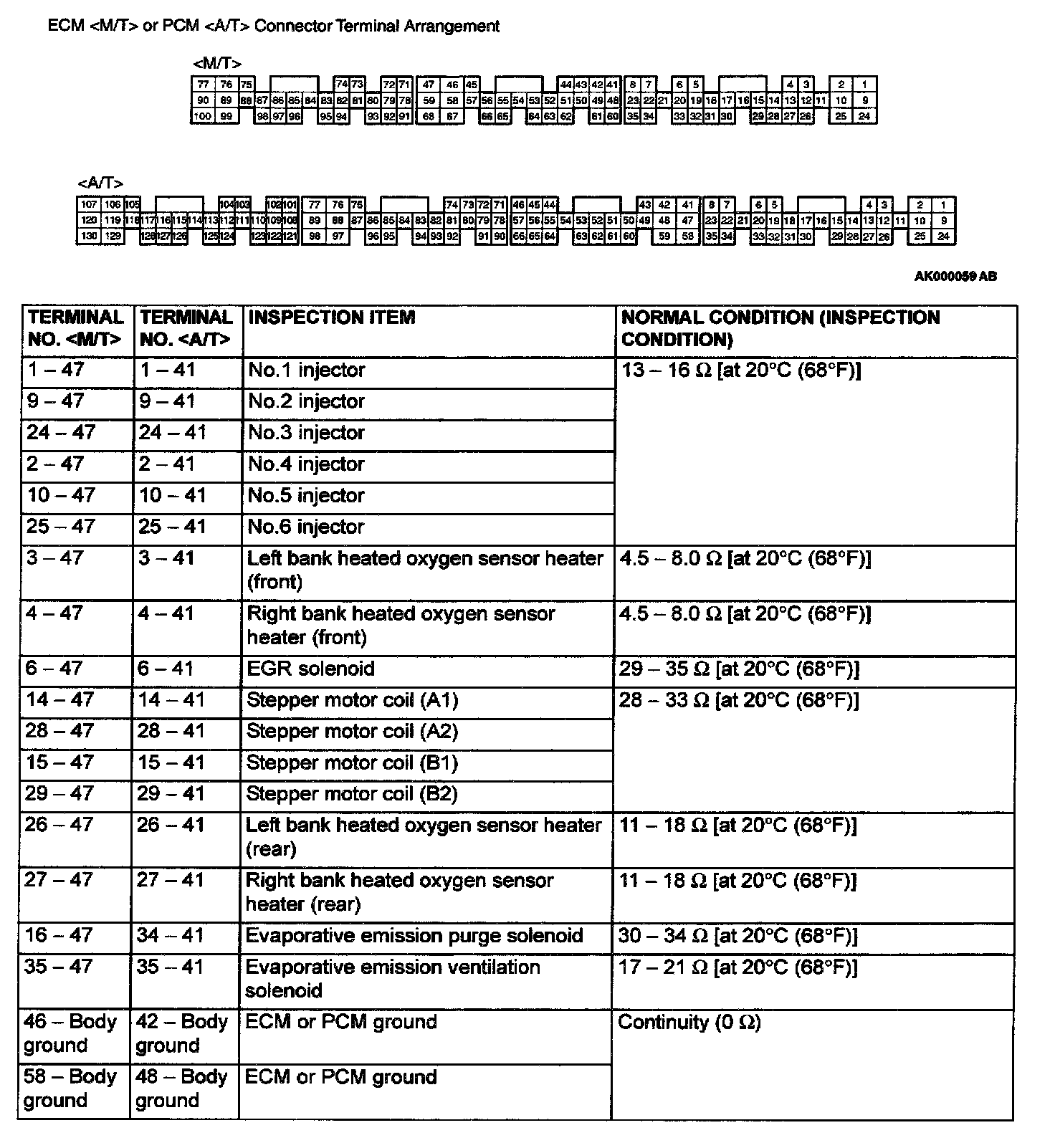

ECM (M/T) / PCM (A/T) Connector Terminal Arrangement And Terminals Part 1:

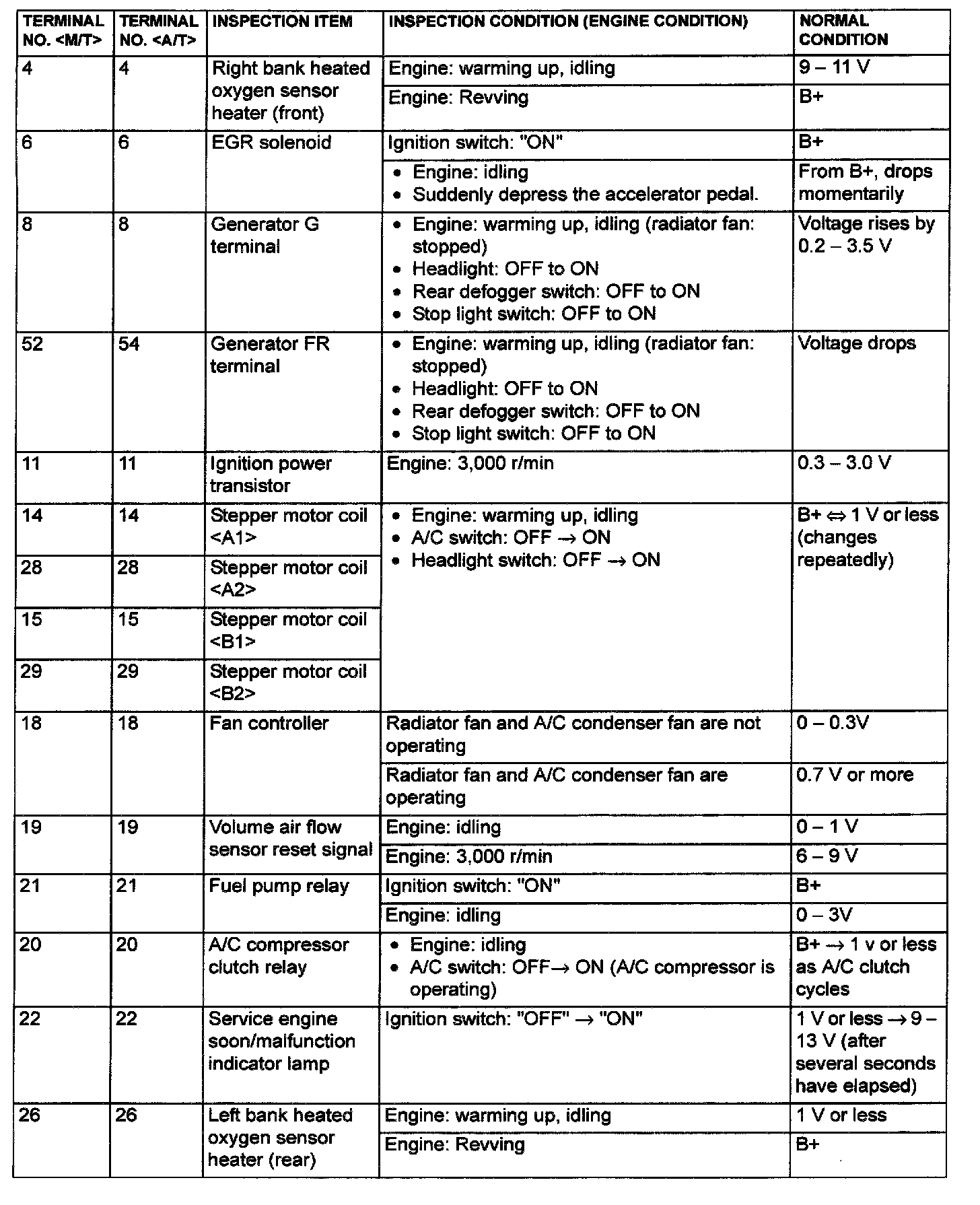

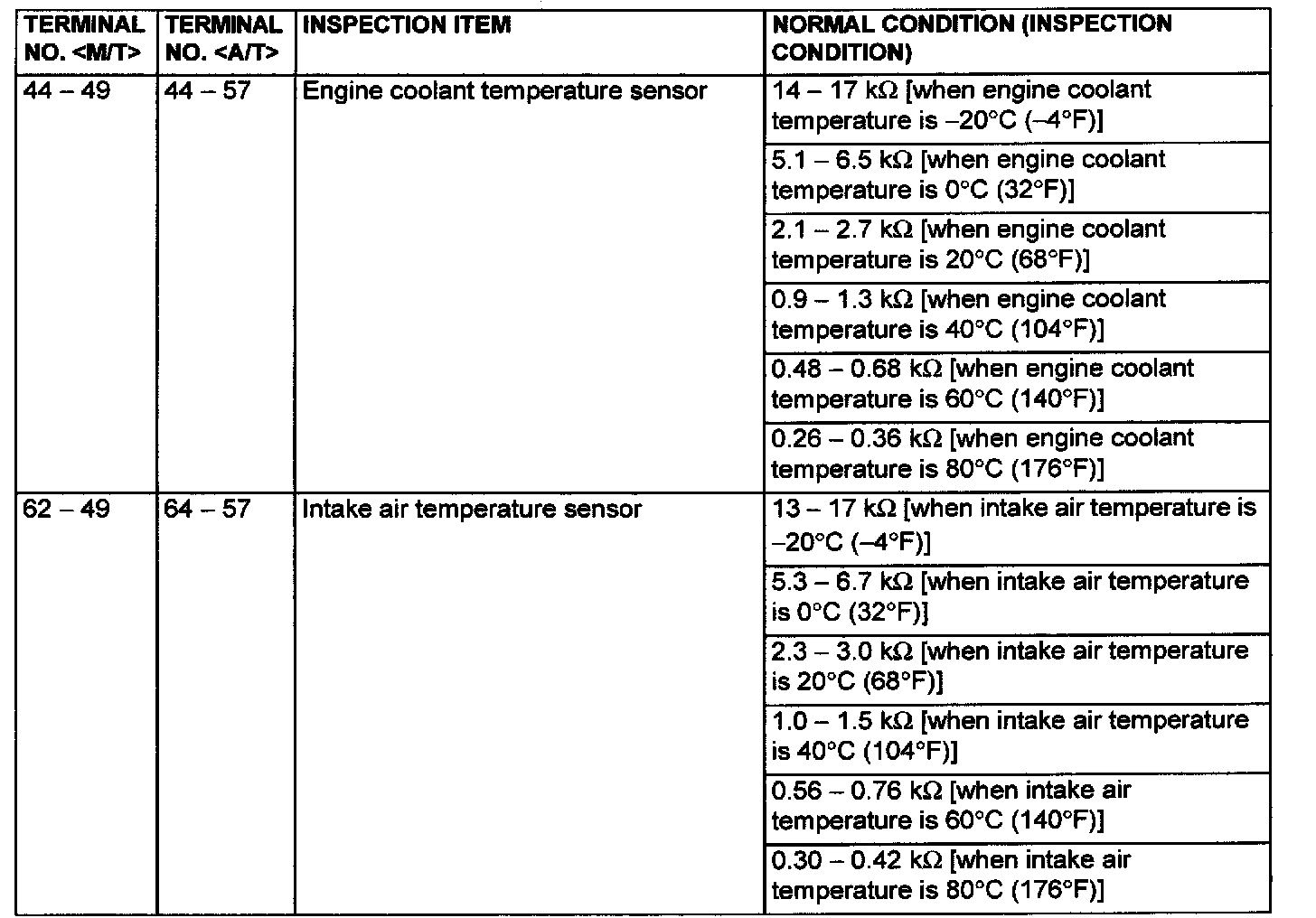

Terminals Part 2:

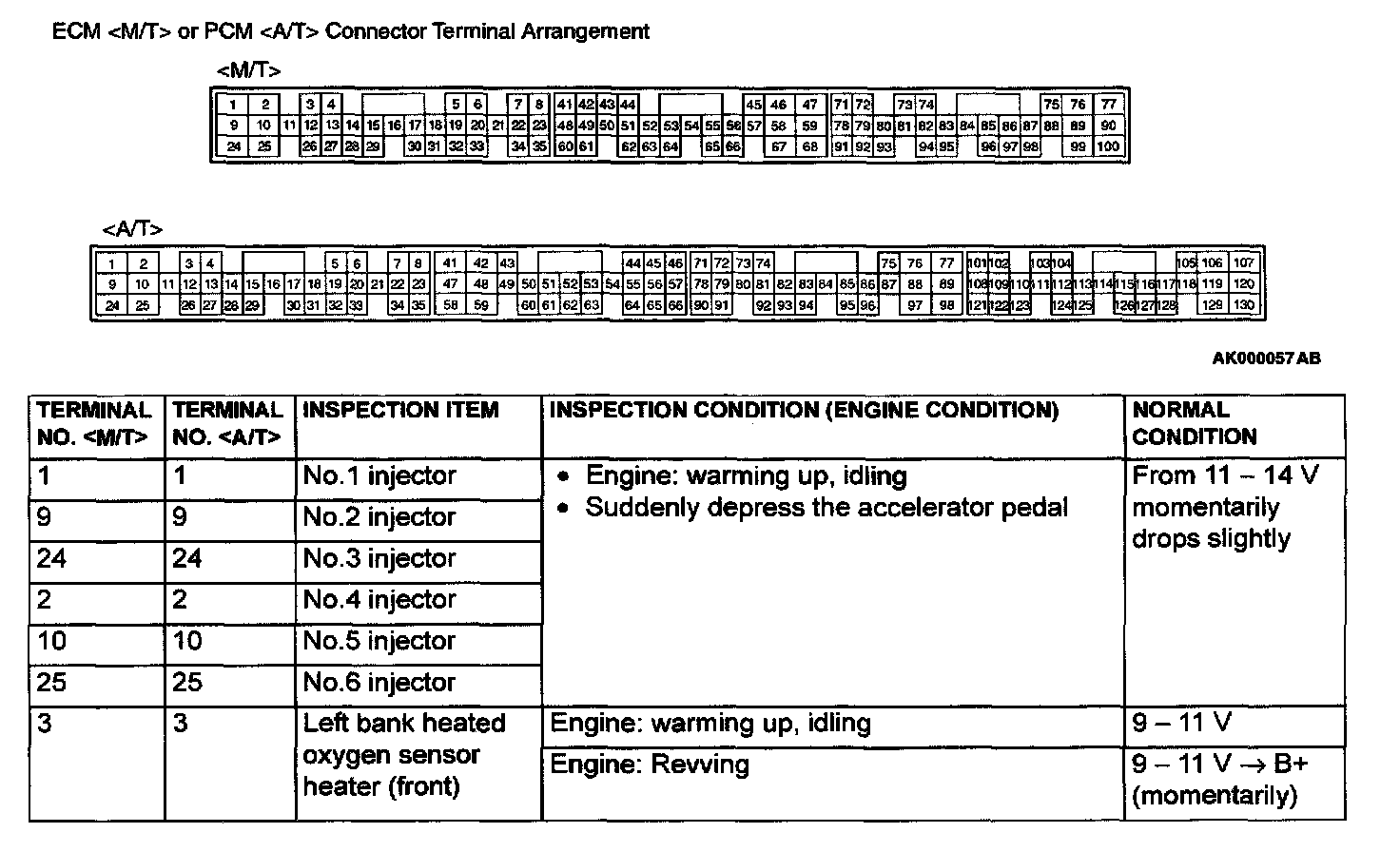

ECM (M/T) / PCM (A/) Connector Terminal Arrangement And Terminals Part 1:

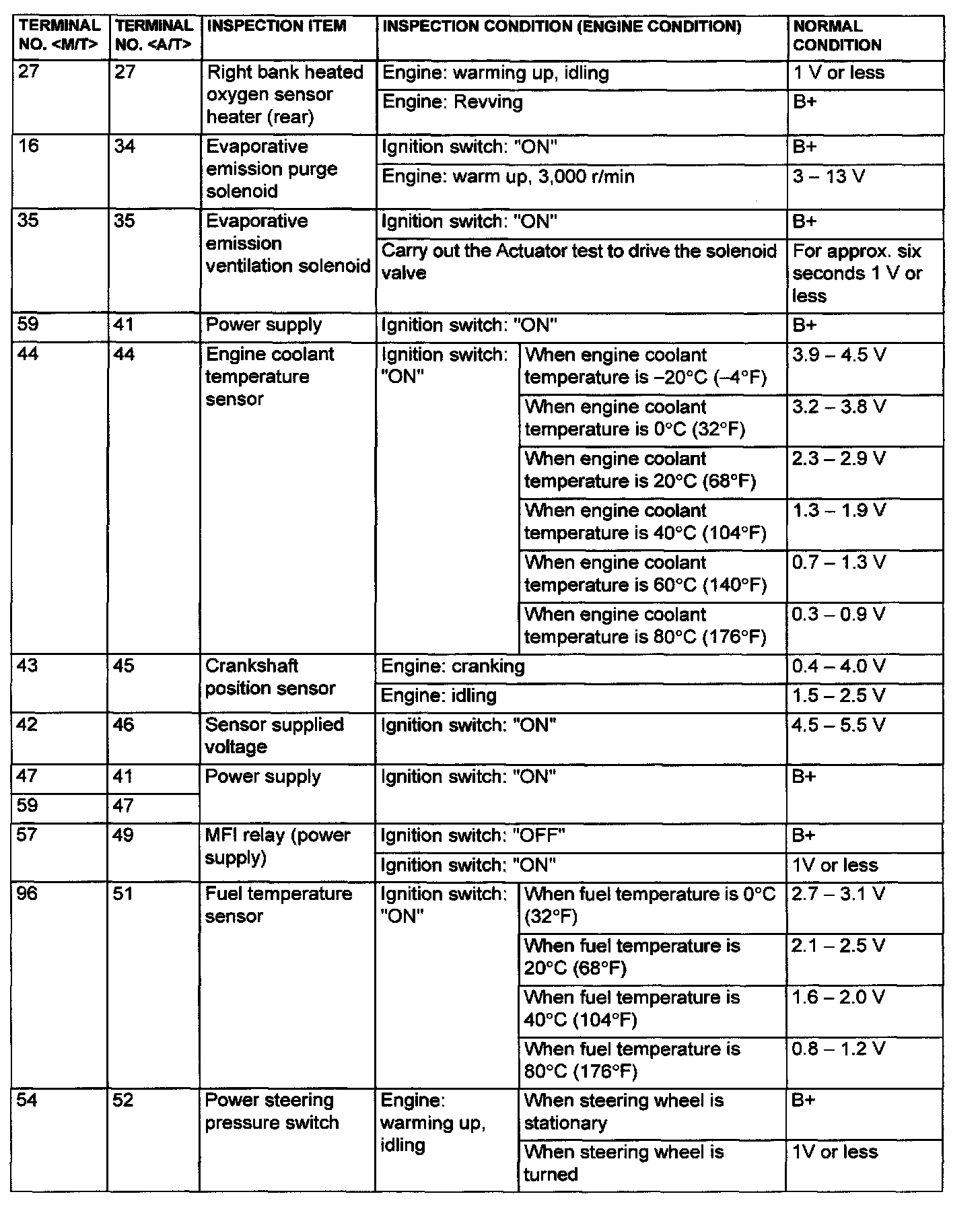

Terminals Part 2:

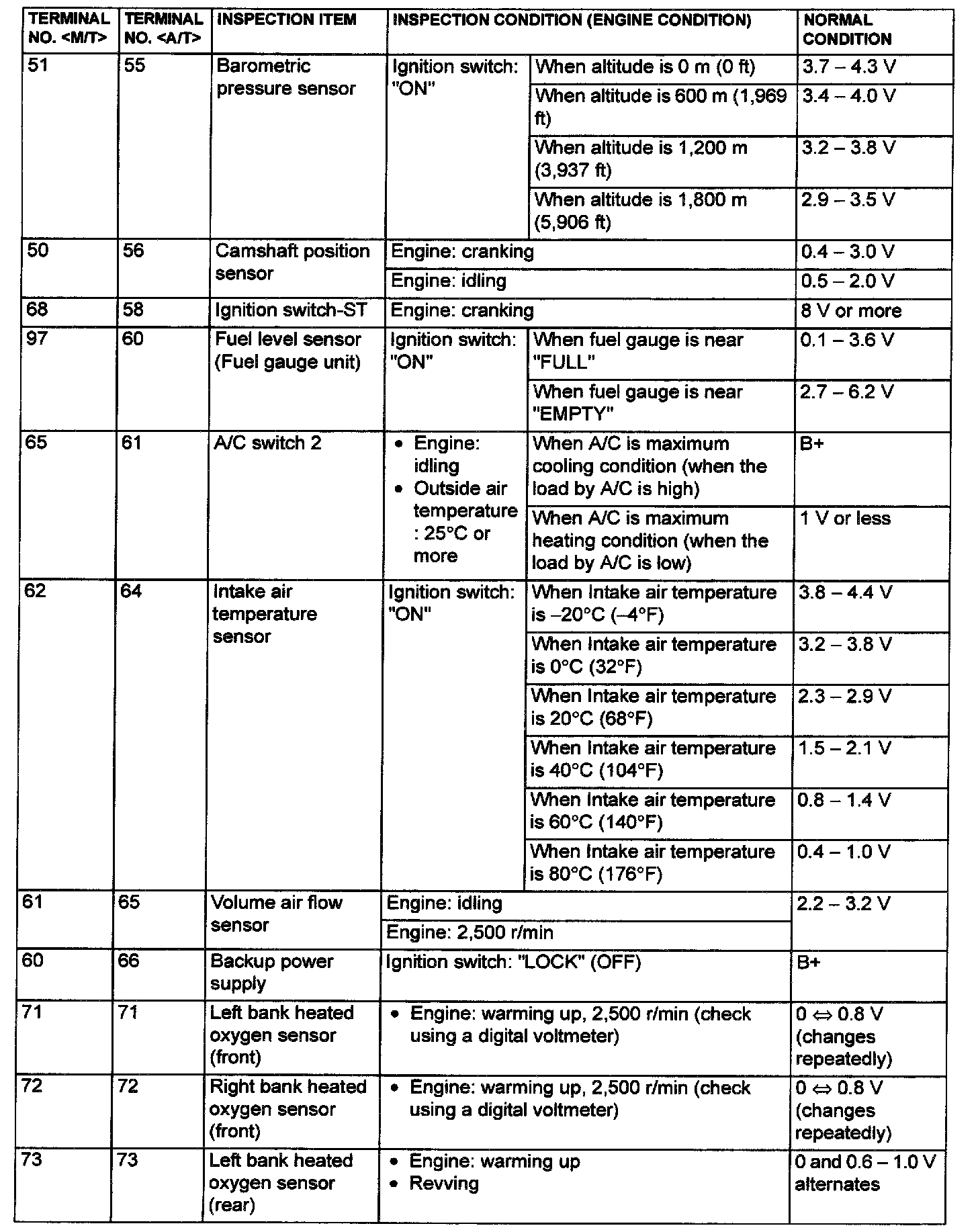

Terminals Part 3:

Terminals Part 4:

Terminals Part 5:
