Sensor
Sensor

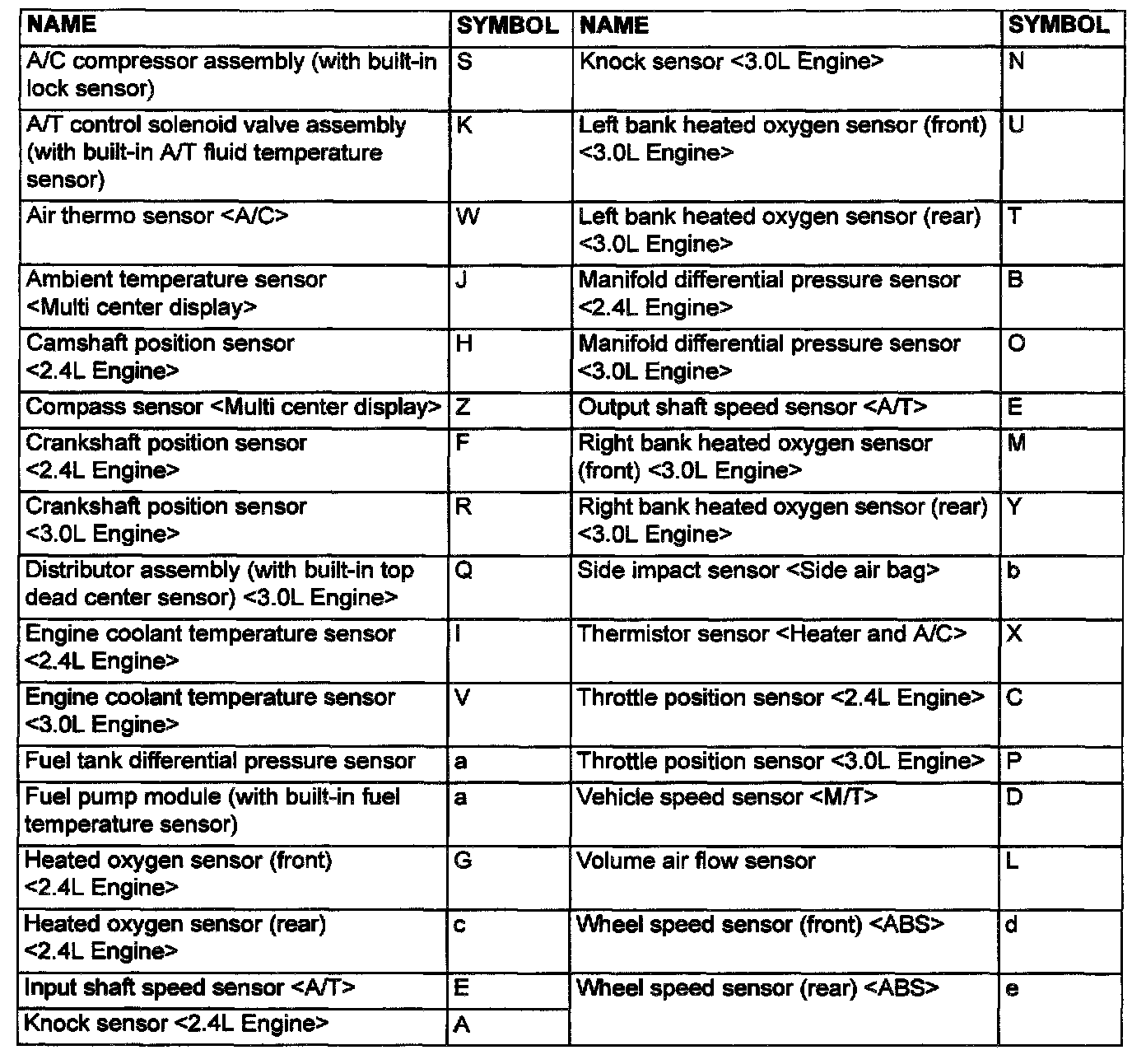

Location Index:

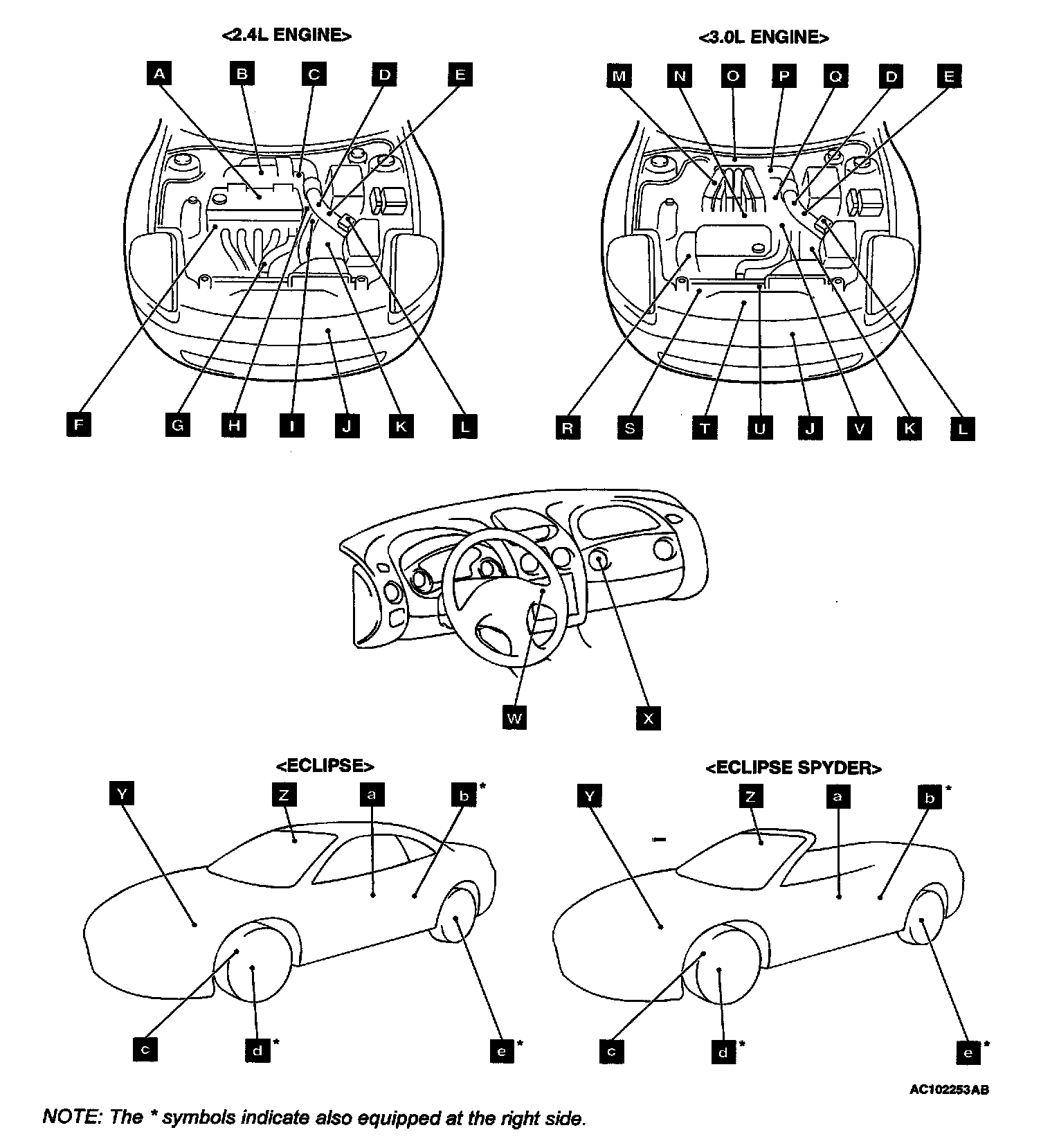

Overall View:
Views A - H:

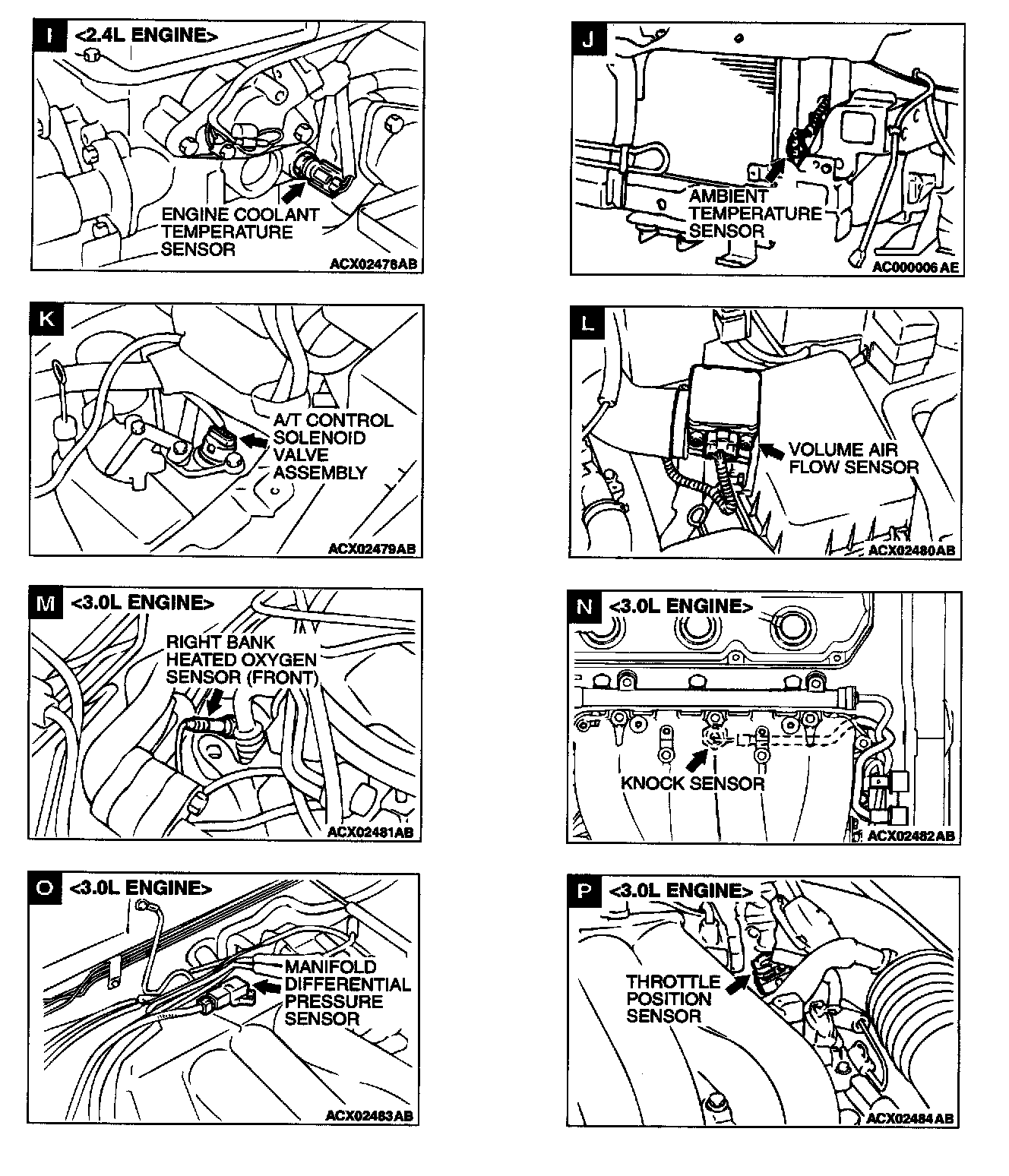

Views I - P:

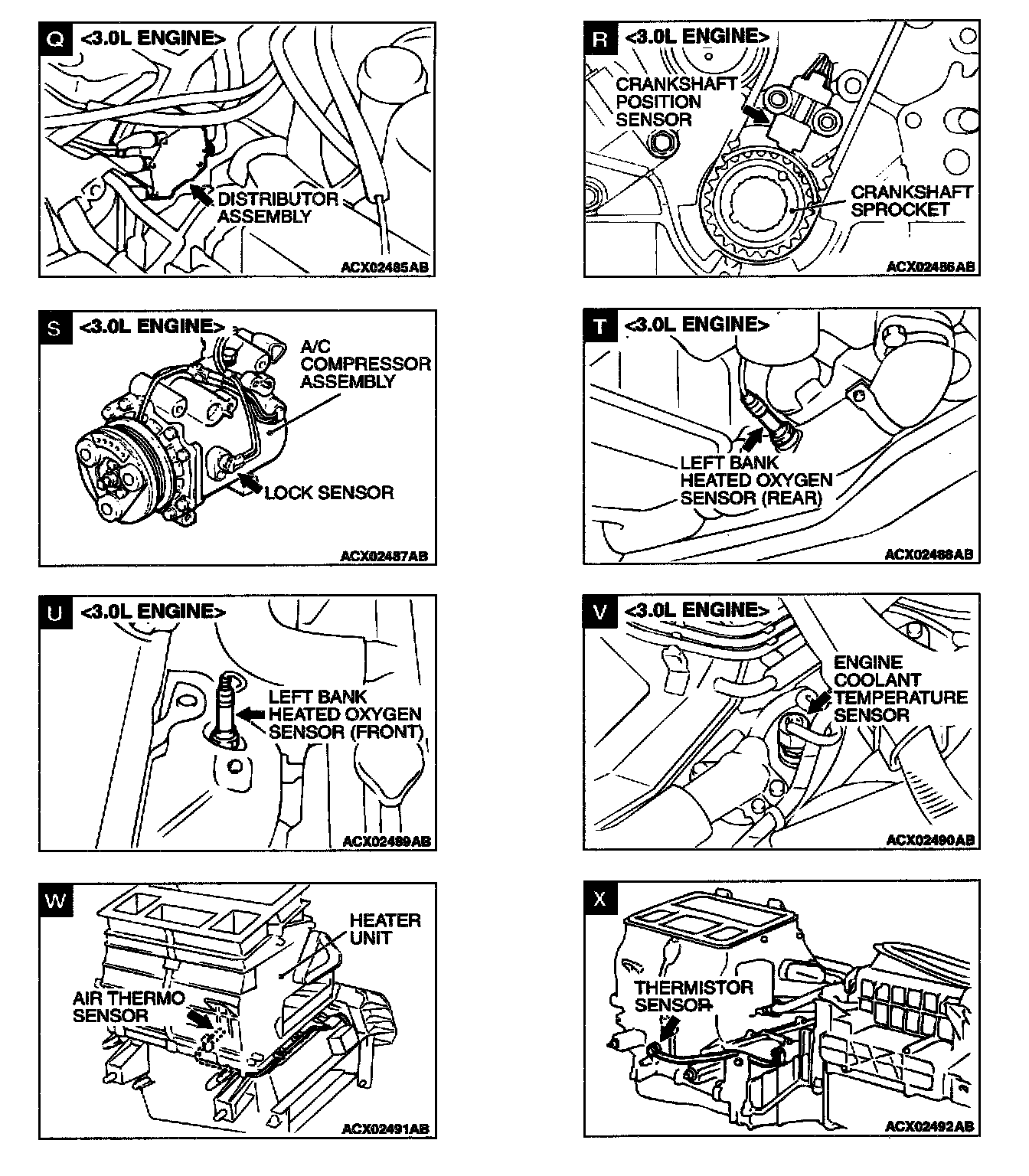

Views Q - X:

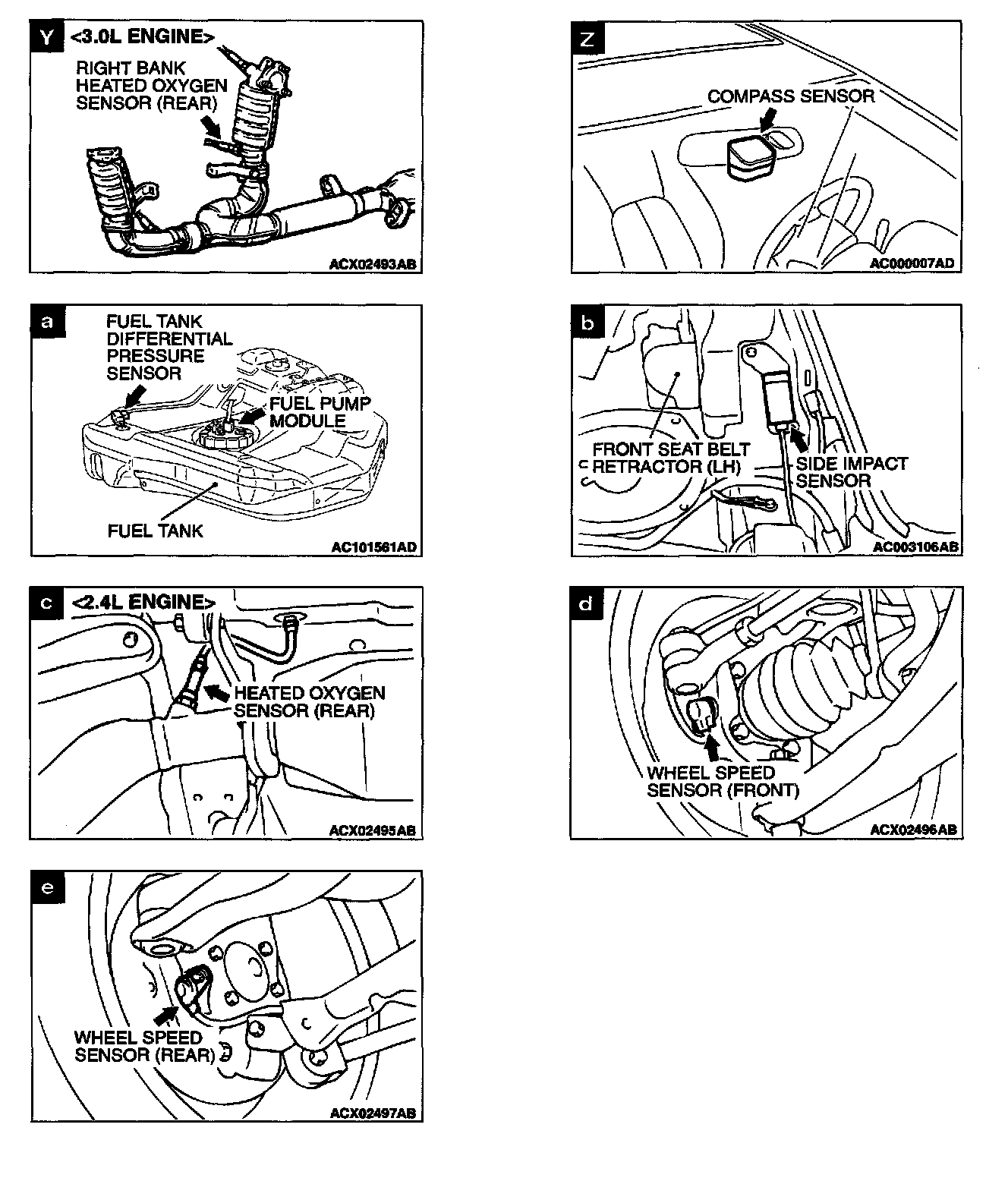

Views Y - Z And a - e:
