Interior Moulding / Trim: Service and Repair

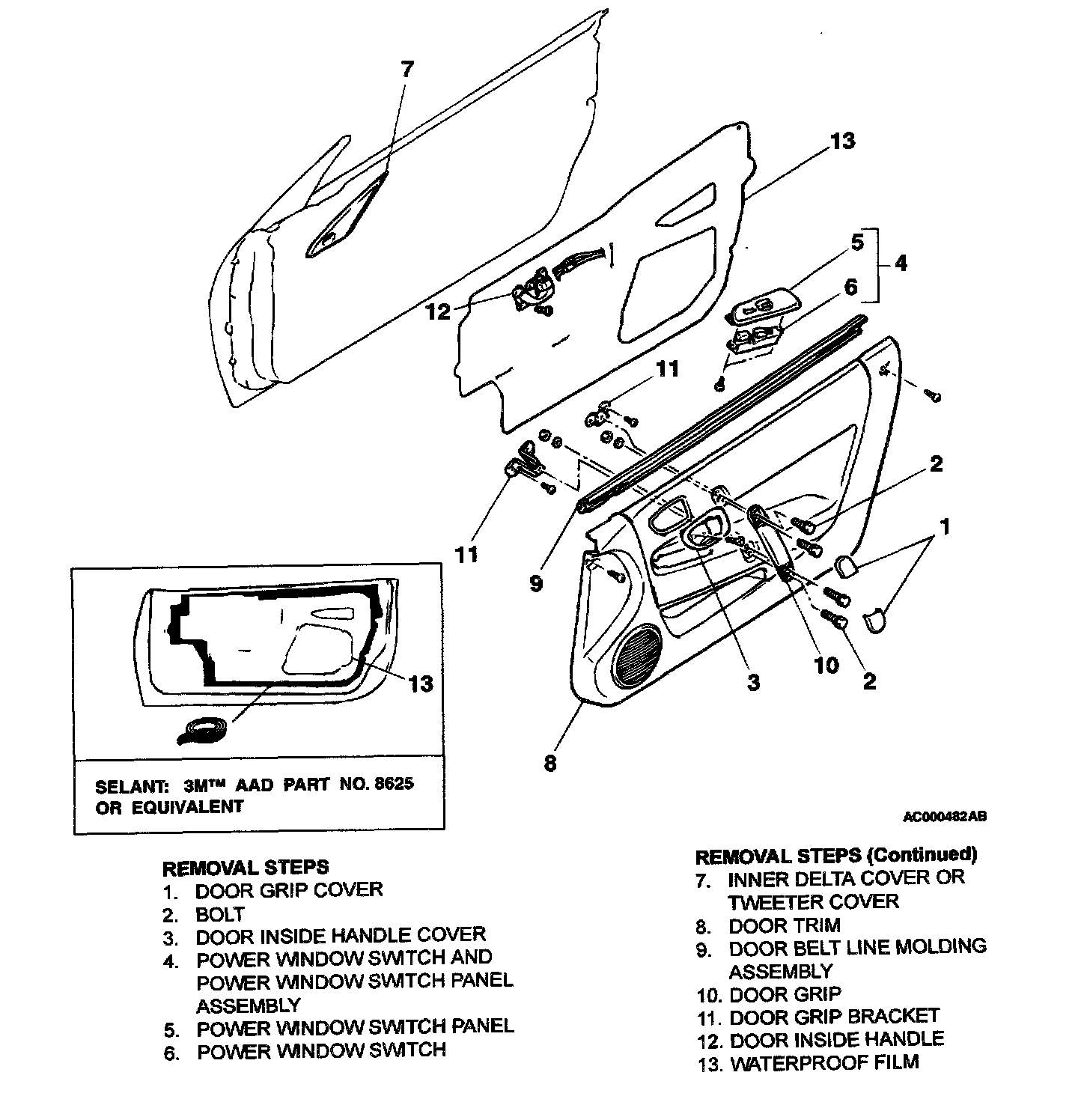

Door Trim And Waterproof Film:

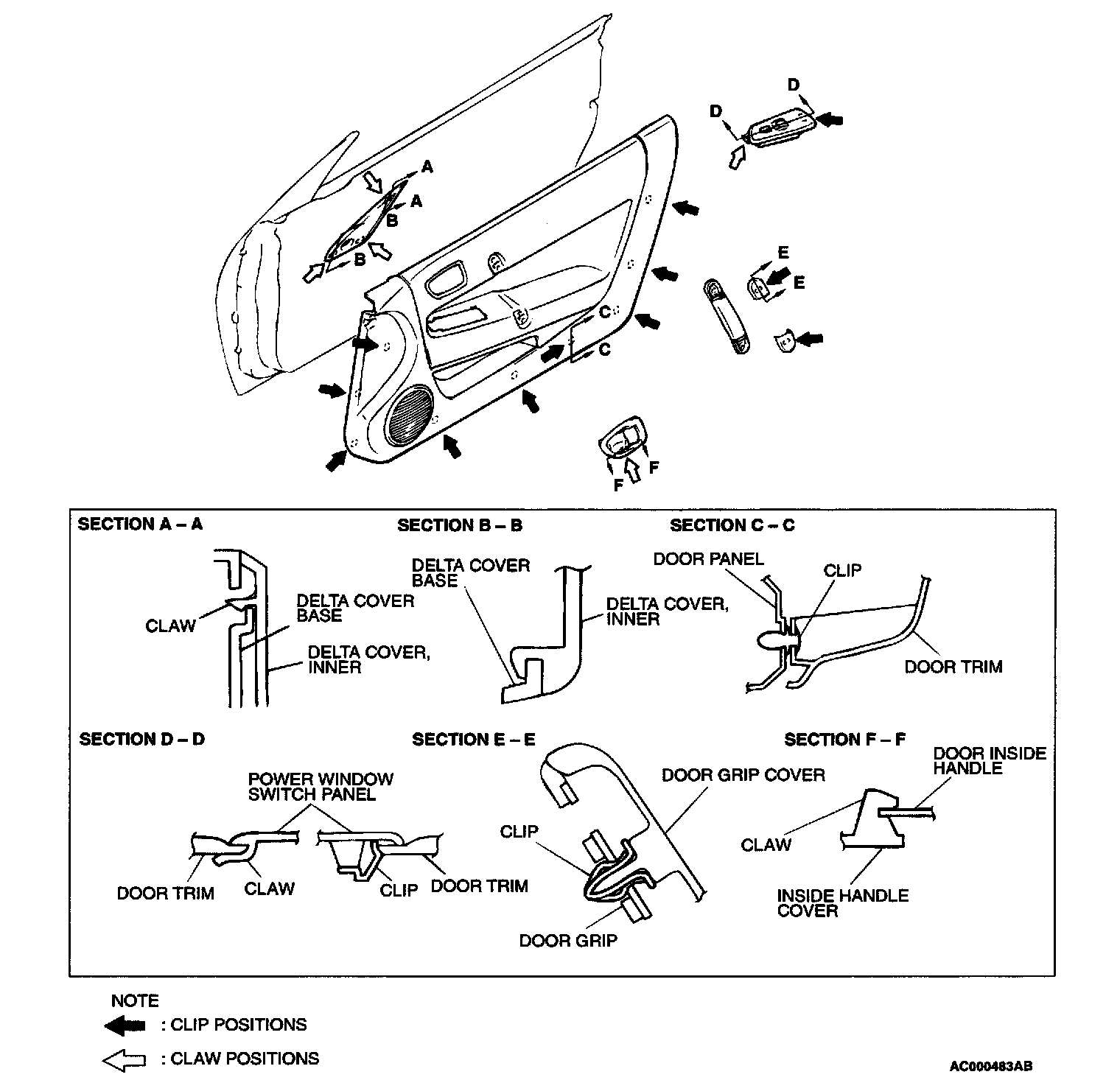

Clip And Claw Positions:
Liftgate Trim And Waterproof Film:
Clip And Positions:

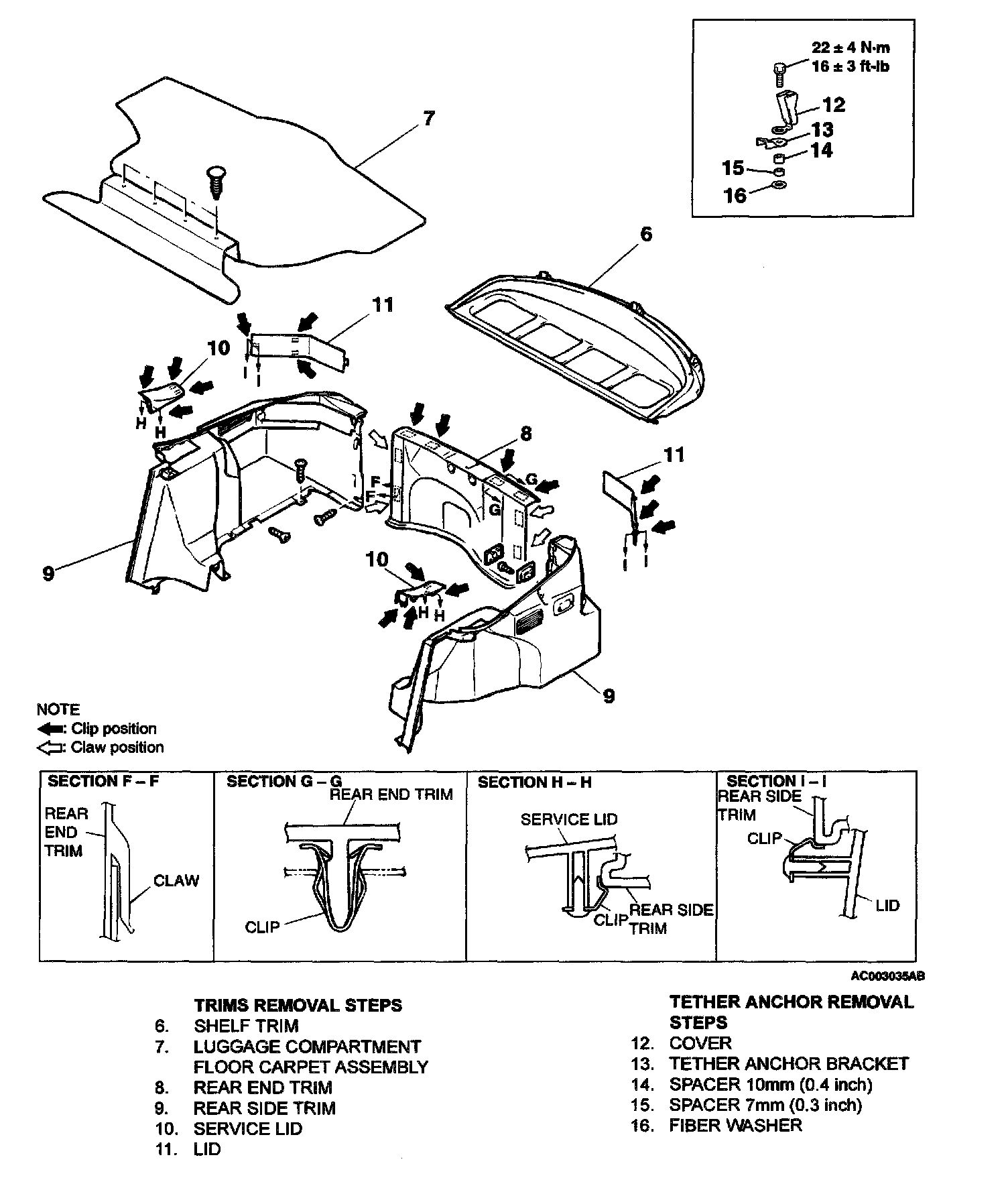

Trims Part 1 (Eclipse):

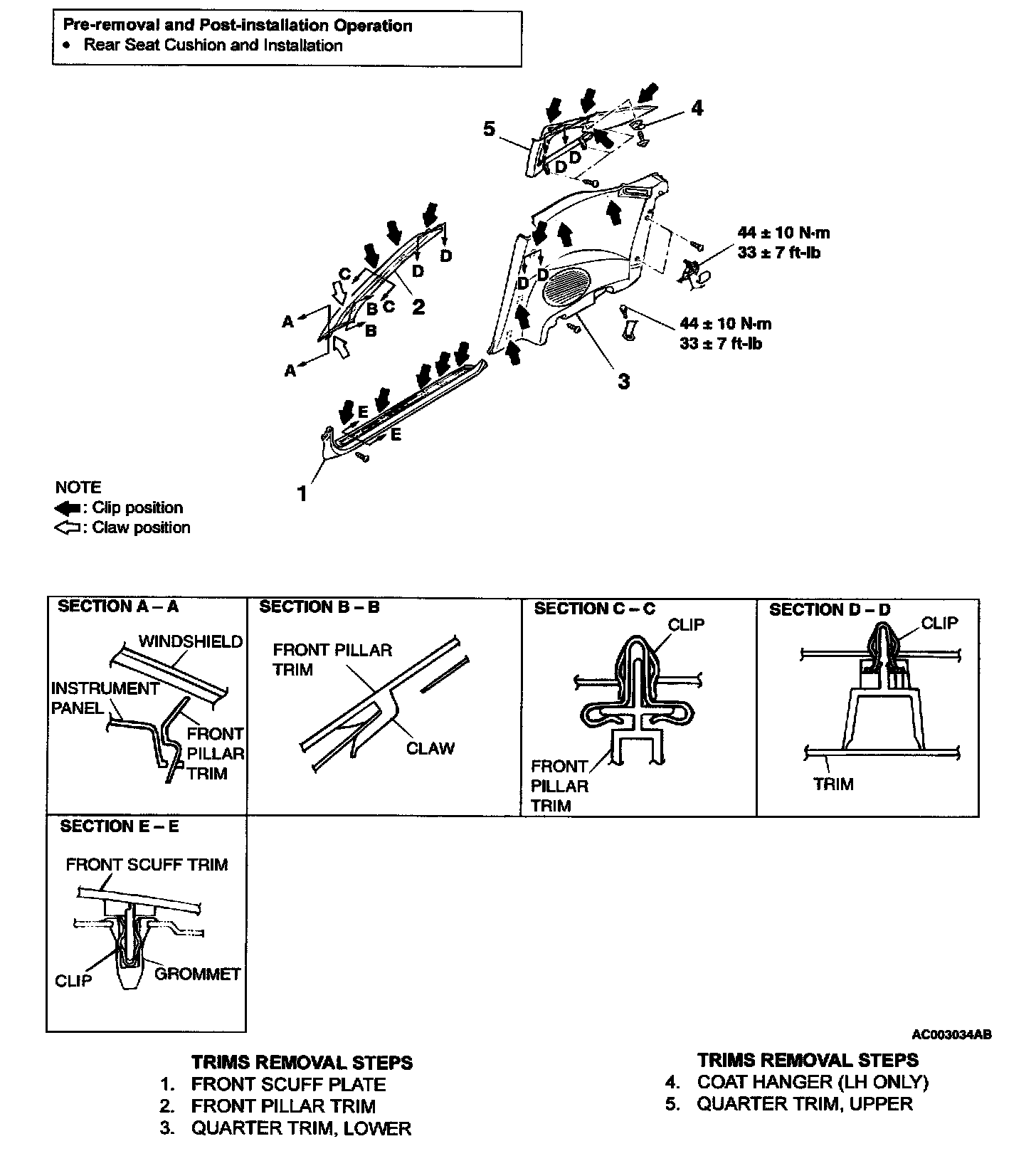

Trims Part 2 (Eclipse):
