Dashboard / Instrument Panel: Service and Repair

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in Air Bag Module and Clock Spring.

Fasteners:

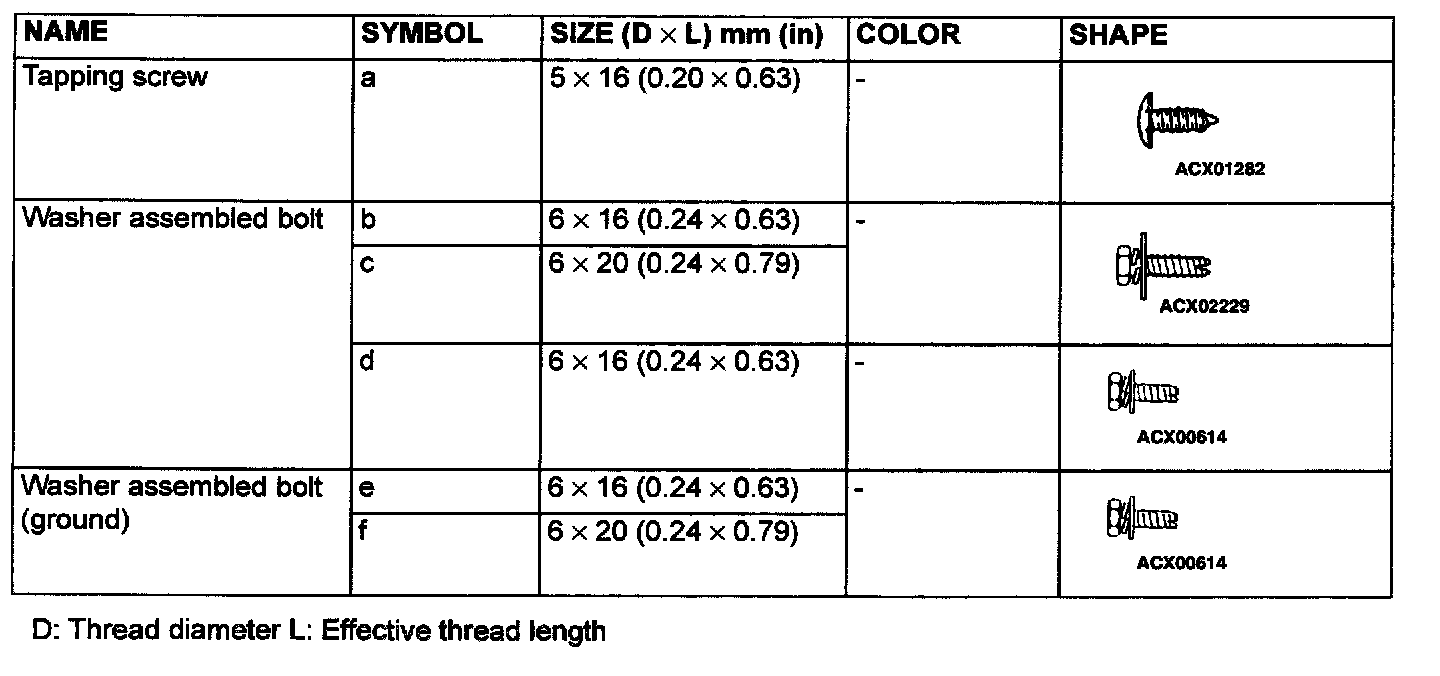

The bolts and screws described are used for installation of the instrument panel. They are indicated by symbols in the illustration.

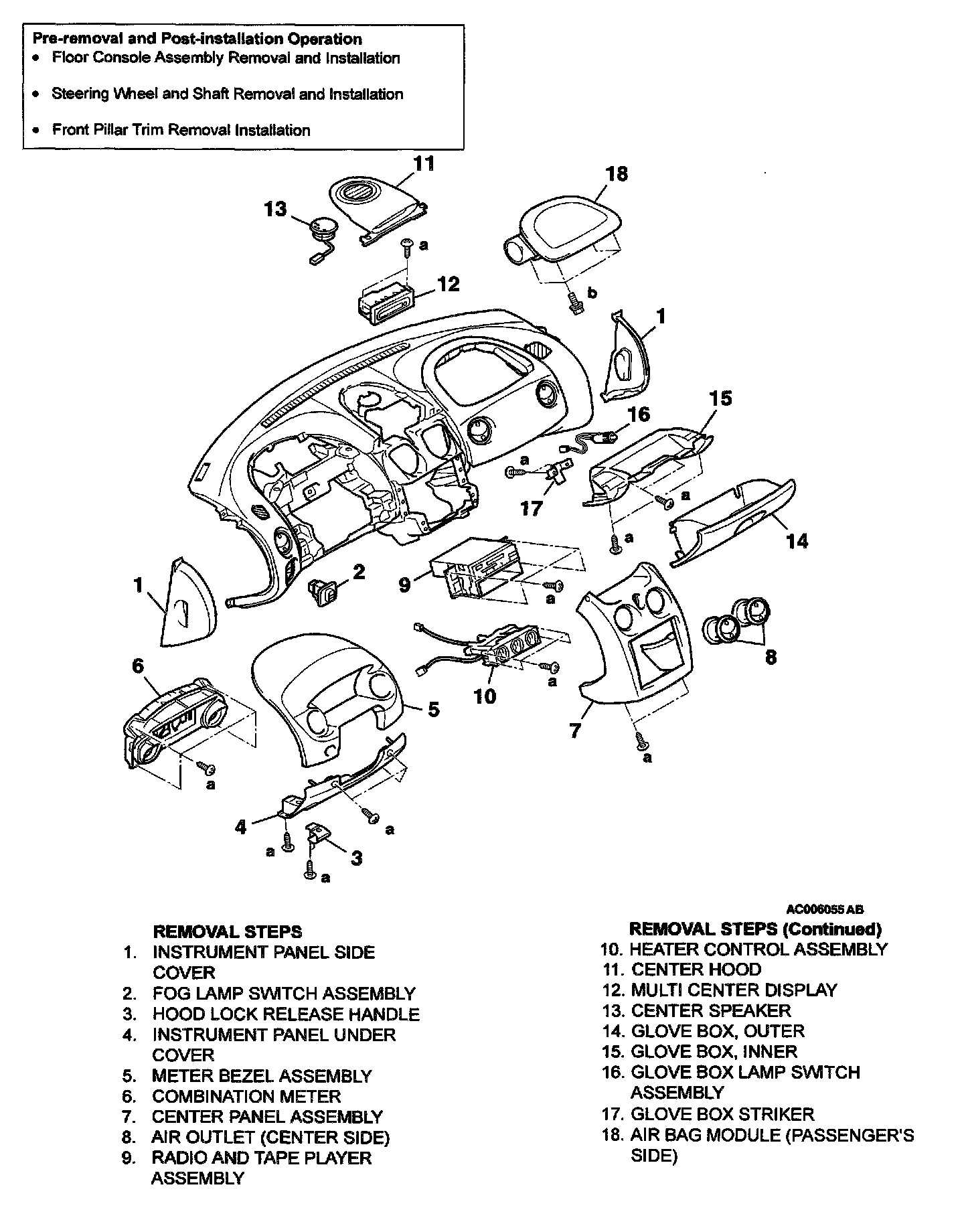

Instrument Panel Part 1:

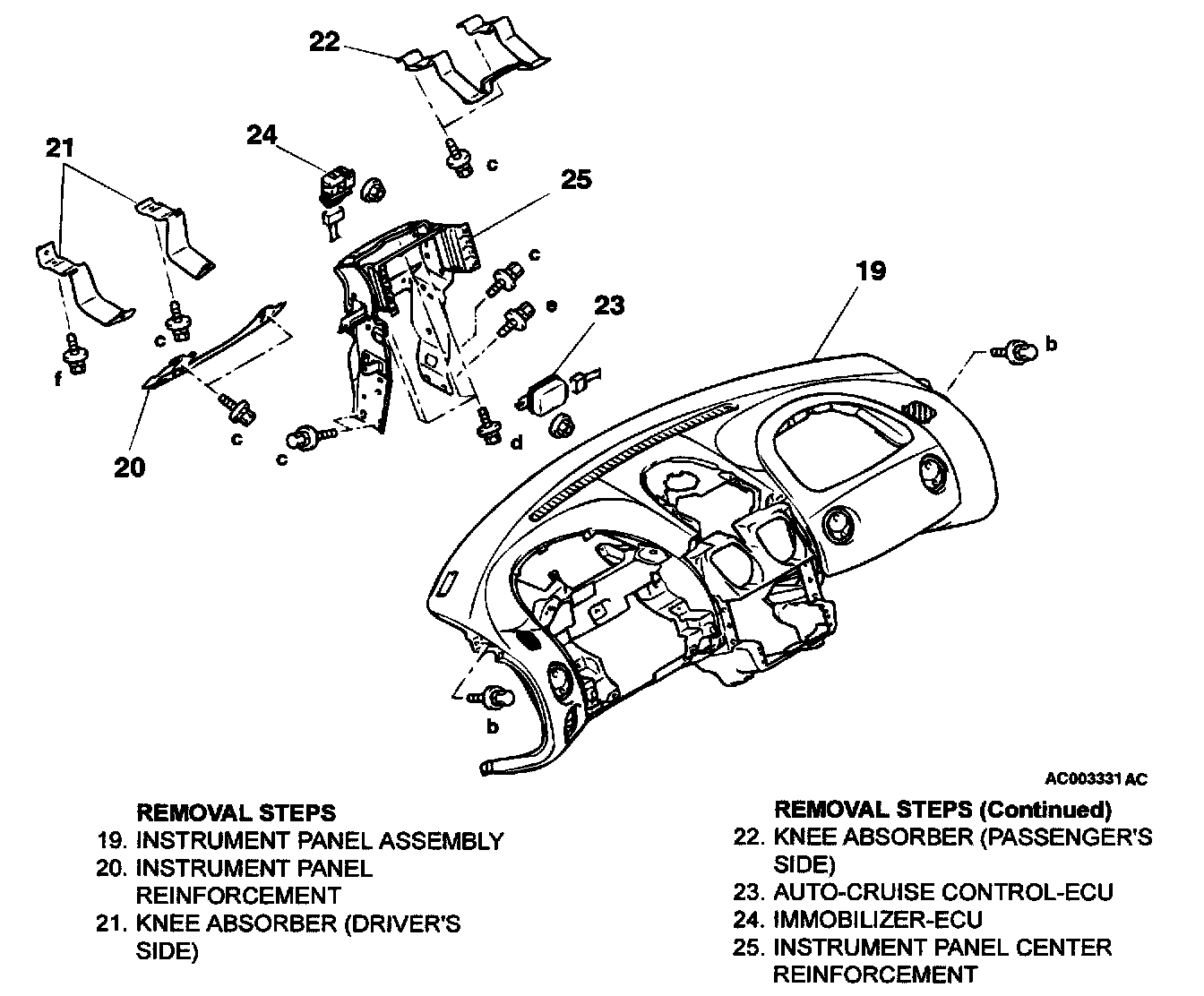

Instrument Panel Part 2:

Clip And Claw Positions:

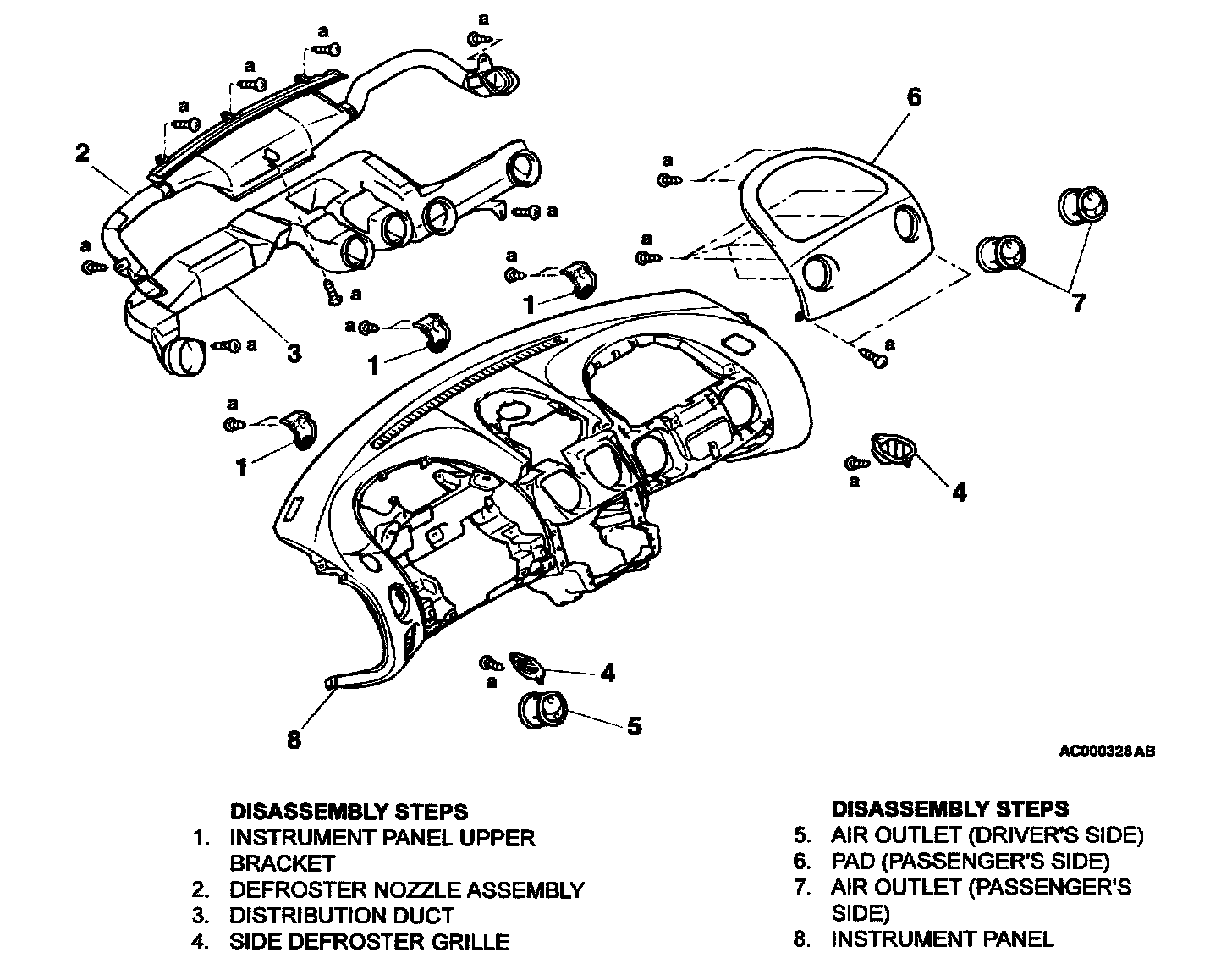

DISASSEMBLY AND ASSEMBLY
