How To Read and Erase Diagnostic Trouble Codes

NOTE: This is the only information provided by the manufacturer for reading trouble codes for this system.

Retrieving and Erasing Immobilizer System Diagnostic Trouble Codes

Required Special Tool:
MB991502: Scan Tool (MUT-II)

CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.

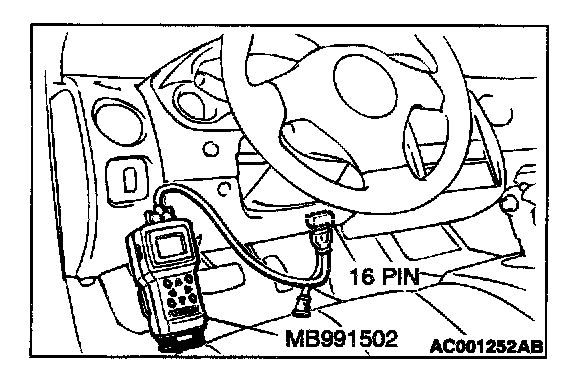

1. Connect scan tool MB991502 to data link connector (16 pin).
2. Turn the ignition switch to the "ON" position.
3. Use scan tool MB991502 to check or erase immobilizer system diagnostic trouble codes.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991502.
