A/T - ATF Temperature Sensor/Harness Manual Revision

No: TSB-01-23-009
DATE: July, 2001
MODEL: See Below

SUBJECT:
ATF TEMPERATURE SENSOR/INTEGRATED HARNESS - SERVICE MANUAL REVISION

[TSB Revision TSB-01-23-009]

PURPOSE

This bulletin contains revised service procedures related to the new integral automatic transmission fluid (ATF) temperature sensor / solenoid harness.

BACKGROUND INFORMATION

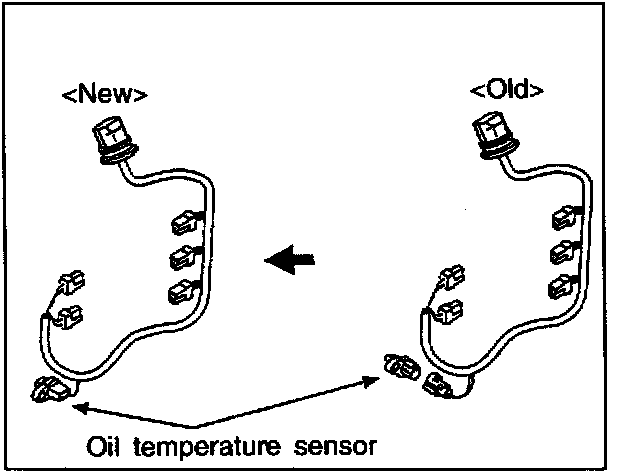

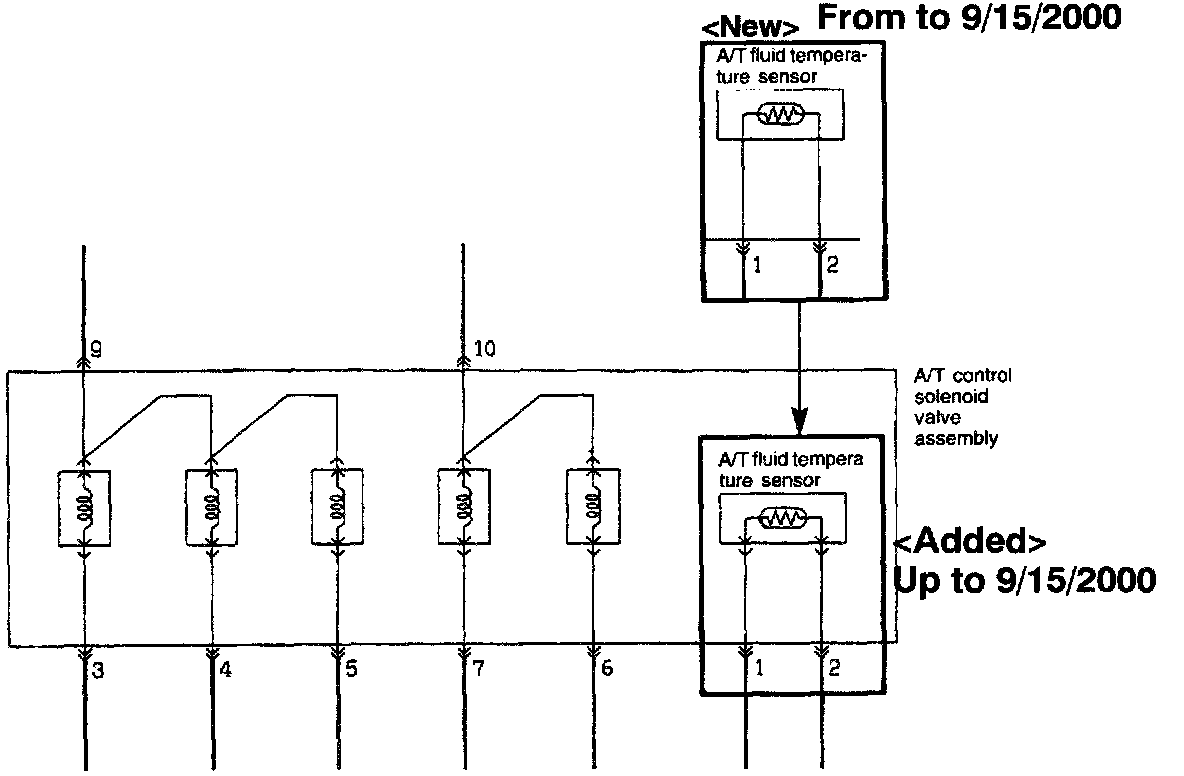

Beginning in mid-September 2000, the solenoid valve harness for affected vehicles was changed to an integral harness/ATF sensor. Before this change, the ATF temperature sensor was a separate part. The sensor is now part of the integral harness, which requires replacing the complete harness in the event of an ATF temperature sensor failure. This bulletin contains revisions to indicate that the original service manual instructions are only for vehicles built up to 9/15/2000. New ATF temperature sensor checking procedures along with a new wiring diagram change are included for vehicles built after 9/15/2000,

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES
2001 Eclipse & Eclipse Spyder
2001 Galant
2001 Mirage

AFFECTED SERVICE MANUALS
2001 Eclipse/Eclipse Spyder Service Manual, Volume 3, Page 23A-41
2001 Eclipse/Eclipse Spyder Service Manual, Volume 4, Pages 90-85,95,1 OS
2001 Galant Service Manual, Volume 3, Page 23A-279
2001 Galant Service Manual, Volume 4, Page 90-57
2001 Mirage Service Manual. Volume 2, Pages 23A-57; 90-71

SERVICE MANUAL REVISIONS





2001 Eclipse/Eclipse Spyder Service Manual, Volume 3, Page 23A-341





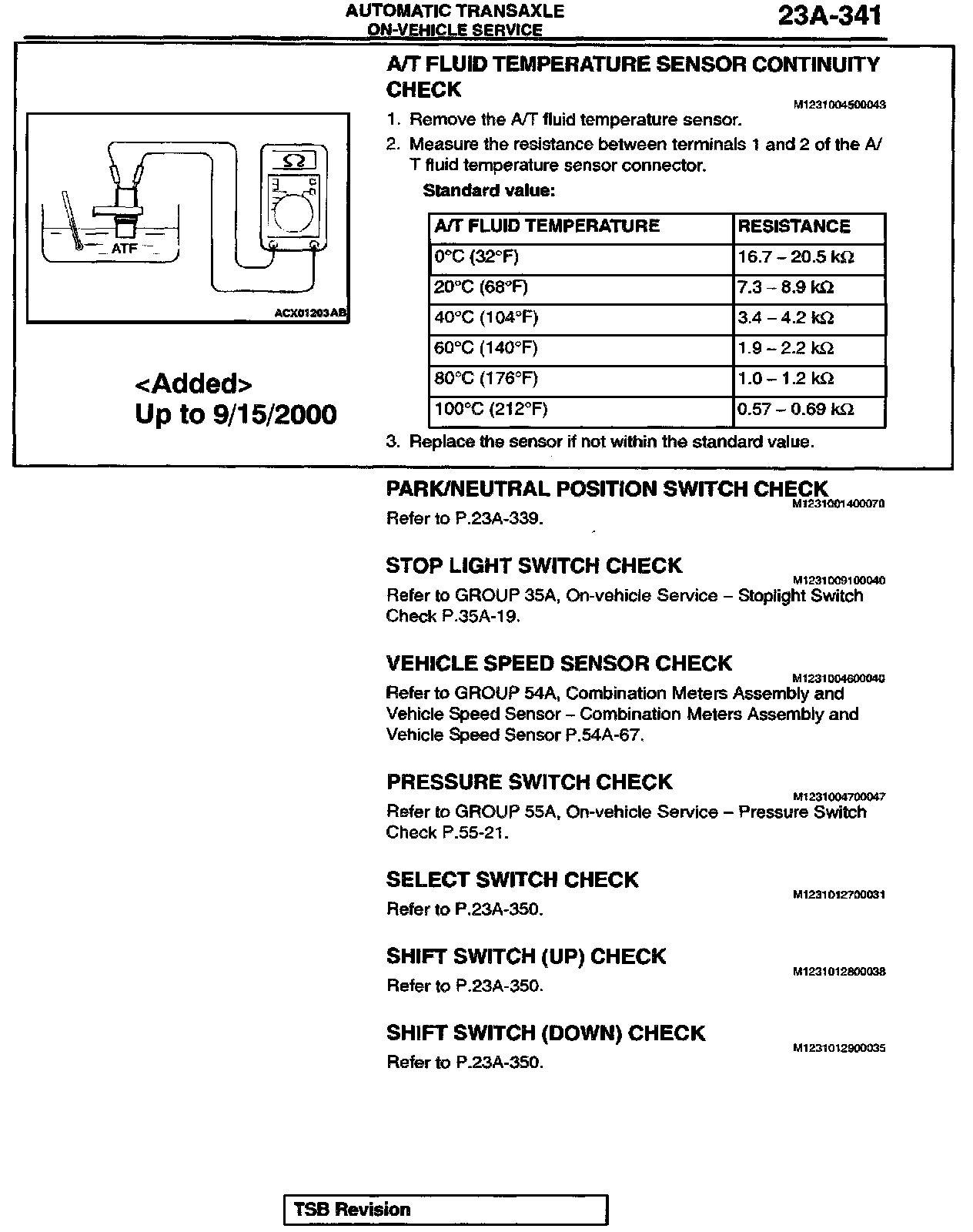

Add the following new information to indicate that the original service manual instructions are for only vehicle produced up to 9/15/2000. For vehicles built from 9/15/2000, refer to Figure 1 as shown.

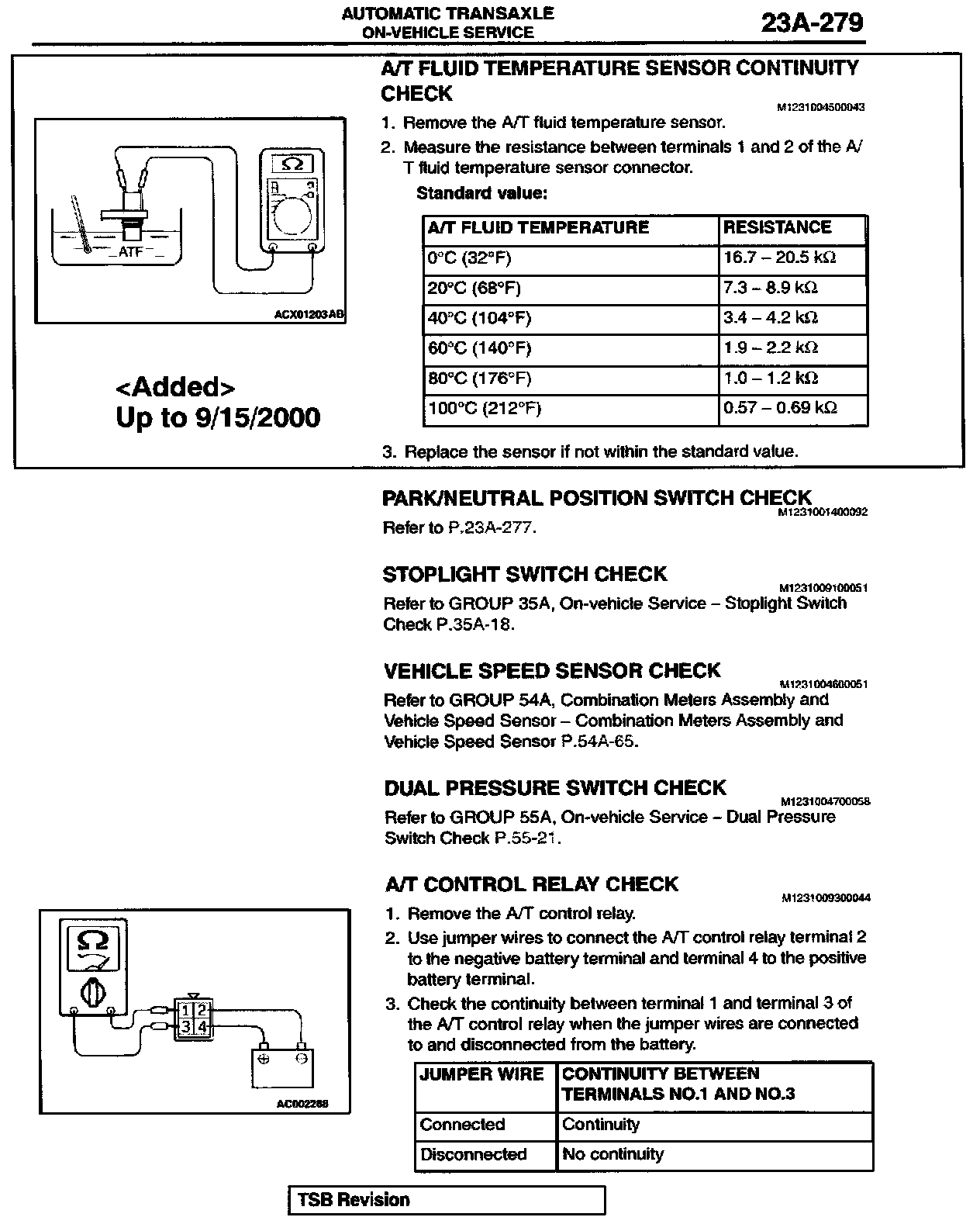

2001 Galant Service Manual, Volume 3, page 23A-279
Add the following new information to indicate that the original service manual instructions are for only vehicle produced up to 9/15/2000. For vehicles built from 9/15/2000, refer to Figure 1.

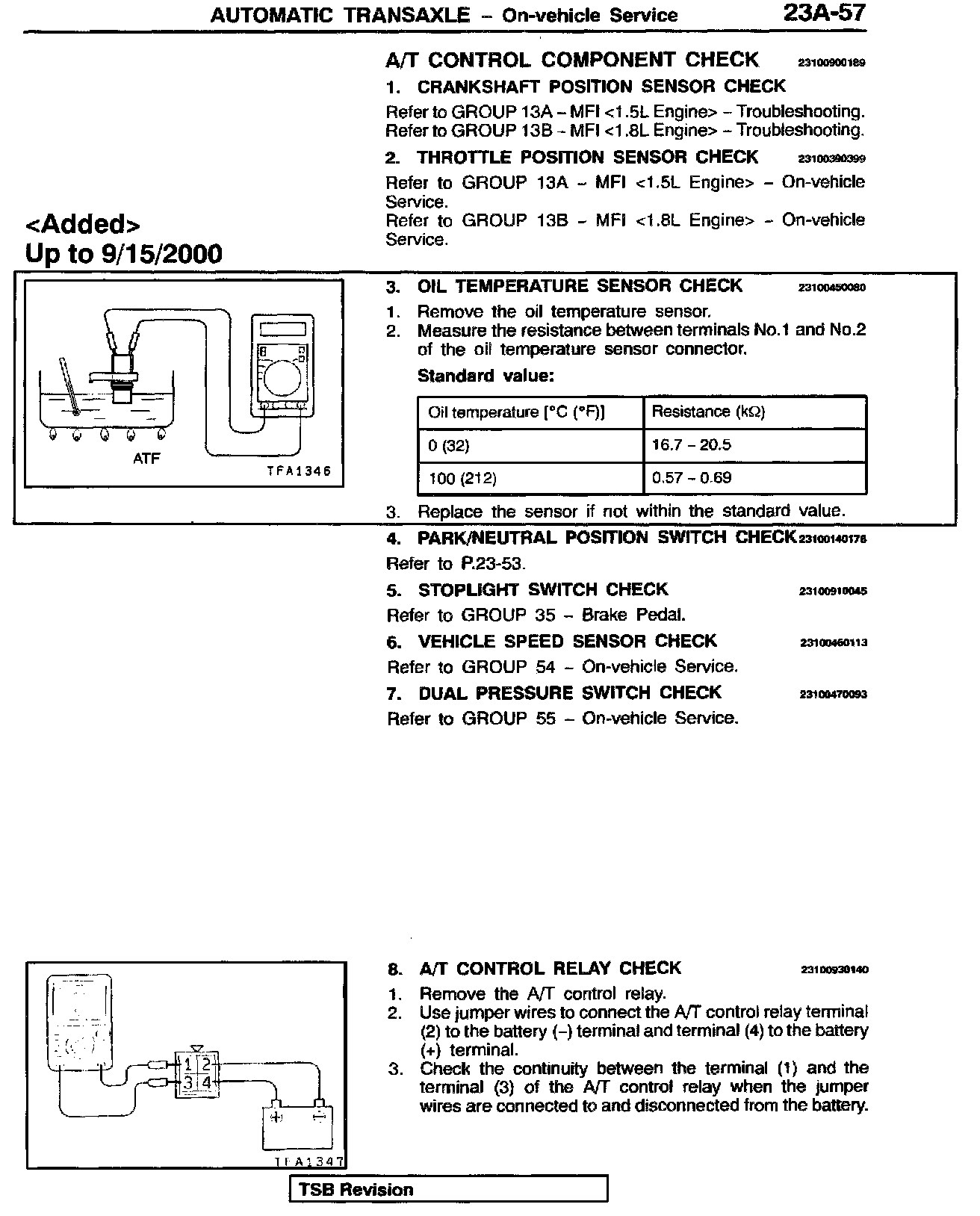

2001 Mirage Service Manual, Volume 2, page 23A-57
Add the following new information to indicate that the original service manual instructions are for only vehicle produced up to 9/15/2000. For vehicles built from 9/15/2000, refer to Figure 1.

2001 Eclipse/Eclipse Spyder Service Manual, Volume 3, page 23A-341
2001 Galant Service Manual, Volume 3, Page 23A-279
2001 Mirage Service Manual, Volume 2, Page 23A-57
Add the new A/T Fluid Temperature Sensor Check procedure in Figure 1 to each service manual page. This information is for vehicles built from 9/15/2000 which have the new solenoid harness with integral A/T temperature sensor.





2001 Eclipse/Eclipse Spyder Service Manual, Volume 4, Pages 90-85, 95,105
2001 Galant Service Manual, Volume 4, Page 90-57
2001 Mirage Service Manual, Volume 2, Page 90-71
