Hydraulic Pressure Tests

The content of this article/image reflects the changes called out by TSB 03-23-001



HYDRAULIC PRESSURE TESTS
1. Check the A/T fluid level and temperature. Check engine coolant temperature.
^ A/T fluid level: "HOT" mark on the dipstick
^ A/T fluid temperature: 70 - 80°C (158 - 176°F)
^ Engine coolant temperature: 80 - 100°C (176 - 212°F)
2. Jack up the vehicle so that the wheels are free to turn.





3. Connect the special tools (2,942 kPa (427 psi) oil pressure gauge [MD998330] and adapters [MD998332, MD998900]) to each pressure discharge port.

NOTE:
^ 2ND.Second brake pressure port
^ UD: Underdrive clutch pressure port
^ LR: Low-reverse brake pressure port
^ DA: Torque converter apply pressure port
^ DR: Torque converter release pressure port
^ RV.Reverse clutch pressure port
^ OD: Overdrive clutch pressure port





4. Measure the hydraulic pressure at each port under the conditions given in the standard hydraulic pressure table, and check that the measured values are within the standard value ranges.





5. If a value is outside the standard range, correct the problem while referring to the hydraulic pressure test diagnosis table.

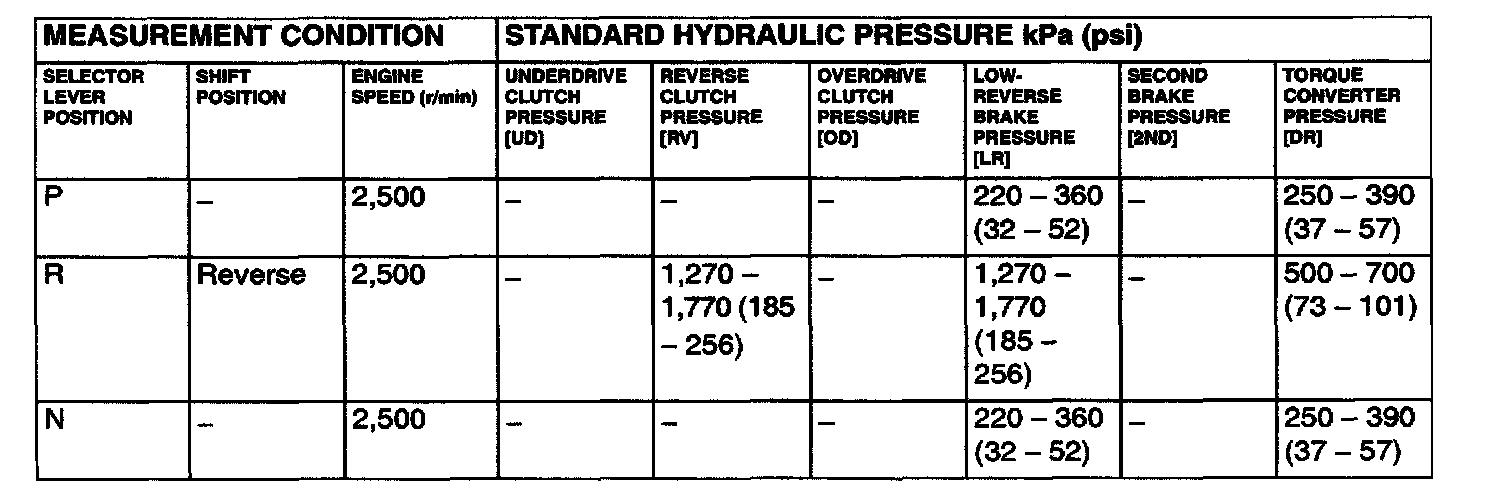

STANDARD HYDRAULIC PRESSURE TEST

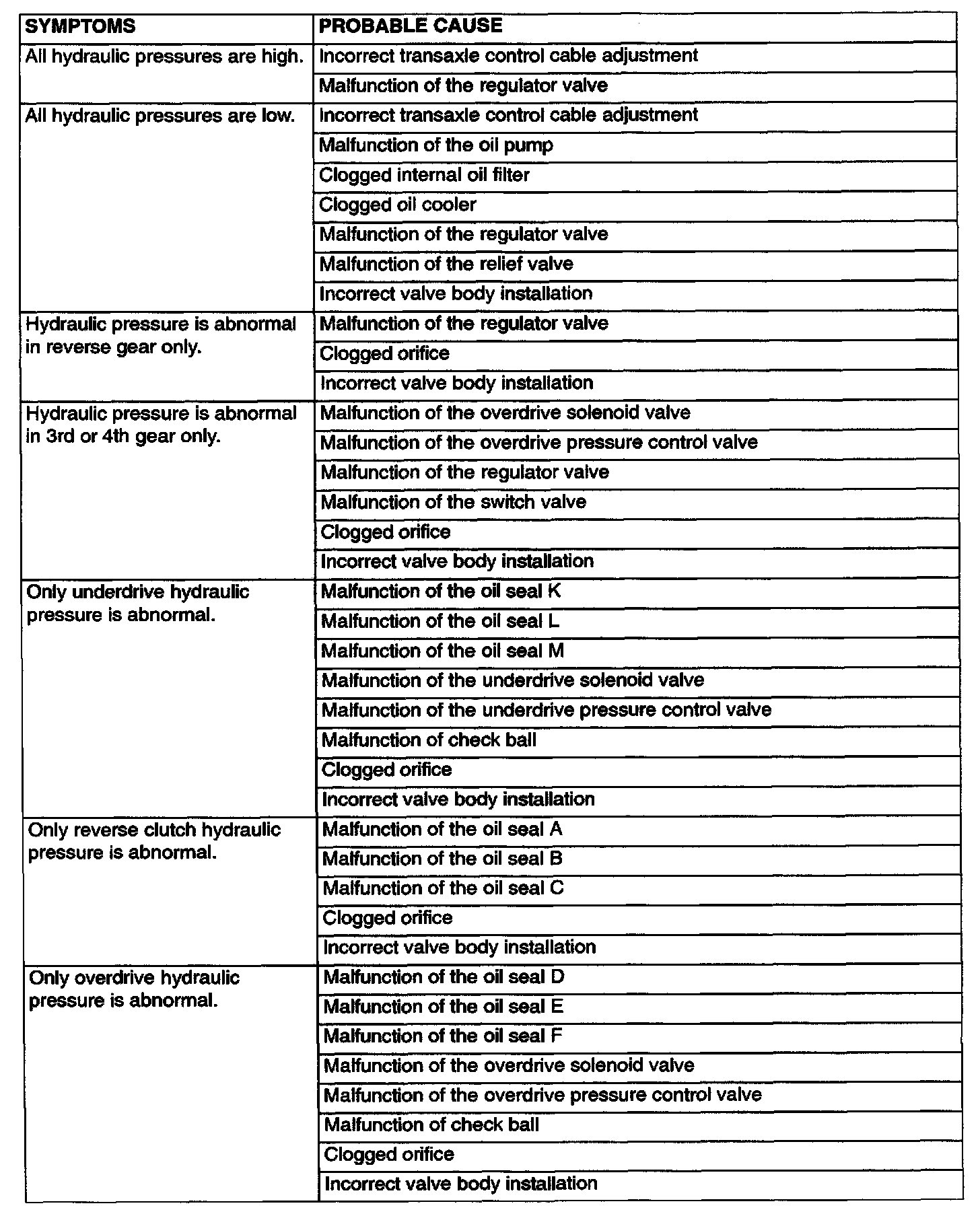

HYDRAULIC PRESSURE TEST DIAGNOSIS TABLE






OIL SEAL LAYOUT
