DTC P0441 - Service Manual Update
No.: TSB-01-13-004DATE: June, 2001
MODEL: 2001 Eclipse and Eclipse Spyder
SUBJECT:
DTC P0441 TROUBLESHOOTING - SERVICE MANUAL REVISION
PURPOSE
The affected service manual contains incomplete diagnosis and troubleshooting of Diagnostic Trouble Code P0441, "Evaporative Emission Control Incorrect Purge Flow." This bulletin contains complete DTC P0441 diagnosis and troubleshooting procedures for affected vehicles.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
2001 Eclipse and Eclipse Spyder models
AFFECTED SERVICE MANUAL
2001 Eclipse and Eclipse Spyder, Volume 1, pages 13A-6, 13A-12, 13A-13, 13A-21
2001 Eclipse and Eclipse Spyder, Volume 2, pages 13B-6, 13B-10, 13B-11, 13B-19

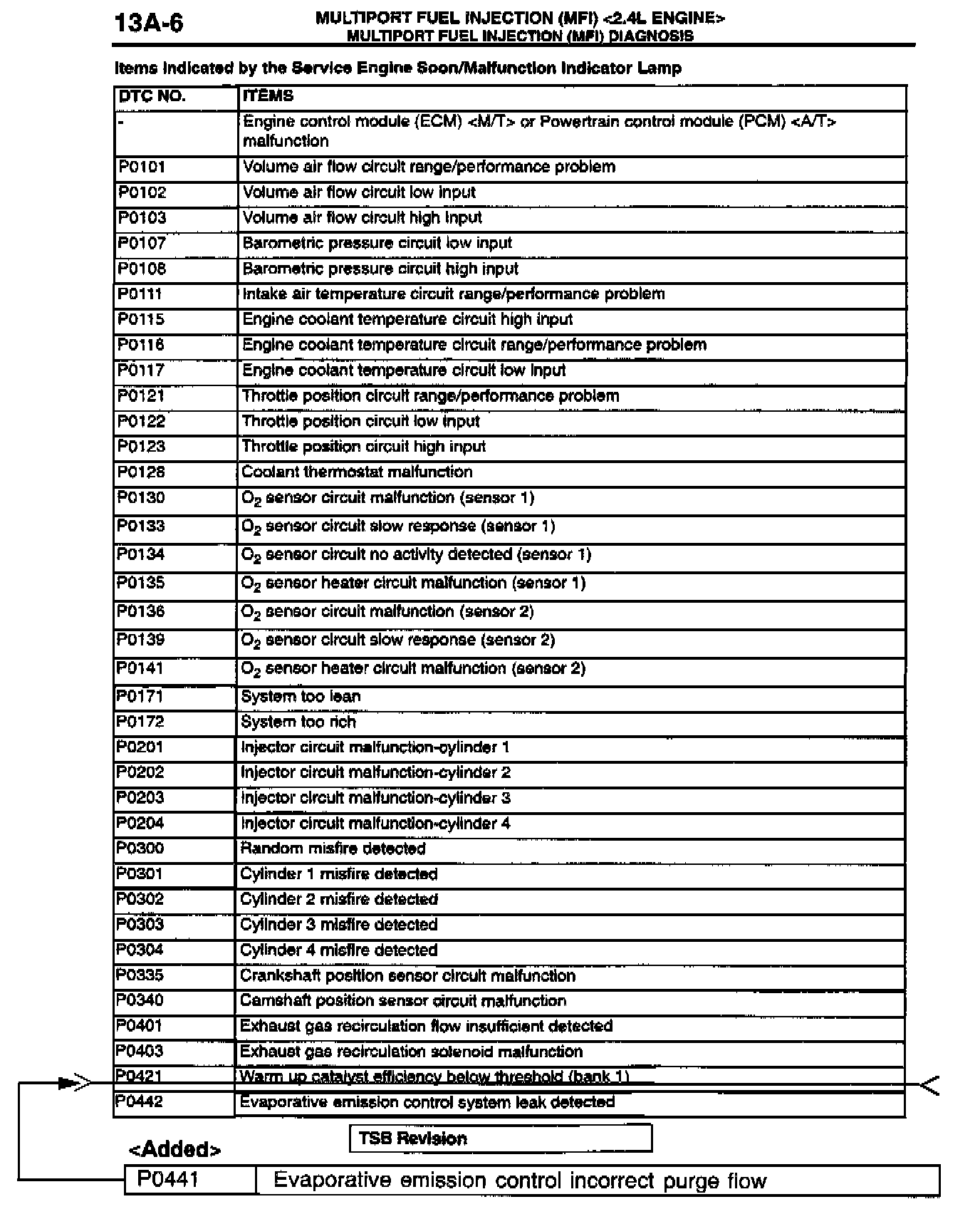

2001 Eclipse and Eclipse Spyder, Volume 1, page 13A-6

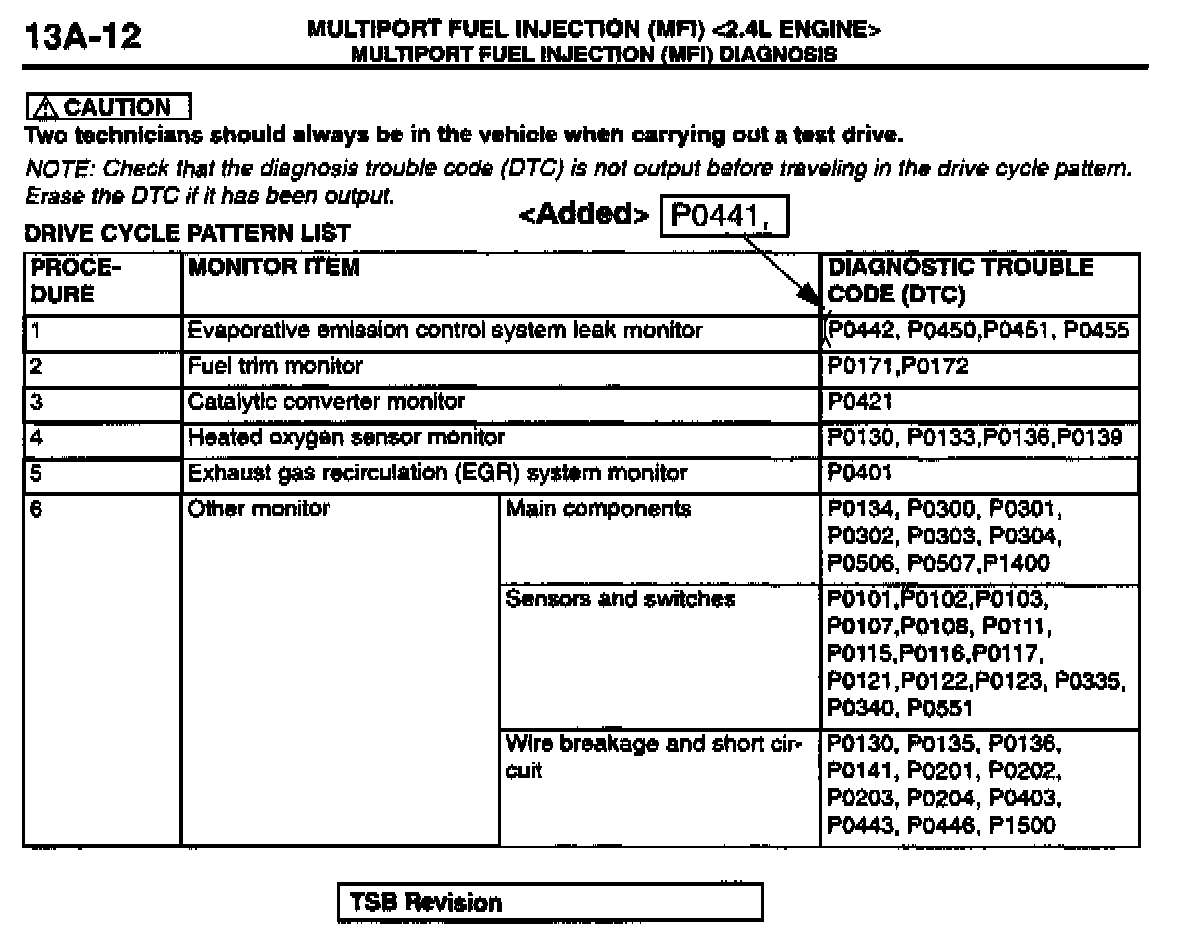

2001 Eclipse and Eclipse Spyder, Volume 1, page 13A-12
2001 Eclipse and Eclipse Spyder, Volume 1, page 13A-13

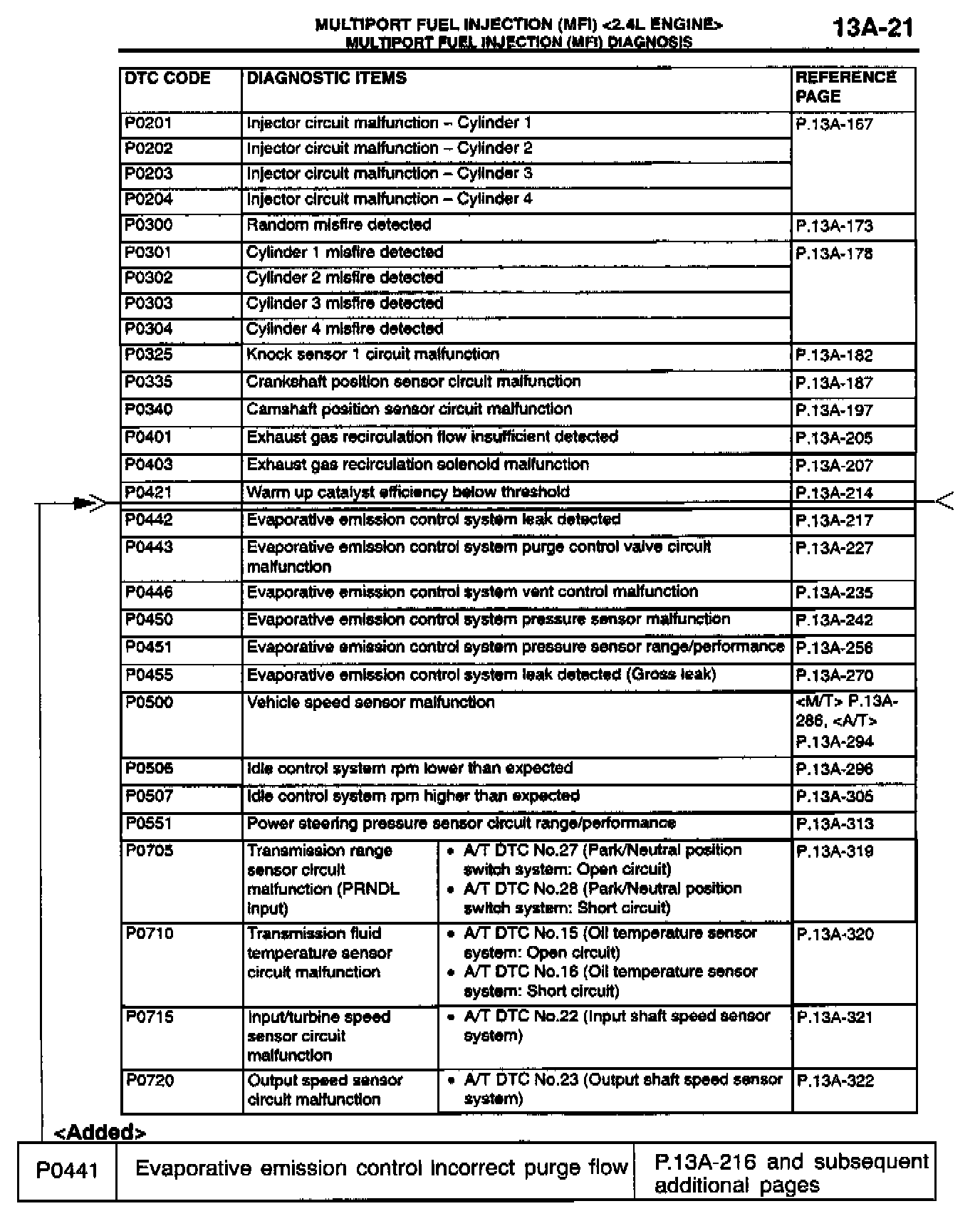

2001 Eclipse and Eclipse Spyder, Volume 1, page 13A-21

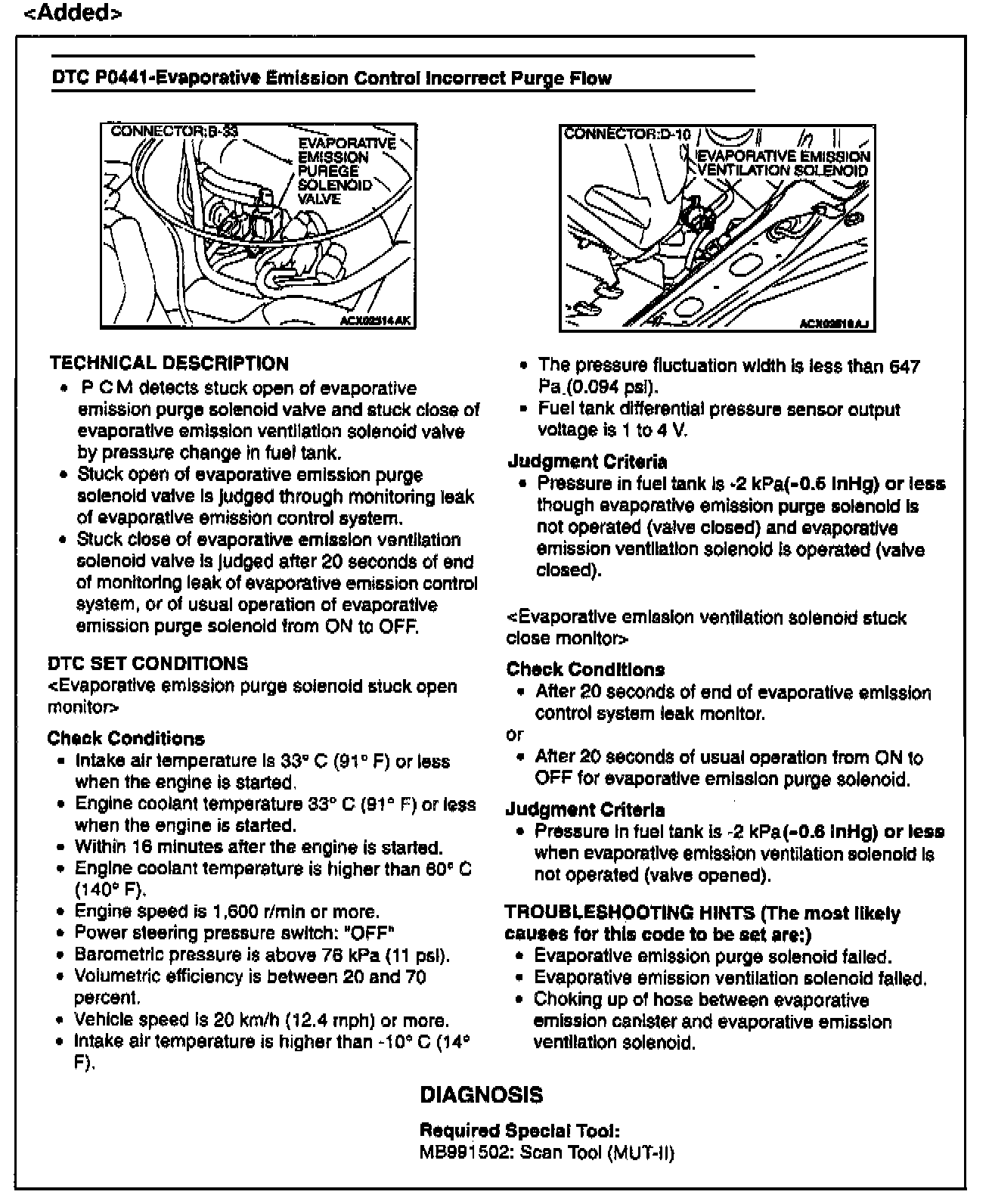

Add the following information after 2001 Eclipse and Eclipse Spyder, Volume 1, page 13A-216:

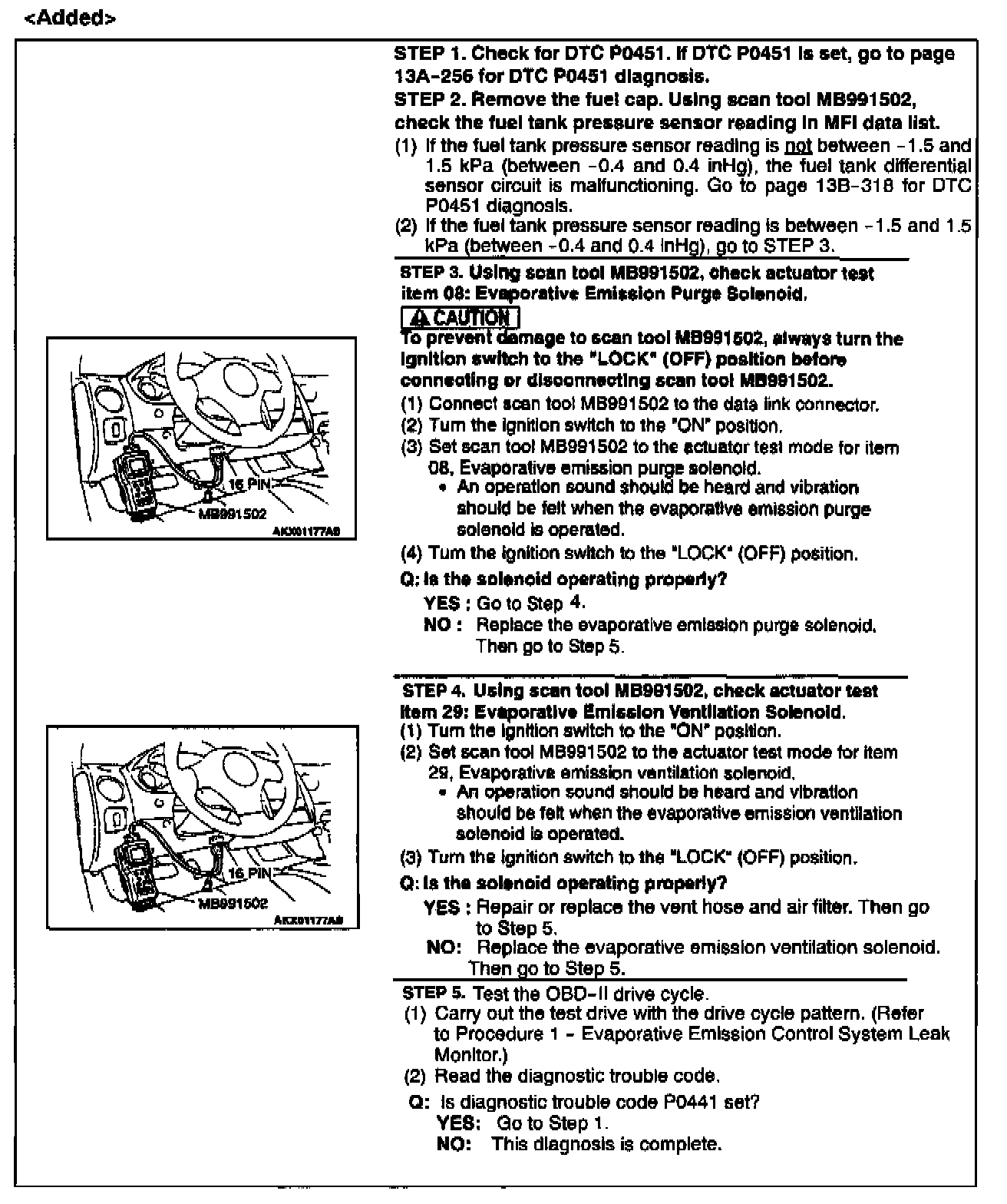

Add the following information after 2001 Eclipse and Eclipse Spyder, Volume 1, page 13A-216:

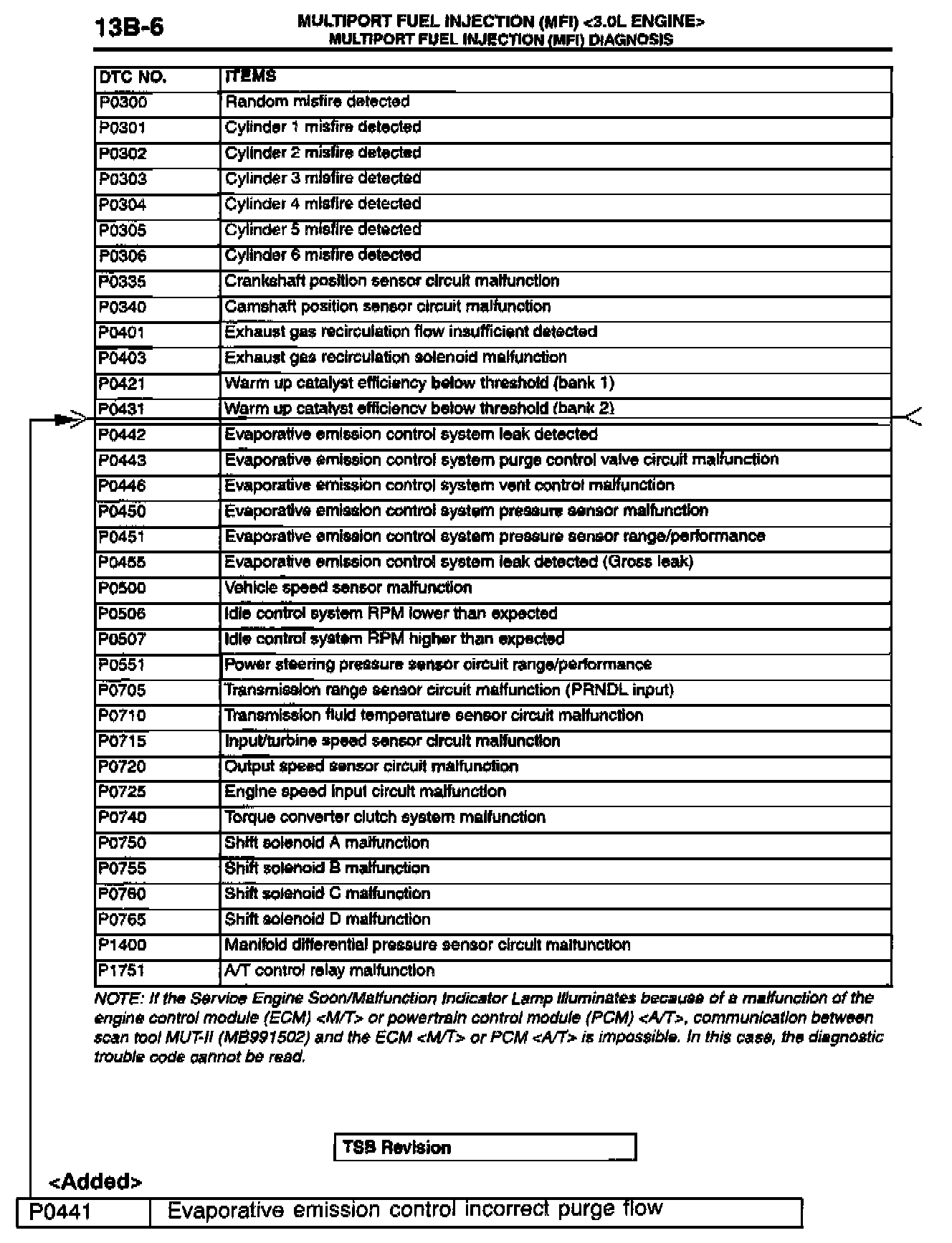

2001 Eclipse and Eclipse Spyder, Volume 2, page 13B-6
2001 Eclipse and Eclipse Spyder, Volume 2, page13B-10

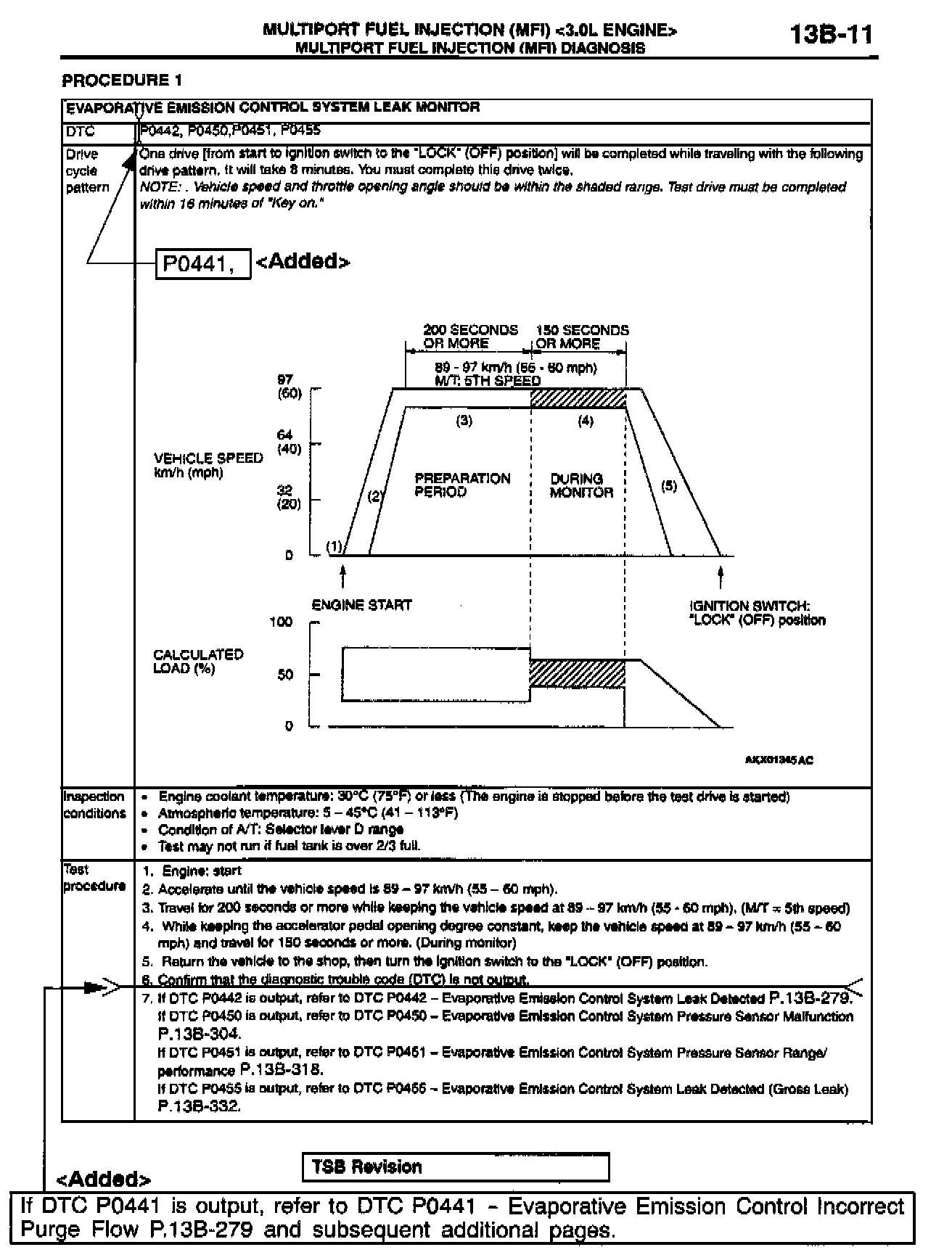

2001 Eclipse and Eclipse Spyder, Volume 2, page 13B-11

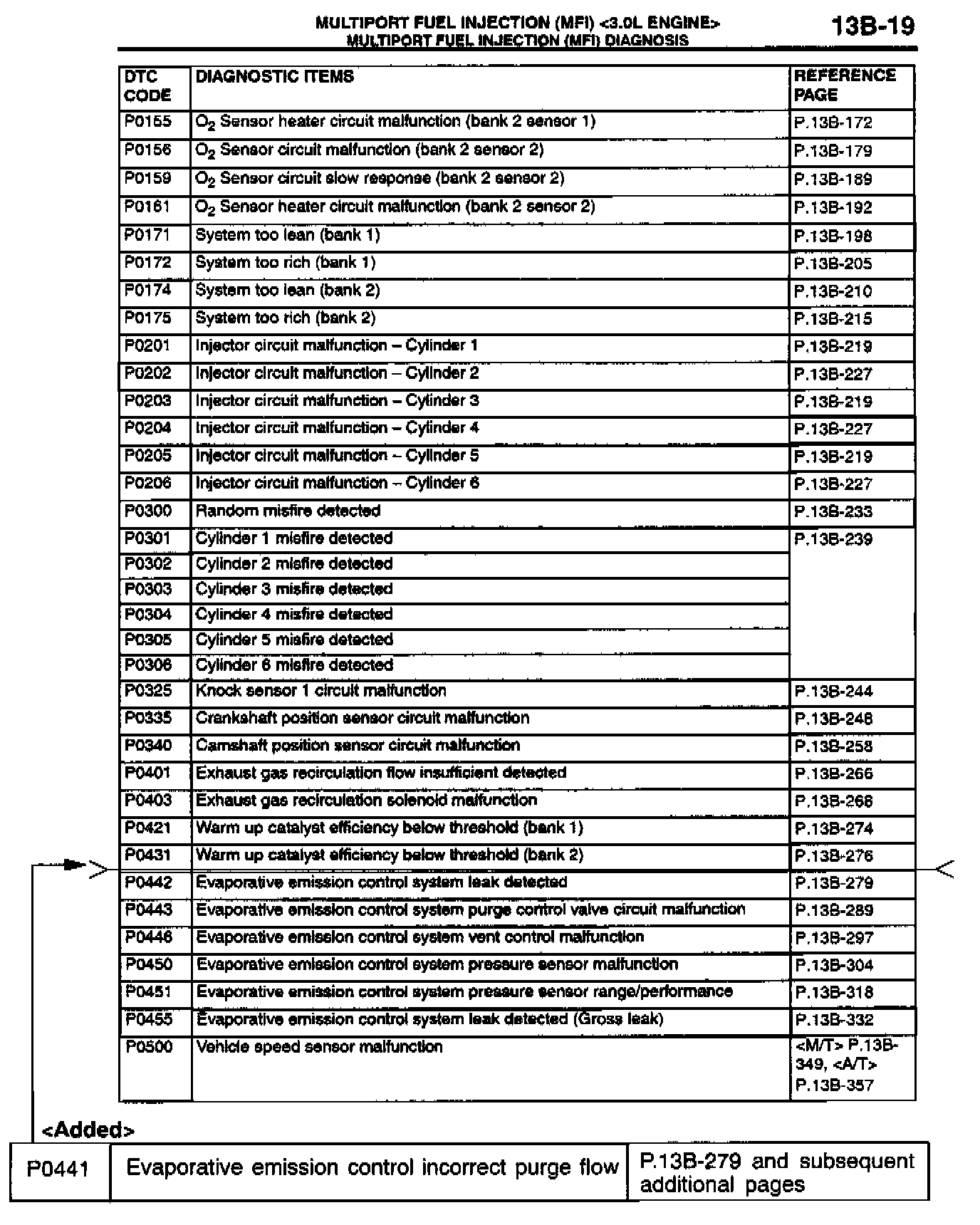

2001 Eclipse and Eclipse Spyder, Volume 2, page 13B-19
Add the following information after 2001 Eclipse and Eclipse Spyder, Volume 2, page 13B-276:
Add the following information after 2001 Eclipse and Eclipse Spyder, Volume 2, page 13B-279:
