Camshaft Position Sensor - Manual Correction

TSB-01-13-009

DATE: September, 2001

MODEL: See below

SUBJECT:
CAMSHAFT POSITION SENSOR OUTPUT
WAVE PATTERN - SERVICE MANUAL REVISION

PURPOSE

The camshaft position sensor output wave pattern is incorrectly shown on the affected service manual pages. This bulletin contains the corrected camshaft position sensor output wave pattern.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES

2001 Galant, Eclipse, and Eclipse Spyder

AFFECTED SERVICE MANUALS

2001 Galant, Volume 2, page 13B-505

2001 Eclipse/Eclipse Spyder, Volume 2, page 13B-539

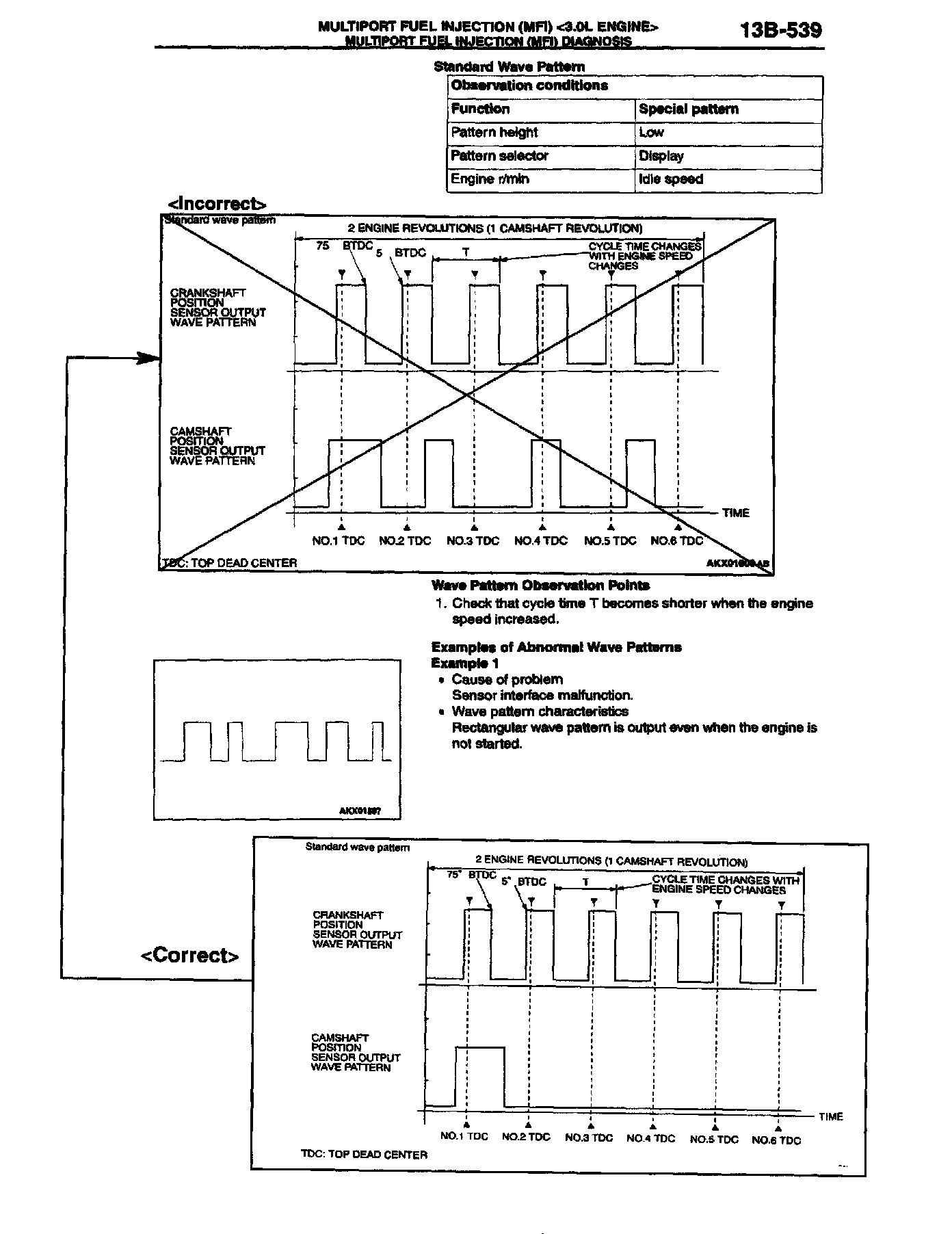

2001 Galant, Volume 2, page 13B-505 Replace the wave pattern:





2001 Eclipse/Eclipse Spyder, Volume 2, page 13B-539
