Removal and Replacement

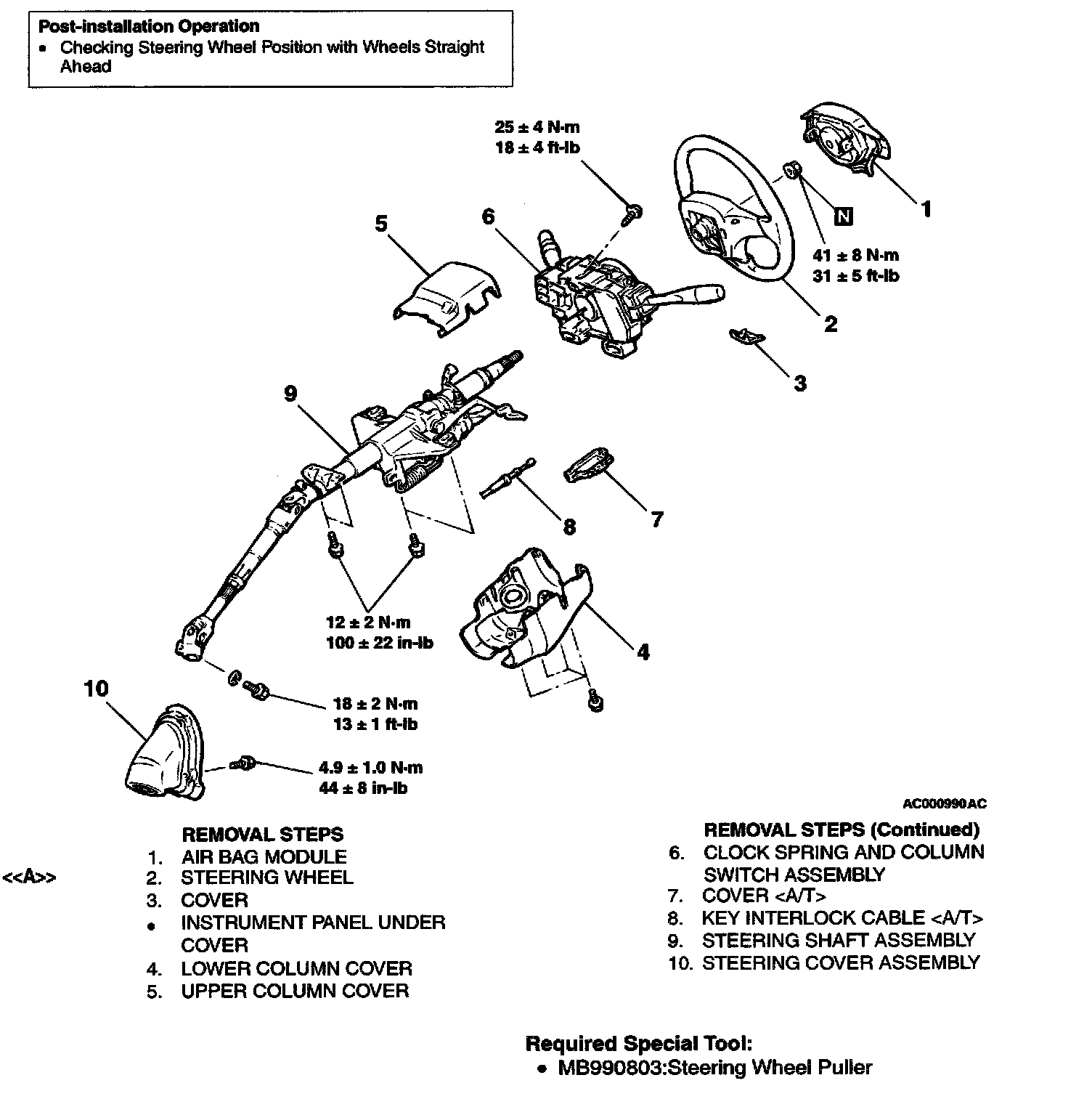

REMOVAL AND INSTALLATION

WARNING:
^ Before removing the air bag module, refer to the precautions under Air Bag.
^ When removing and installing the steering wheel, do not let it bump against the air bag module.

REMOVAL SERVICE POINT
[[A]] STEERING WHEEL REMOVAL

CAUTION: Do not hammer on the steering wheel to remove it; doing so will damage the collapsible mechanism.

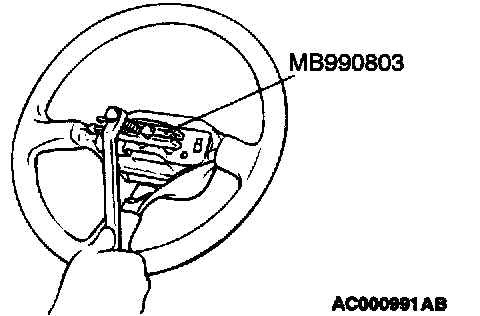

Use special tool MB990803 to remove the steering wheel.
