Eclipse Spyder GT V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Diagrams
>>
Electrical Diagrams
>>
A/T
A/T

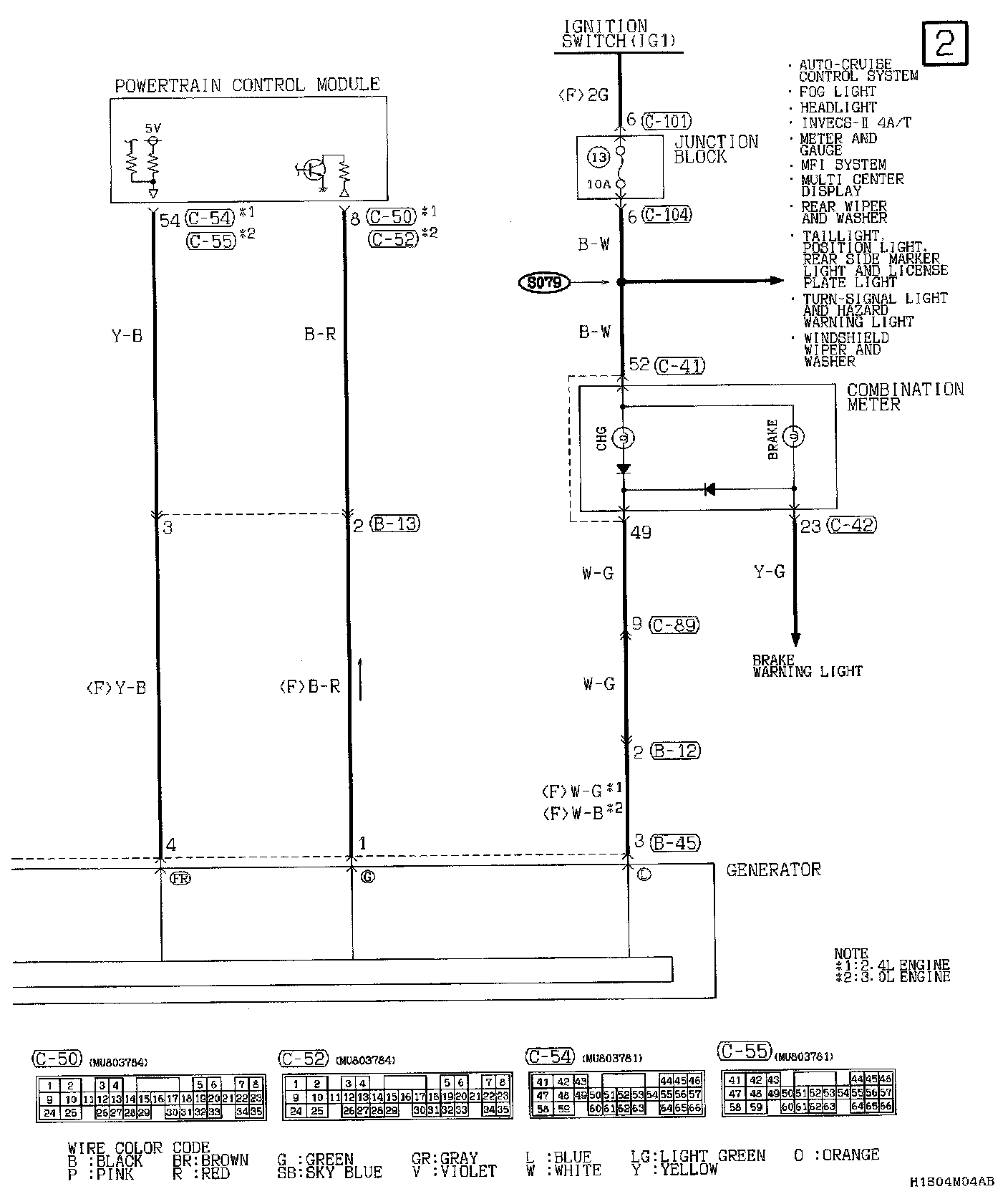

Charging System <A/T> Part 1:
Charging System <A/T> Part 2:
