Pinout Values and Diagnostic Parameters
DATA LIST REFERENCE TABLE
ACTUATOR TEST REFERENCE TABLE
INVECS-II CANCEL COMMAND

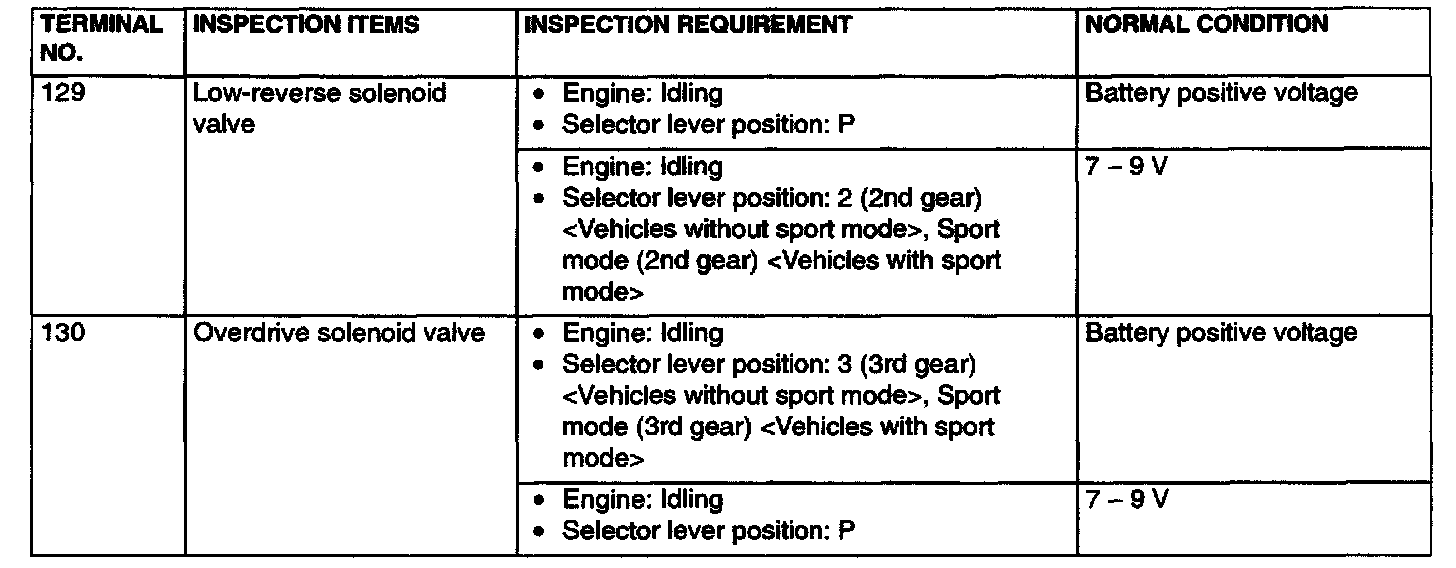

PCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSAXLE OPERATION
PCM TERMINAL RESISTANCE AND CONTINUITY INSPECTION CHART

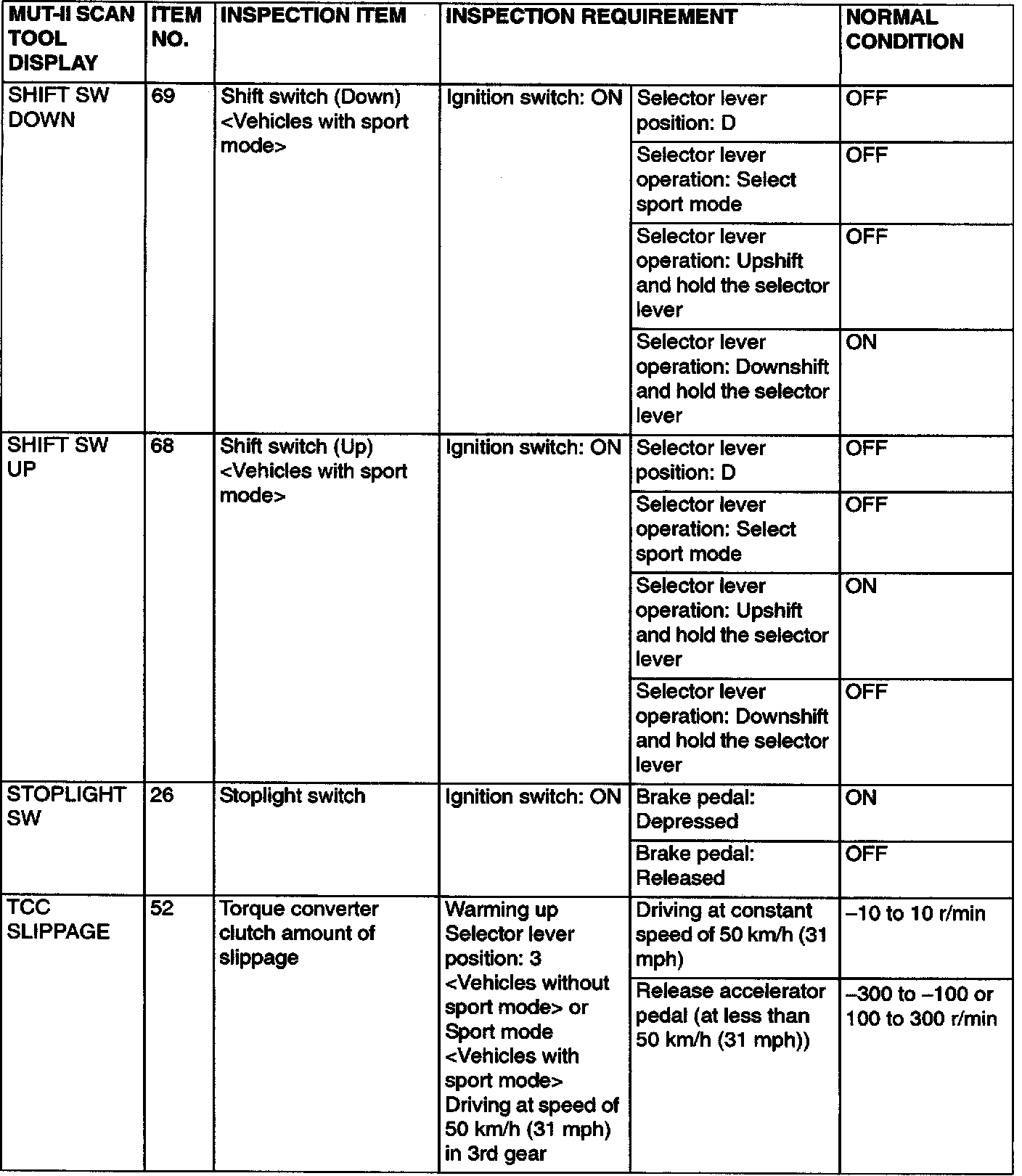

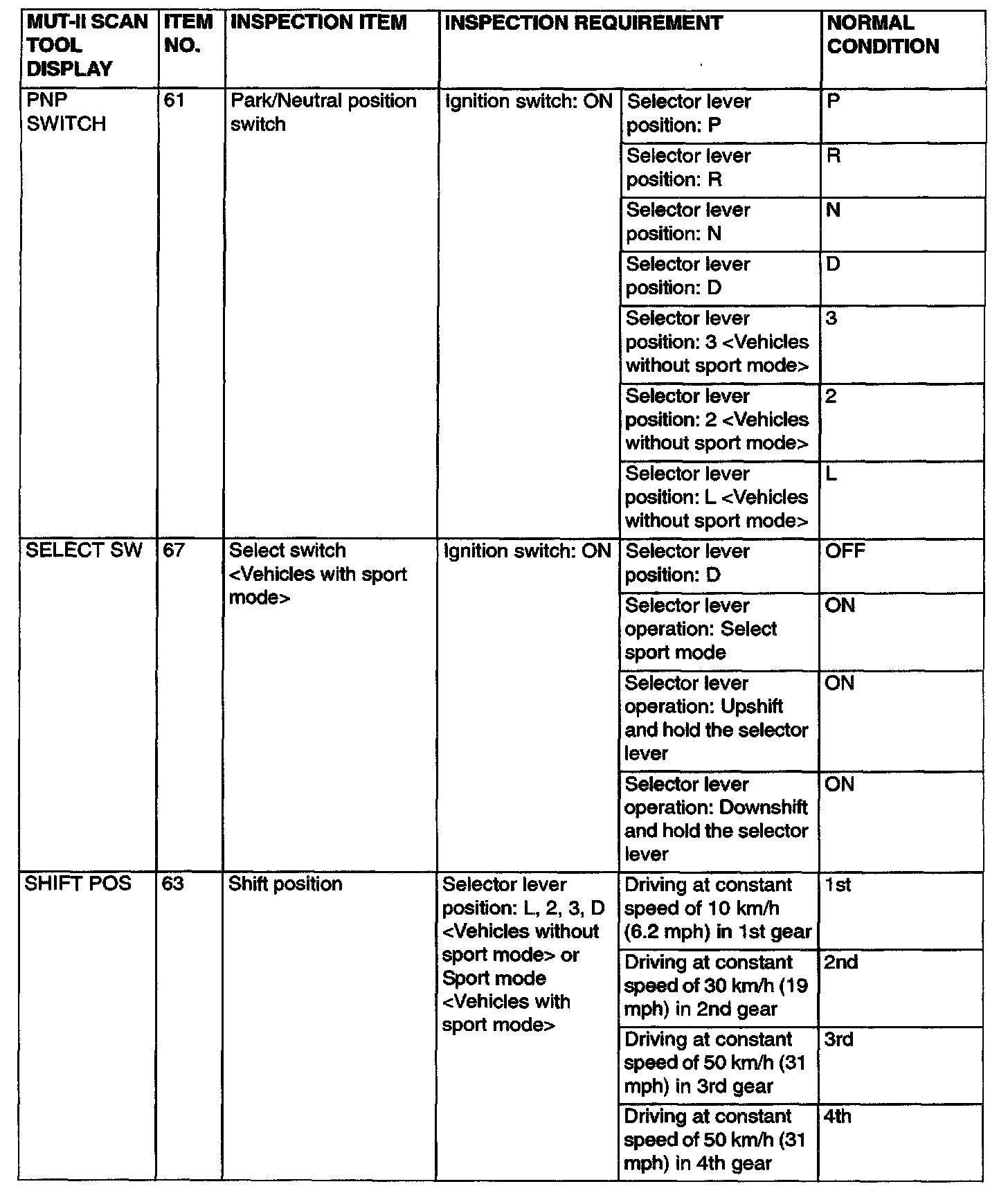

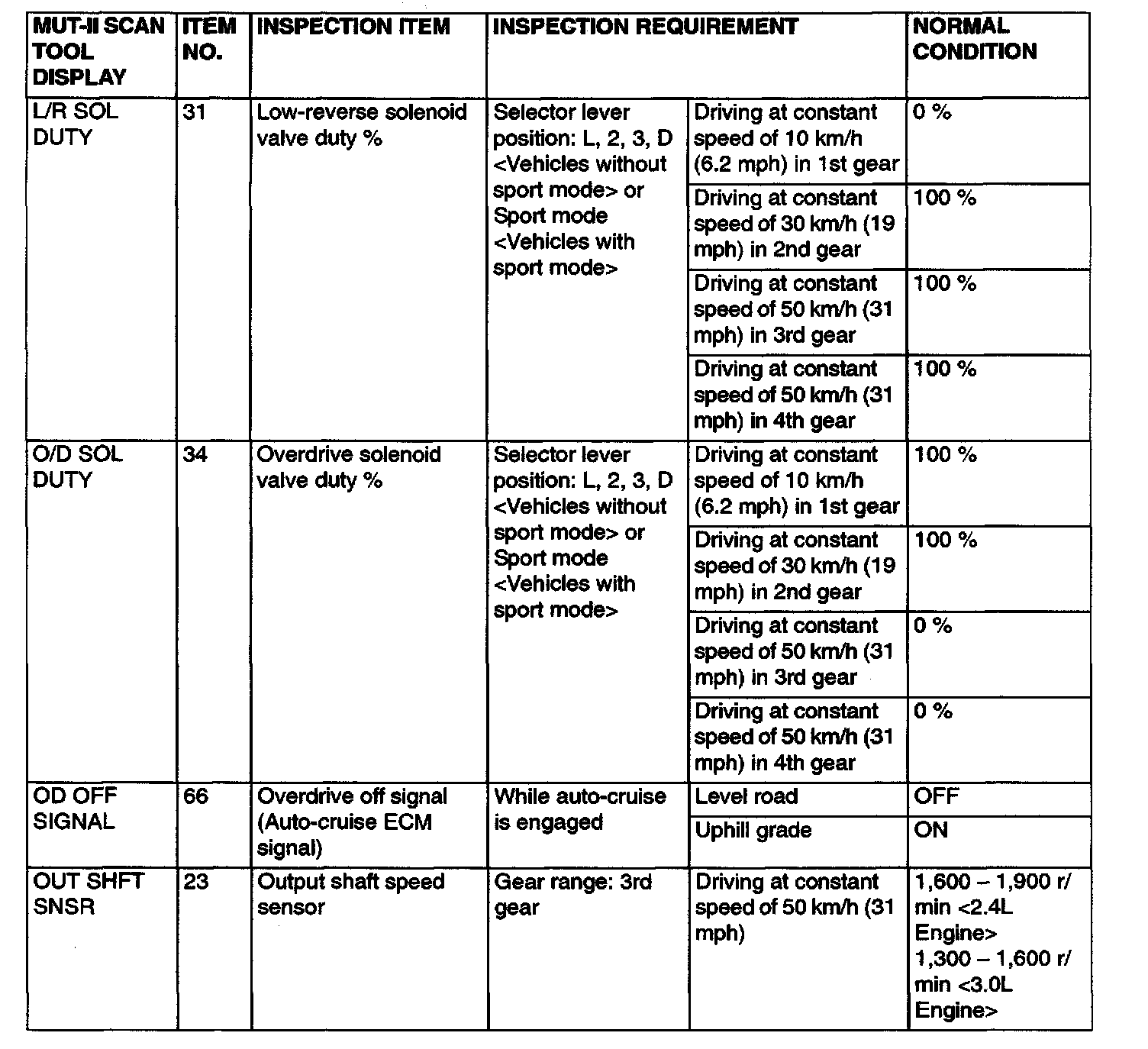

DATA LIST REFERENCE TABLE
ACTUATOR TEST REFERENCE TABLE

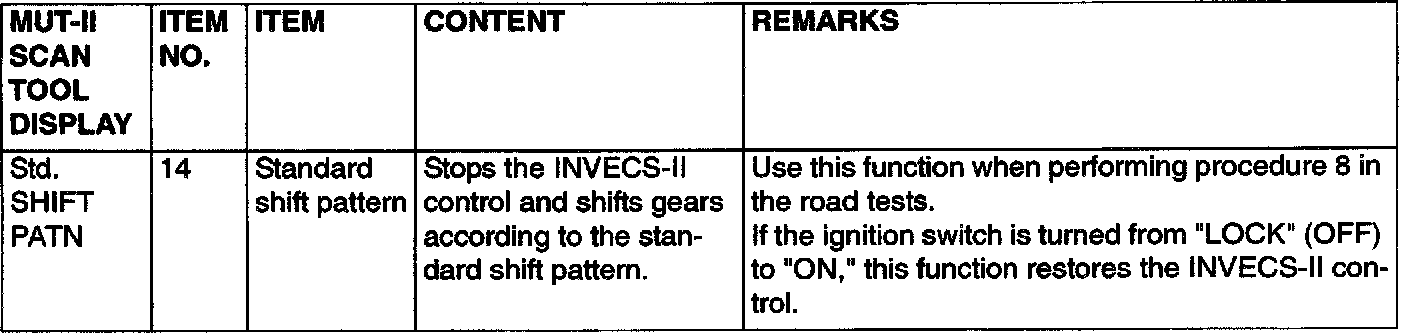

INVECS-II CANCEL COMMAND

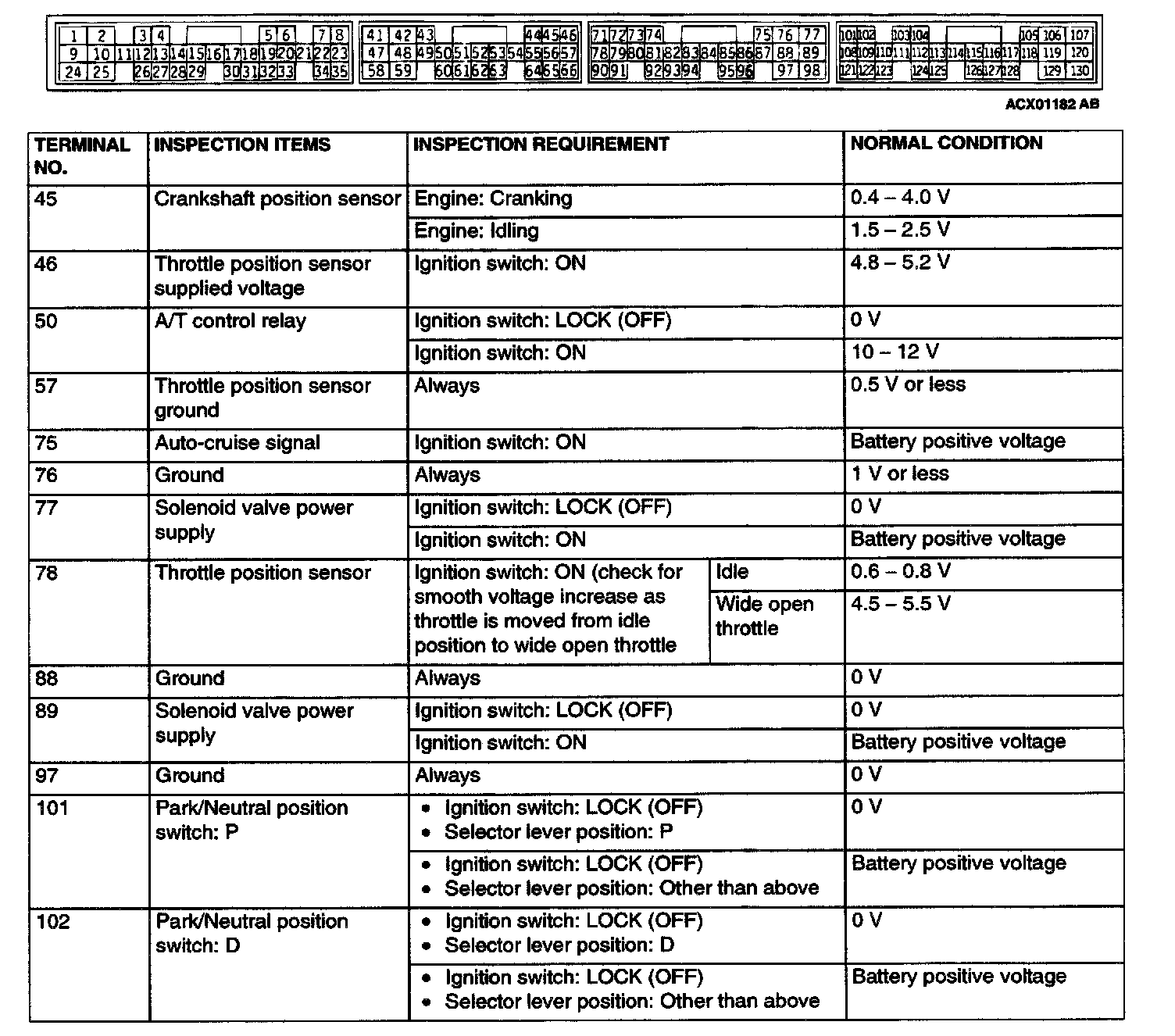

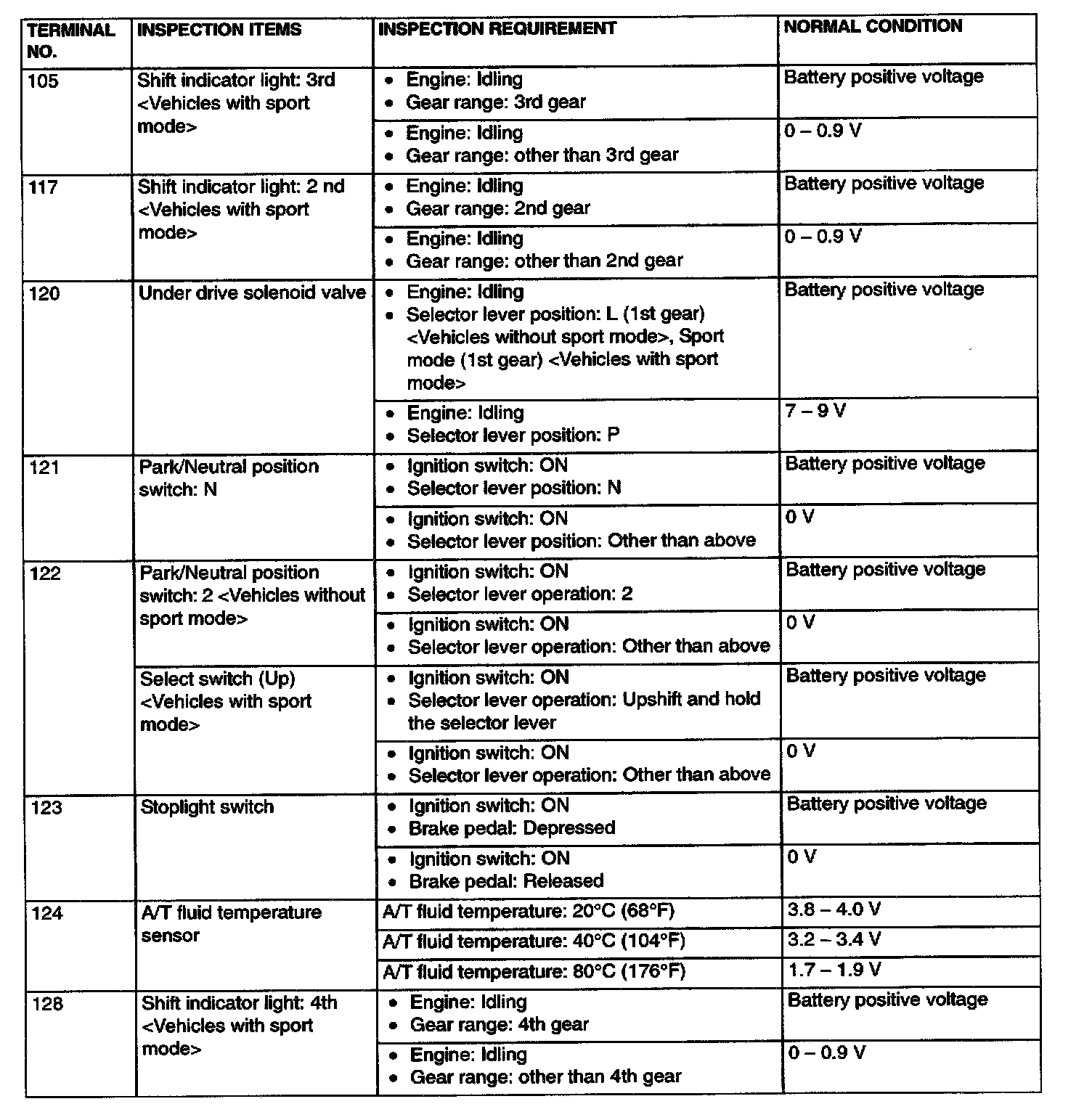

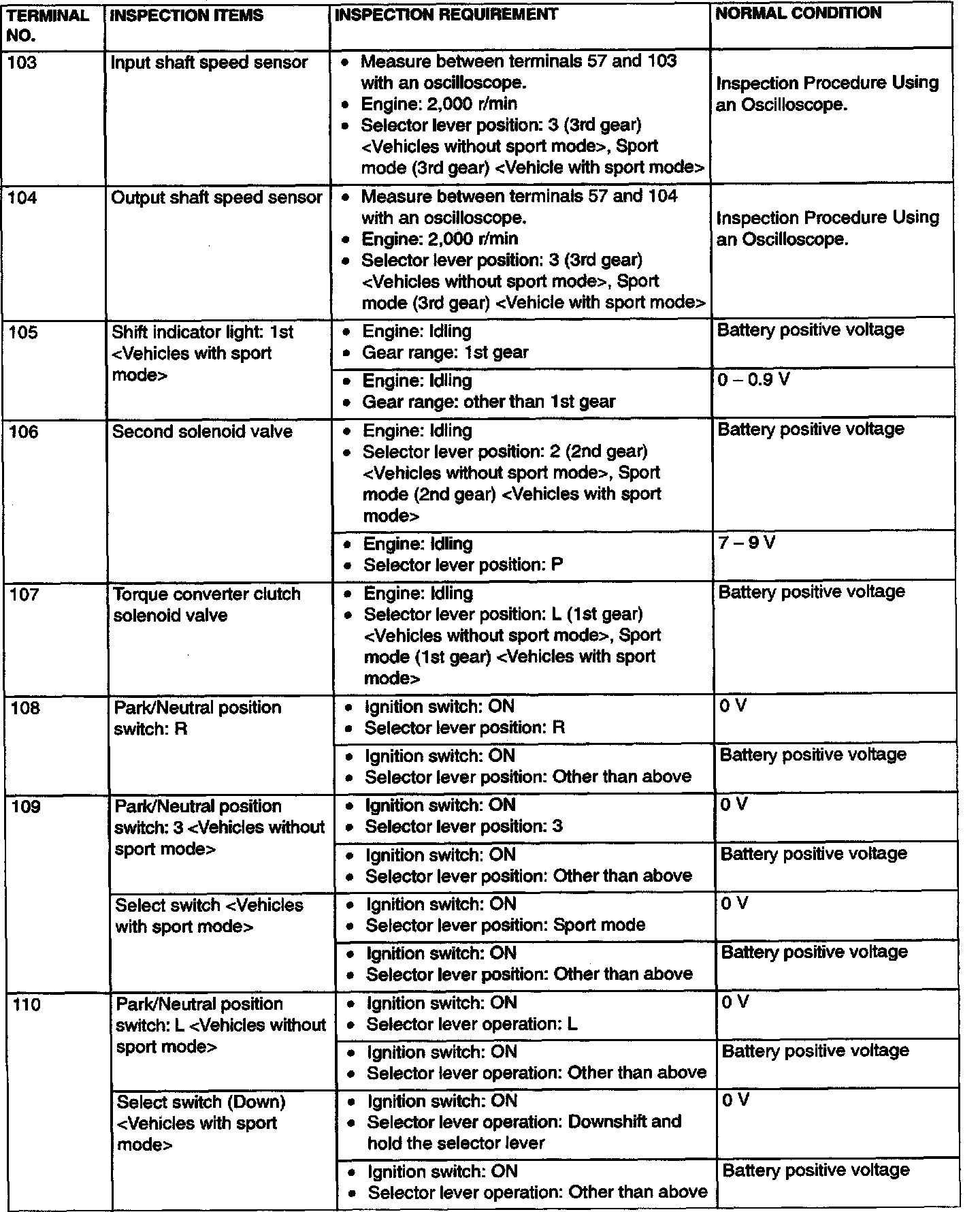

PCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSAXLE OPERATION

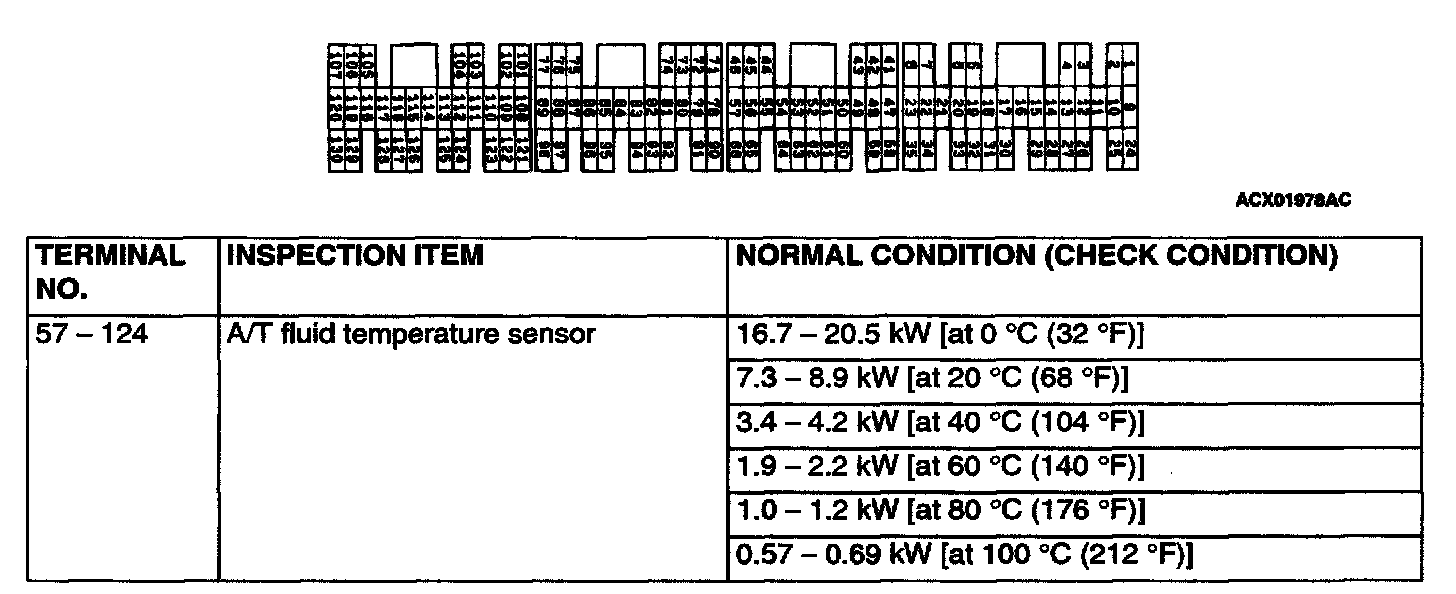

PCM TERMINAL RESISTANCE AND CONTINUITY INSPECTION CHART
