Component Tests and General Diagnostics

INJECTOR CHECK

Standard value:

1. Disconnect the injector intermediate connector.

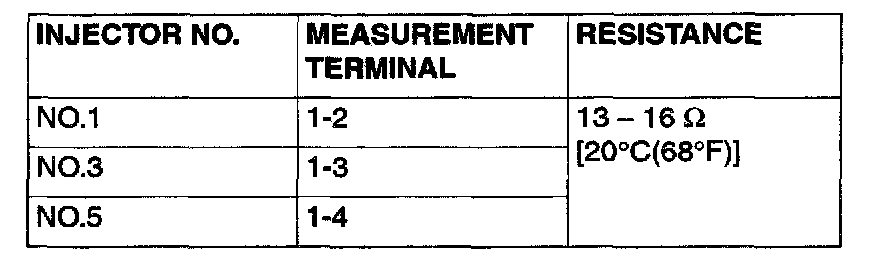

2. Measure the resistance between the injector intermediate connector terminals.




Standard value: 13 - 16 ohm [at 20 °C (68 °F)]




3. Connect the injector intermediate connector.


1. Disconnect the injector connector.
2. Measure the resistance between injector side connector terminals 1 and 2.
Standard value: 13 - 16 ohm [at 20 °C (68 °F)]

3. Connect the injector connector.
