Evaporative Emissions System: Service and Repair

VACUUM HOSE INSTALLATION

1. When connecting the vacuum hoses, they should be securely inserted into the nipples.
2. Connect the hoses correctly, using the VACUUM HOSE ROUTING as a guide.

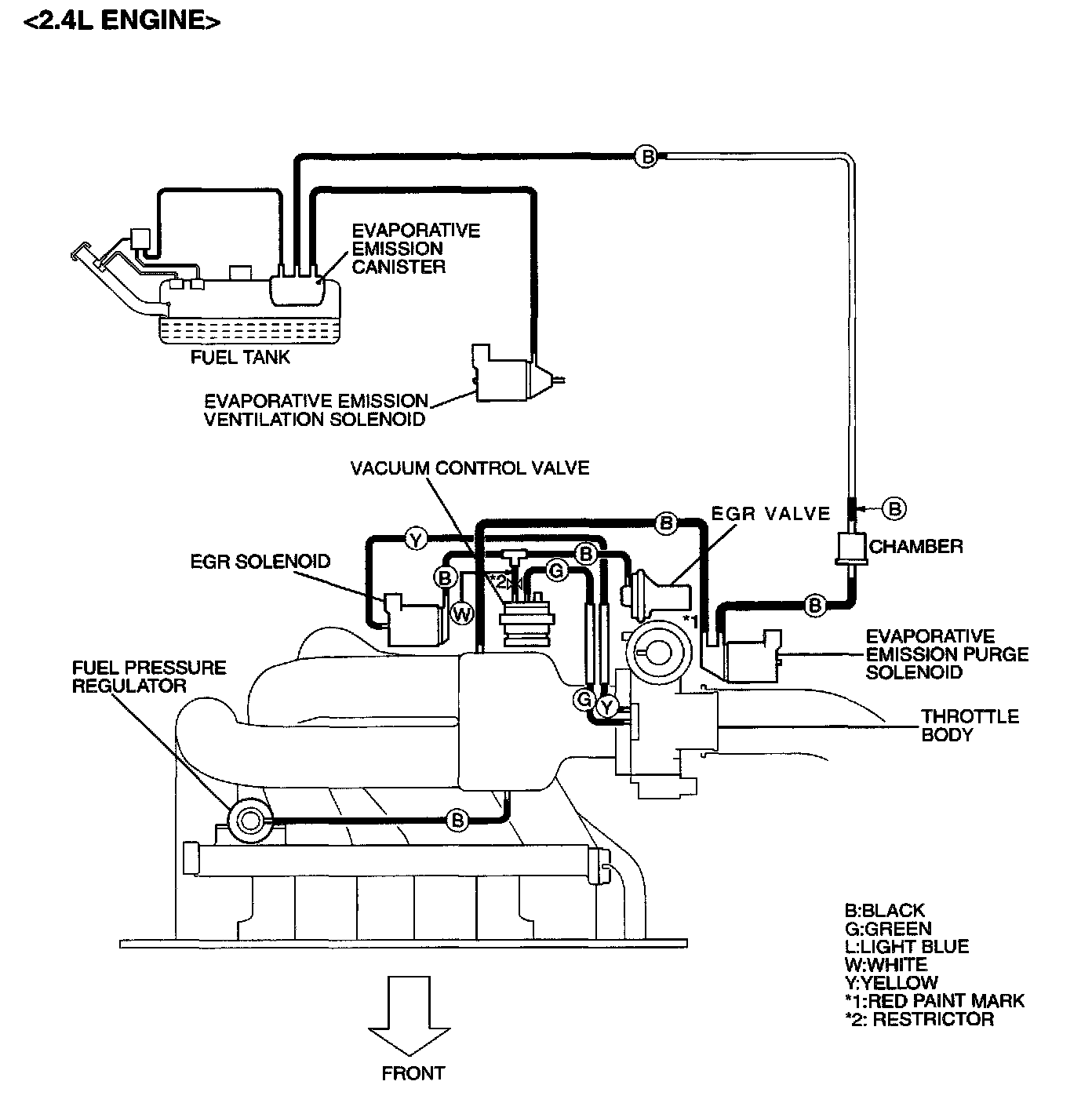

Vacuum Hose Routing - 2.4L:




Vacuum Hose Routing - 3.0L:
