Dash Panel
Dash Panel

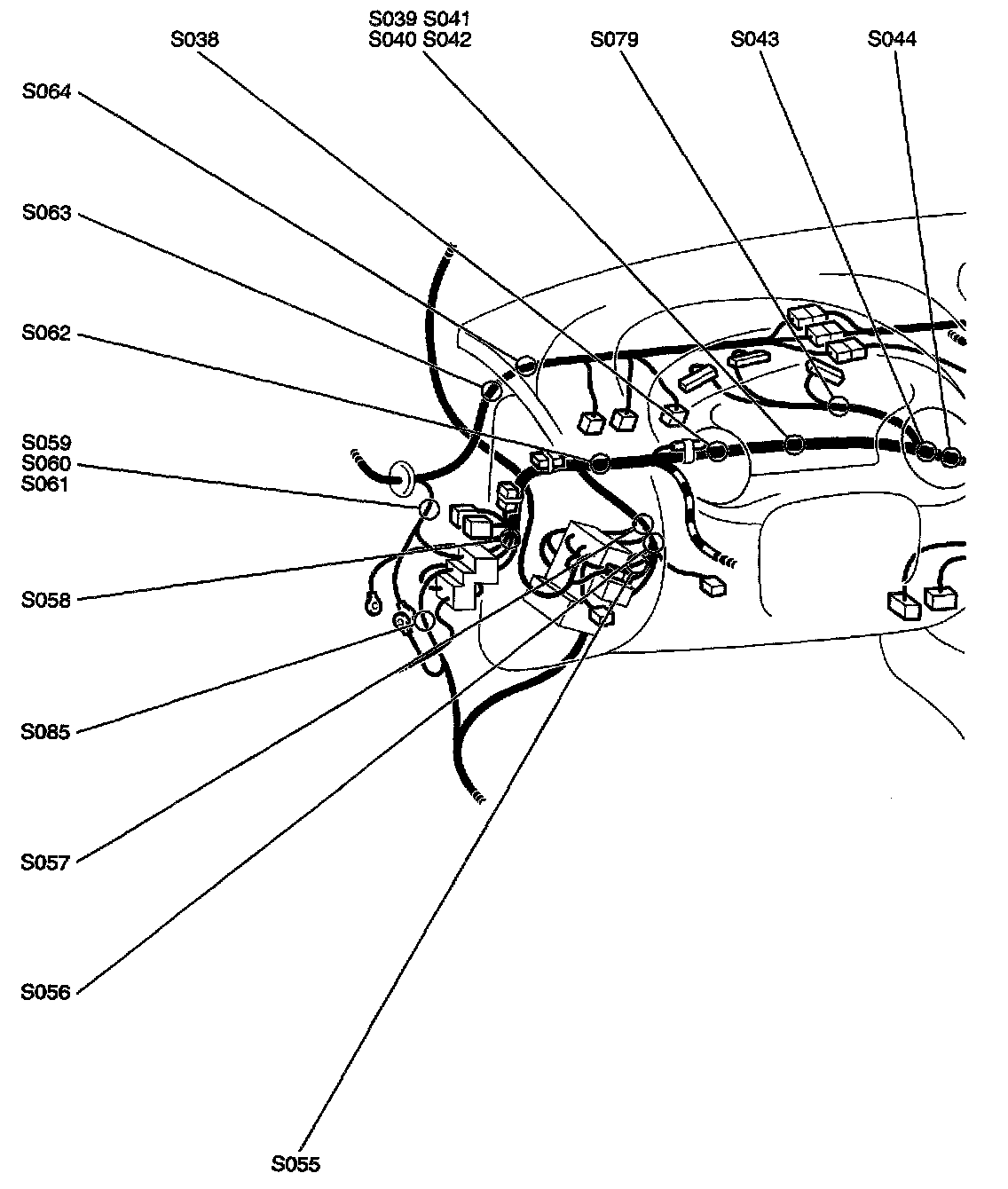

S038 - S044, S055 - S064, S079 And S085:

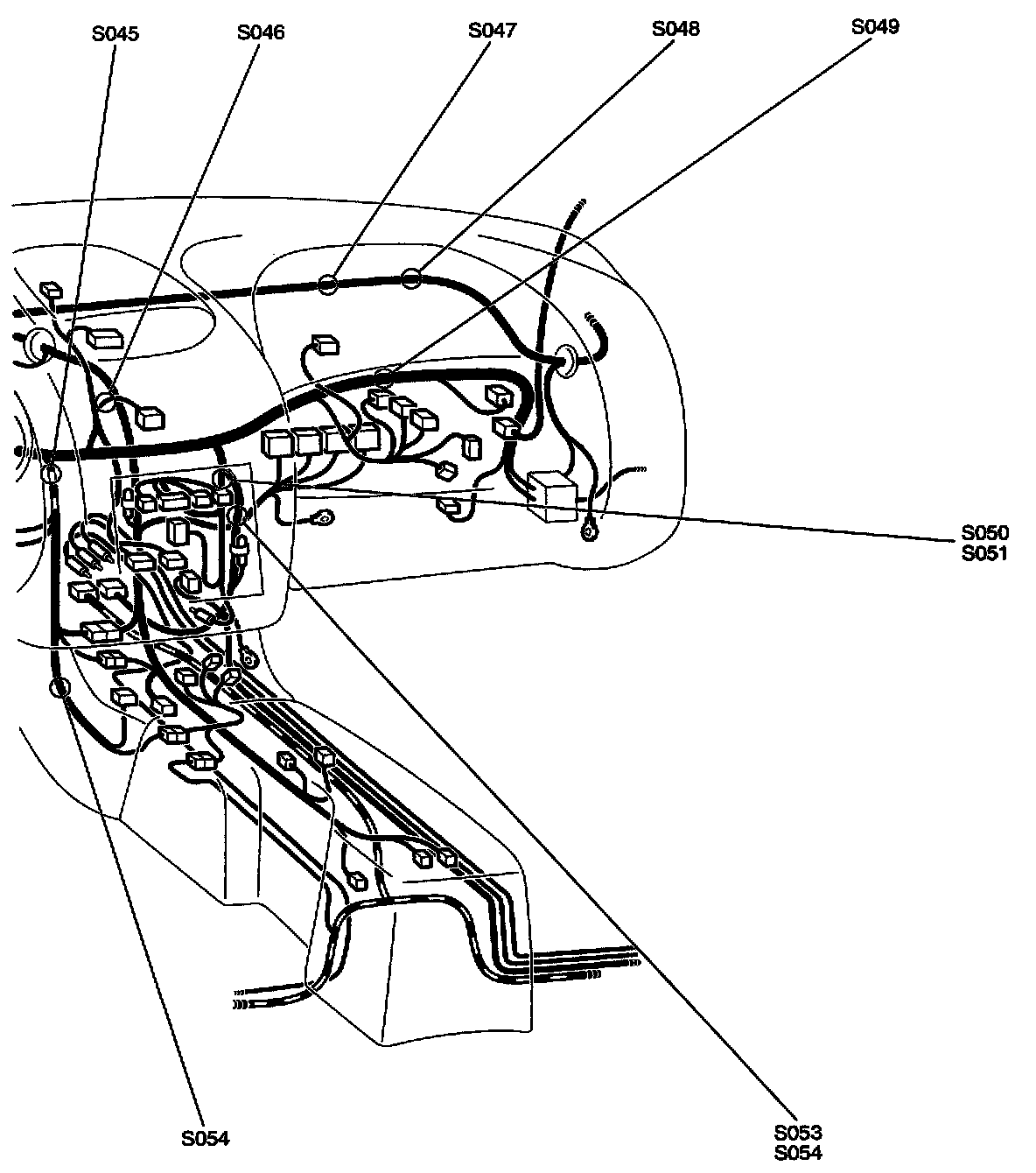

S045 - S051 And S053 - S054:

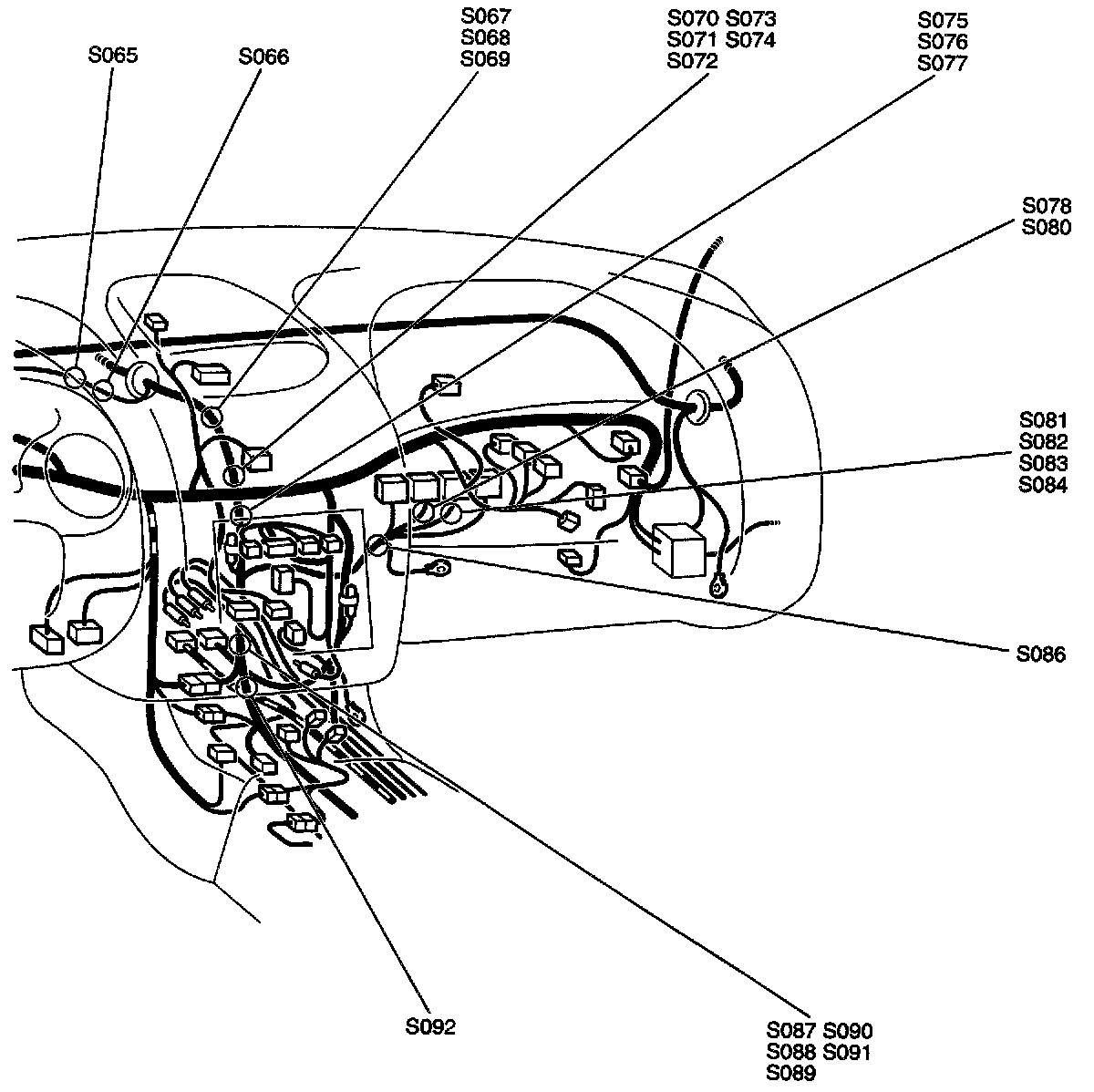

S065 - S078, S080 - S084 And S086 - S092:
