Combination Meter Removal and Installation

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in Air Bag Module and Clock Spring.

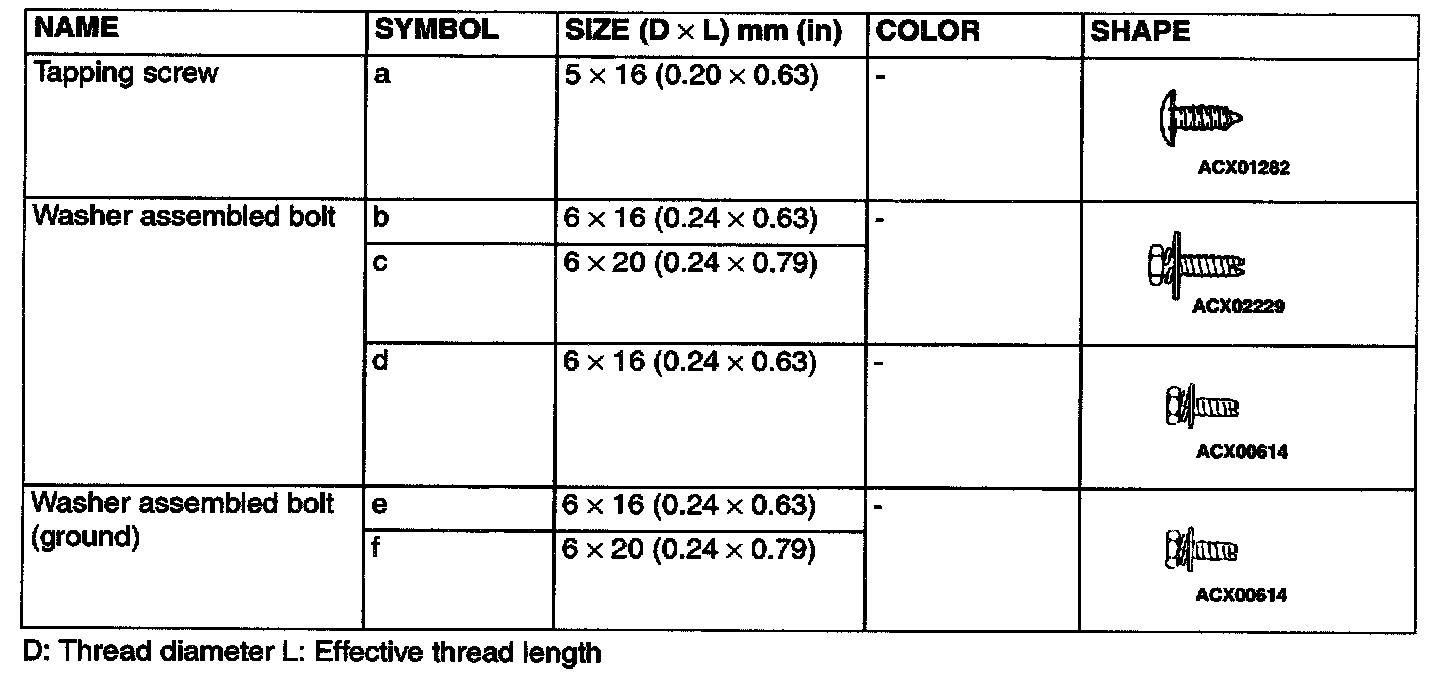

The bolts and screws described are used for installation of the instrument panel. They are indicated by symbols in the illustration.

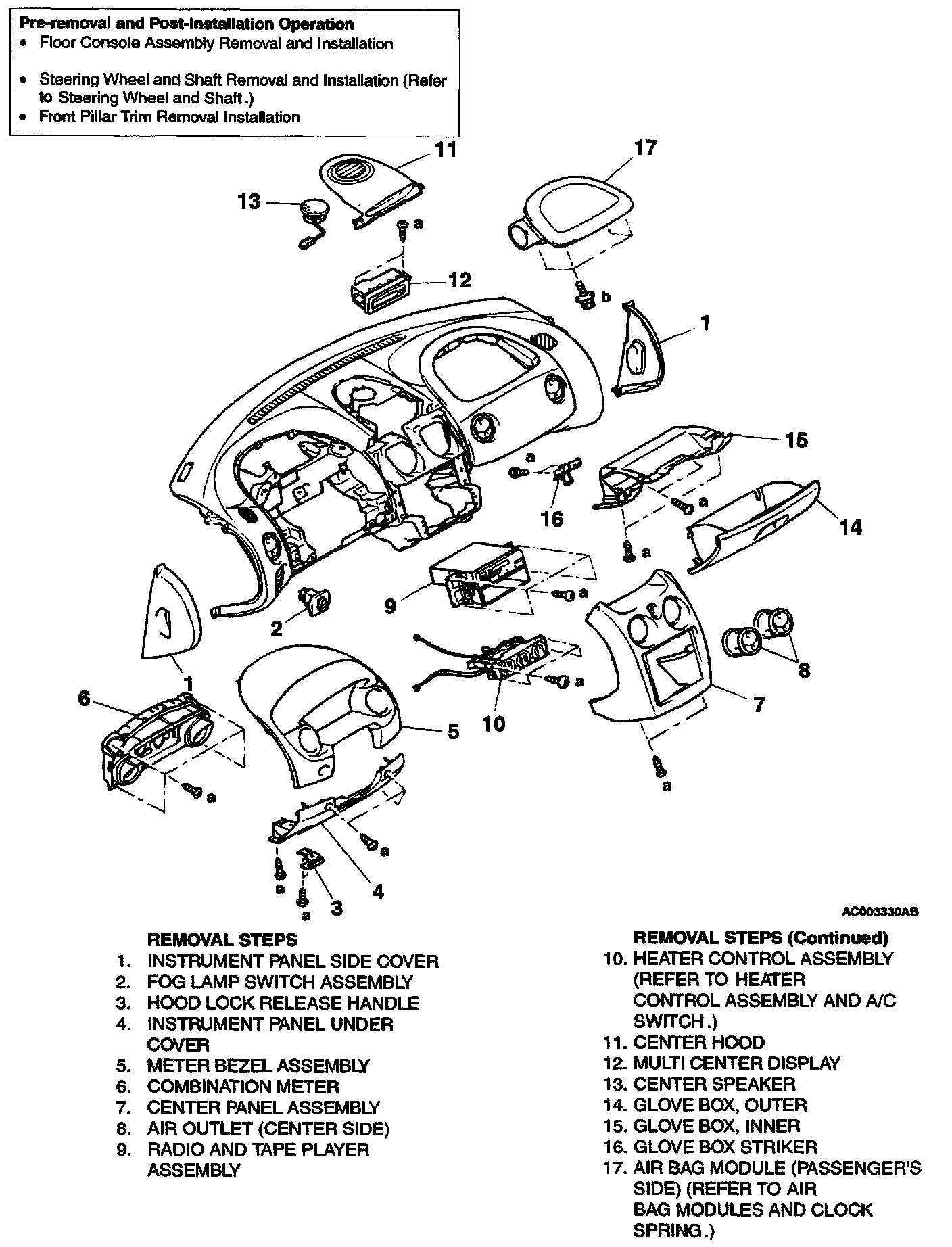

Instrument Panel Assembly Part 1:

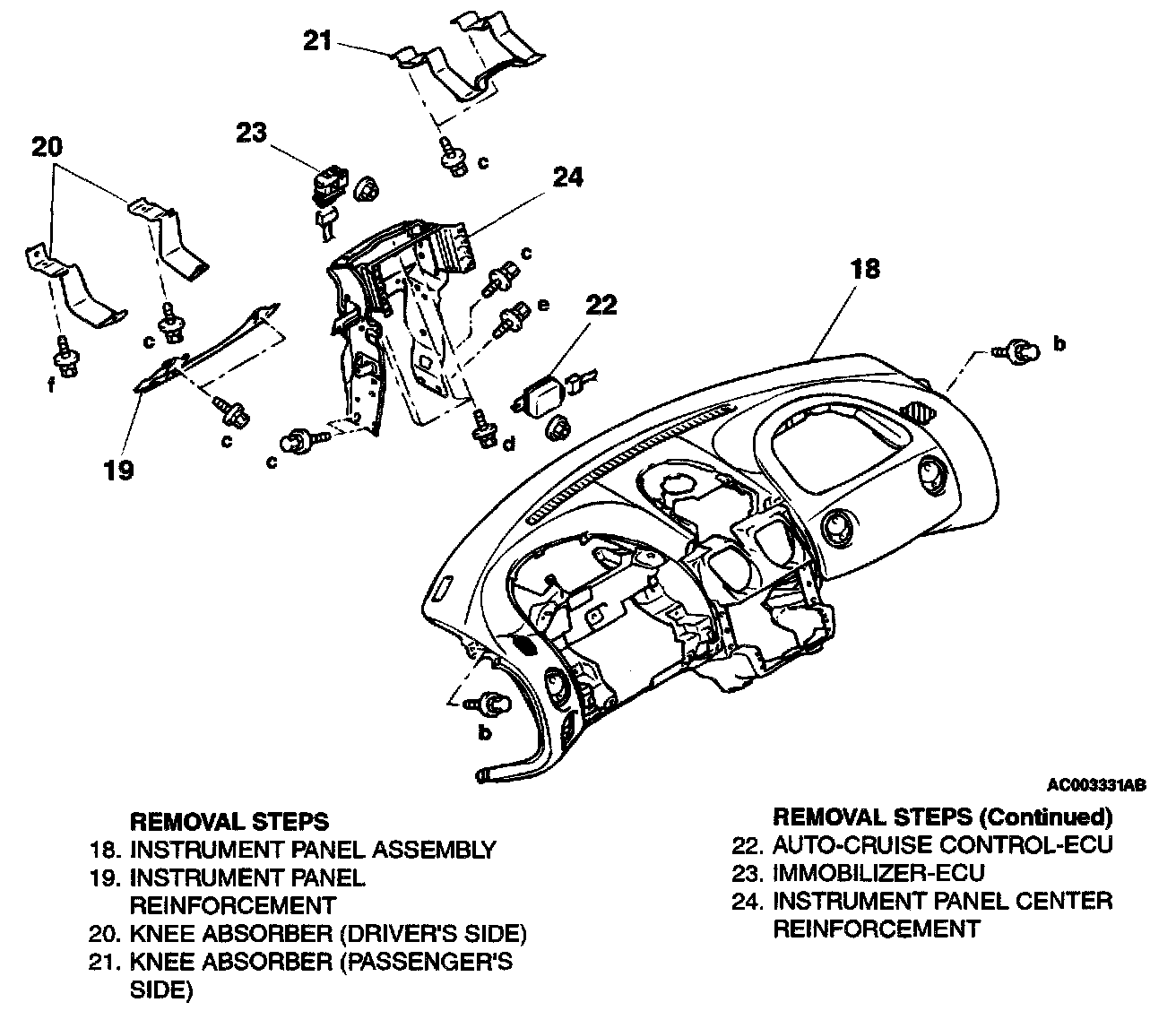

Part 2:

Clip And Claw Positions:

Combination Meters Assembly and Vehicle Speed Sensor:
