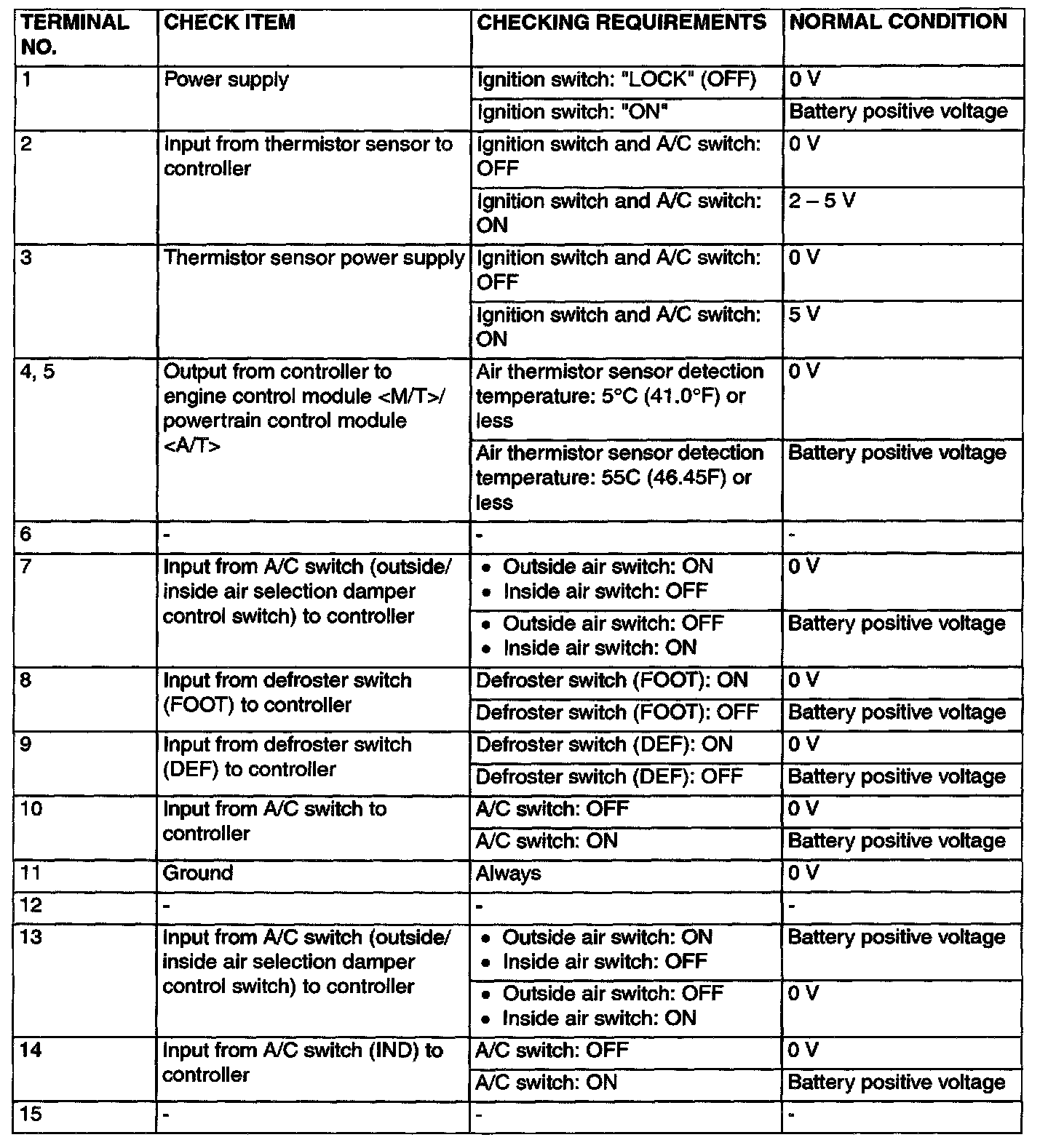

Pinout Values and Diagnostic Parameters

*****The content of this article/image reflects the changes called out by TSB-03-55-002

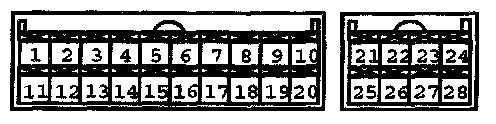

Check At ECU Terminals - Connector Views:






Part 1:









Step 4,5 Correction


Part 2:
