Intake Manifold Plenum and Throttle Body Assembly






REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

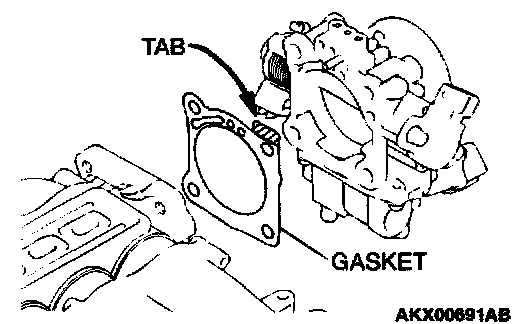

]]A[[ THROTTLE BODY GASKET INSTALLATION





Install the gasket so that the tab is positioned.
