Generator and Drive Belt

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT
[[A]] CRANKSHAFT BOLT LOOSENING

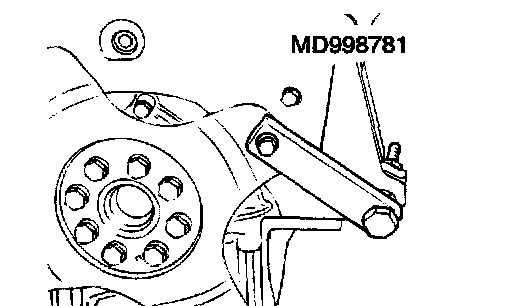

1. Install special tool MD998781 to hold the flywheel or drive plate.
2. Loosen and remove the crankshaft bolt and washer.

INSTALLATION SERVICE POINT
]]A[[ CRANKSHAFT BOLT TIGHTENING





1. Install special tool MD998781 to hold the flywheel or drive plate.
2. Install the washer and crankshaft bolt, and then tighten the bolt.
Tightening torque: 181 ± 5 Nm (134 ± 4 ft. lbs.)
