Home >> Mitsubishi >> 2001 >> Eclipse Spyder GT V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Dome Lamp

Dome Lamp

Dome Light And Trunk Light <Eclipse Spyder> Part 1:



Dome Light And Trunk Light <Eclipse Spyder> Part 2:

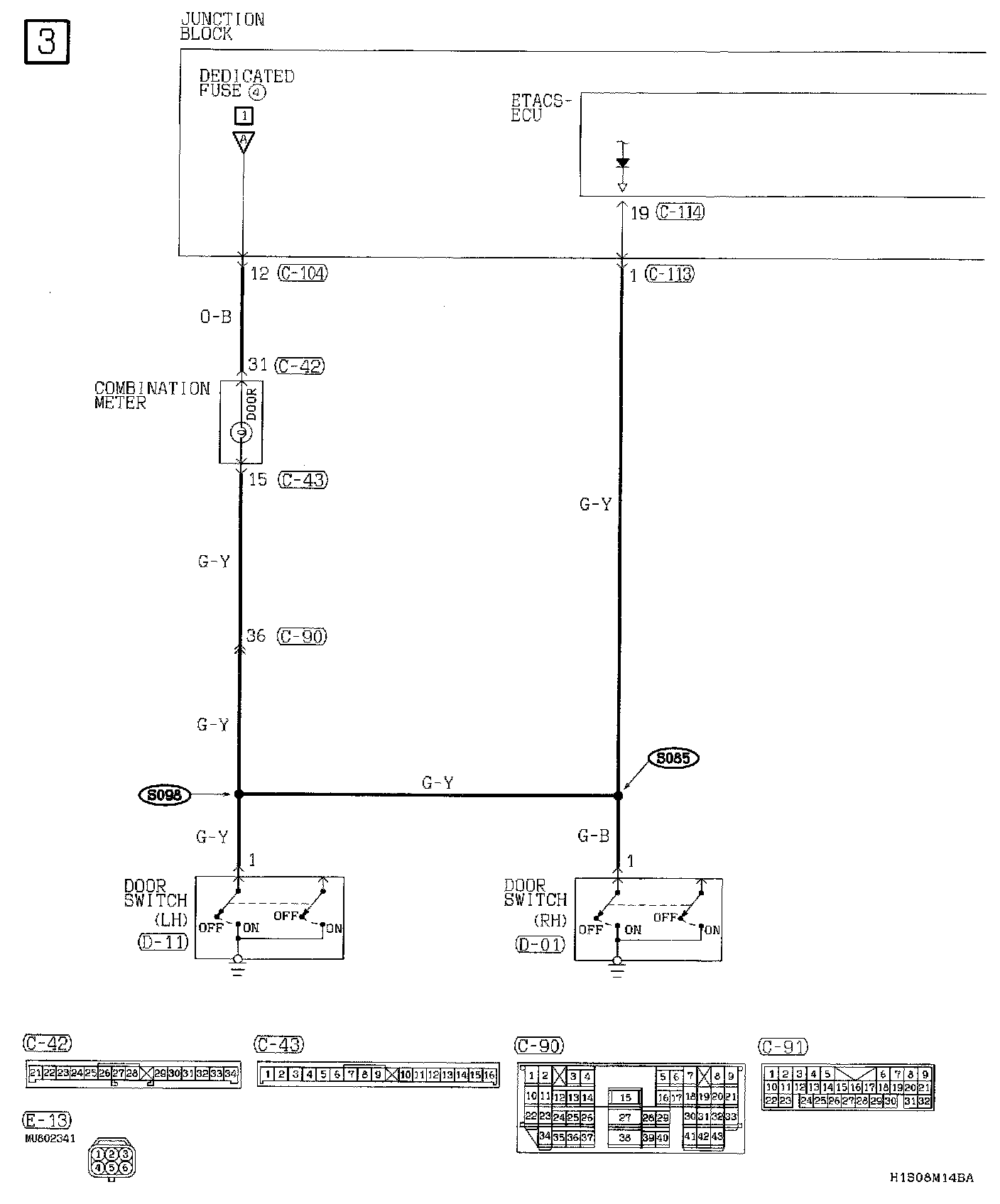

Dome Light And Trunk Light <Eclipse Spyder> Part 3:

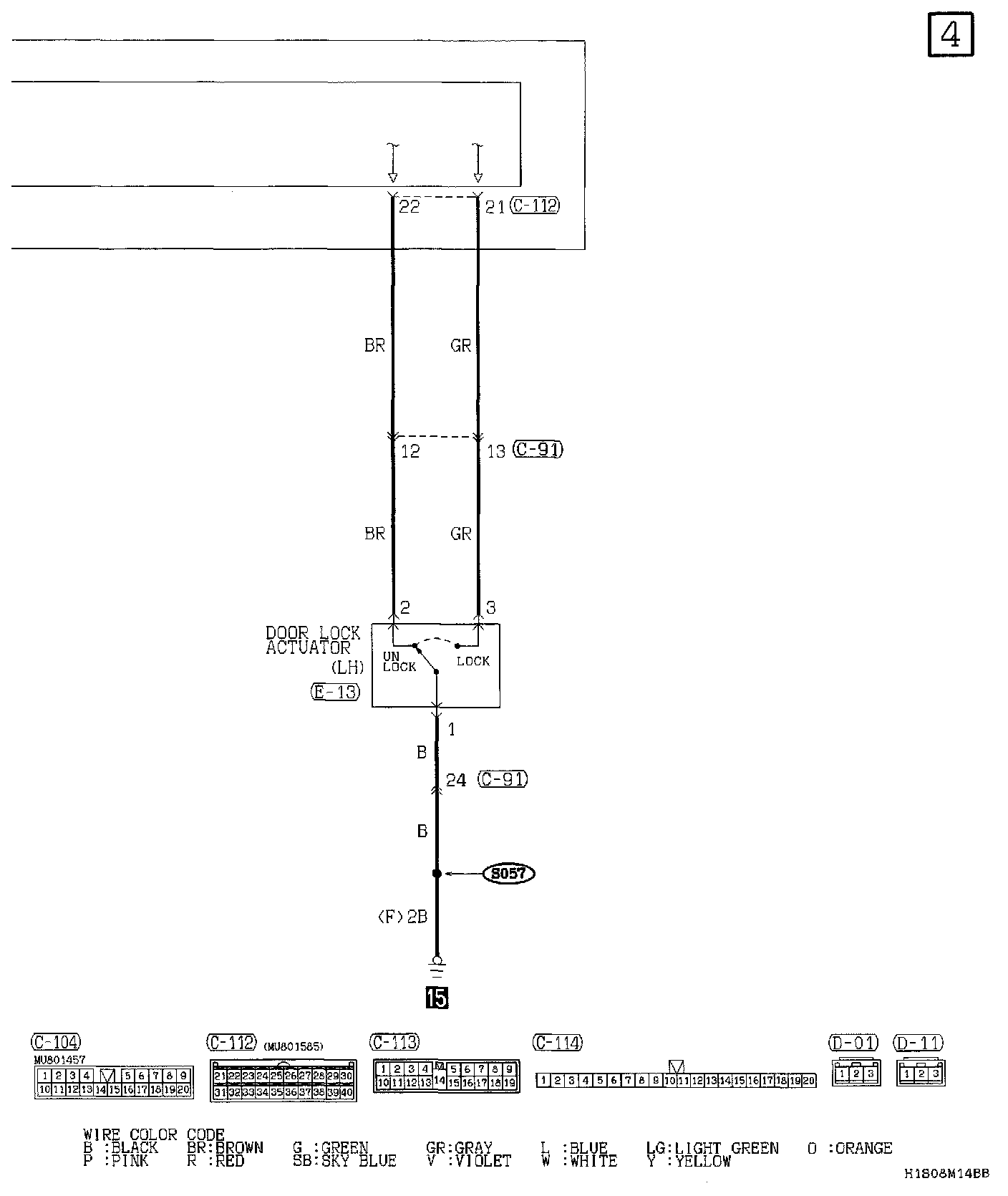

Dome Light And Trunk Light <Eclipse Spyder> Part 4:
