Eclipse Spyder GT V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Air Bag Systems
>>
Vehicles Without Side Air Bag
Vehicles Without Side Air Bag

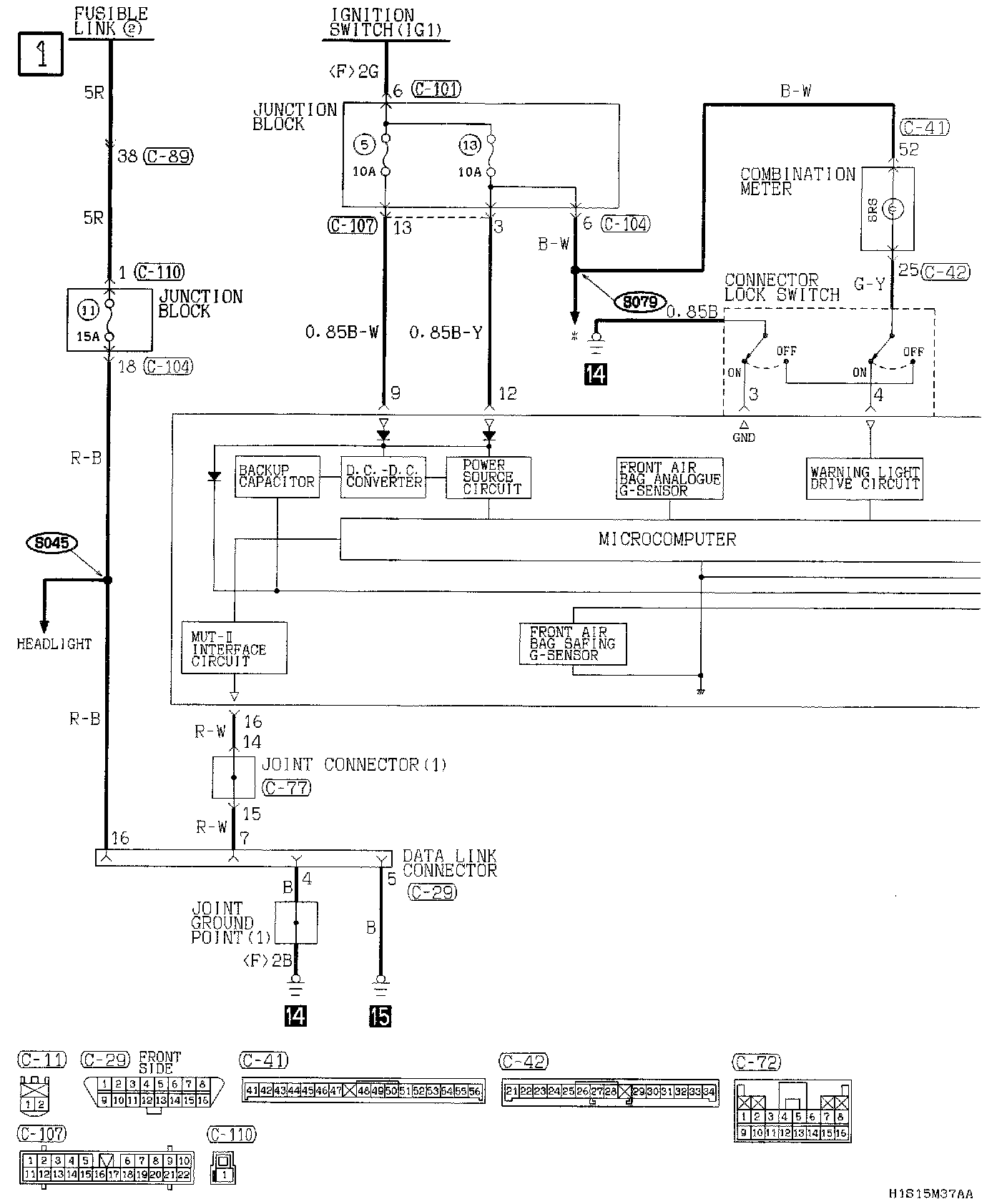

Supplemental Restraint System (SRS) <Vehicles Without Side Air Bag> Part 1:

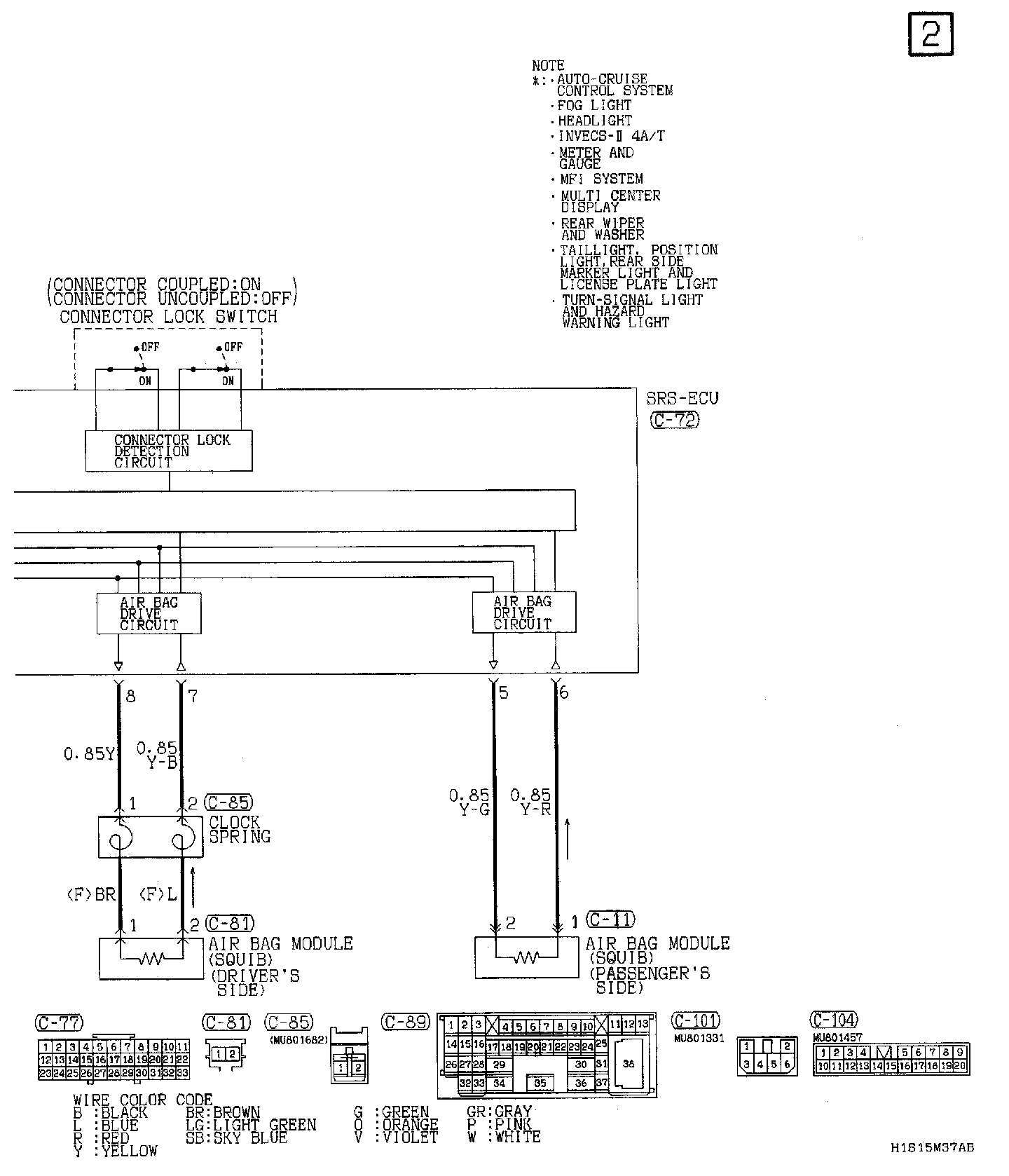

Supplemental Restraint System (SRS) <Vehicles Without Side Air Bag> Part 2:
