Home >> Mitsubishi >> 2001 >> Eclipse Spyder GT V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Computers and Control Systems >> System Diagram

System Diagram

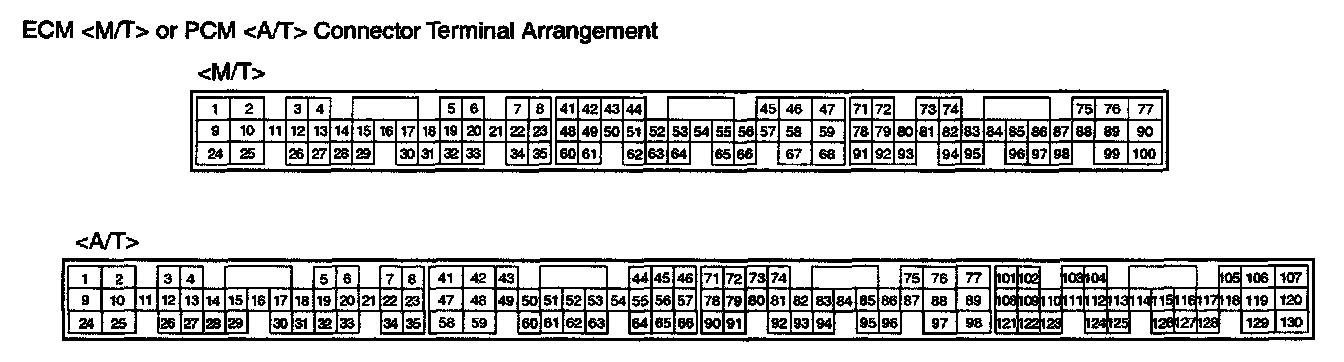

Terminal Arrangement:

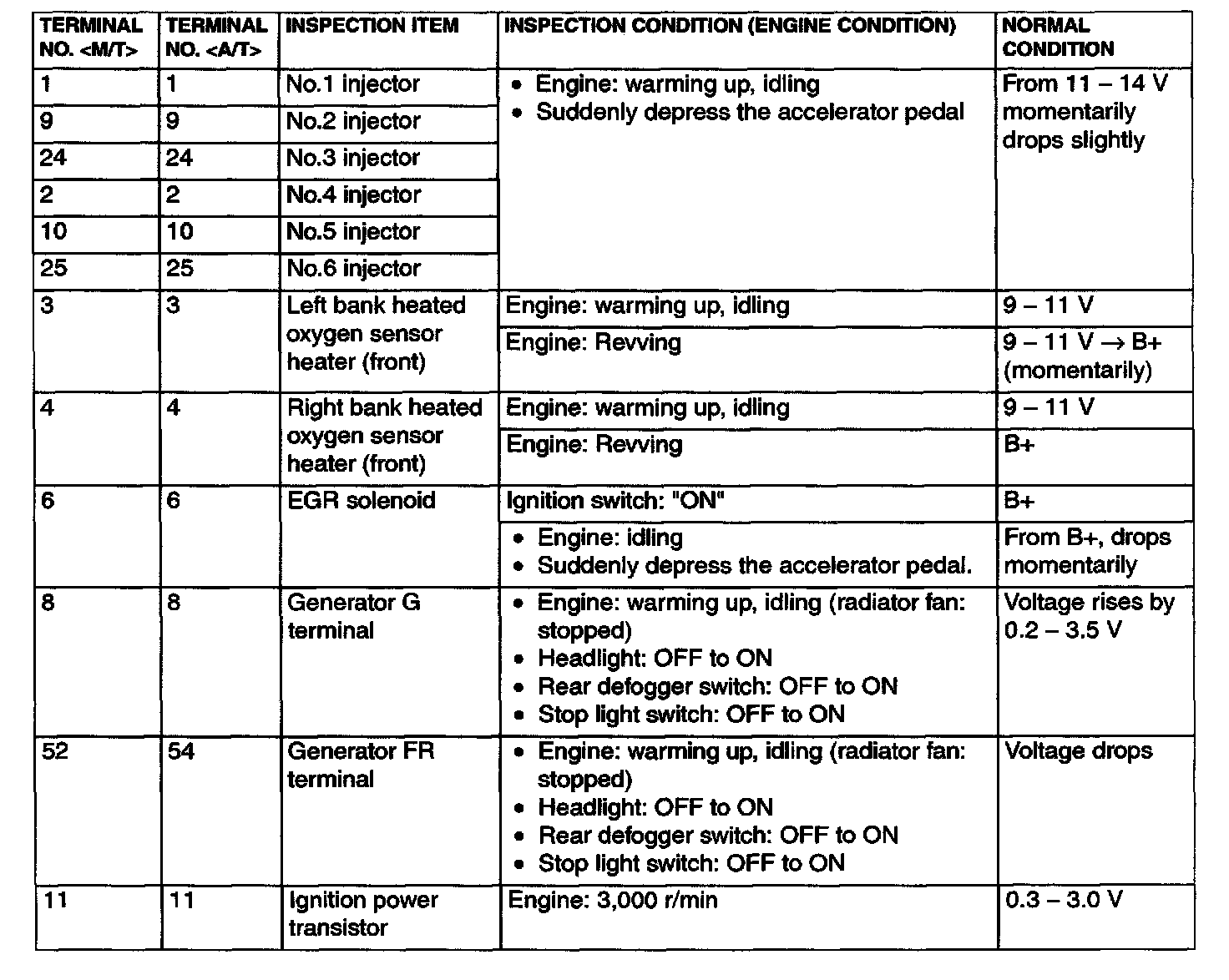

Terminal Voltage Check Chart Part 1:

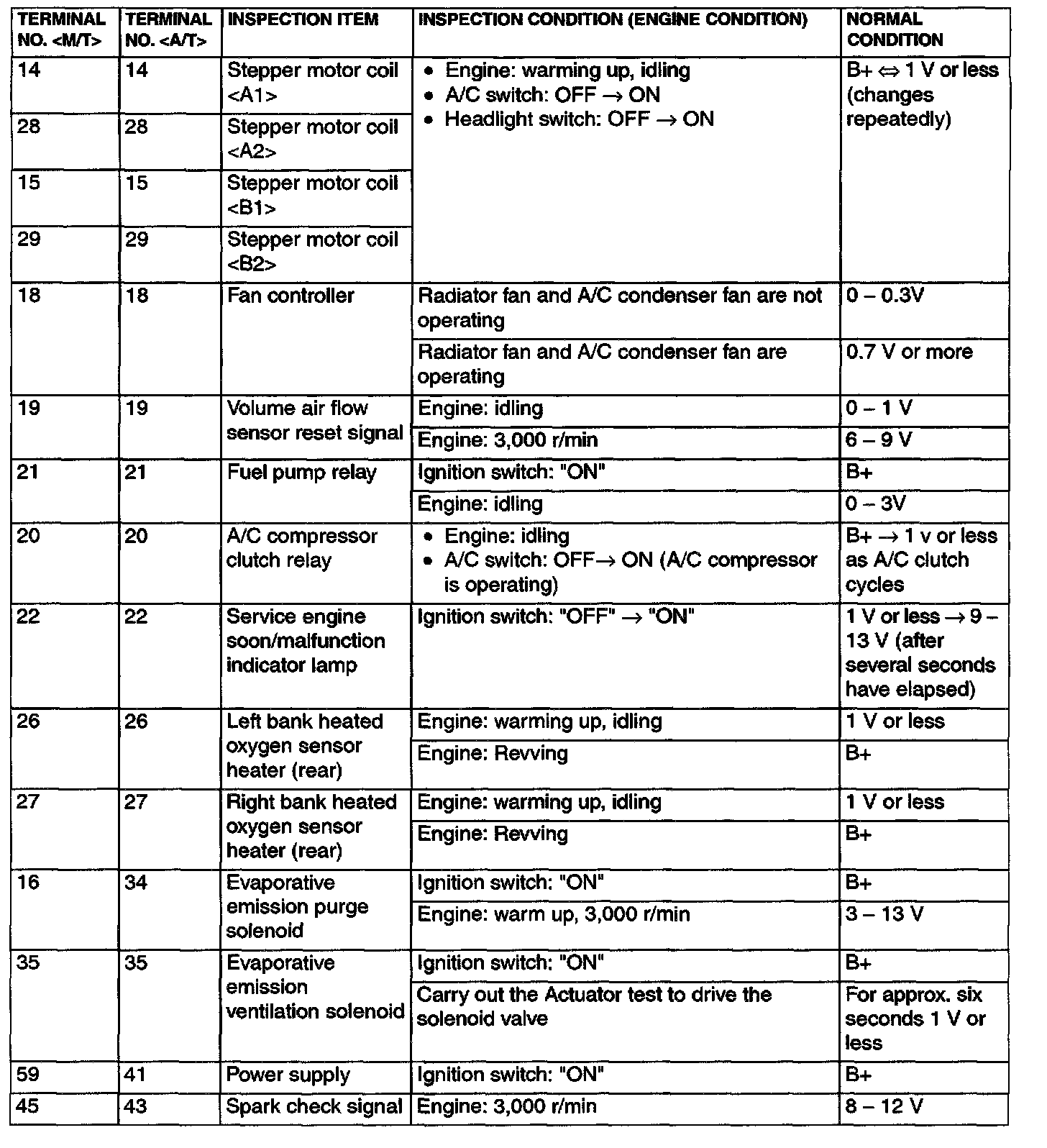

Part 2:



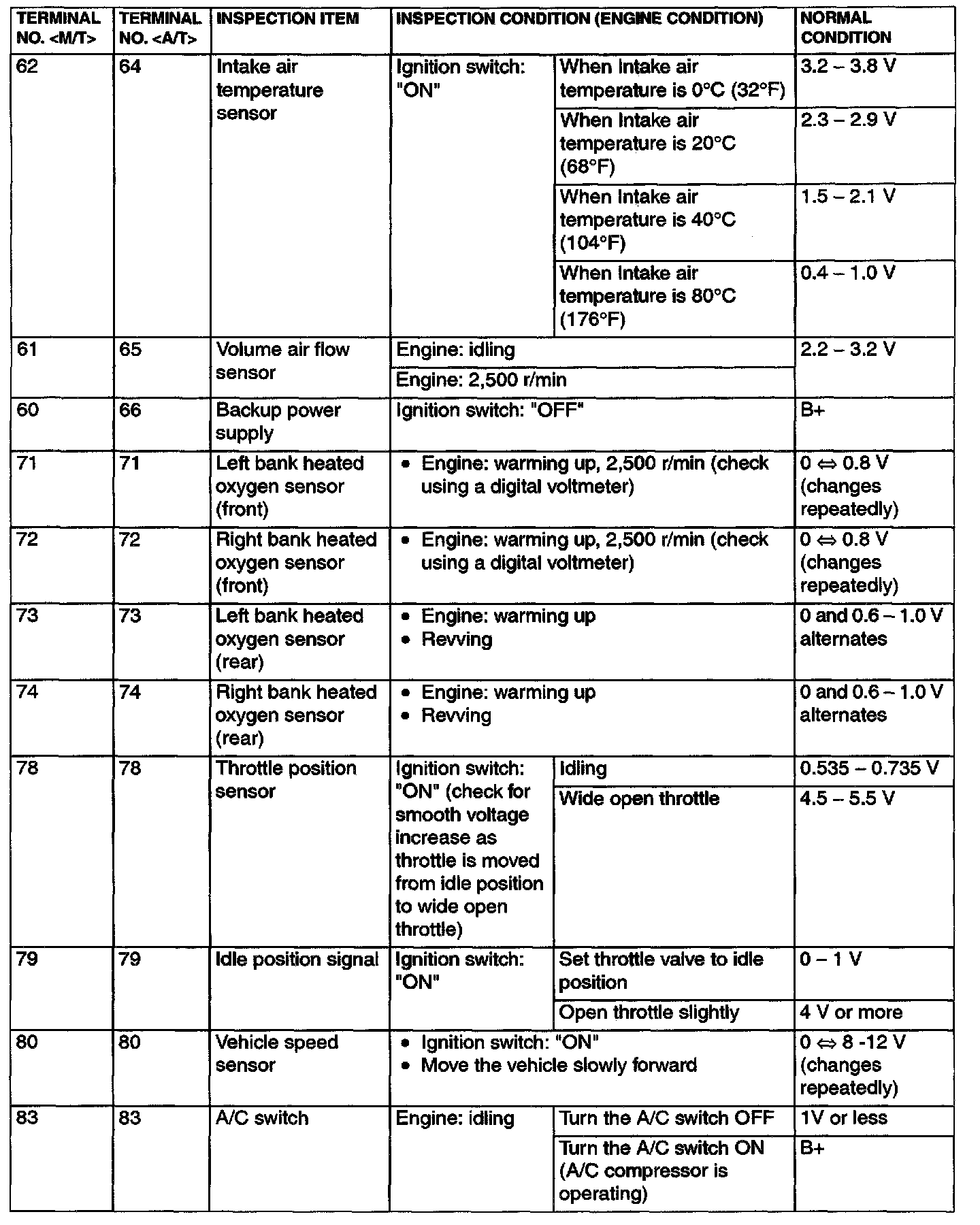

Part 3:



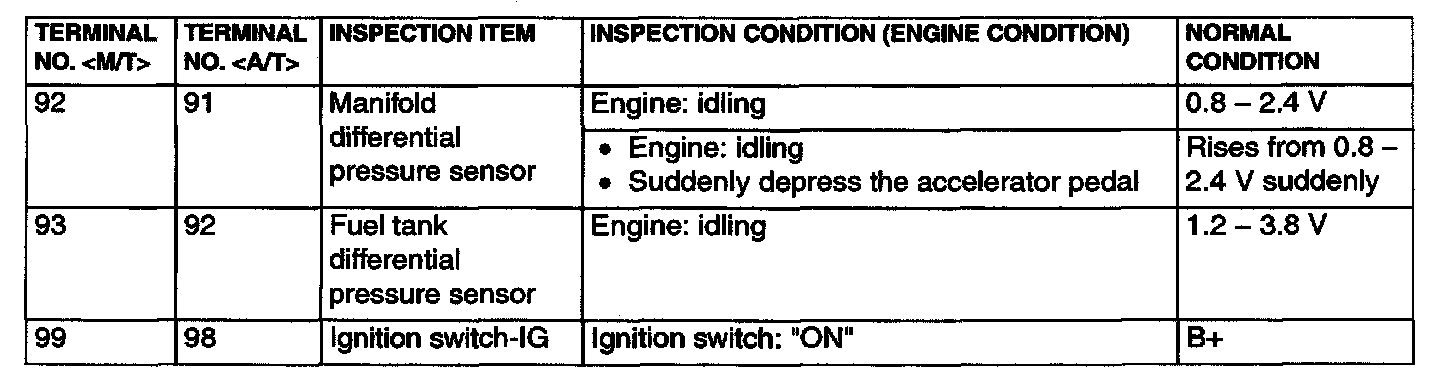

Part 4:



Part 5:
