Home >> Mitsubishi >> 2001 >> Eclipse Spyder GT V6-3.0L SOHC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Reading and Clearing Diagnostic Trouble Codes >> Reading Diagnostic Trouble Codes >> With Auto-Cruise Control Indicator Light

With Auto-Cruise Control Indicator Light

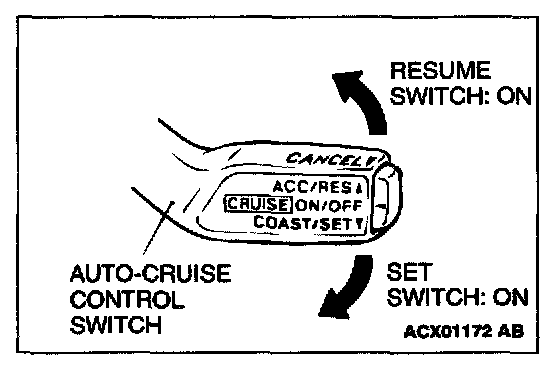

1. Turn the ignition switch to "ON" position while holding the auto-cruise control switch in the "SET" position (down). Then, within one second, move the cruise control switch up to the "RES" position.
2. Read a diagnostic trouble code by observing the flash display pattern of the auto-cruise control indicator light in the combination meter.

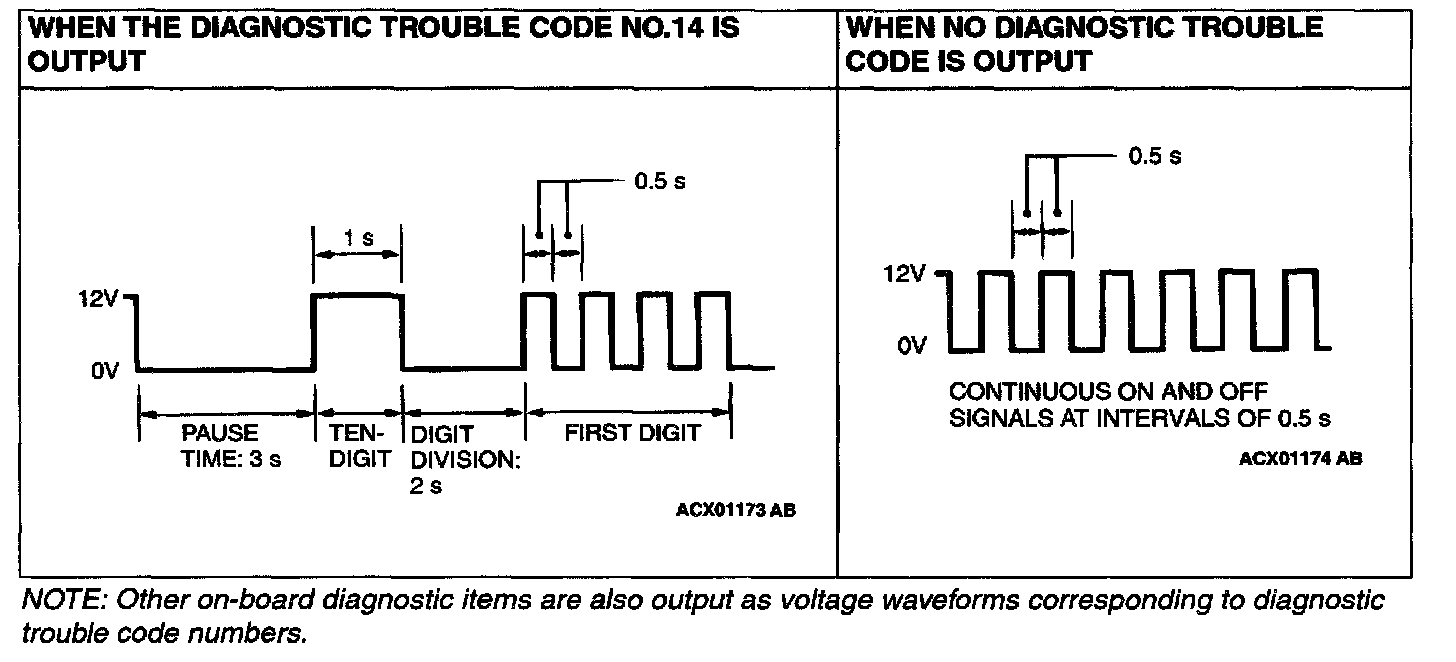

Diagnostic Result Display Method With The Auto-Cruise Control Indicator Light:
