Home >> Mitsubishi >> 2001 >> Eclipse Spyder GT V6-3.0L SOHC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

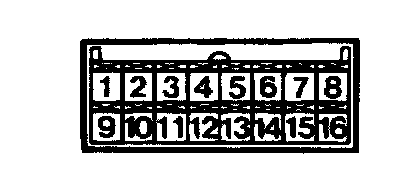

Terminal Arrangement:

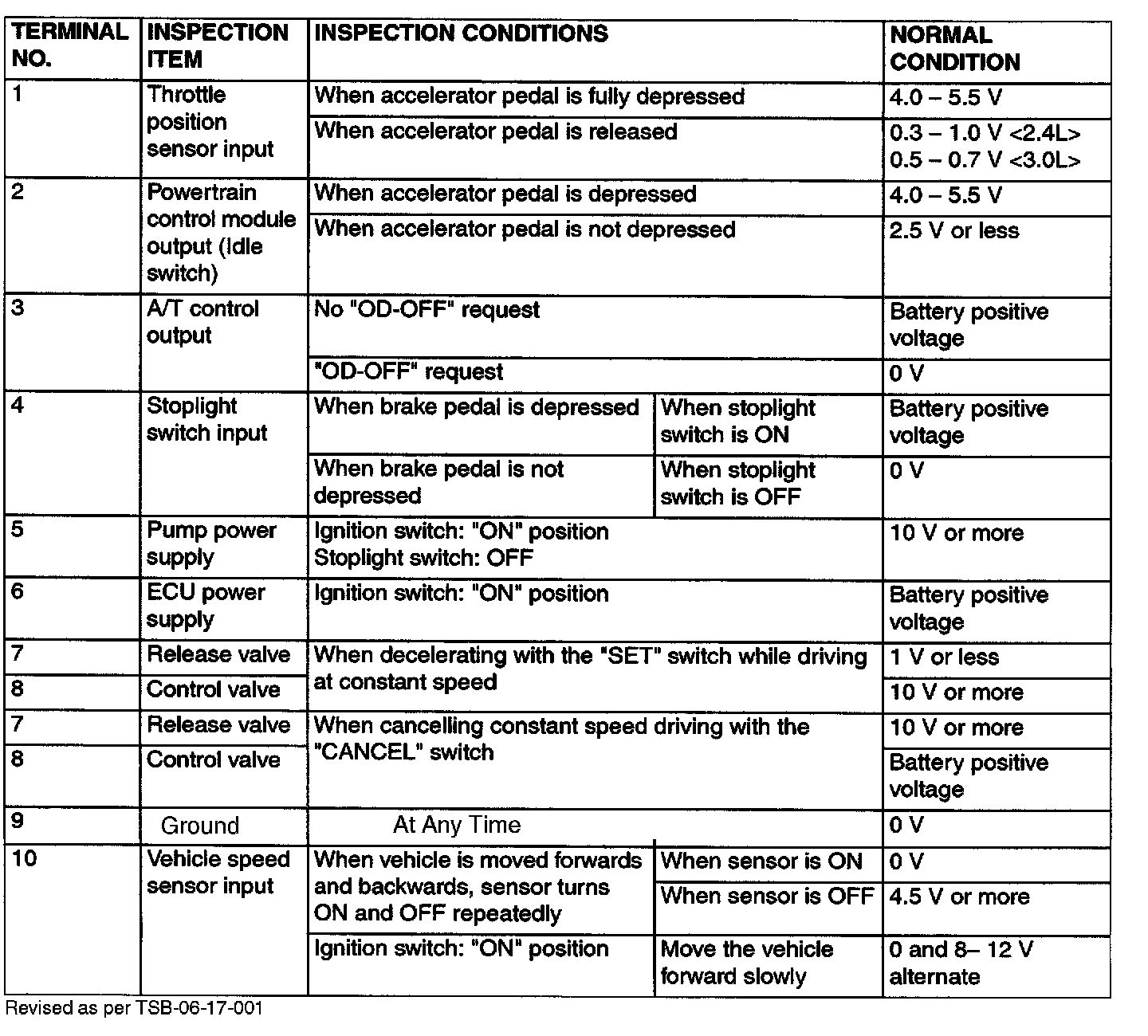

Part 1:

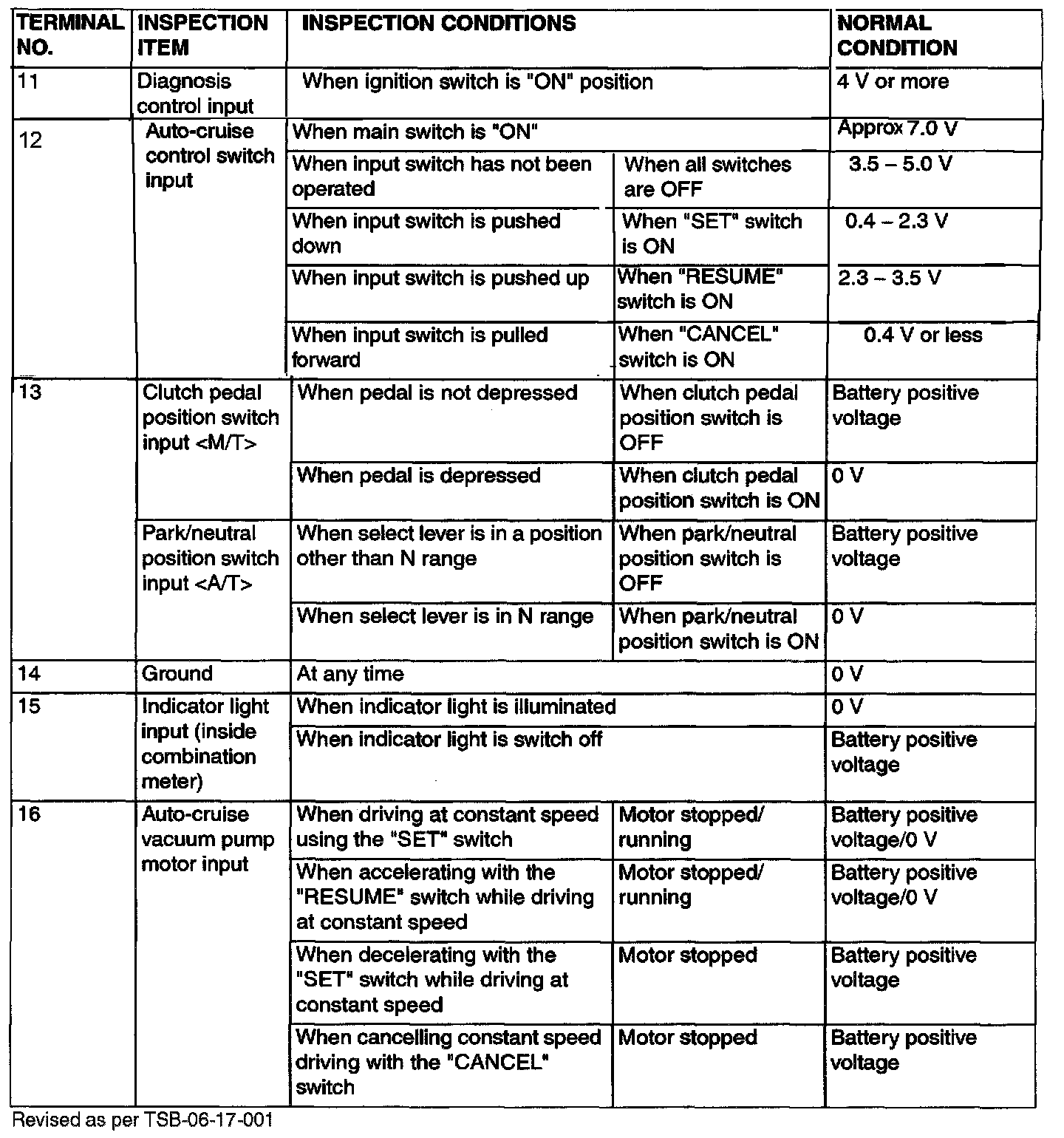

Part 2:
