Home >> Mitsubishi >> 2001 >> Eclipse Spyder GT V6-3.0L SOHC >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> A/T

A/T

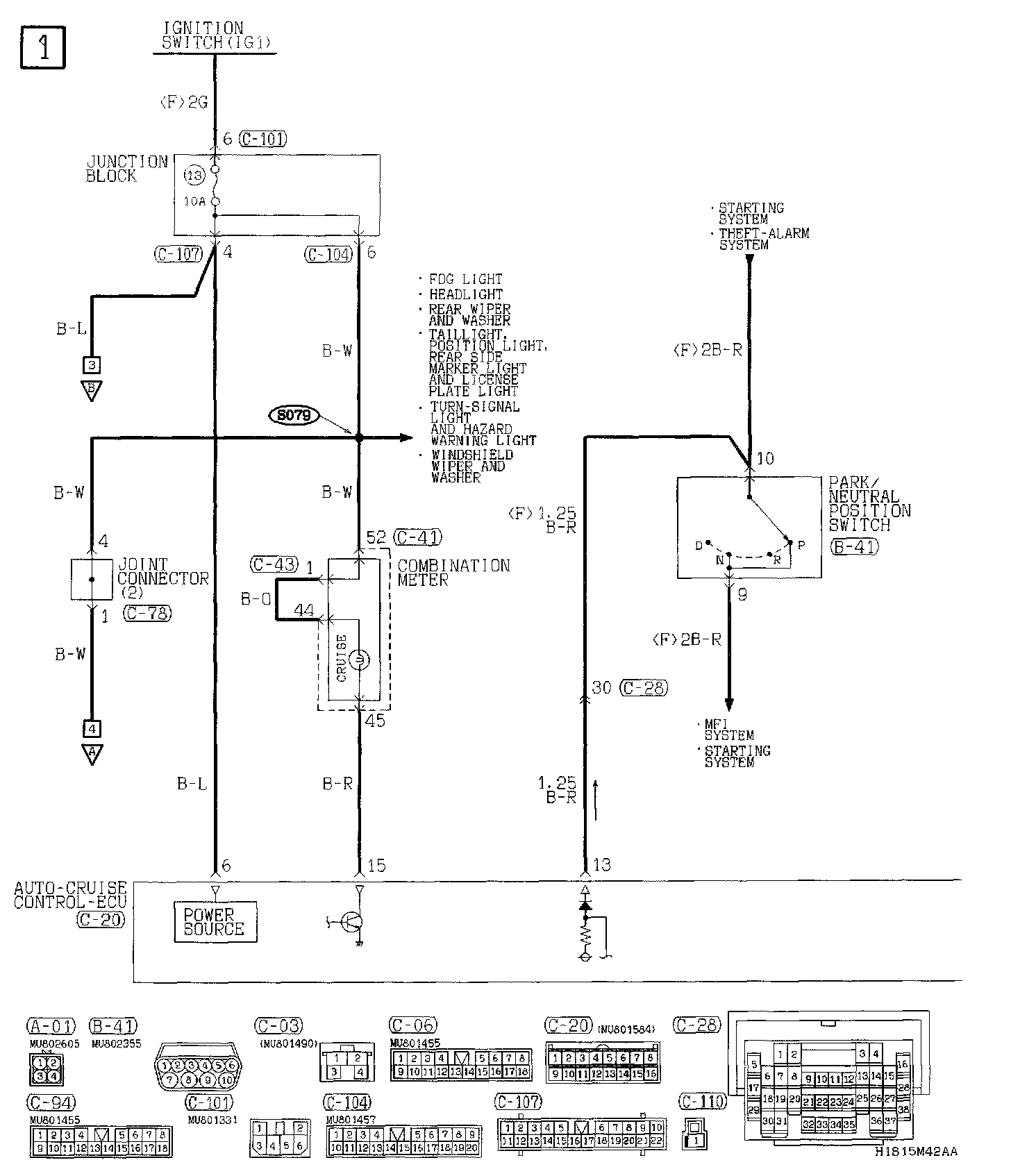

Auto-Cruise Control System <3.0L Engine-A/T> Part 1:

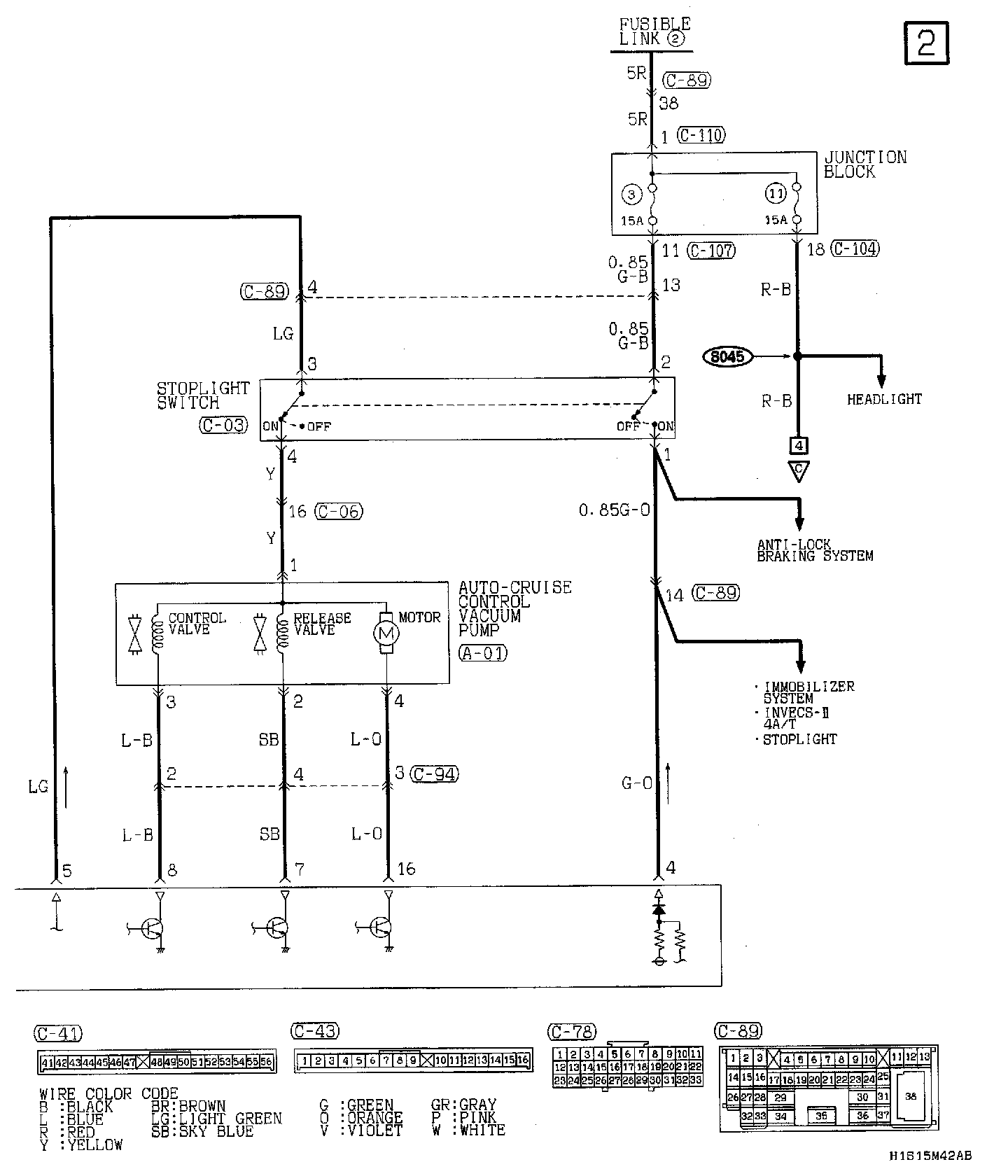

Auto-Cruise Control System <3.0L Engine-A/T> Part 2:



Auto-Cruise Control System <3.0L Engine-A/T> Part 3:

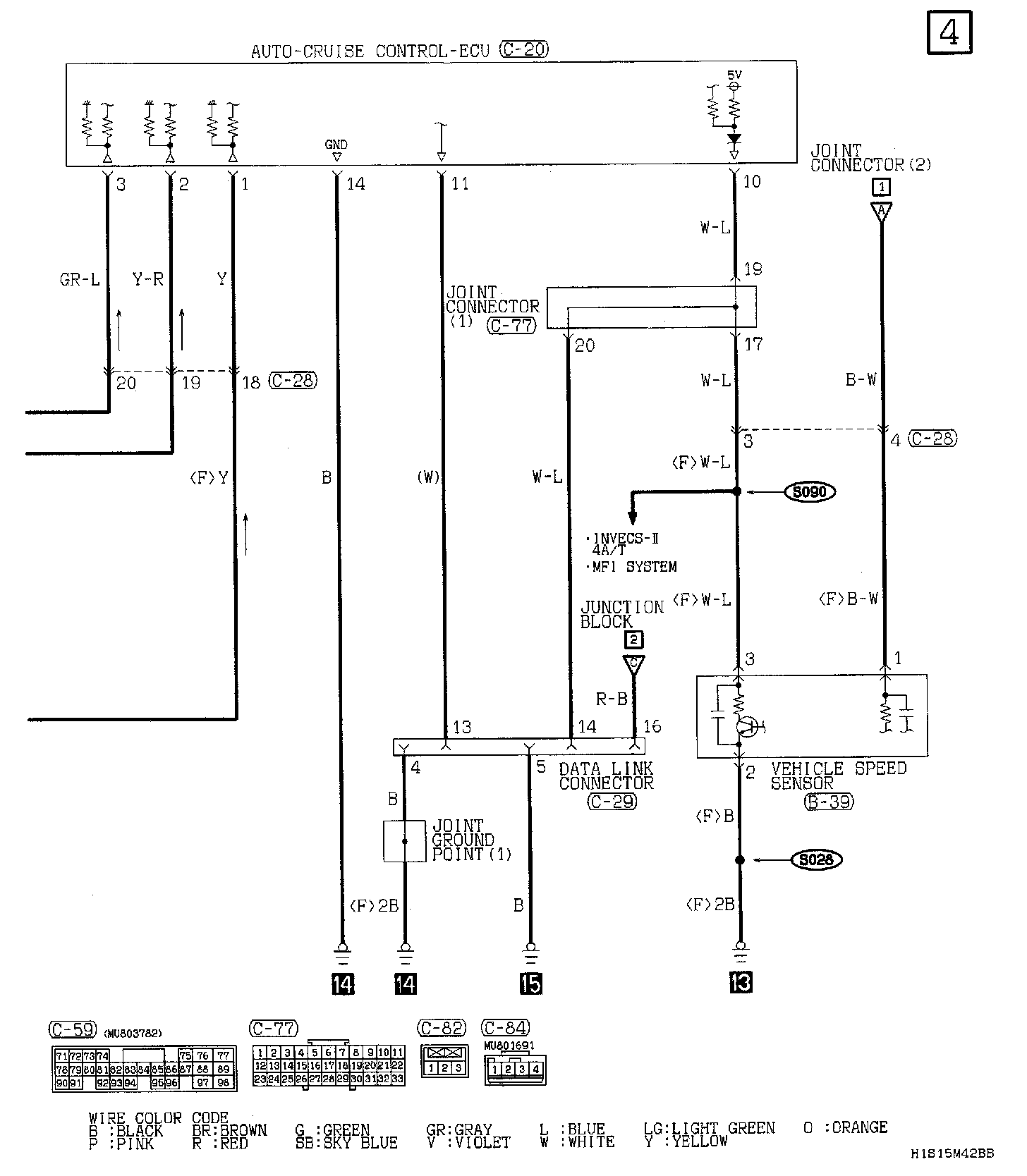

Auto-Cruise Control System <3.0L Engine-A/T> Part 4:
