With Traction Control (TCL) and Antilock Brakes (ABS)

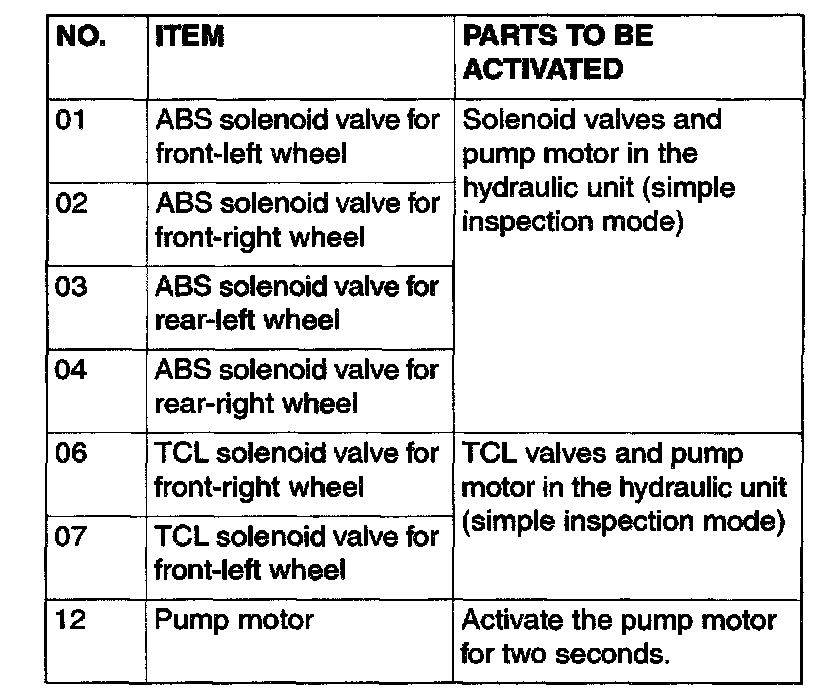

ACTUATOR TEST REFERENCE TABLE









ACTUATOR TEST SPECIFICATIONS

The scan tool activates the following actuators for testing.

NOTE:
- If the ABS-ECU is inoperative, actuator testing cannot be carried out.
- Actuator testing is only possible when the vehicle is stationary. If the vehicle speed during actuator testing exceeds 10 km/h (6 mph), forced actuation will be canceled.
