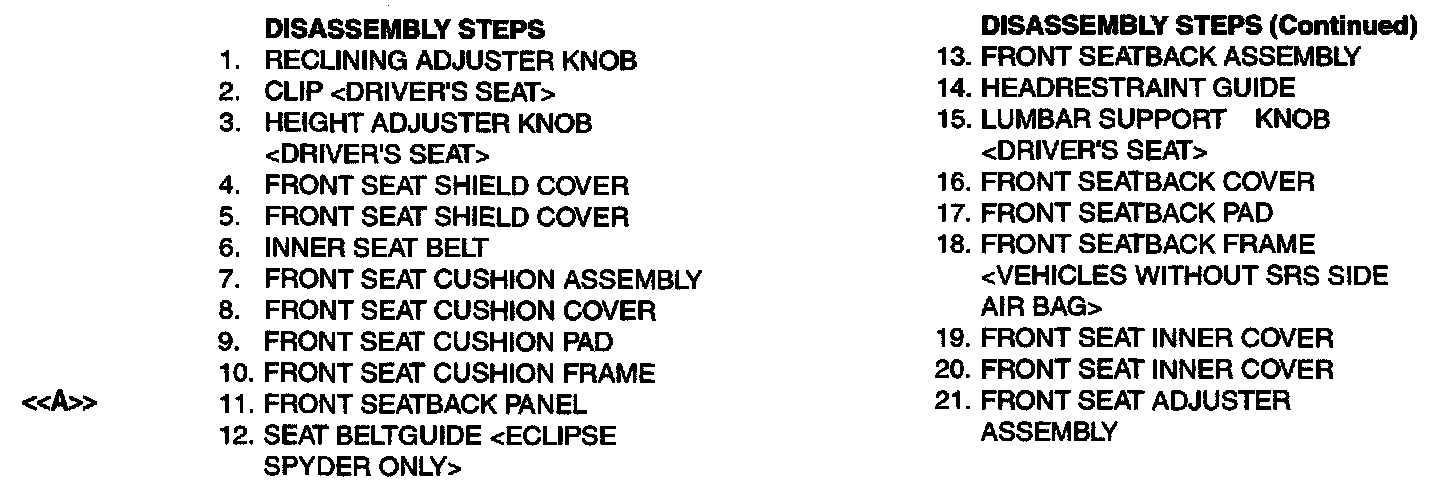

Disassembly and Assembly

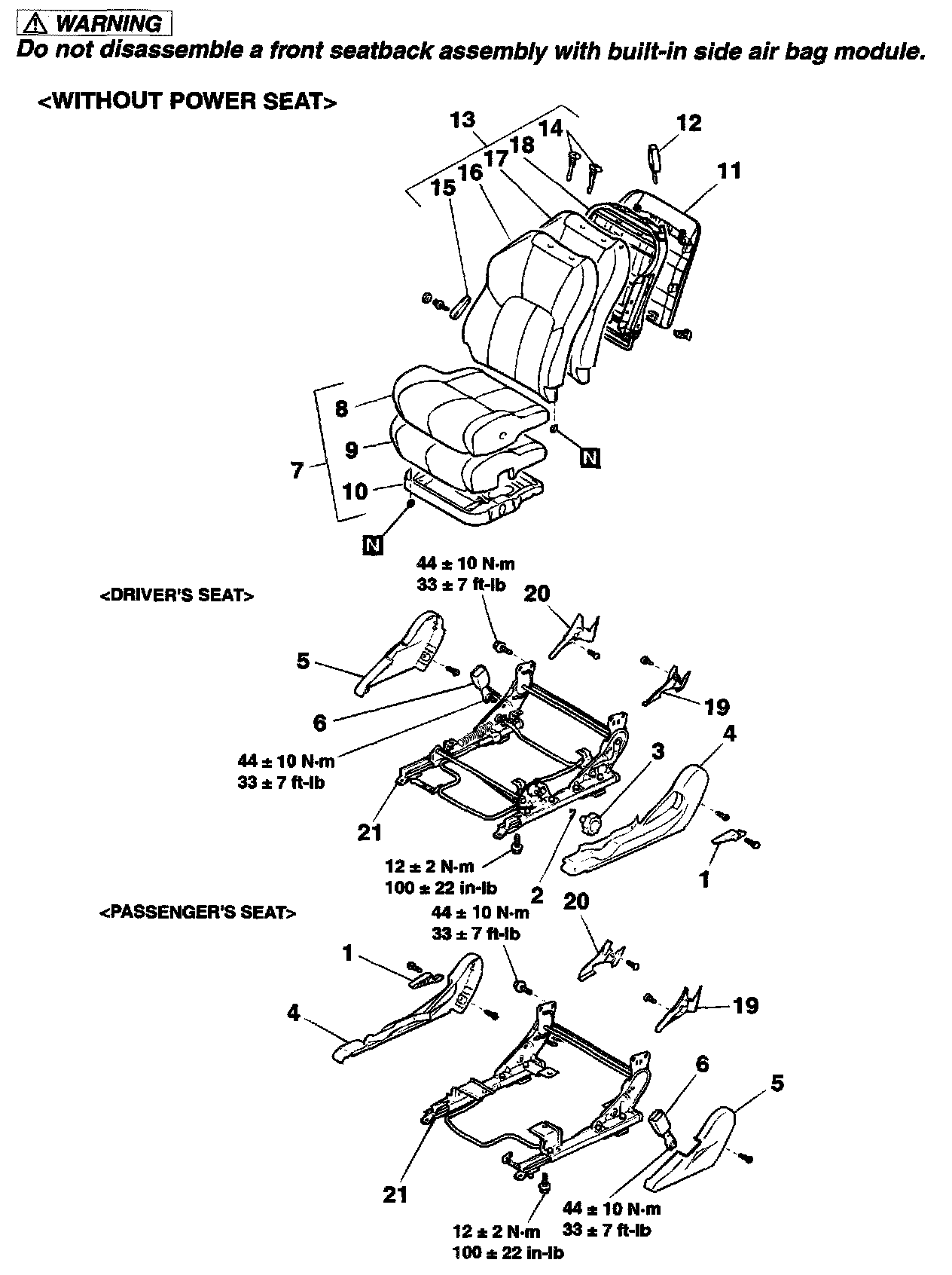

Without Power Seat Part 1:

Without Power Seat Part 2:

Power Seat:

DISASSEMBLY SERVICE POINT

<> FRONT SEATBACK PANEL REMOVAL
1. Using a screwdriver or similar tool, push in the clip of the front seatback panel lower portion to remove it.
2. Pull down the front seatback panel to remove it.
