Home >> Mitsubishi >> 2001 >> Eclipse Spyder GT V6-3.0L SOHC >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Diagrams >> Electrical Diagrams >> Vehicles With Keyless Entry System >> Without Theft-Alarm System

Without Theft-Alarm System

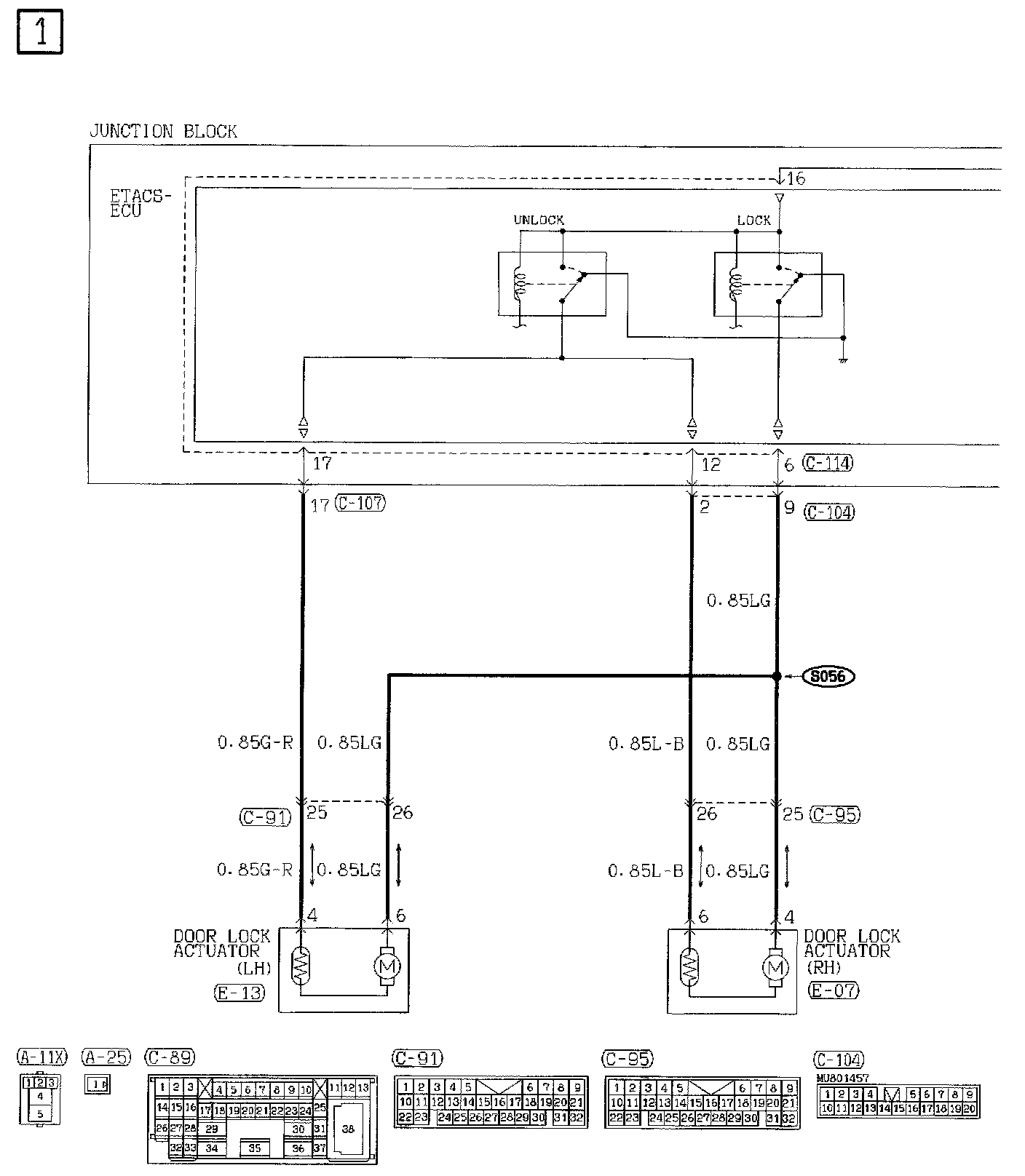

Central Door Locking System <Vehicle With Keyless Entry System (Without Theft-Alarm System)> Part 1:

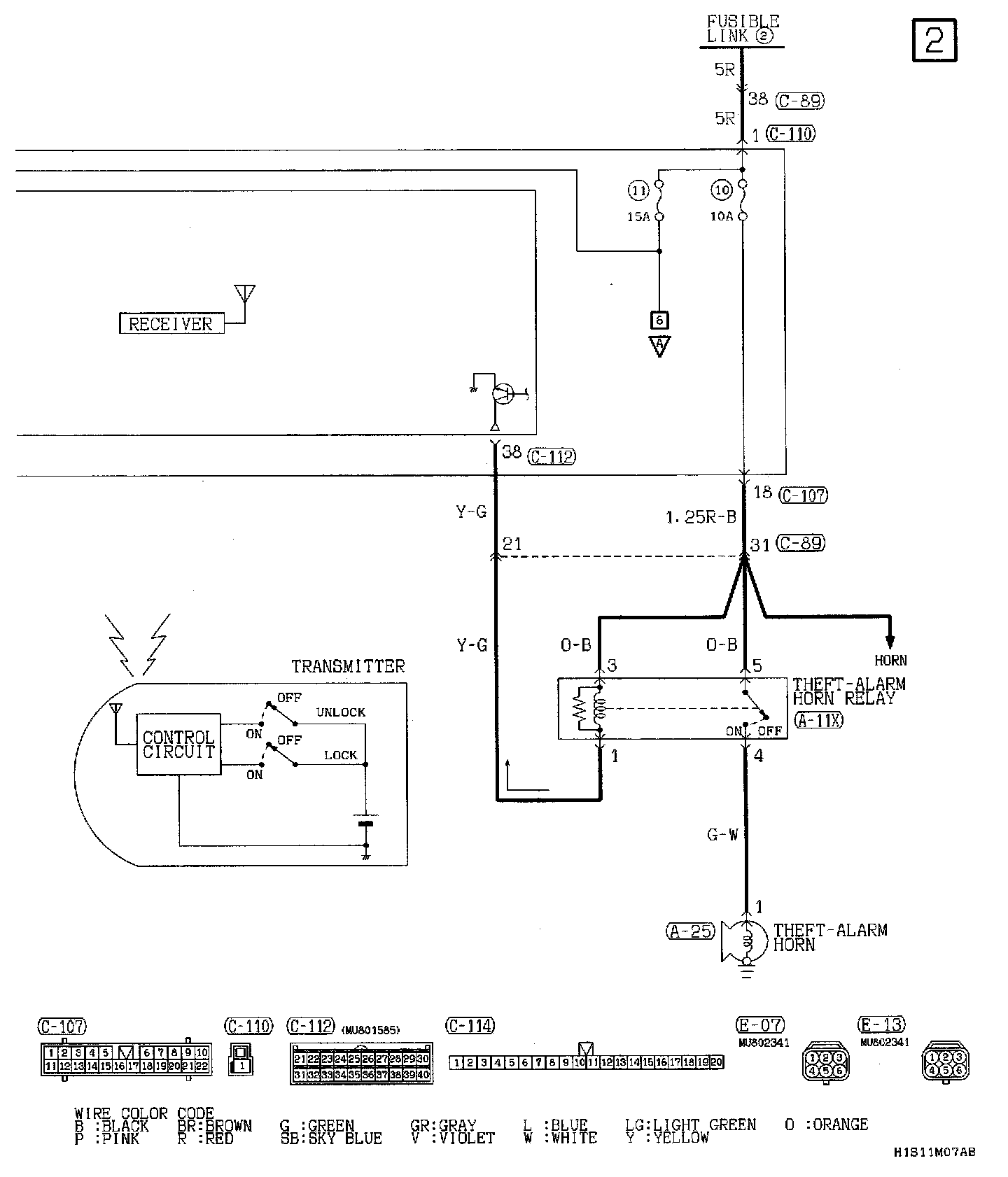

Central Door Locking System <Vehicle With Keyless Entry System (Without Theft-Alarm System)> Part 2:

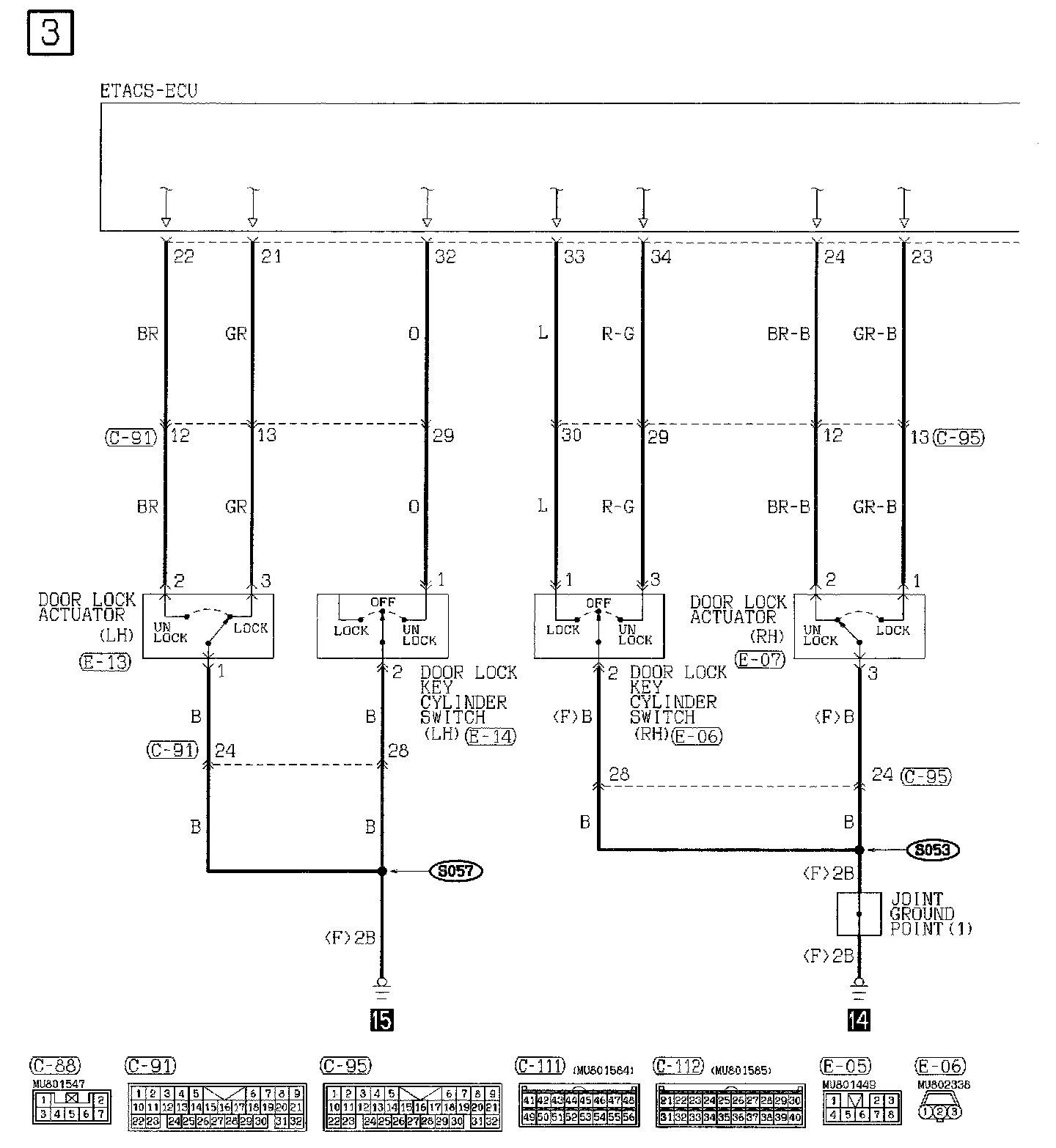

Central Door Locking System <Vehicle With Keyless Entry System (Without Theft-Alarm System)> Part 3:

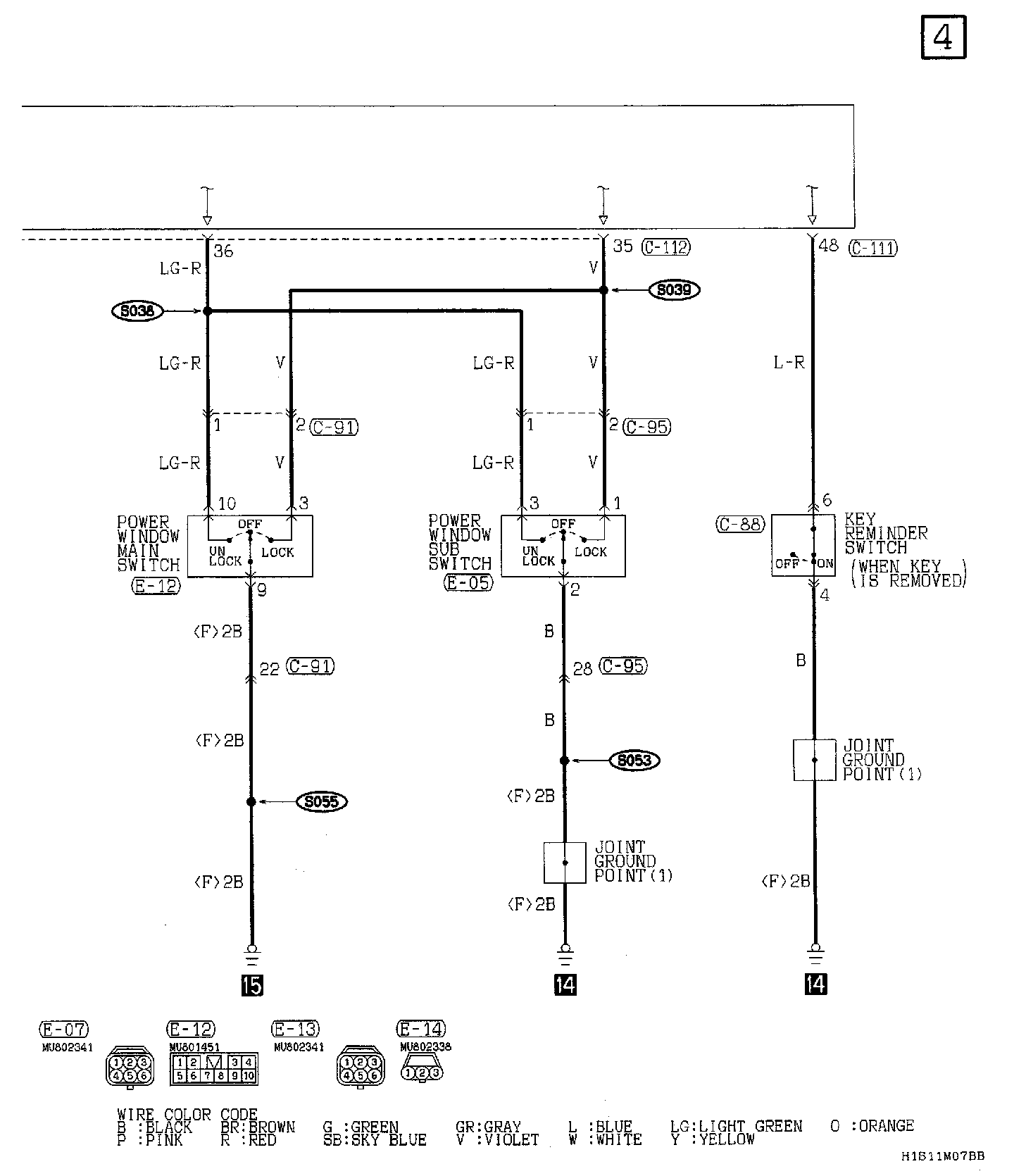

Central Door Locking System <Vehicle With Keyless Entry System (Without Theft-Alarm System)> Part 4:

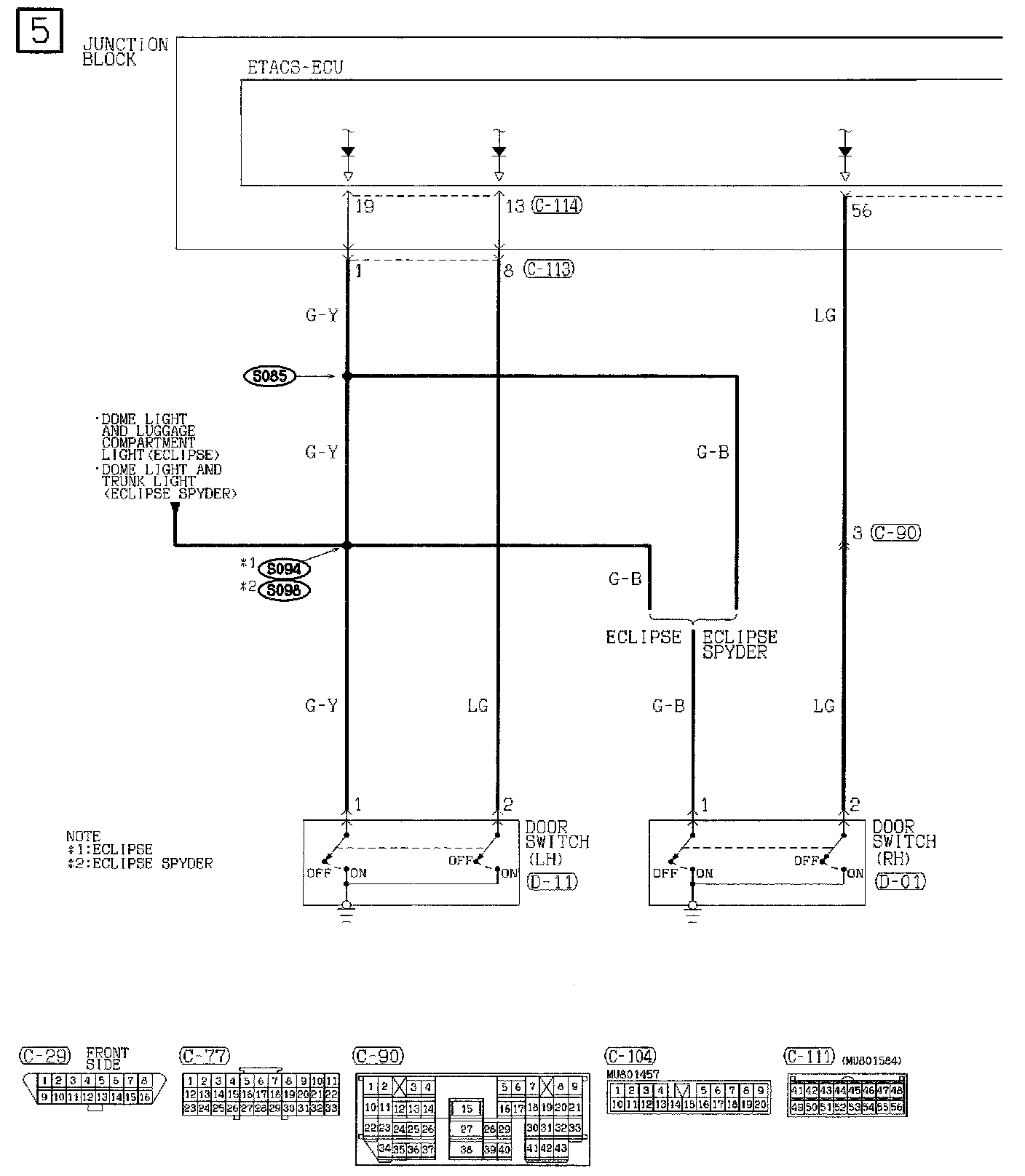

Central Door Locking System <Vehicle With Keyless Entry System (Without Theft-Alarm System)> Part 5:

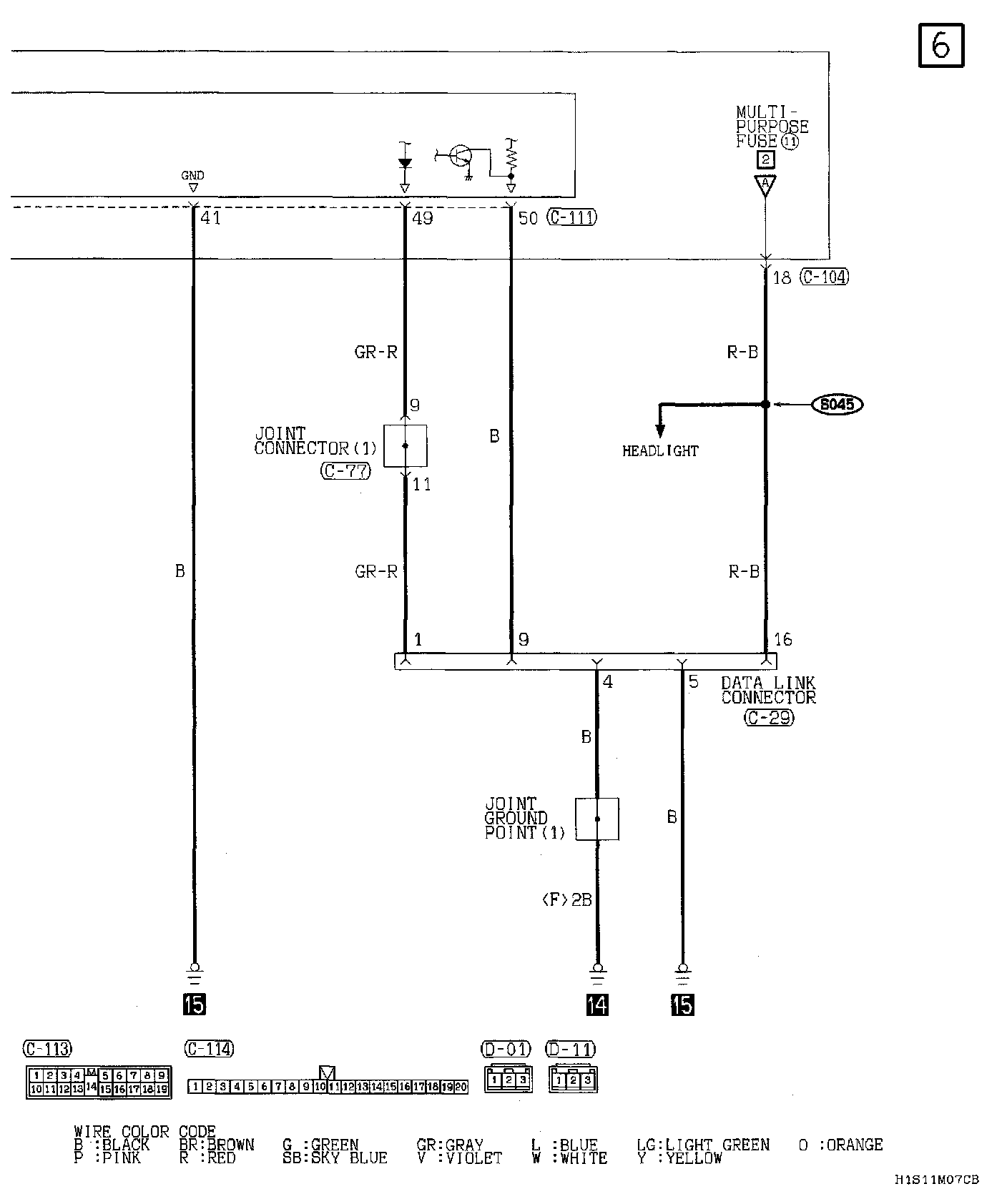

Central Door Locking System <Vehicle With Keyless Entry System (Without Theft-Alarm System)> Part 6:

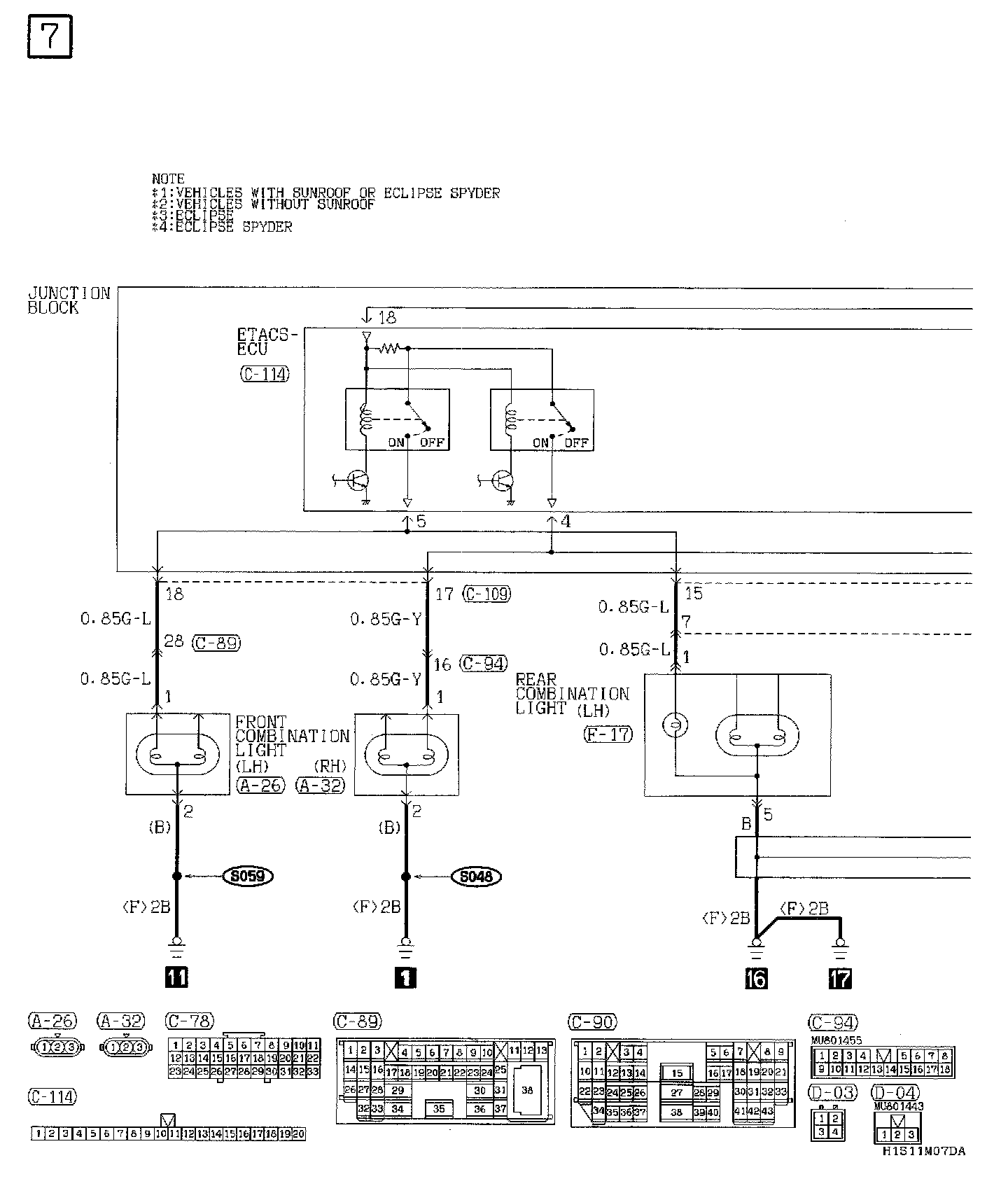

Central Door Locking System <Vehicle With Keyless Entry System (Without Theft-Alarm System)> Part 7:

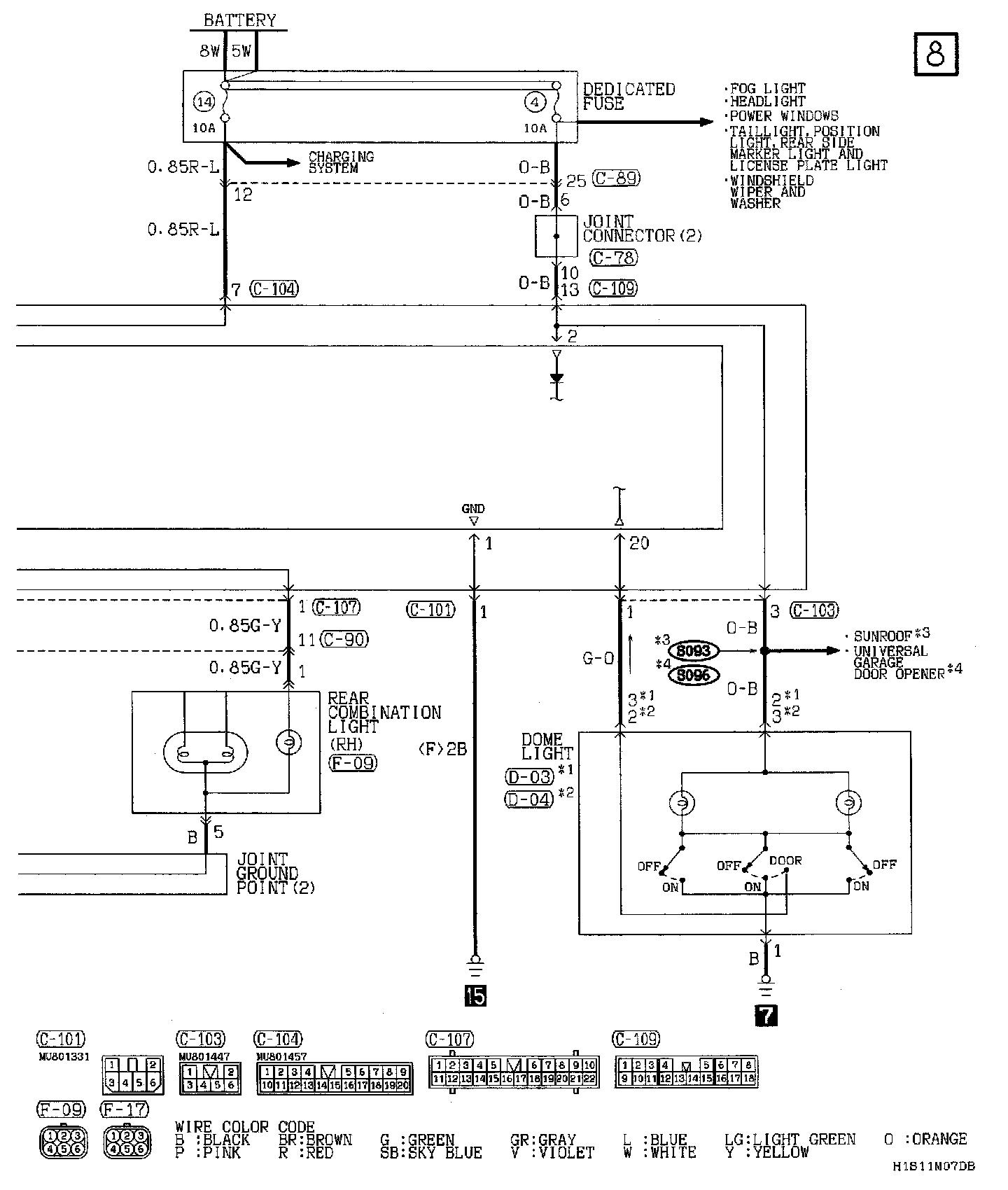

Central Door Locking System <Vehicle With Keyless Entry System (Without Theft-Alarm System)> Part 8:
