Disassembly and Assembly

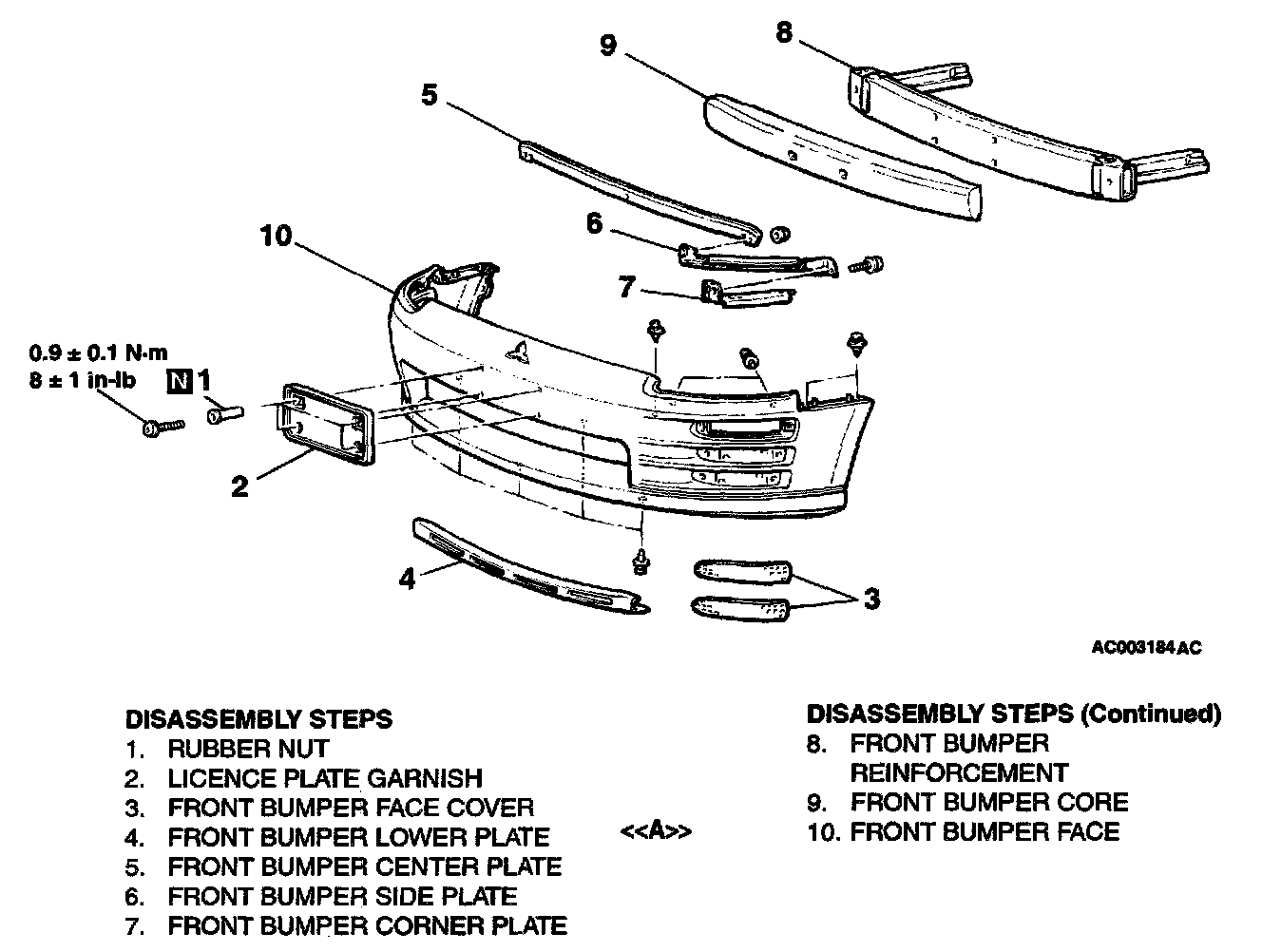

Disassembly and Assembly:

Required Special Tool:
- MB990784: Ornament Remover

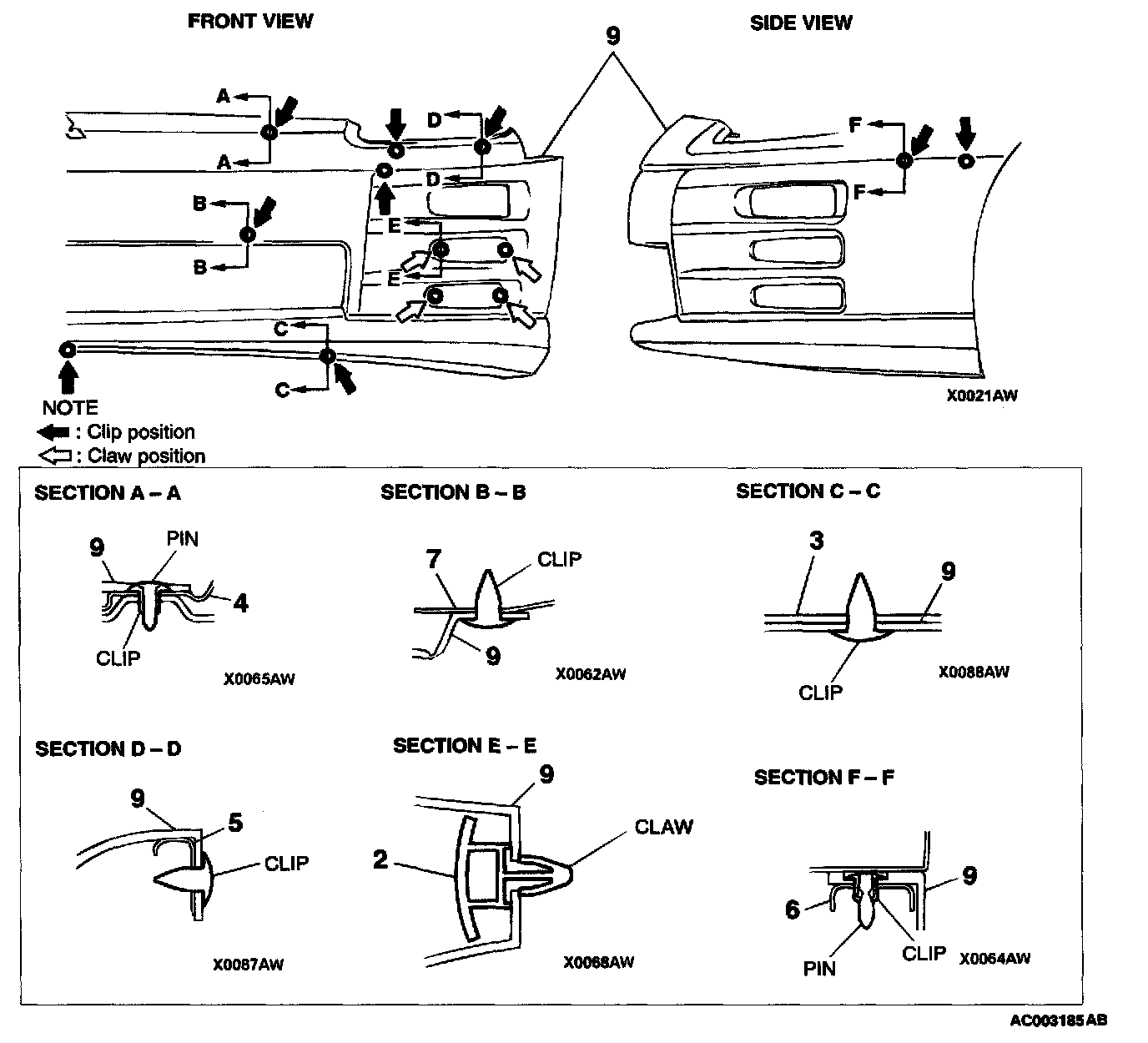

Clip And Claw Position:

DISASSEMBLY SERVICE POINT




<> FRONT BUMPER FACE REMOVAL

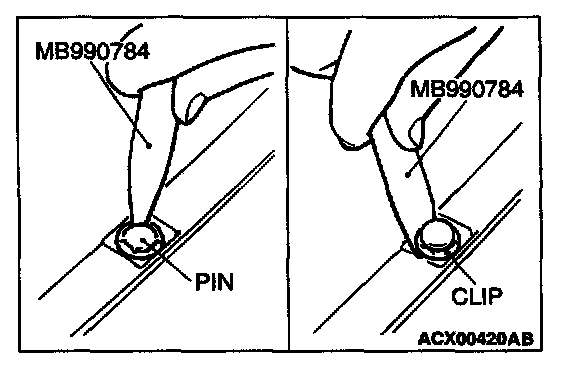

1. Use special tool MB990784 to pull up the center pin in the clip.
2. Remove the clip.
