Home >> Mitsubishi >> 2001 >> Eclipse Spyder GT V6-3.0L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> Vehicles With Amplifier

Vehicles With Amplifier

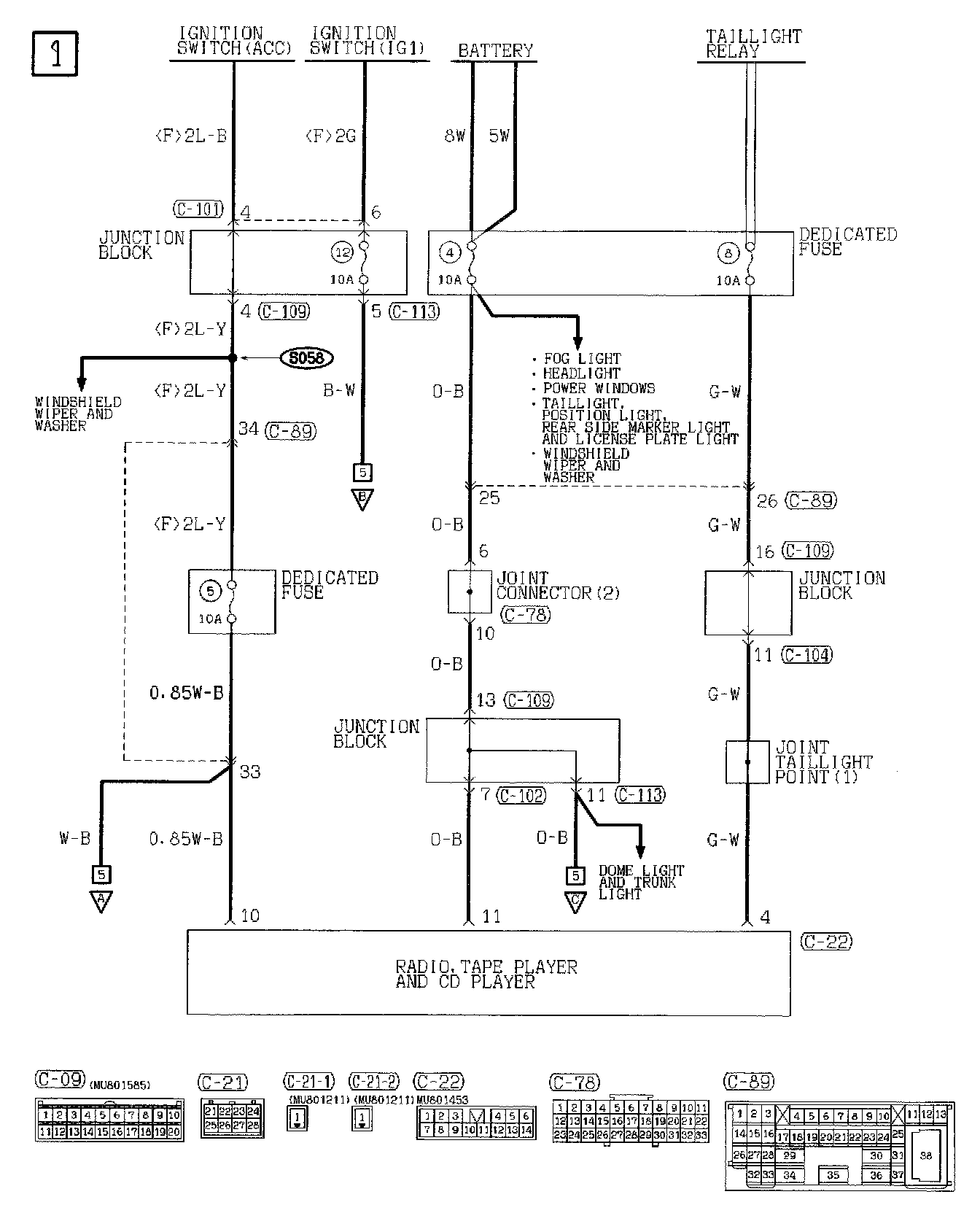

Audio System <Vehicle With Amplifier> Part 1:

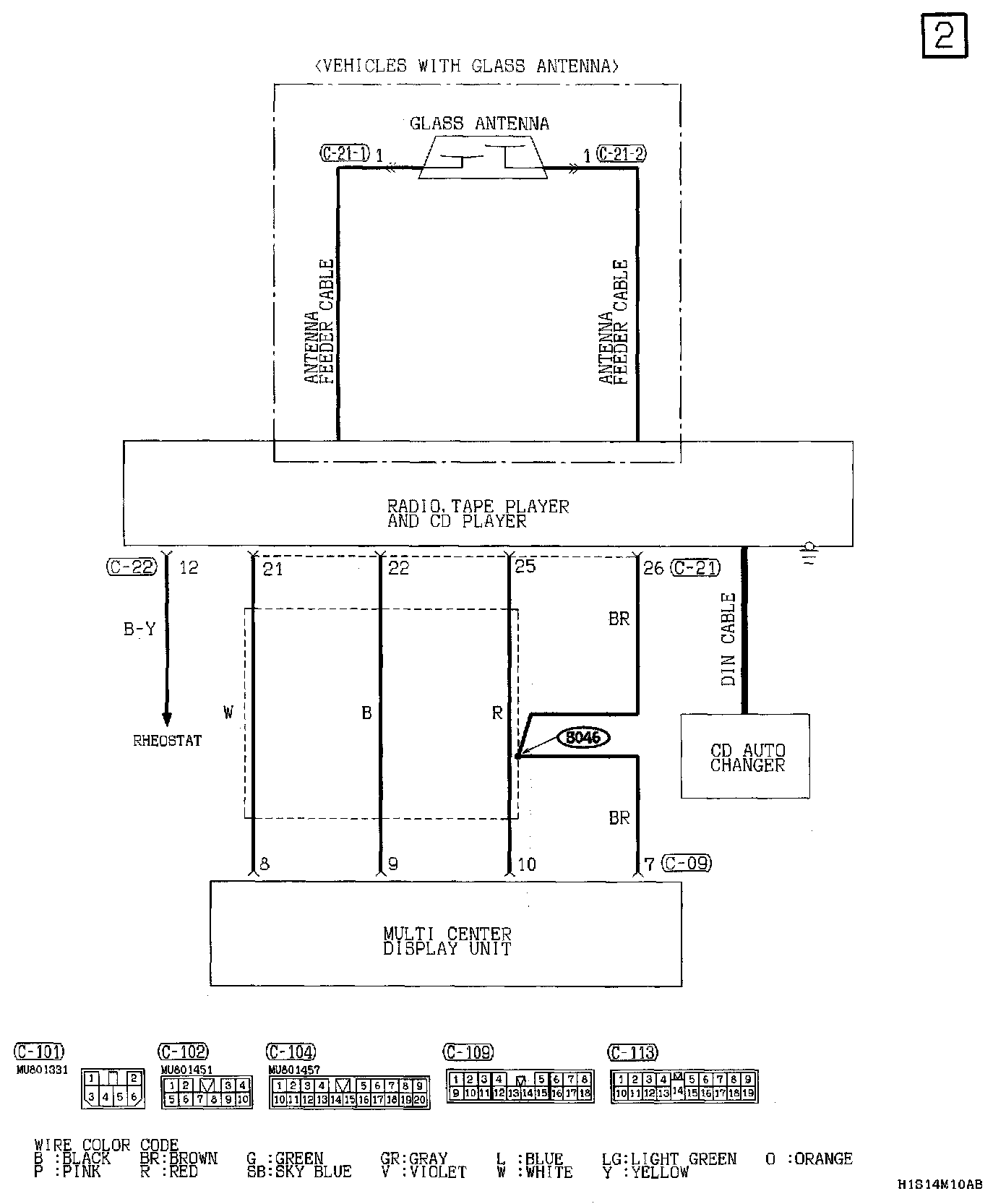

Audio System <Vehicle With Amplifier> Part 2:



Audio System <Vehicle With Amplifier> Part 3:



Audio System <Vehicle With Amplifier> Part 4:

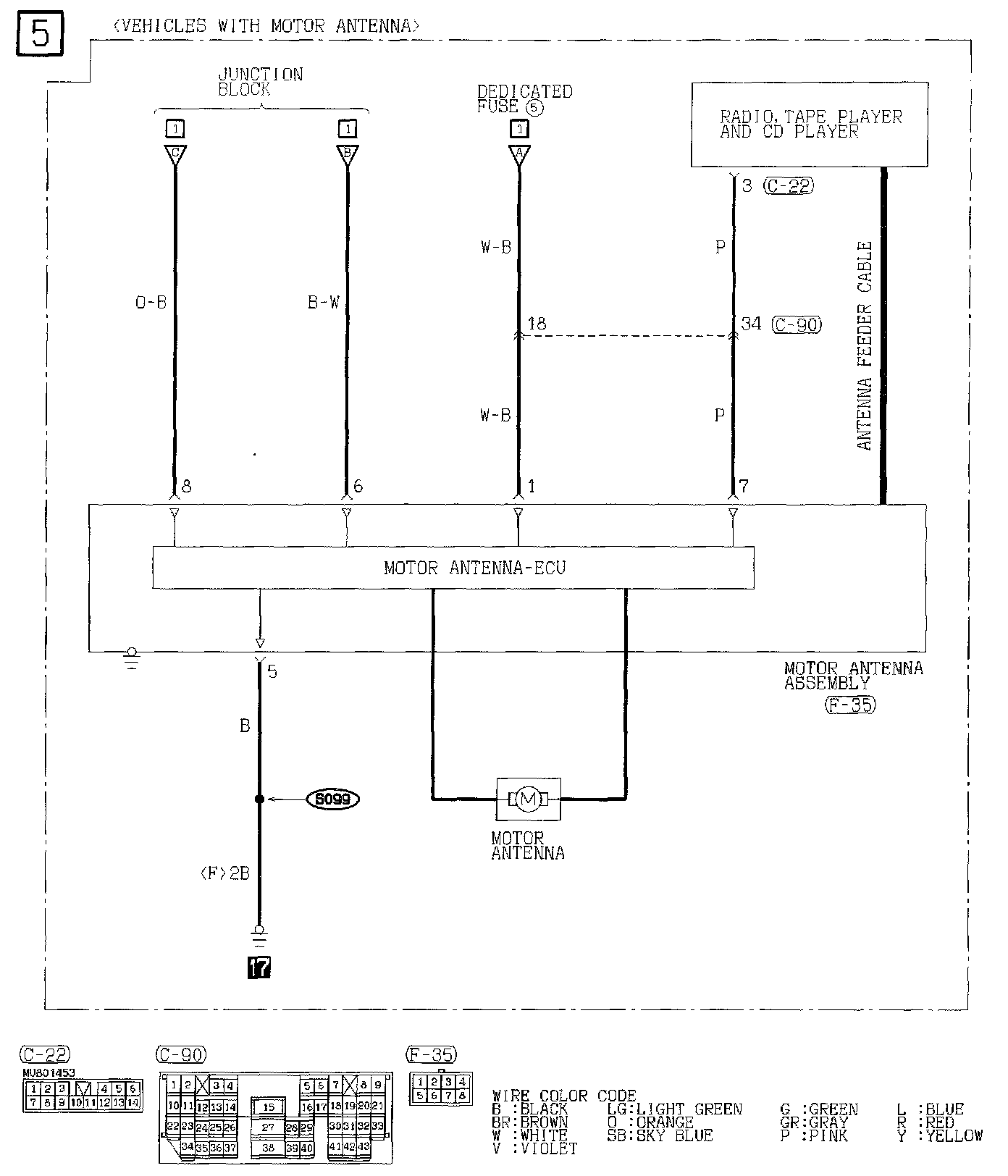

Audio System <Vehicle With Amplifier> Part 5:
