Mitsubishi
>>
2001
>>
Eclipse Spyder GT V6-3.0L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Traction Control (TCL) and Antilock Brakes (ABS)
Traction Control (TCL) and Antilock Brakes (ABS)

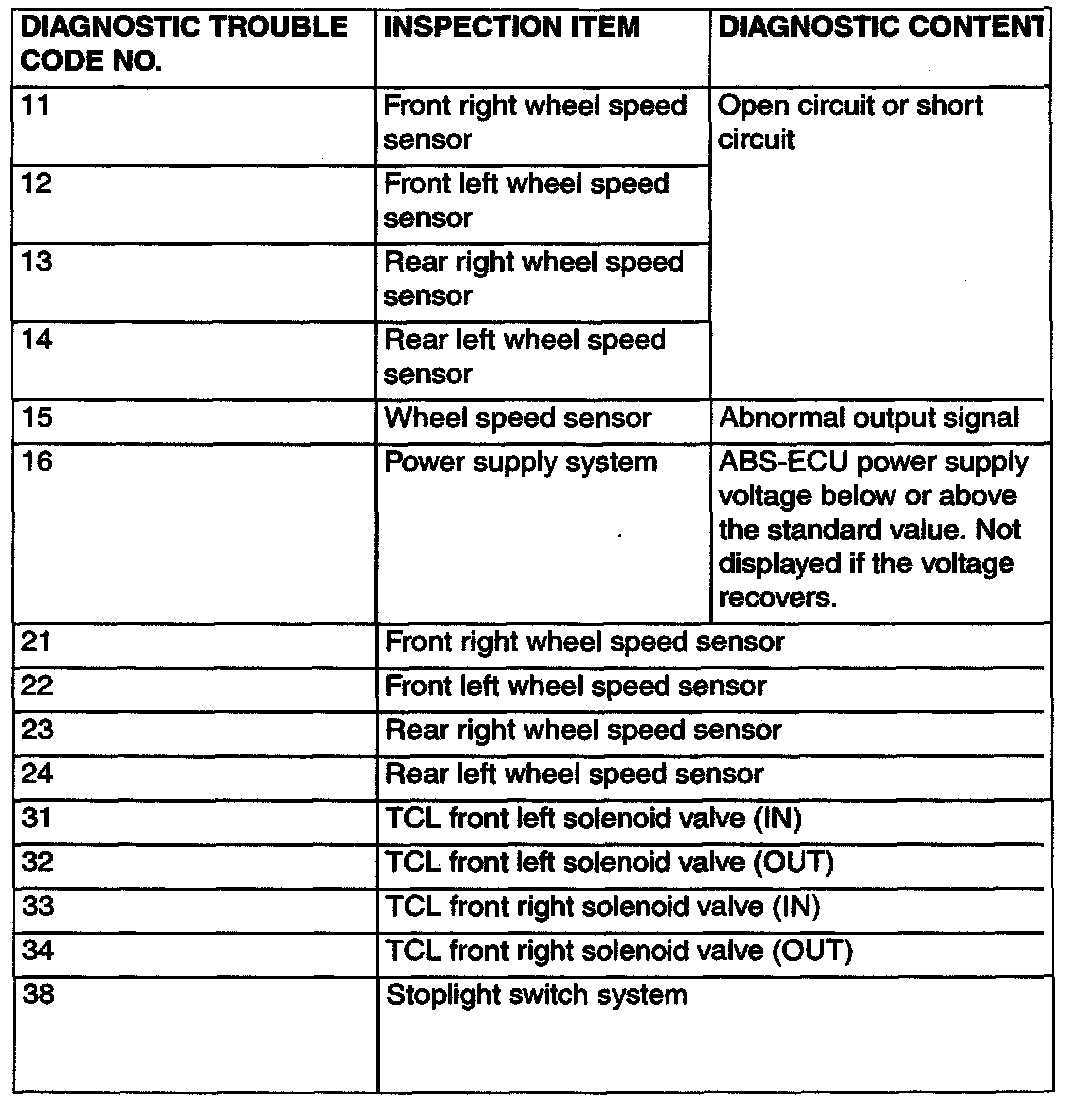

DIAGNOSTIC TROUBLE CODE CHART
Part 1 of 2

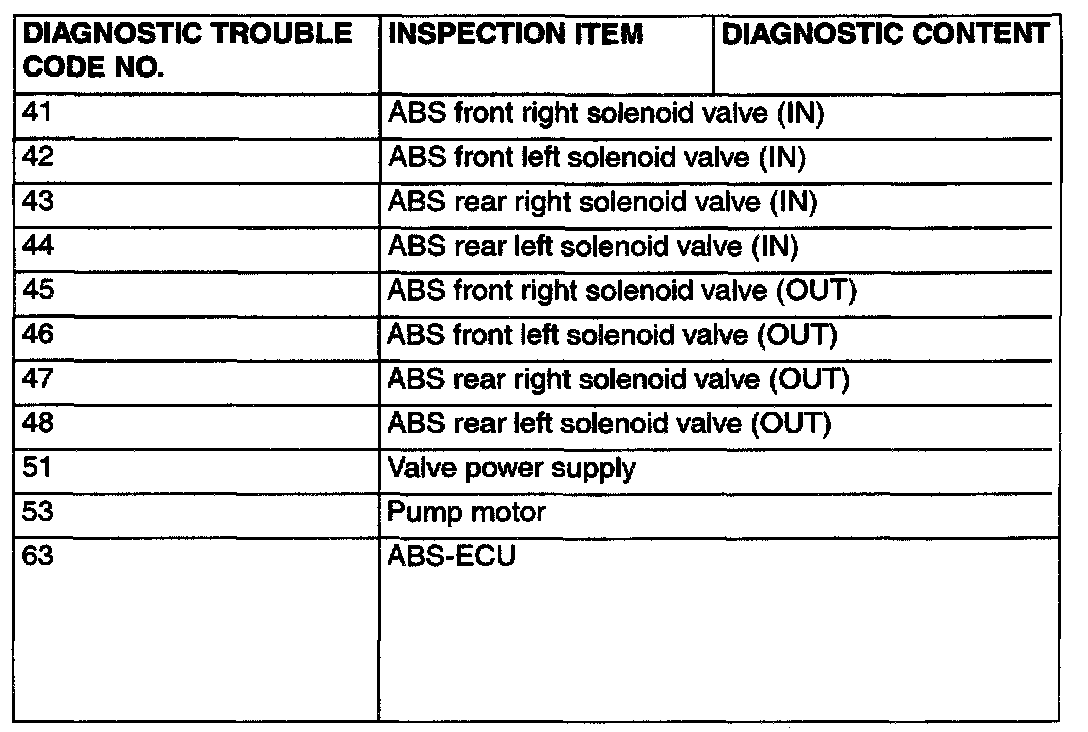

Part 2 of 2
Follow the inspection chart that is appropriate for the diagnostic trouble code.
