Rear Wiper and Washer

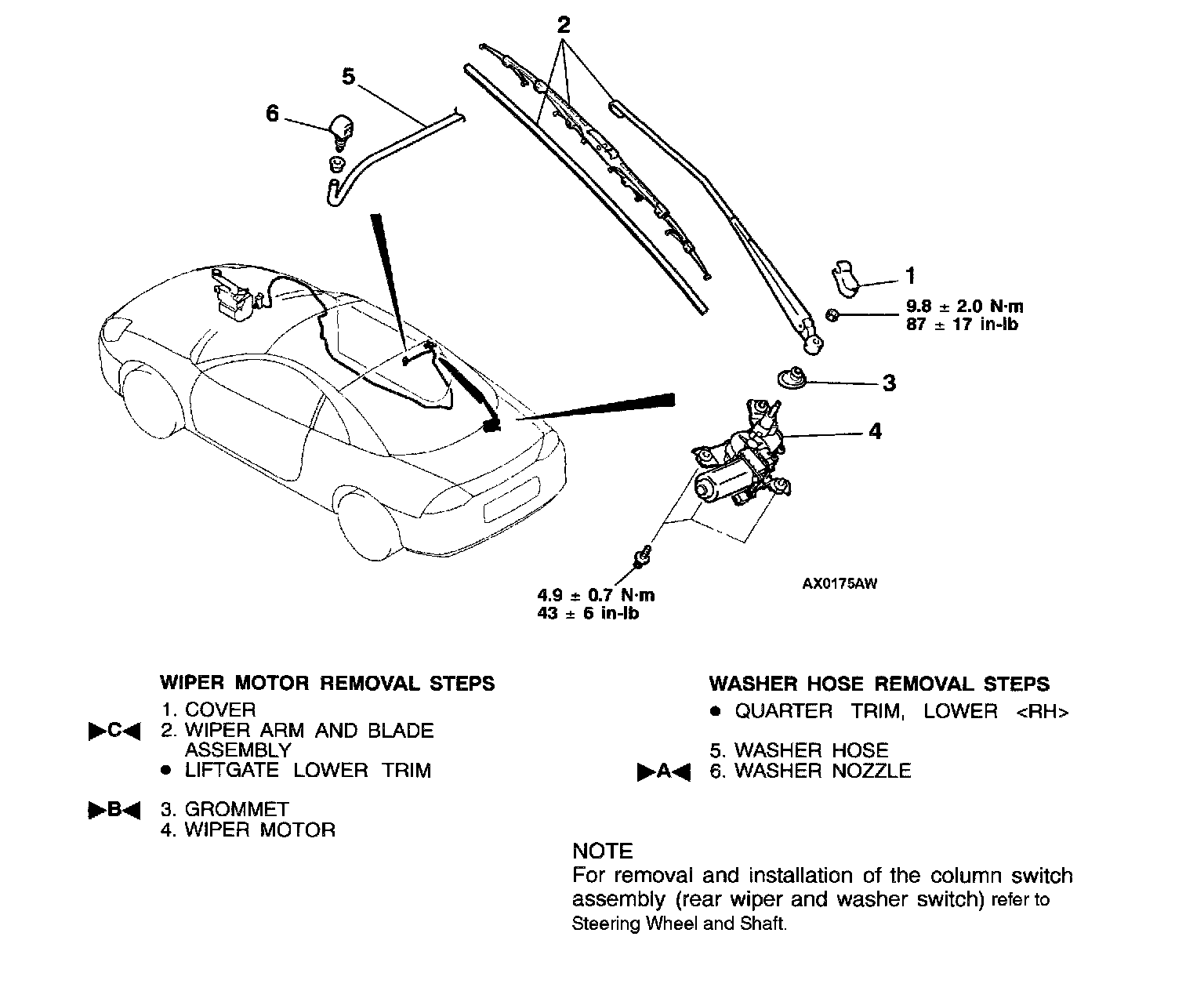

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINTS

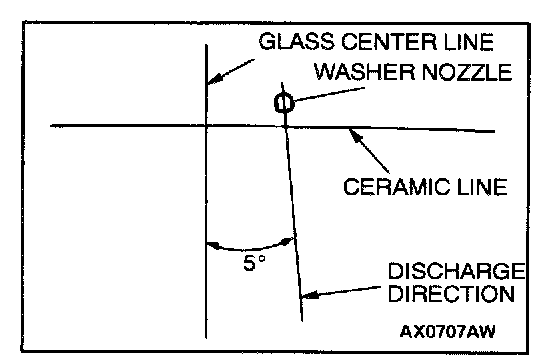

>A< WASHER NOZZLE INSTALLATION
Install the washer nozzle in the specified direction.

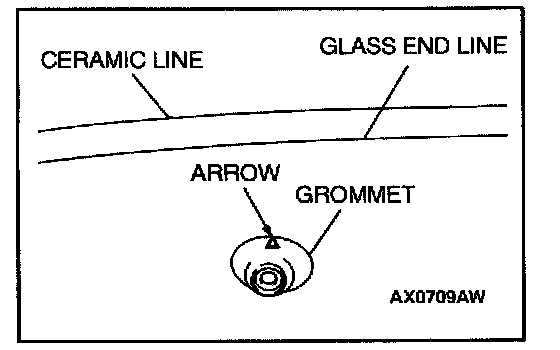

>B< GROMMET INSTALLATION
Install the grommet so that the arrow points upwards.

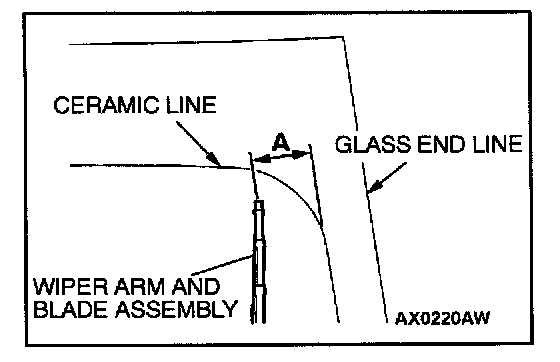

>C< WIPER ARM AND BLADE ASSEMBLY
Install the wiper blade so that the tip stops at the standard position (standard value), and also so that the lower section of the wiper blade enters the middle of the defogger pattern.

Standard value (A): 89 - 99 mm (3.5 - 3.9 inches)
