Window Track: Service and Repair

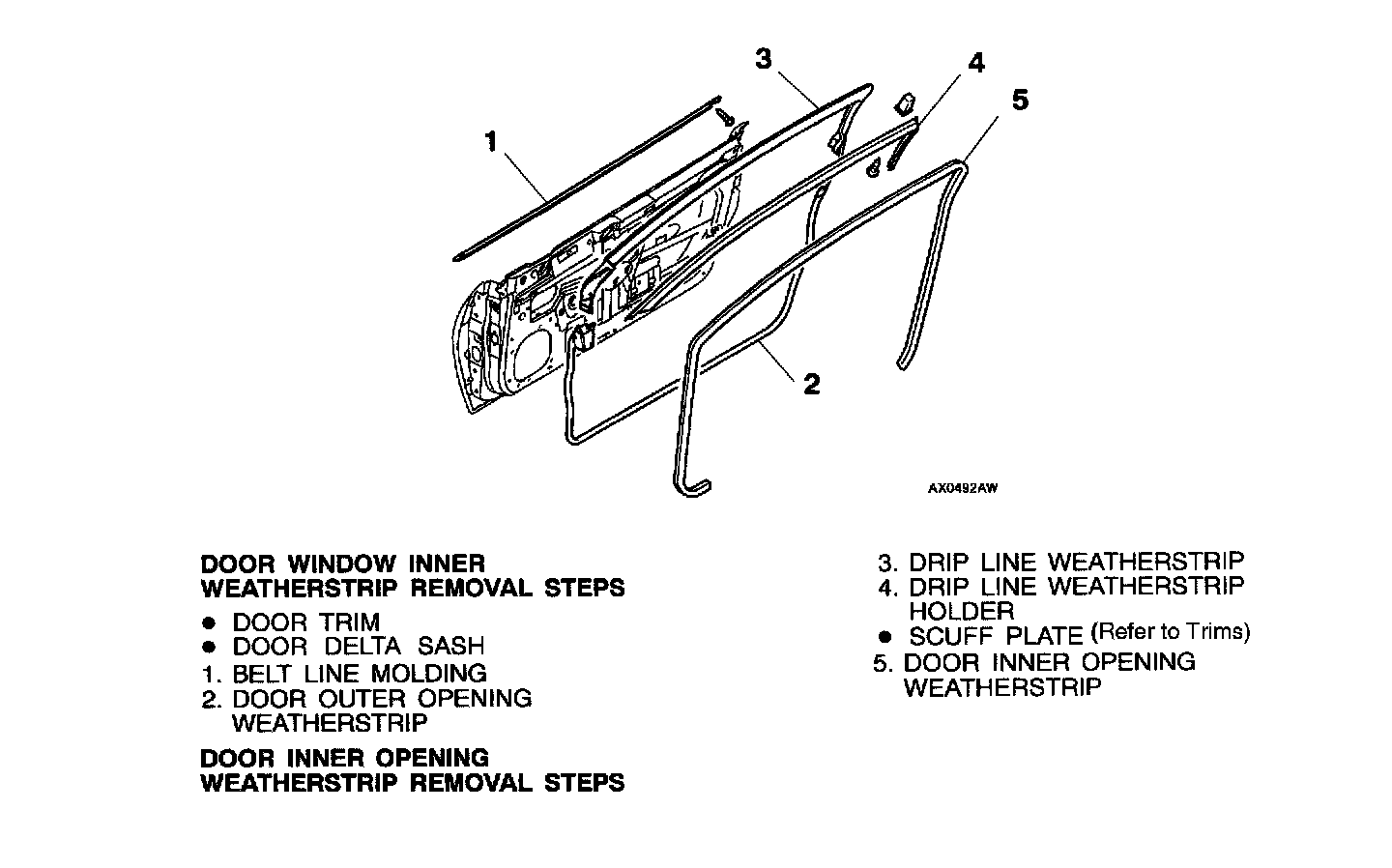

Door Window Glass Runchannel And Door Opening Weatherstrip:

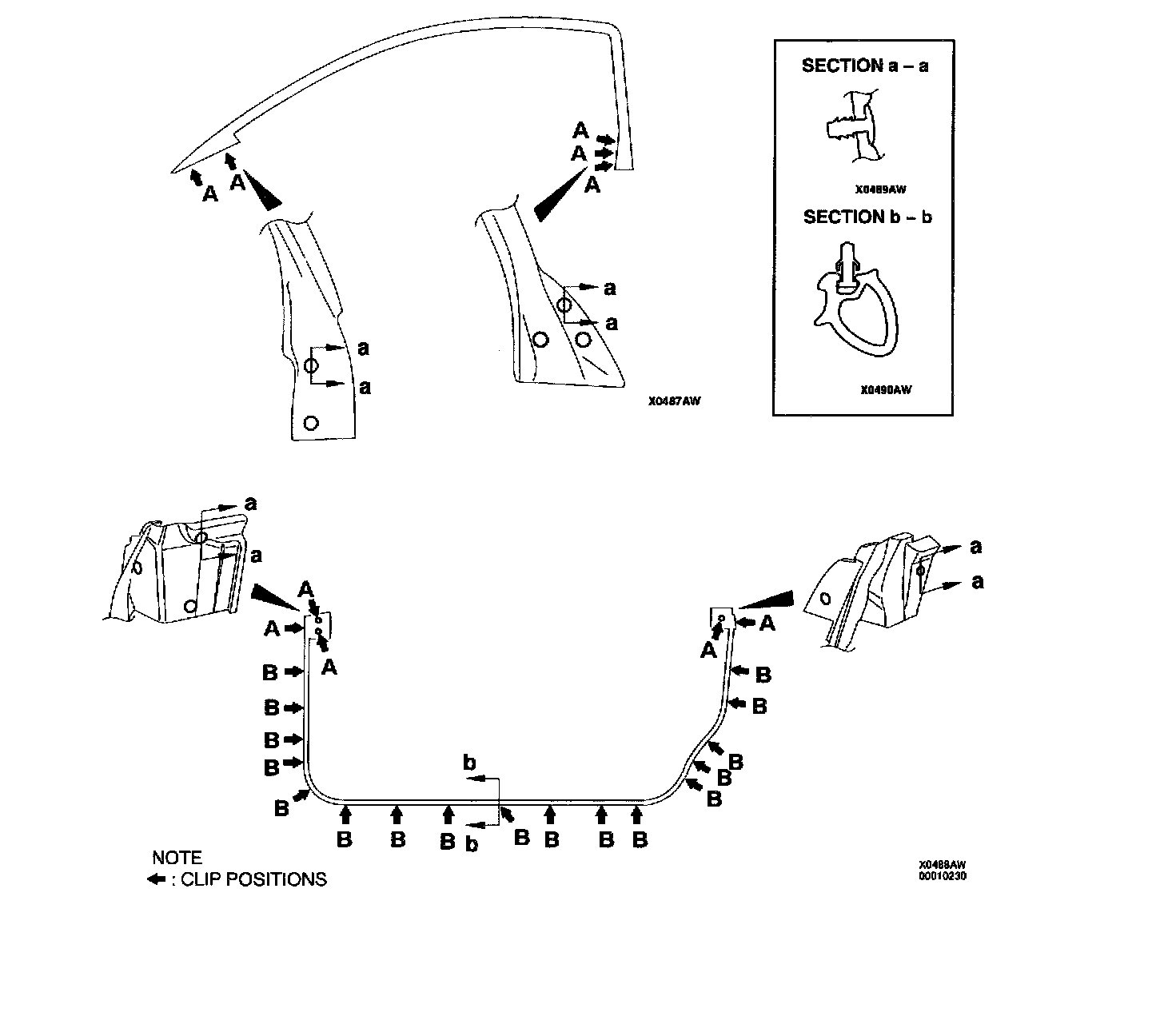

Clip And Claw Positions:

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




[A] DOOR OUTER OPENING WEATHERSTRIP REMOVAL
Make a fabricated tool as shown in the illustration to remove the door opening weatherstrip.

INSTALLATION SERVICE POINT




]A[ DOOR OUTER OPENING WEATHERSTRIP INSTALLATION

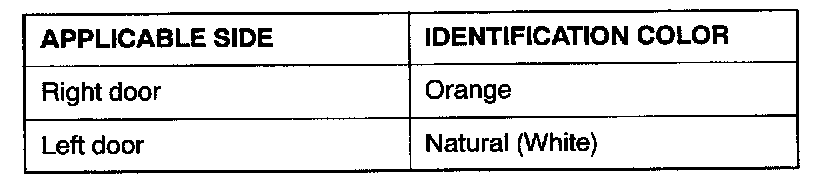

The clip color identifies the left and right weatherstrips.
