Electrical Diagrams

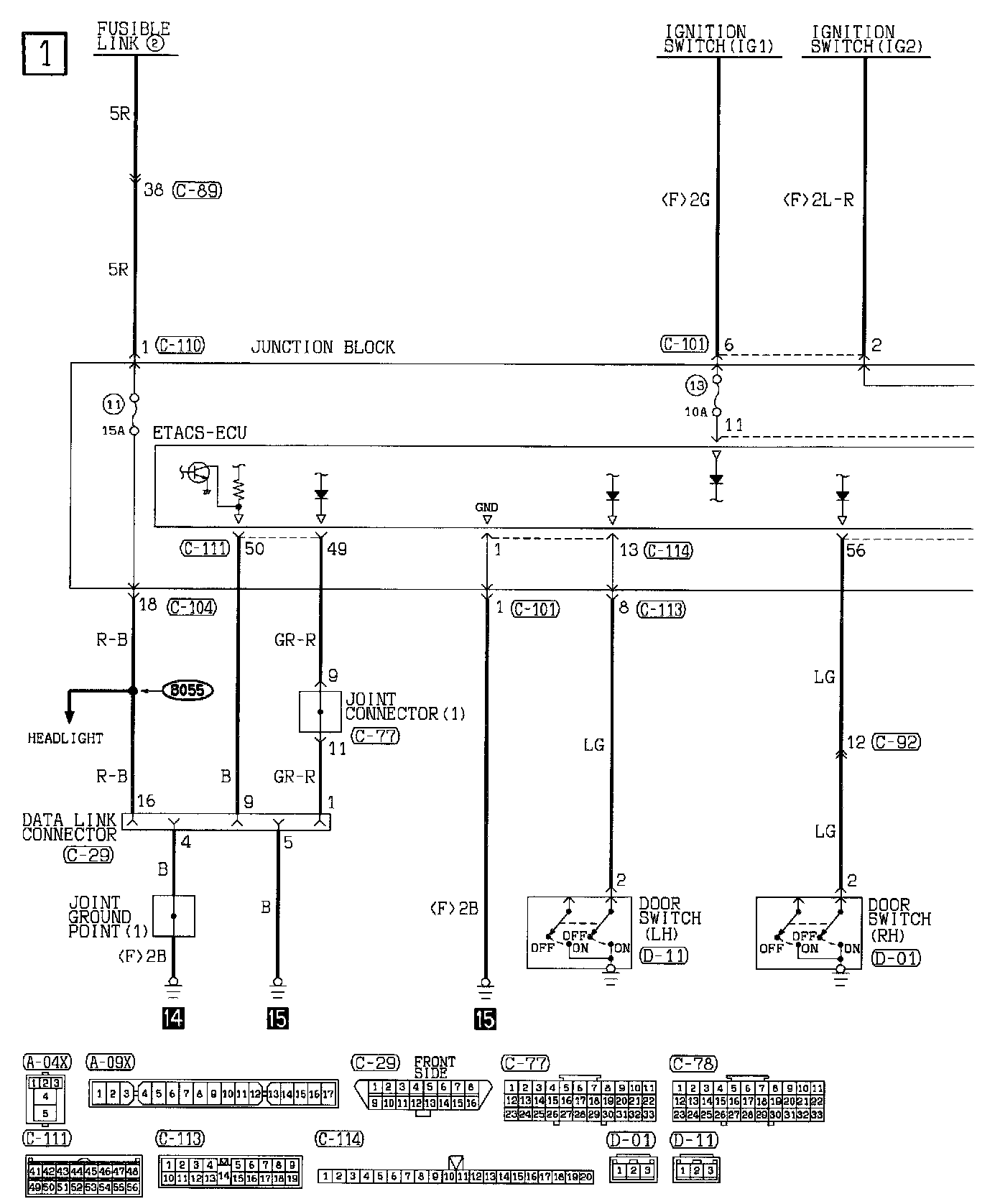

Power Windows (Part 1 Of 4):

Junction Block
- ETACS-ECU
Data Link Connector
Joint Ground Point
Joint Connector
Door Switch (LH & RH)

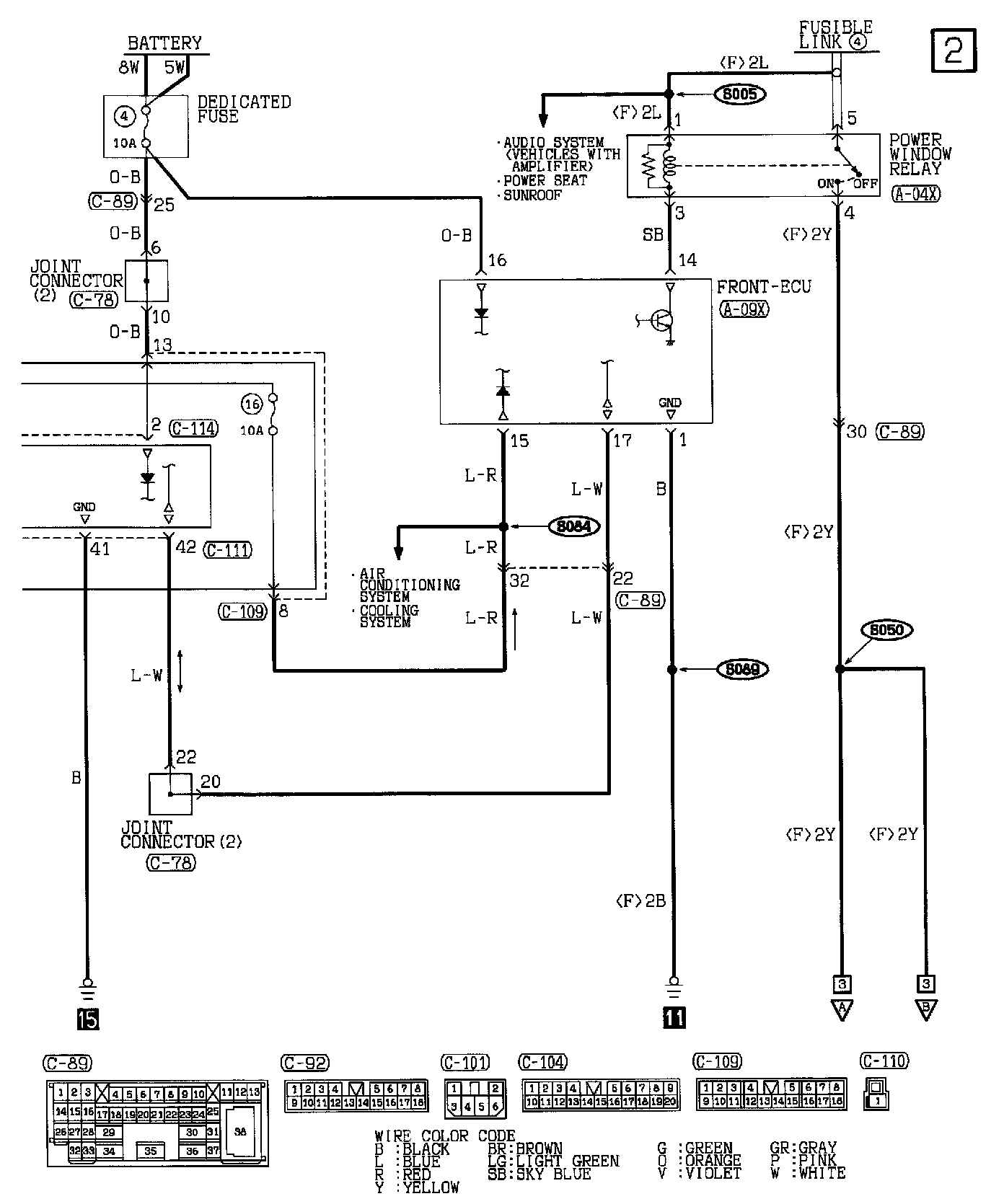

Power Windows (Part 2 Of 4):

Dedicated Fuse
Joint Connector
Front-ECU
Power Window Relay

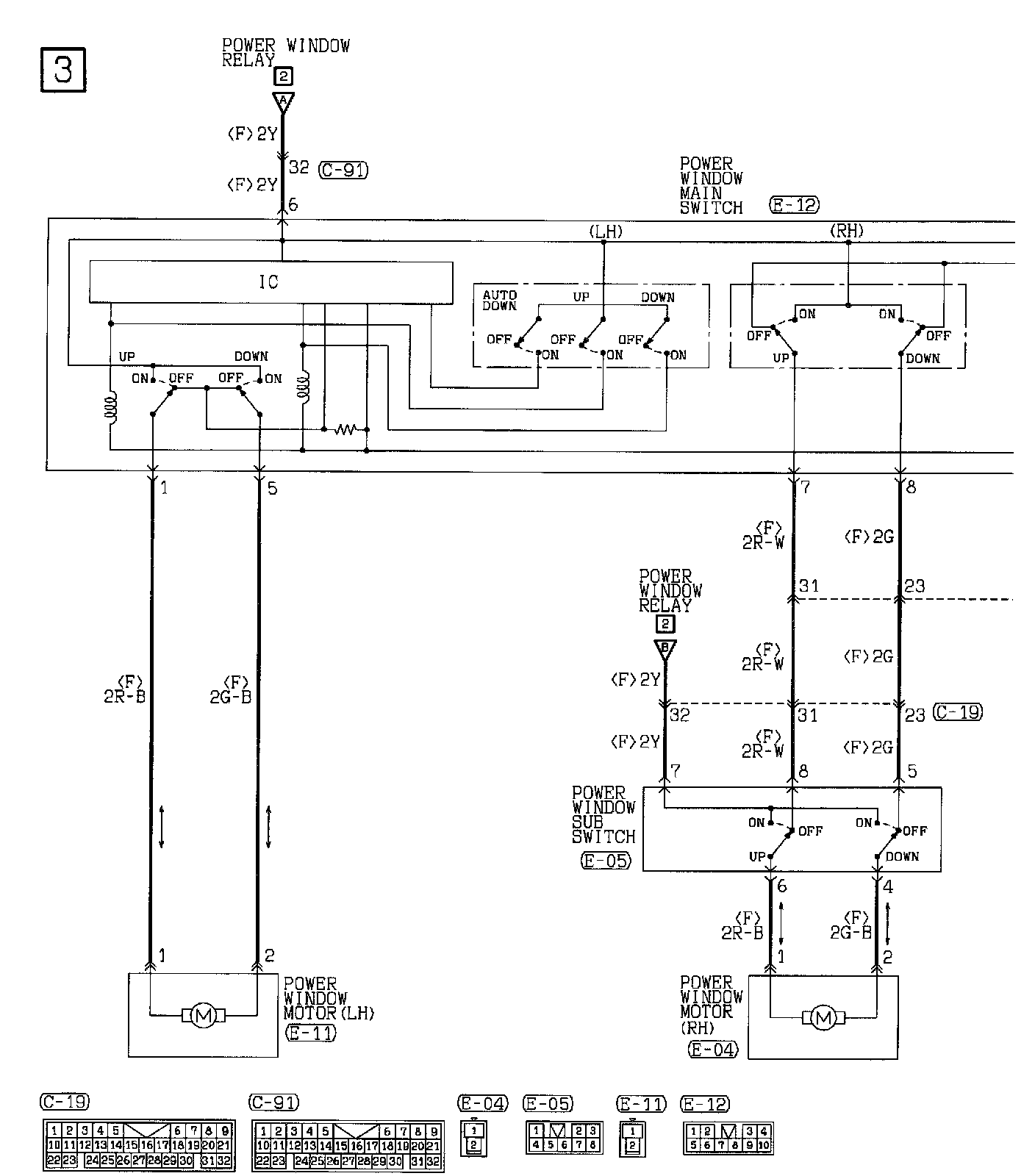

Power Windows (Part 3 Of 4):

Power Window Main Switch
Power Window Motor (LH & RH)
Power Window Sub switch

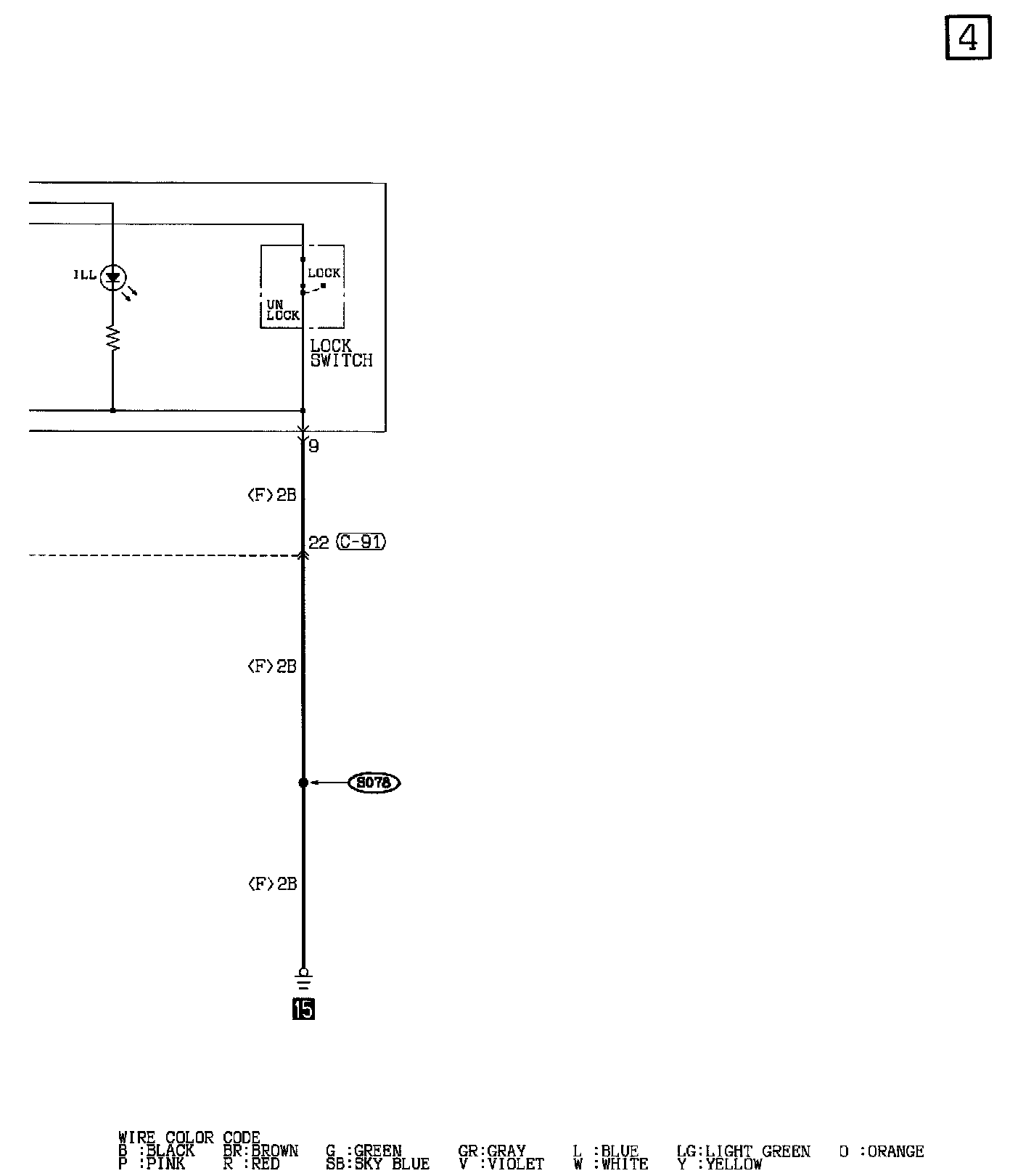

Power Windows (Part 4 Of 4):

Lock Switch
