Manual Transaxle - Removal Procedure Revision

No.: TSB-02-22-001
DATE: August, 2000
Model: See below

SUBJECT:
MANUAL TRANSAXLE REMOVAL
SERVICE MANUAL REVISION

[TSB Revision TSB-00-22-001]

PURPOSE
The procedures for removing the manual transaxle is incorrectly shown in the affected service manual pages. This bulletin contains corrected M/T removal procedures.

Write the TSB revision number of this bulletin in the "TSB Revision" Box at the bottom of the affected service manual pages.

AFFECTED VEHICLES
2000 Eclipse and Galant models equipped with manual transaxle.

AFFECTED SERVICE MANUALS
2000 Eclipse, Volume 2, pages 22A-12 through 22A-16
2000 Galant, Volume 2, pages 22A-11 through 22A-13

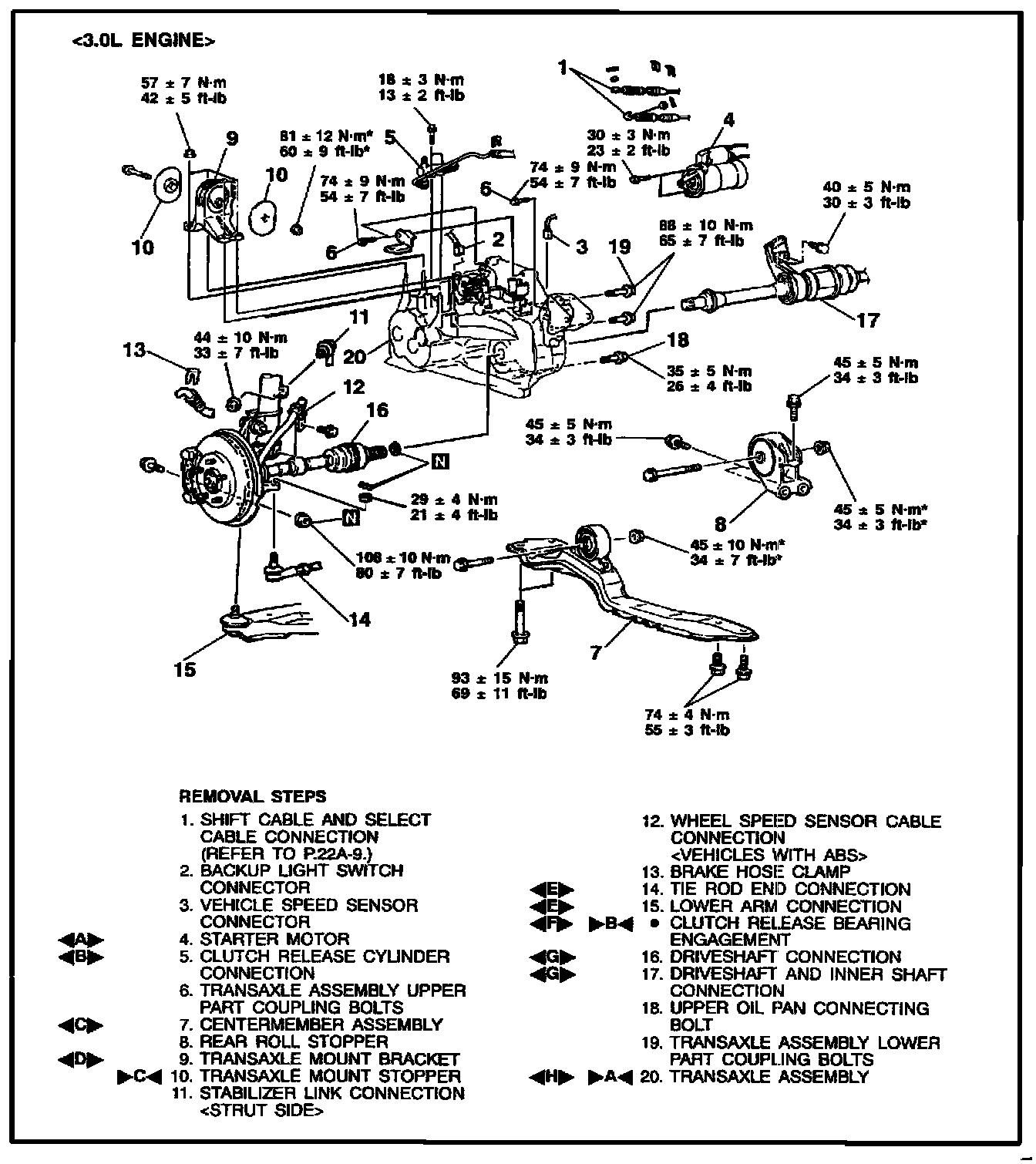

2000 Eclipse, Volume 2, pages 22A-12 and 22A-13. Replace the removal steps.





2000 Eclipse, Volume 2, pages 22A-14 and 22A-15. Replace the removal steps.

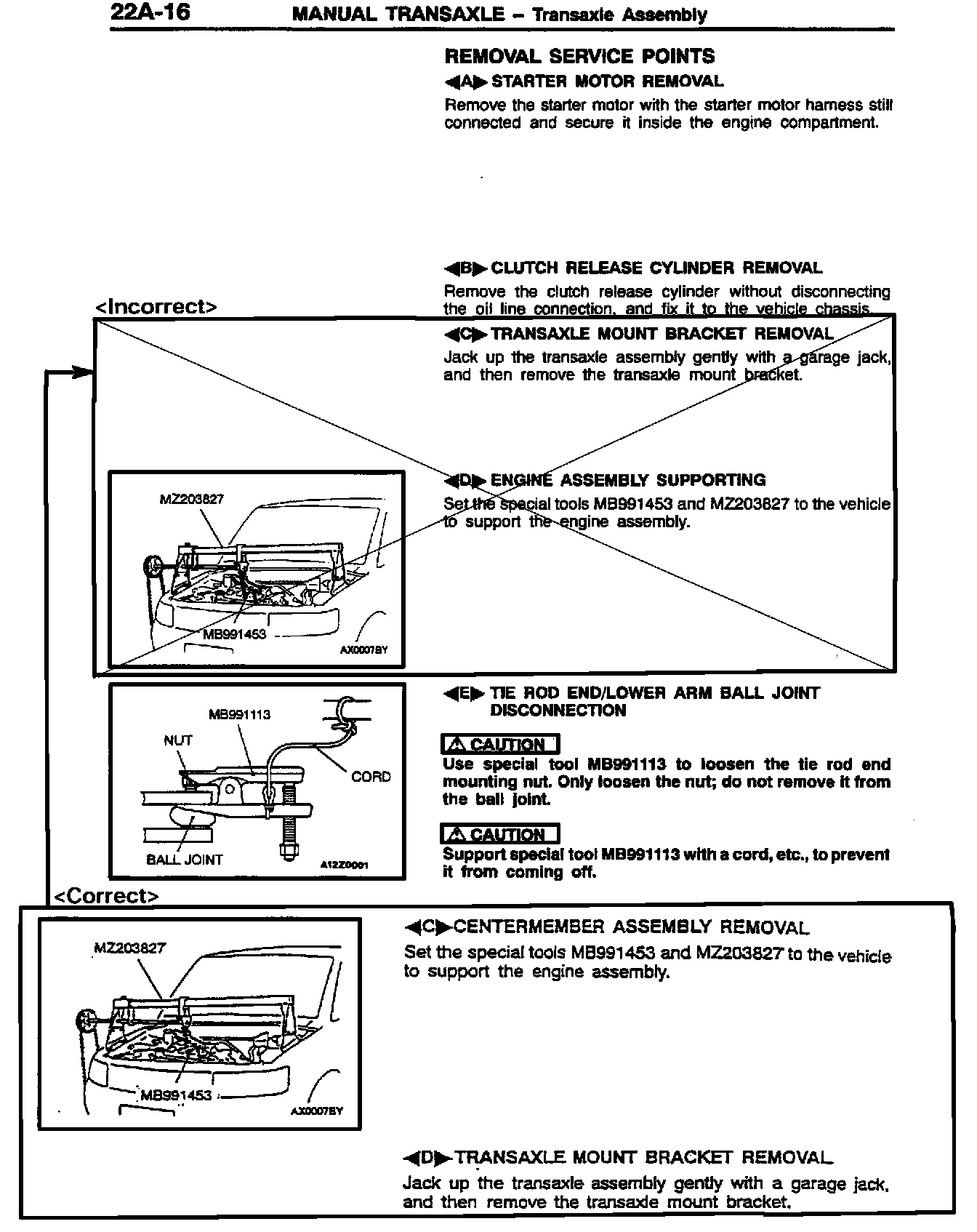

2000 Eclipse, Volume 2, page 22A-16.

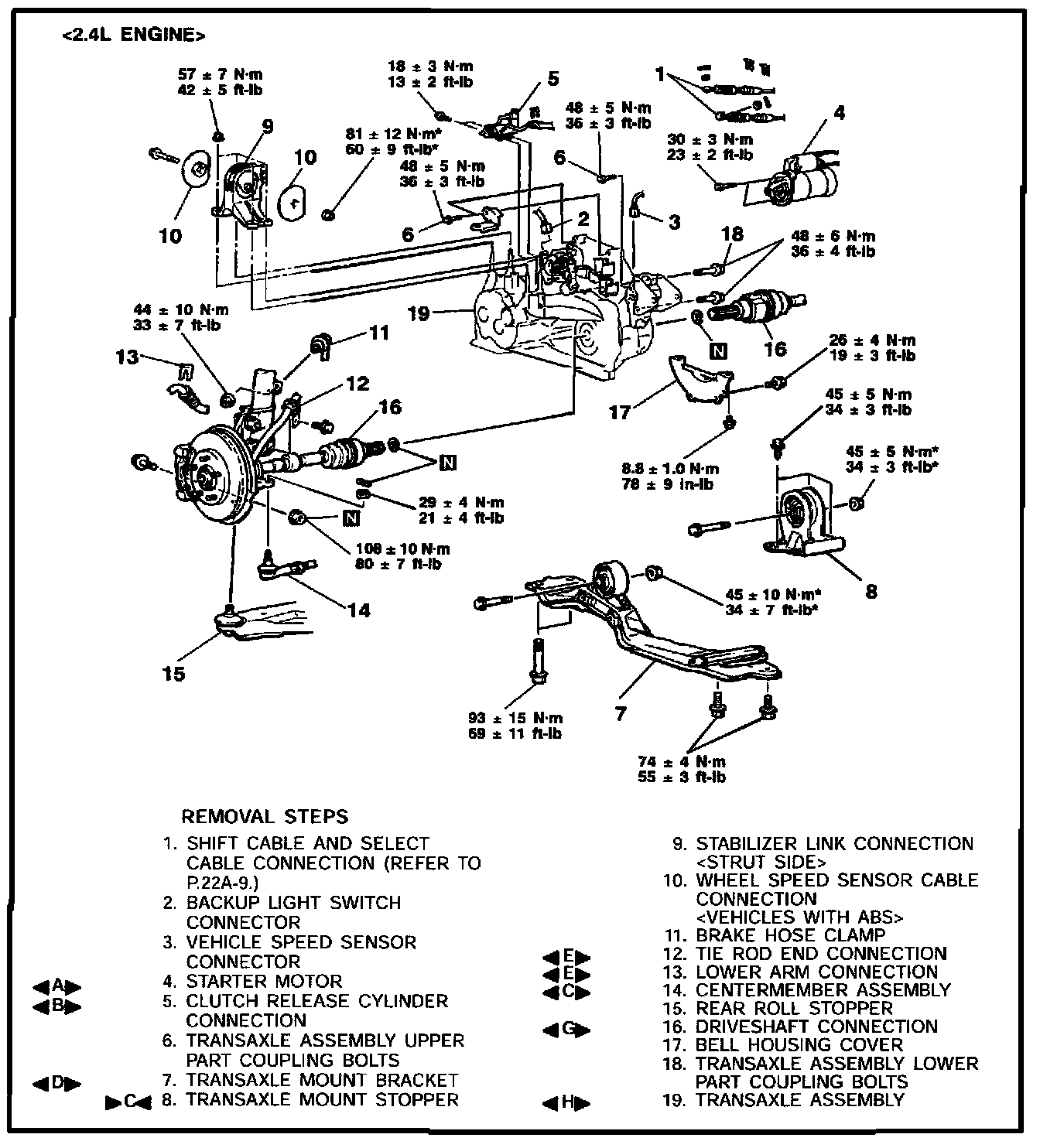

2000 Galant, Volume 2, pages 22A-11 and 22A-12. Replace the removal steps.





2000 Galant, Volume 2, page 22A-13. Delete the steps indicated.

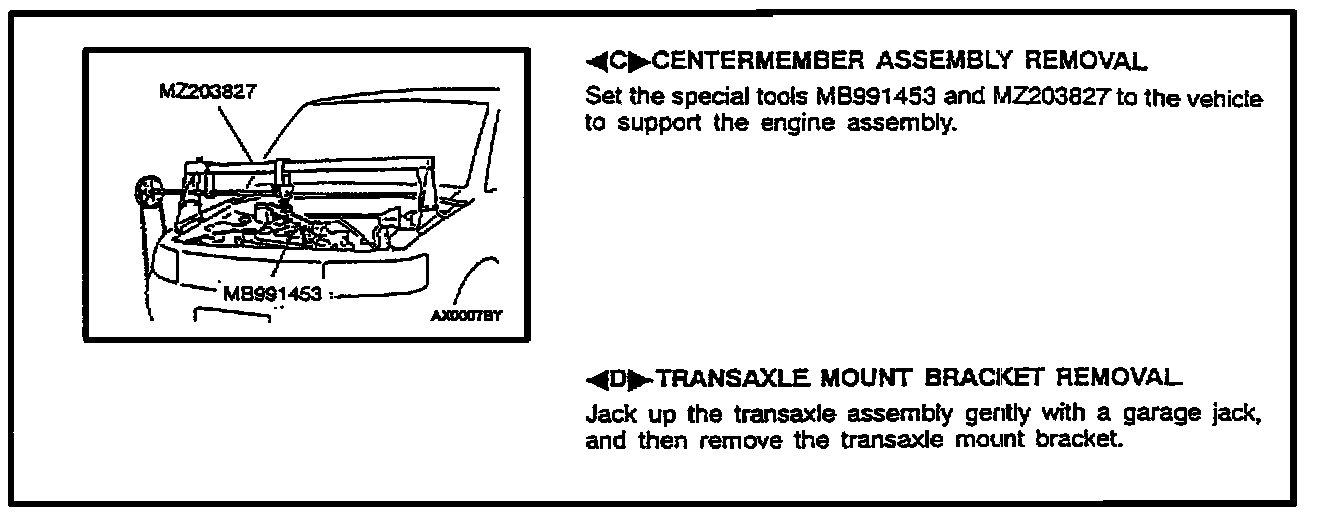

2000 Galant, Volume 2, page 22A-13. Add the new steps:
