Transaxle Case

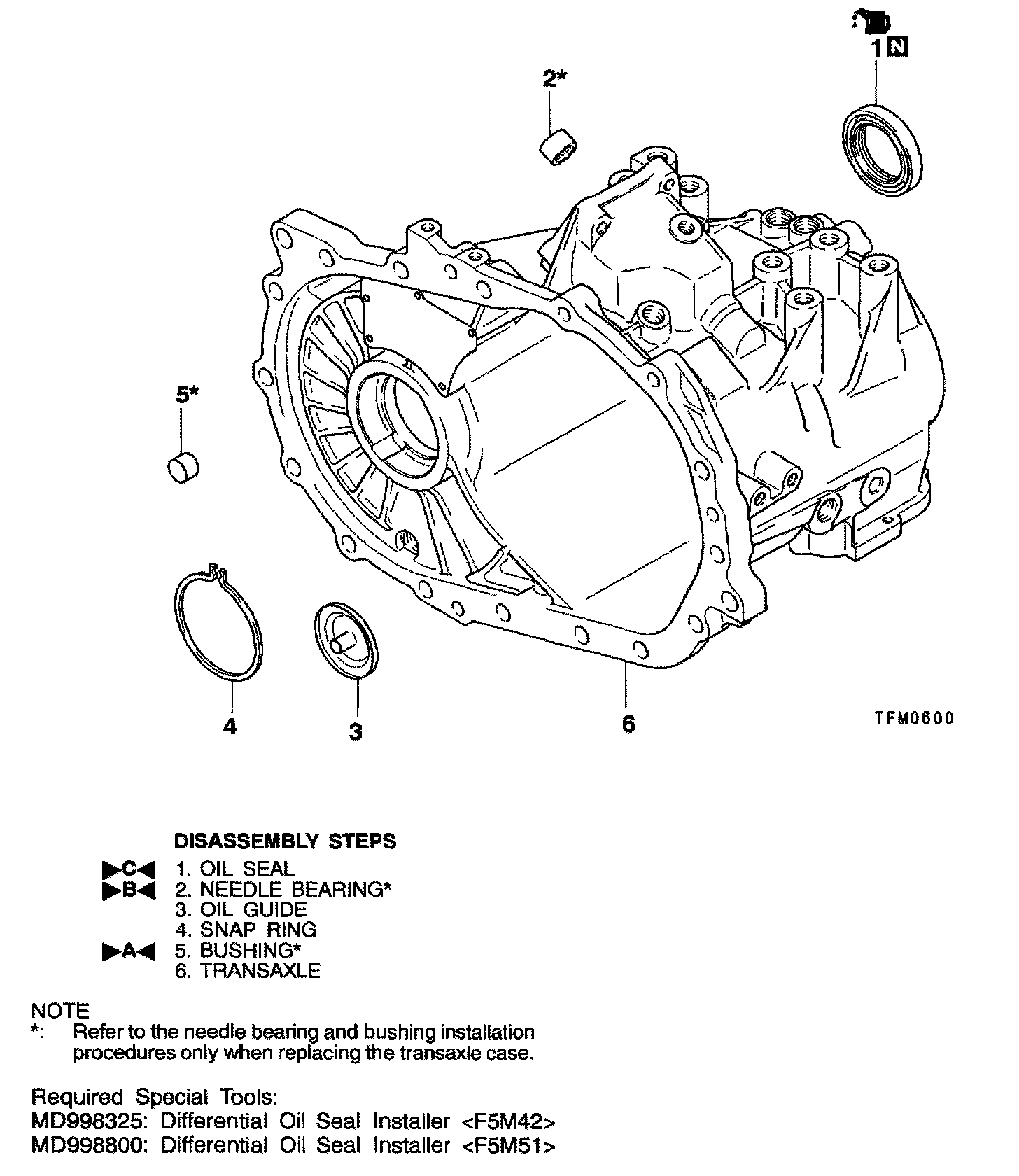

DISASSEMBLY AND REASSEMBLY
Assembly Service Points
>A< Bushing Installation

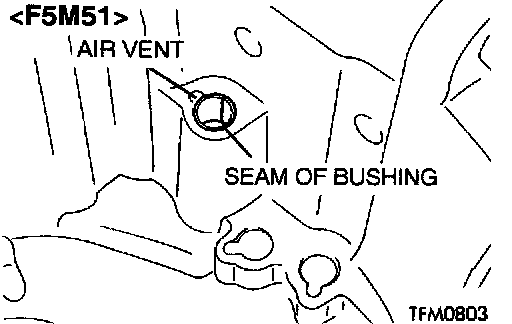

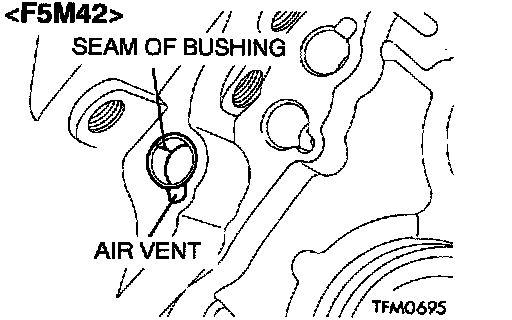

1. Press fit the bushing so the seam is away from the air vent.

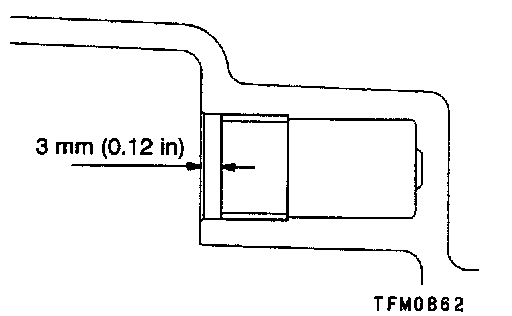

2. Be sure the bushing is fully seated as shown. It must be 3 mm below the housing surface.
>B< Needle Bearing Installation

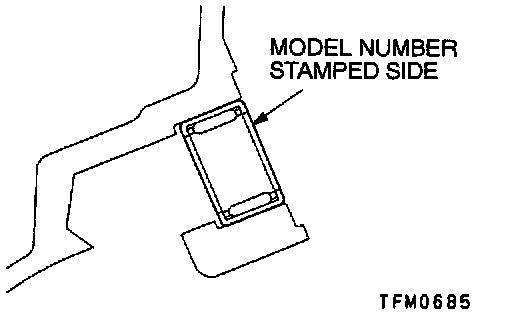

1. Check the installation direction of the needle bearing.
2. Press fit the needle bearing until it is flush with the case.
>C< Oil Seal Installation

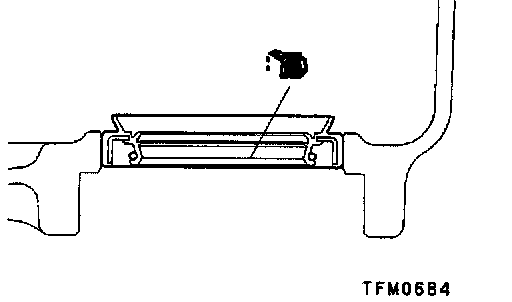

1. Apply gear oil (Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4).

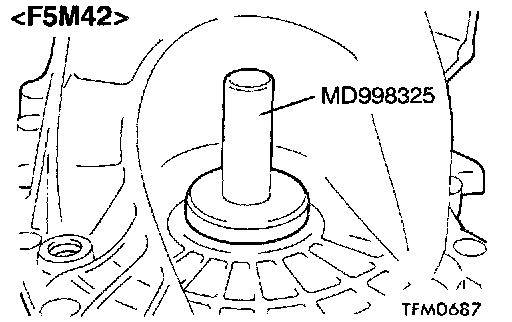

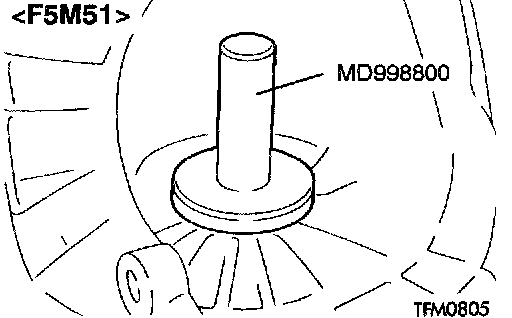

2. Using special tool MD998325
