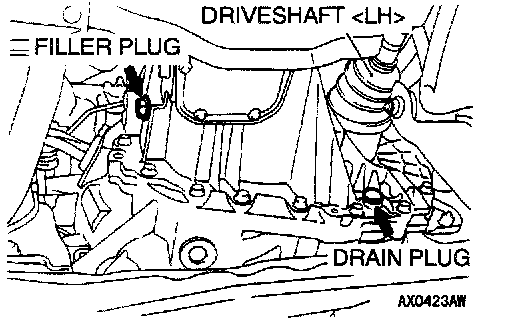

Drain and Fill Locations
Drain Plug Tightening Torque: 32 ± 2 Nm (24 ± 1 ft. lbs.)
Filler Plug Tightening Torque: 32 ± 2 Nm (24 ± 1 ft. lbs.)
Drain Plug Tightening Torque: 32 ± 2 Nm (24 ± 1 ft. lbs.)
Filler Plug Tightening Torque: 32 ± 2 Nm (24 ± 1 ft. lbs.)
