Transmission Mount: Service and Repair
REMOVAL AND INSTALLATION
Removal Service Points
Transmission Mount Bracket Removal

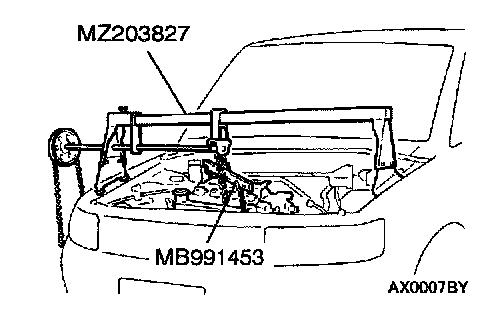

1. Install special tools MB991453 and MZ203827 to the vehicle body to support the engine and transmission assembly.
2. Remove the centermember and rear roll stopper bracket.
3. Remove the bolt and nut of the transmission mount bracket.
4. After lowering the engine and transmission assembly, remove the transmission mount bracket.
Installation Service Points
>A< Transmission Mount Stopper Installation

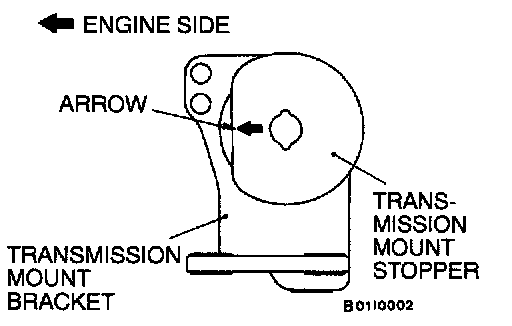

Clamp the transmission mount stopper so that the arrow points in the direction as shown in the diagram.
