A/T - Revised Bolt Torque Values
No.: TSB-02-23-003DATE: July, 2002
MODEL: See Below
SUBJECT
REVISED BOLT TIGHTENING TORQUE VALUES (Eclipse & Galant) - SERVICE MANUAL REVISION
PURPOSE
This bulletin revises the tightening torque values for the transmission output shaft retainer bolts and the transmission oil pump mounting bolts. These torque values were changed beginning with April, 2000 production.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
The revisions covered by this bulletin apply to all of the following vehicles produced beginning April, 2000.
2000-02 Eclipse
2001-02 Eclipse Spyder
1999-2002 Galant

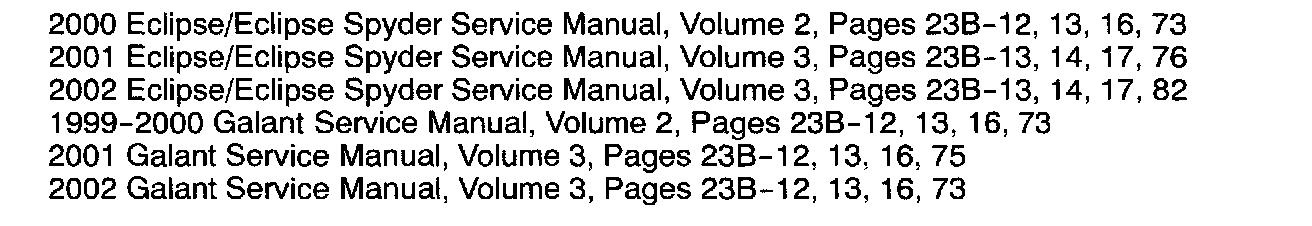

AFFECTED SERVICE MANUALS
FILE UNDER:
Group 23 Automatic Transmission in the Dealer Service Information Binder (2453)
PARTS INFORMATION

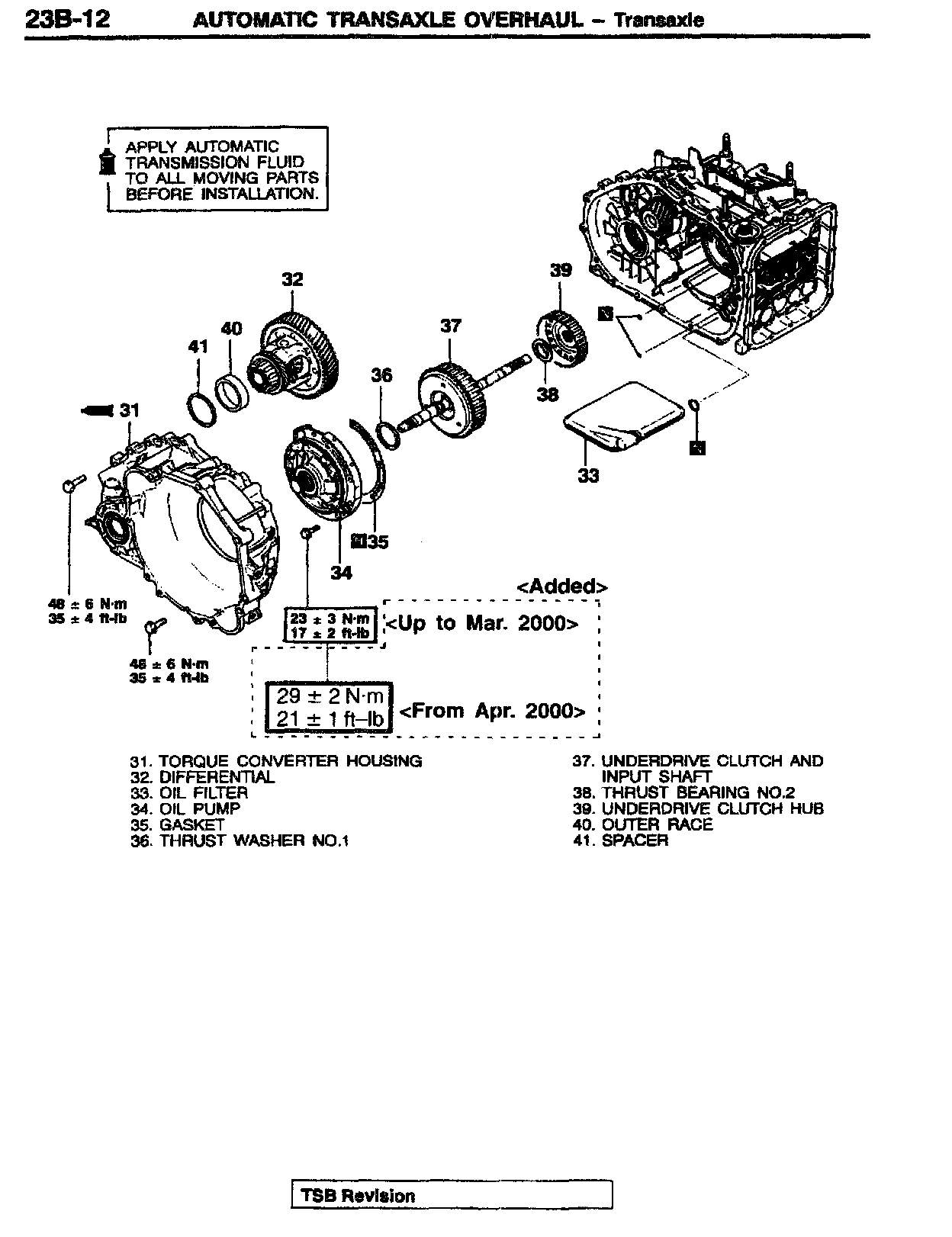

2000 Eclipse/Eclipse Spyder Volume 2, Page 23B-12
1999-2000 Galant, Volume 2, Page 23B-12
Revise the oil pump bolt tightening torque value as shown:

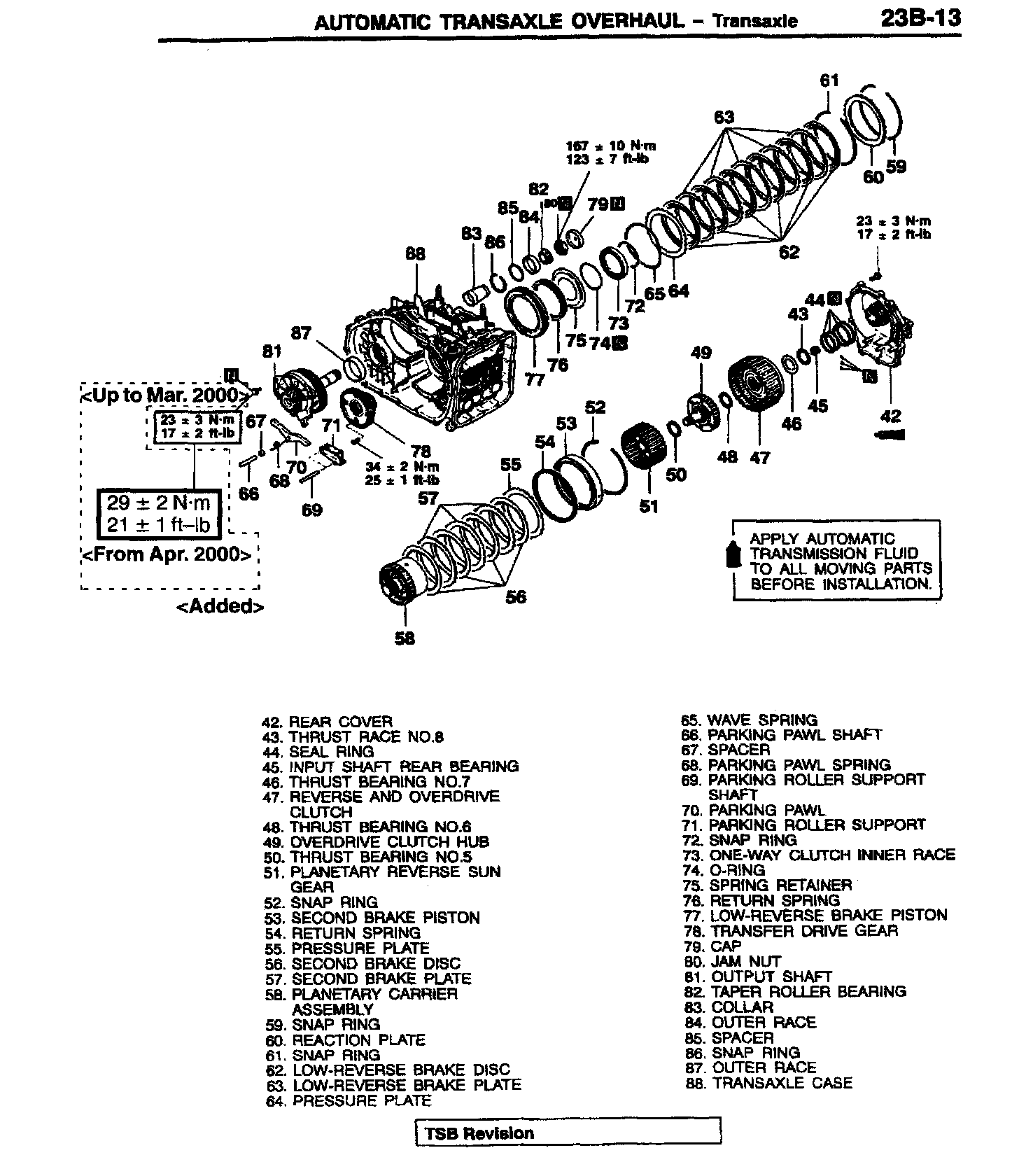

2000 Eclipse/Eclipse Spyder, Volume 2, Page 23B-13
1999-2000 Galant, Volume 2, Page 23B-13
Revise the output shaft bearing retainer bolt tightening torque value as shown.
2000 Eclipse/Eclipse Spyder, Volume 2, Page 23B-16
1999-2000 Galant, Volume 2, Page 23B-16
Revise the oil pump bolt tightening torque value as shown.

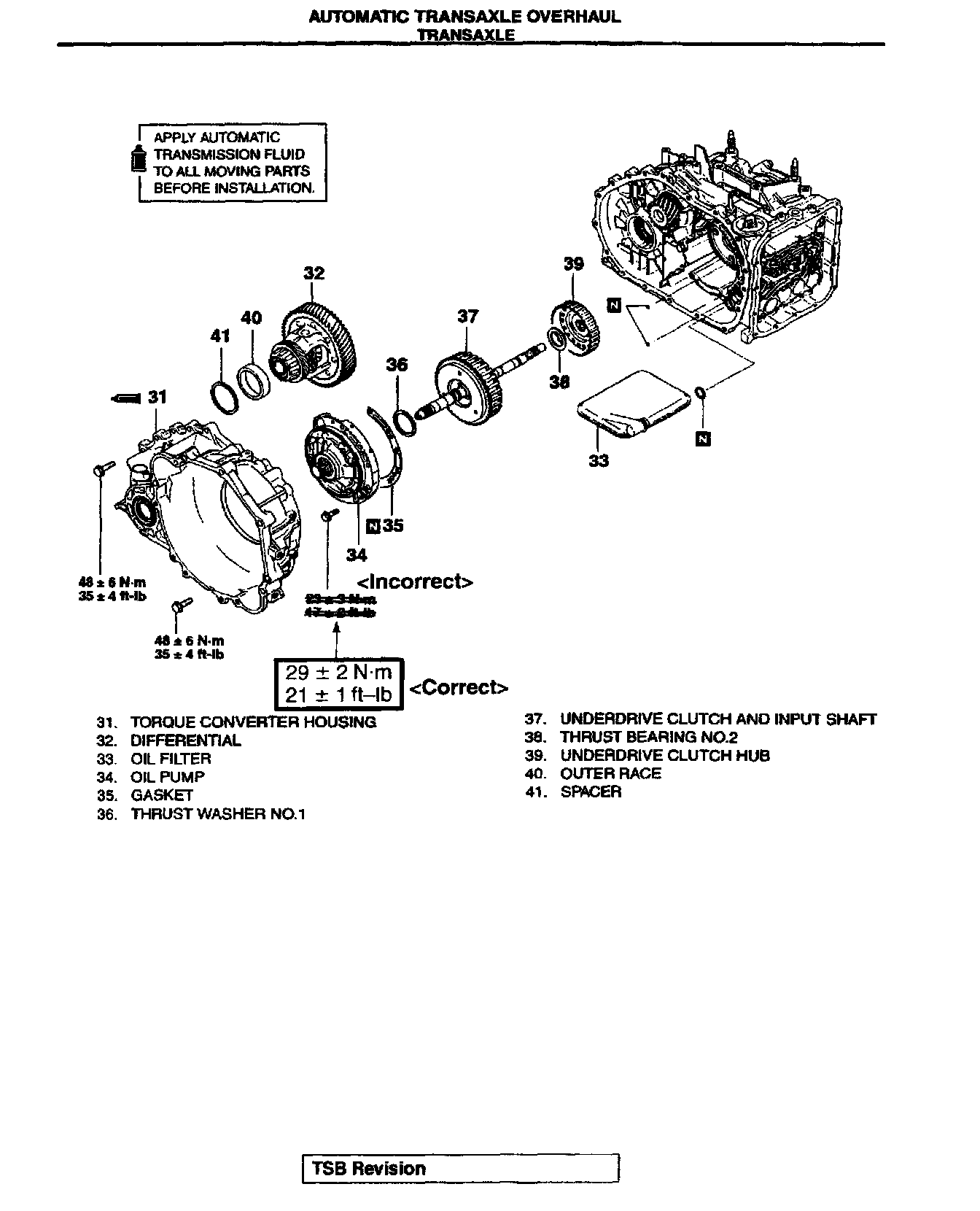

2001 & 2002 Eclipse/Eclipse Spyder, Volume 3, Page 23B-13
2001 & 2002 Galant, Volume 3, Pages 23B-12
Revise the oil pump bolt tightening torque value as shown.
2001 & 2002 Eclipse/Eclipse Spyder, Volume 3, Page 23B-14
2001 & 2002 Galant, Volume 3, Pages 23B-13
Revise the output shaft beaning retainer bolt tightening torque as shown.
2001 & 2002 Eclipse/Eclipse Spyder, Volume 3, Page 23B-17
2001 & 2002 Galant, Volume 3, Pages 23B-16
Revise the oil pump bolt tightening torque as shown.

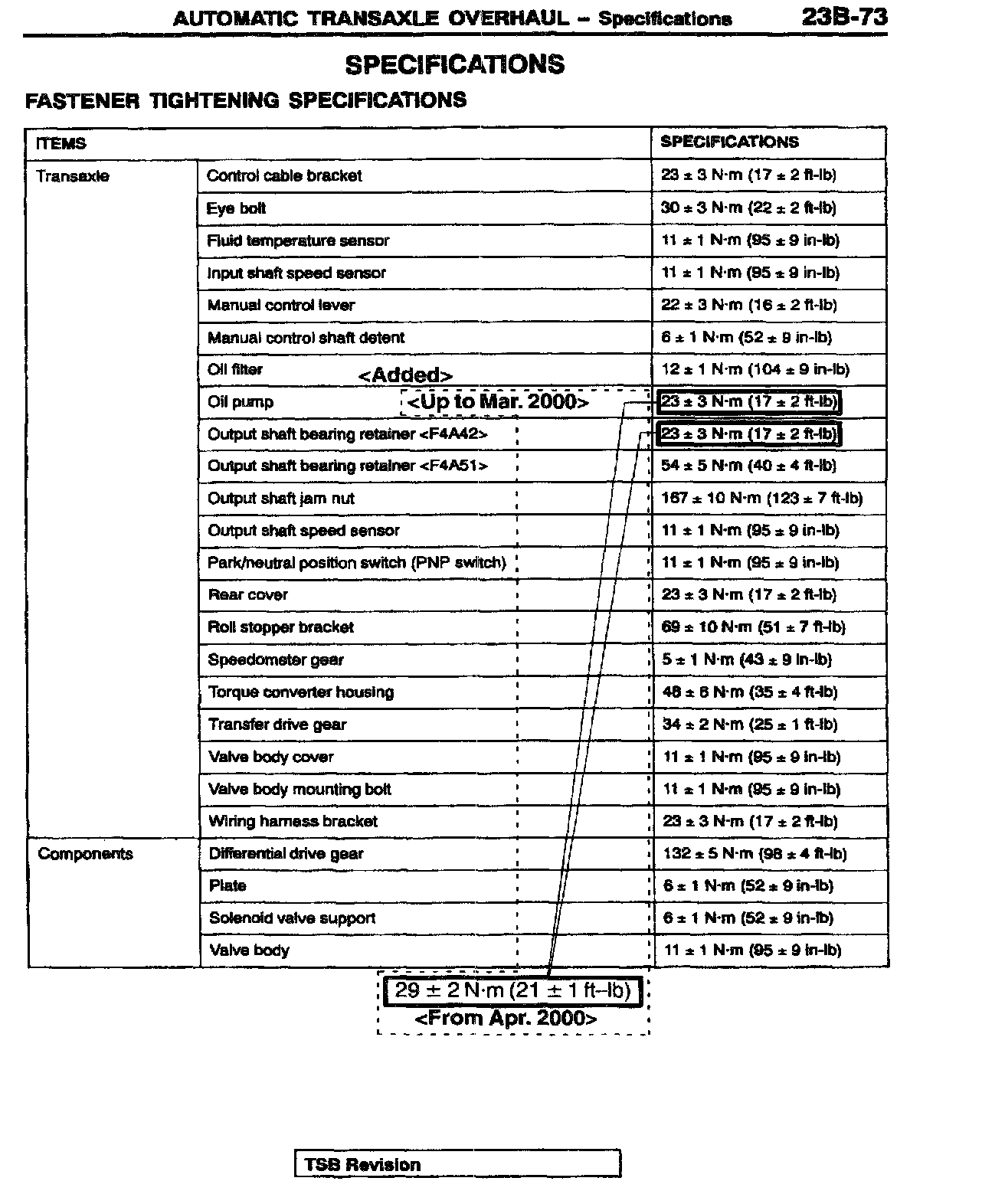

2000 Eclipse/Eclipse Spyder Volume 2, Page 23B-73

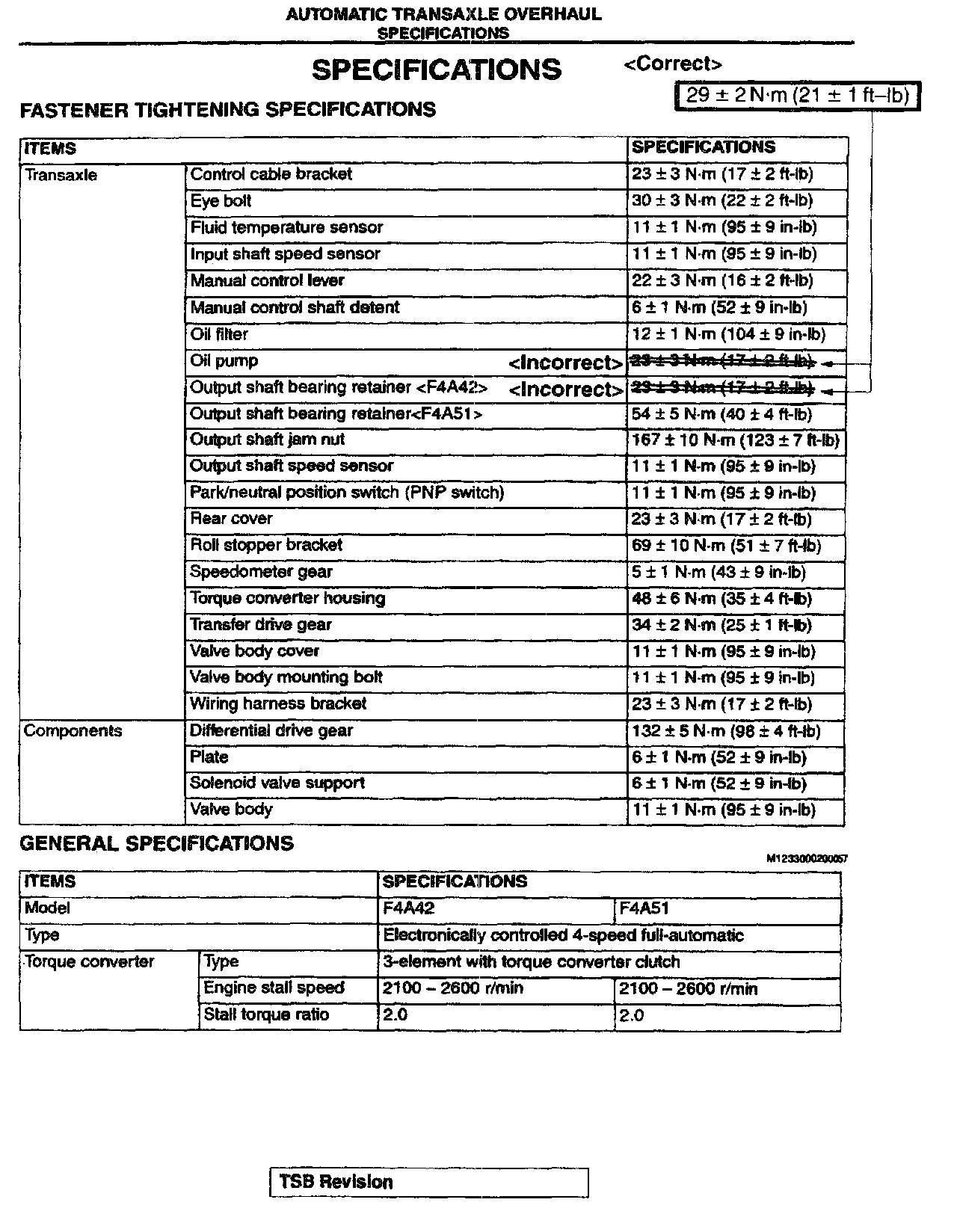

Revise the oil pump bolt and output shaft bearing retainer bolt tightening torque values as shown.

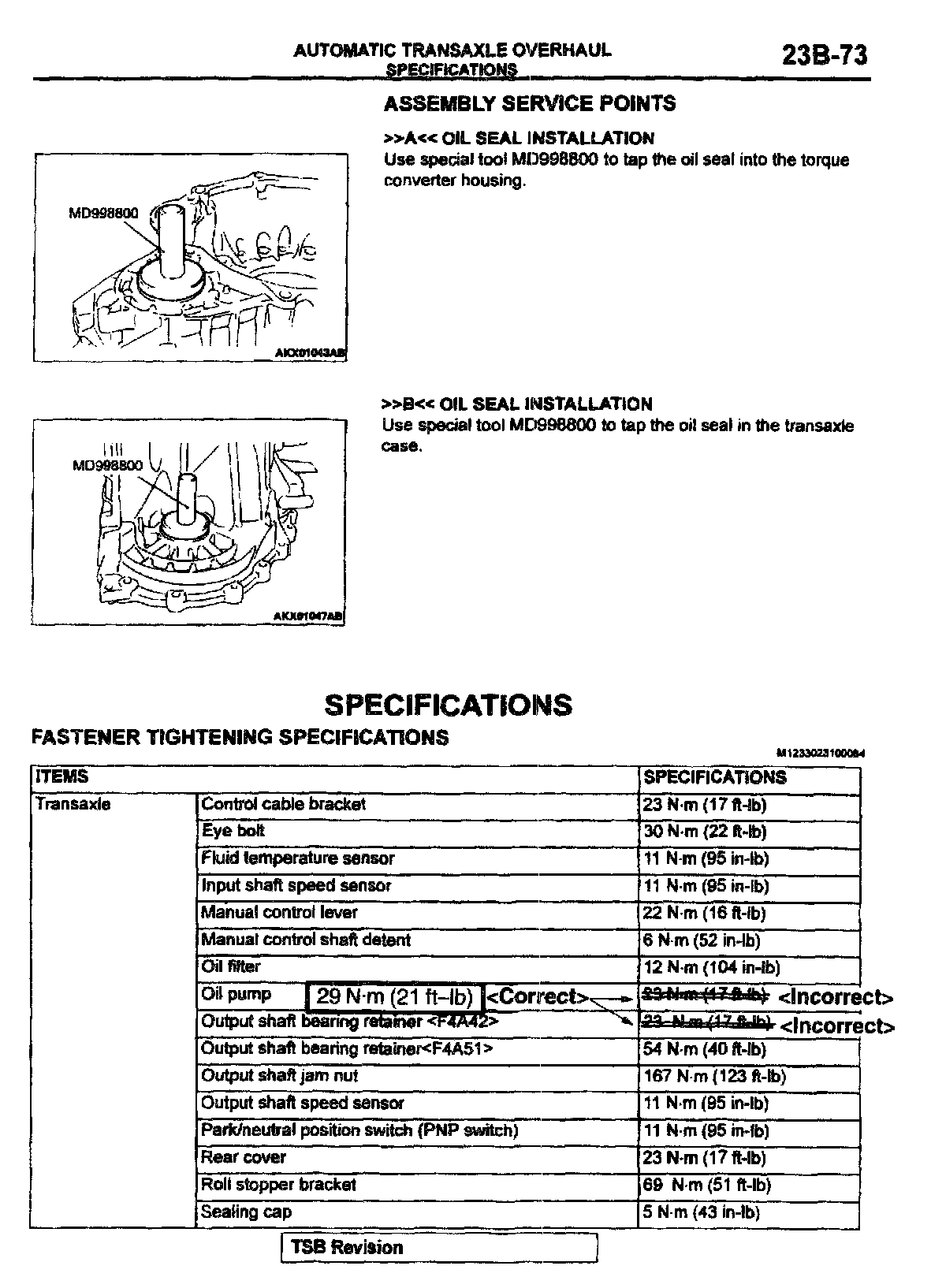

1999-2000 Galant, Volume 2, Page 23B-73
Revise the oil pump bolt and output shaft bearing retainer bolt tightening torque values as shown.
2001 Eclipse/Eclipse Spyder, Volume 3, Page 23B-76
2002 Eclipse/Eclipse Spyder, Volume 3, Page 23B-82
Revise the oil pump bolt and output shaft bearing retainer bolt tightening torque values as shown.
2001 Galant, Volume 3, Page 23B-75
Revise the output shaft bearing retainer bolt and oil pump mounting bolt tightening torque values as shown.
2002 Galant, Volume 3, Page 23B-73
Revise the oil pump bolt and output shaft bearing retainer bolt tightening torque values as shown.
