Planetary Carrier Reassembly

DISASSEMBLY AND REASSEMBLY

Assembly Service Points

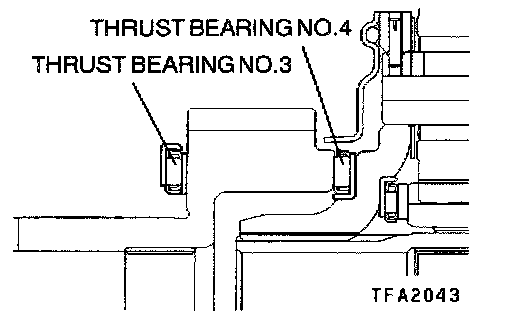

>A< Thrust Bearing Number 4 And Thrust Bearing Number 3 Installation





CAUTION: Use care to install the thrust bearings in the correct direction.

Check the installation direction of thrust bearings number 3 and 4, and install them as shown.

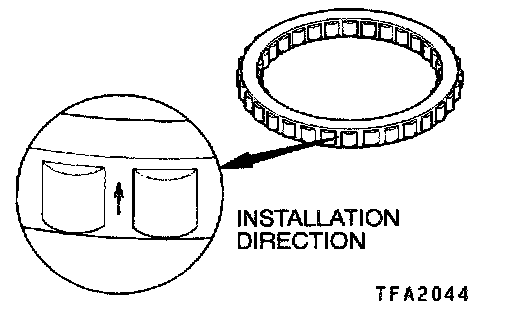

>B< One-Way Clutch Installation





Insert the one-way clutch into the overdrive annulus gear so that the arrow points the output planetary carrier.
