Home >> Mitsubishi >> 2000 >> Eclipse GT V6-3.0L SOHC >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fusible Link >> Application and ID

Fusible Link: Application and ID

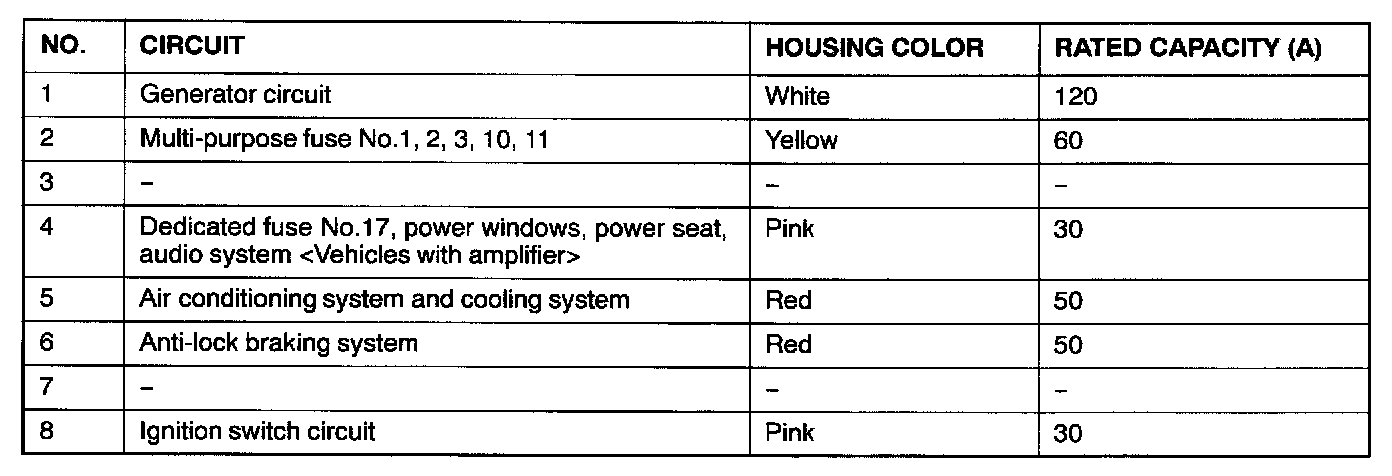

Fuse Link Applications:

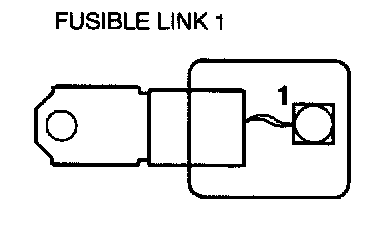

Fusible Link 1:

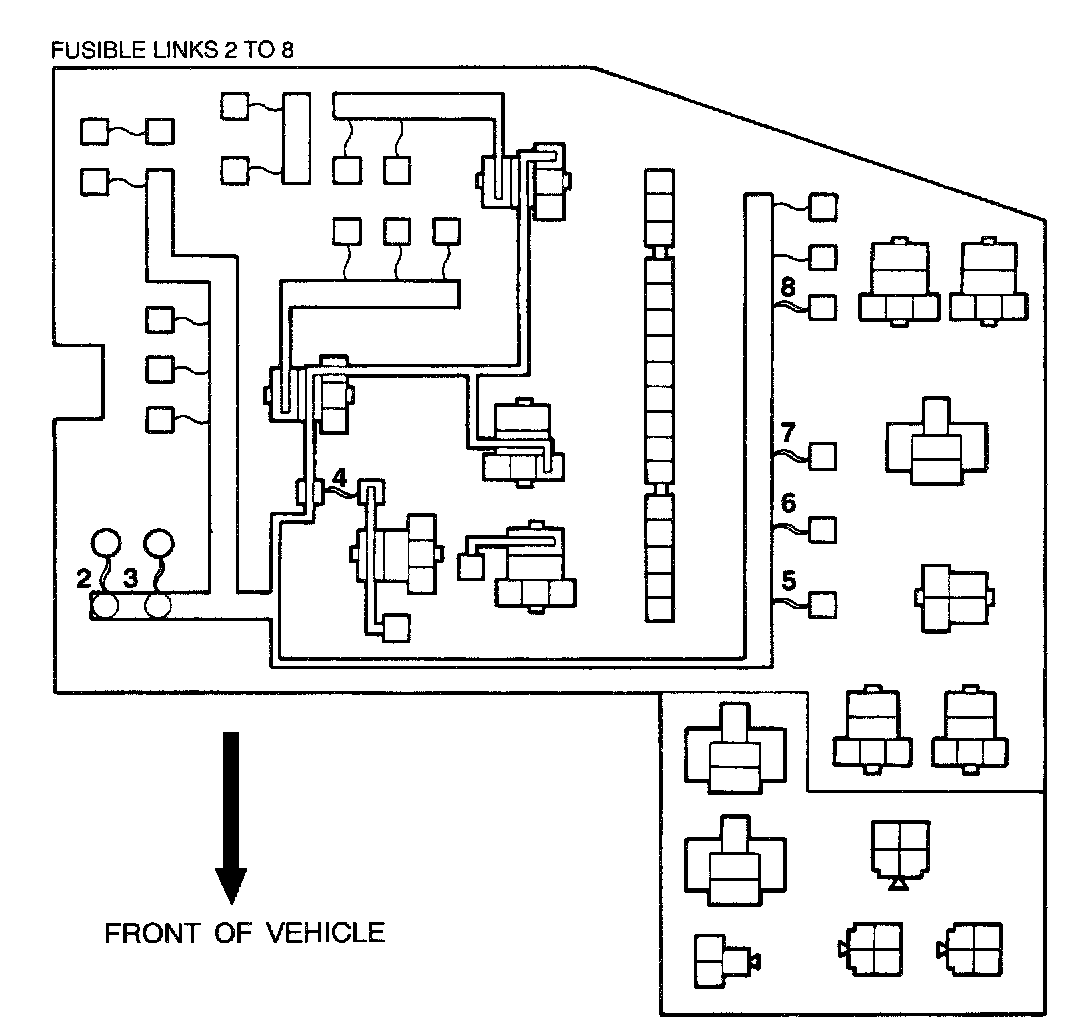

Fusible Links 2 - 18:
