Home >> Mitsubishi >> 2000 >> Eclipse GT V6-3.0L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> A/T Torque Data

A/T Torque Data

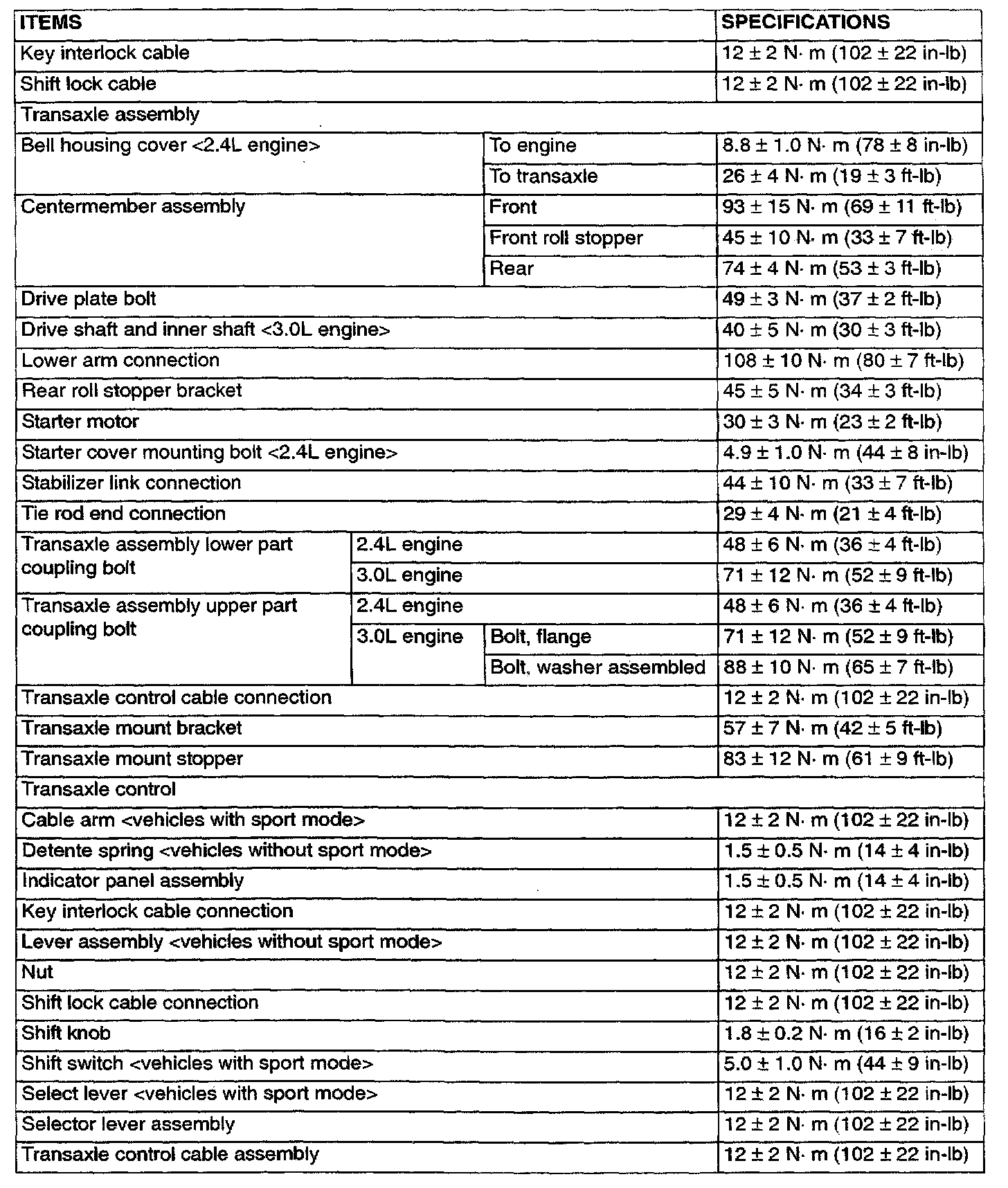

F4A42/F4A51 4-spd A/T, Transaxle Torque:

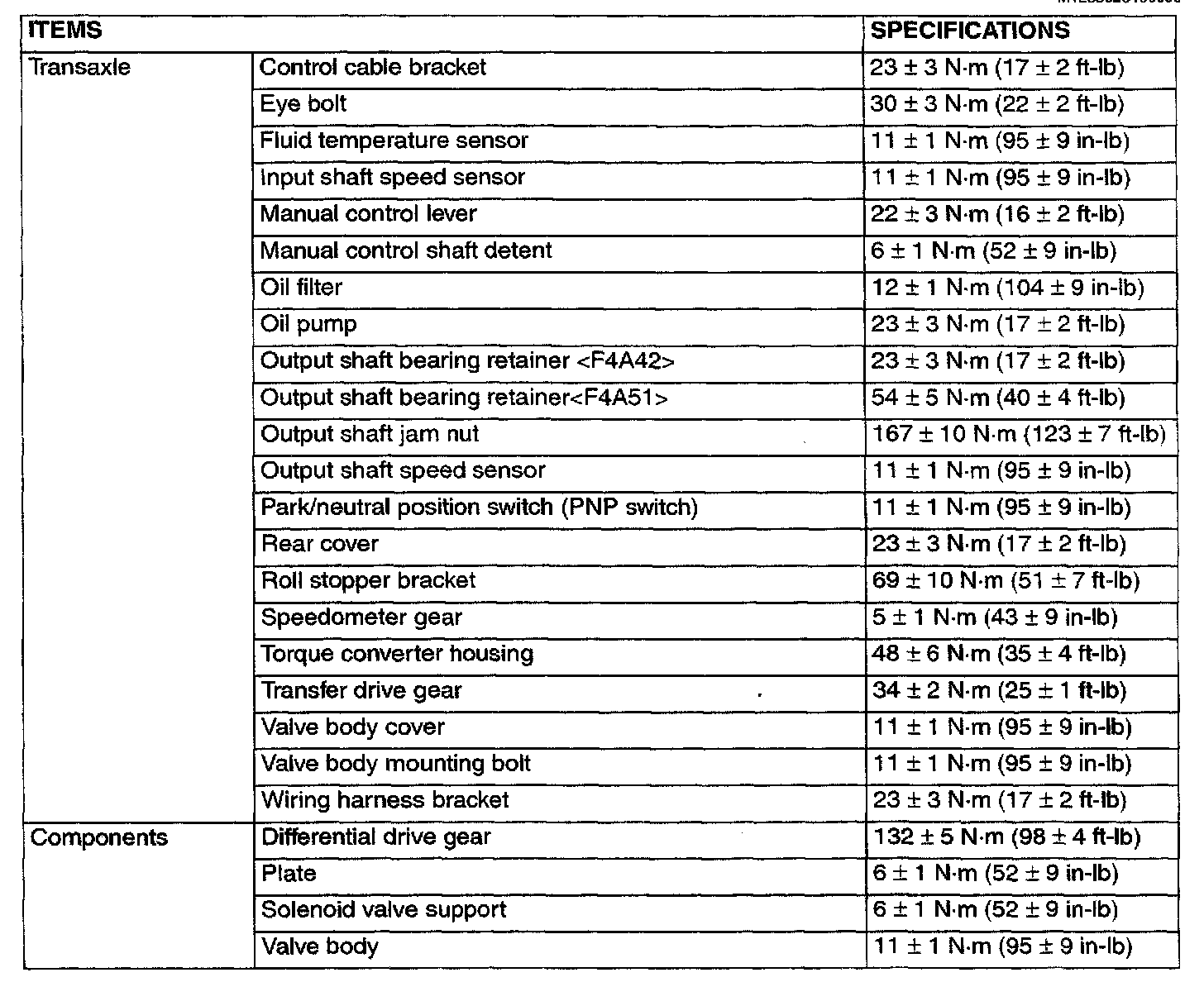

F4A42/F4A51 4-spd A/T, Transaxle Torque:
