Heated Glass Element Switch: Testing and Inspection

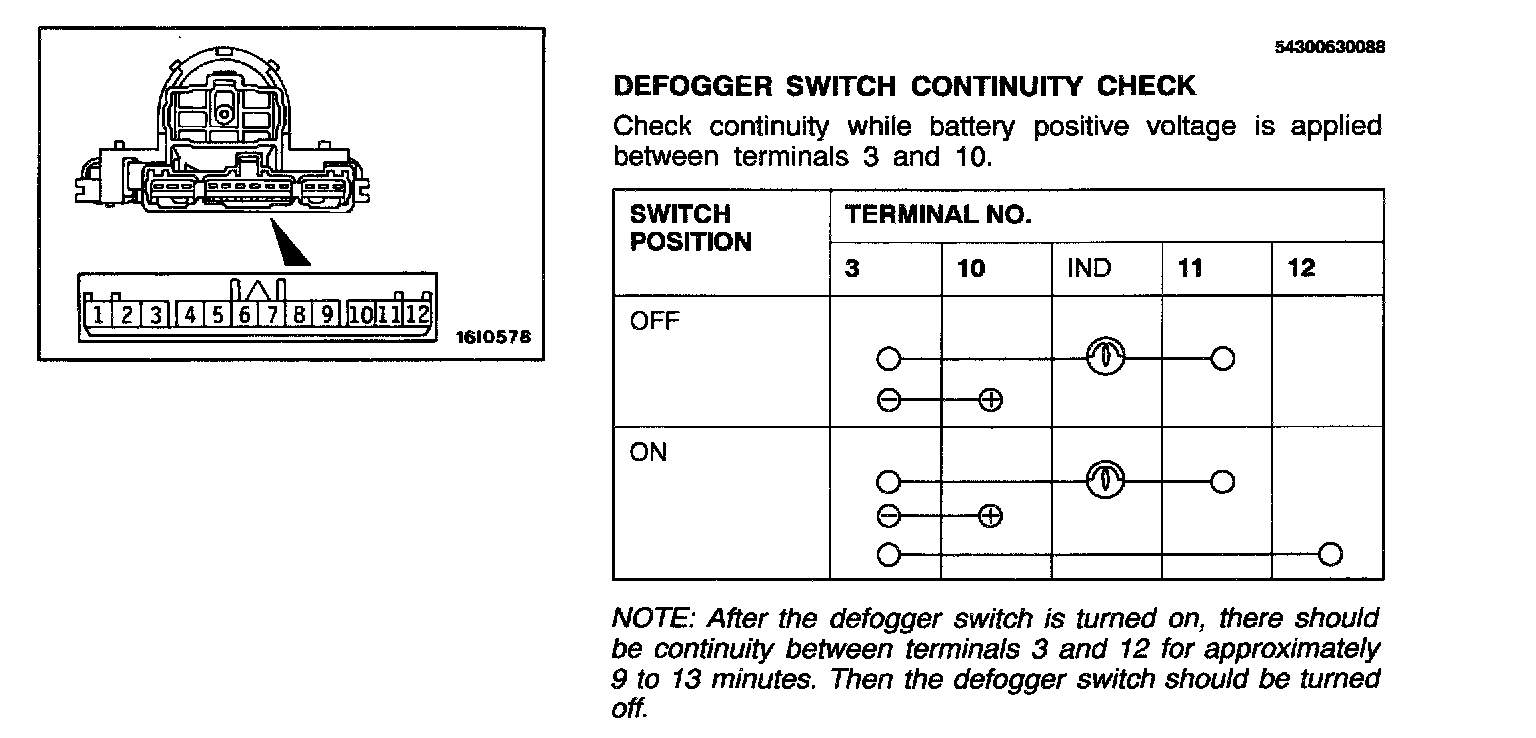

Defogger Switch Continuity Check:

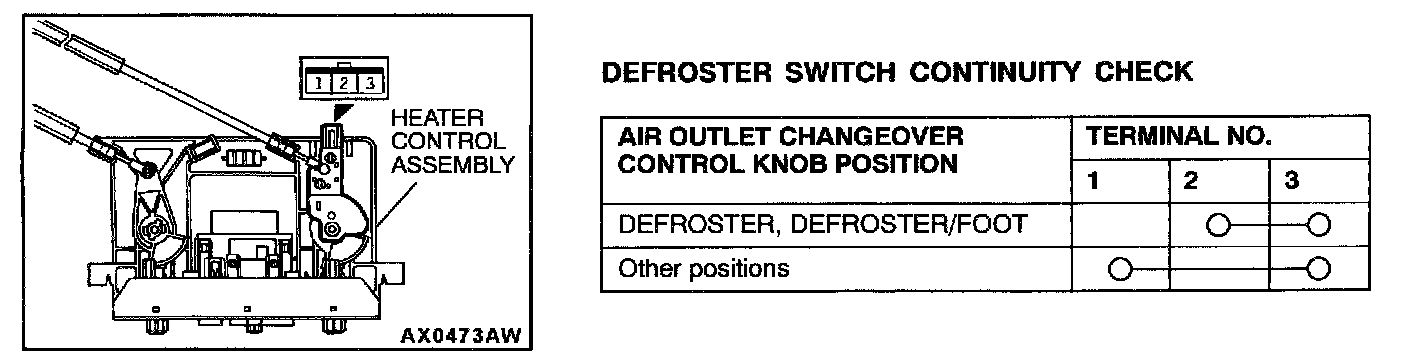

Defroster Switch Continuity Check:
