Electrical Diagrams

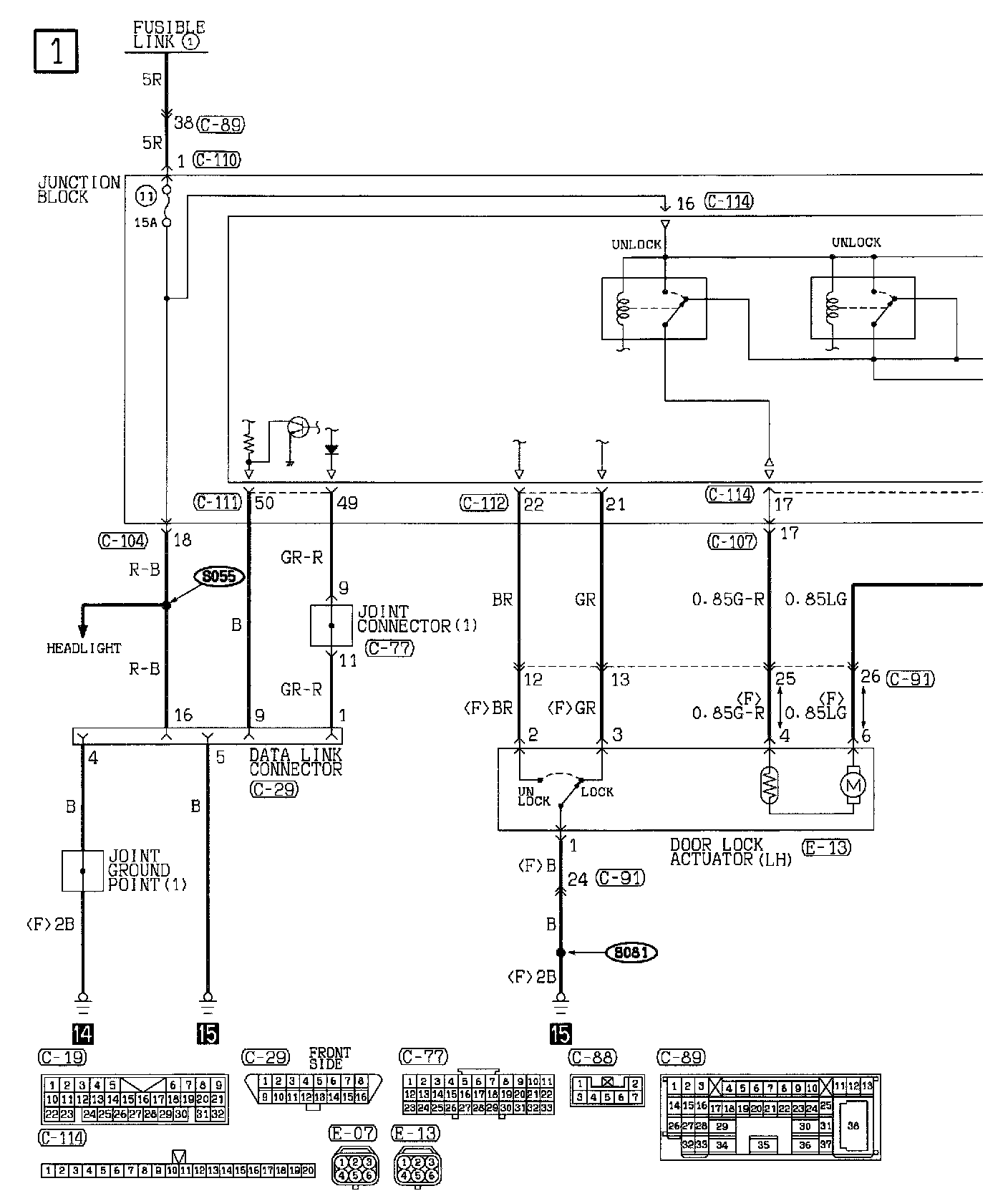

Forgotten Key Prevention Function (Part 1 Of 3):

Junction Block
Joint Connector
Data Link Connector
Joint Ground point
Door Lock Actuator (LH)

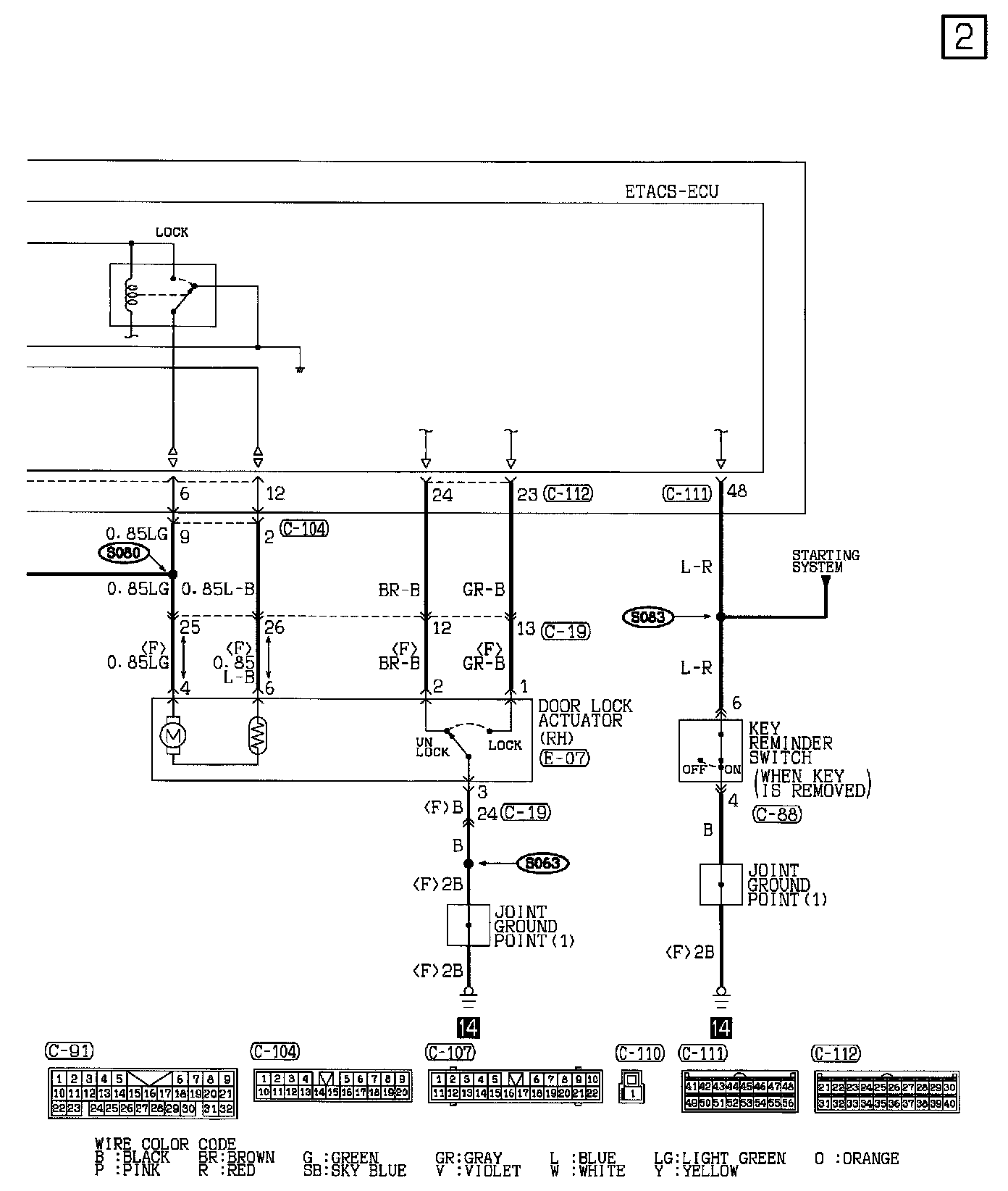

Forgotten Key Prevention Function (Part 2 Of 3):

ETACS-ECU
Door Lock Actuator (RH)
Key Reminder Switch (When key is removed)
Joint Ground point

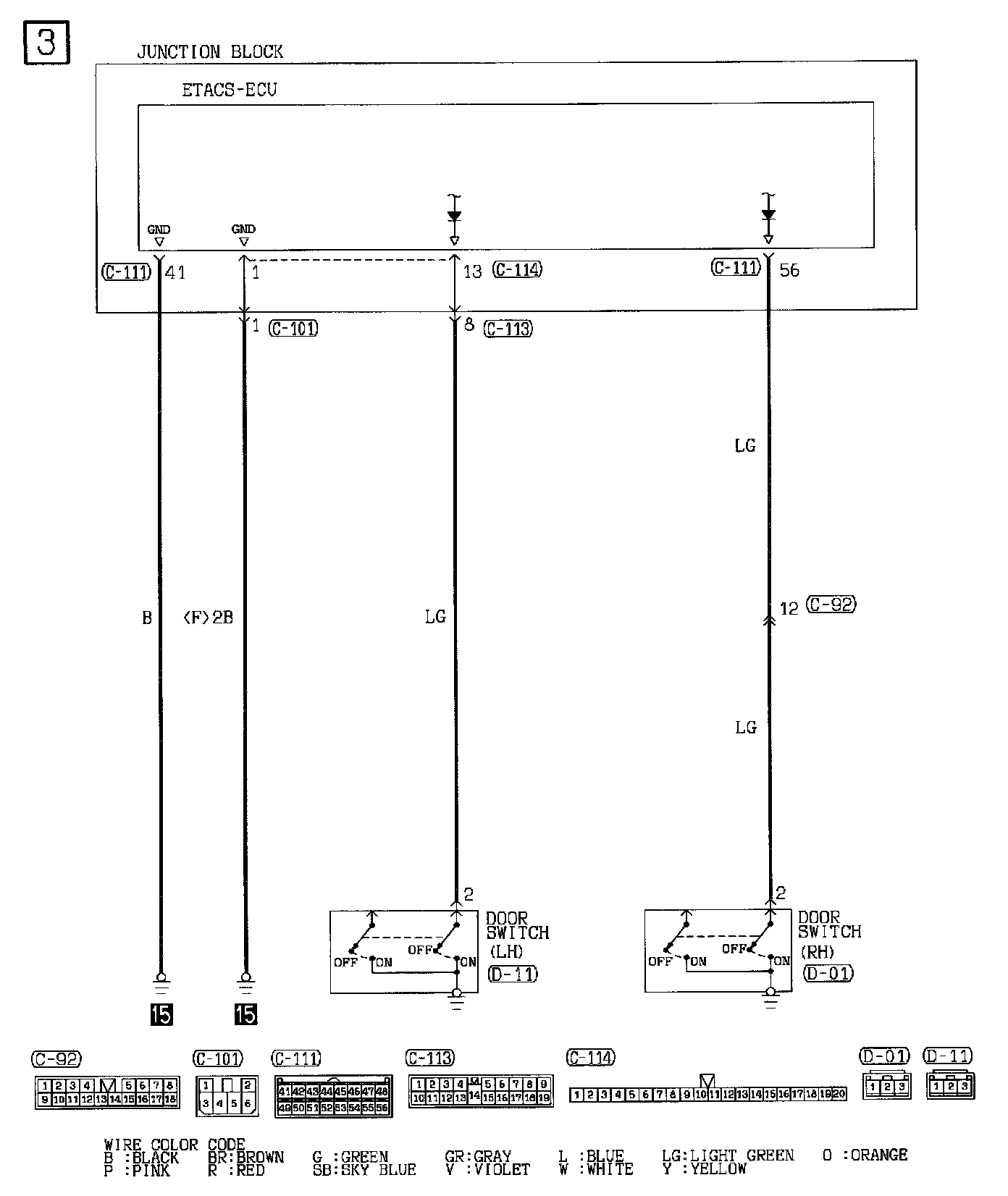

Forgotten Key Prevention Function (Part 3 Of 3):

Junction Block
- ETACS-ECU
Door Switch (LH & RH)
