Pinout Values and Diagnostic Parameters

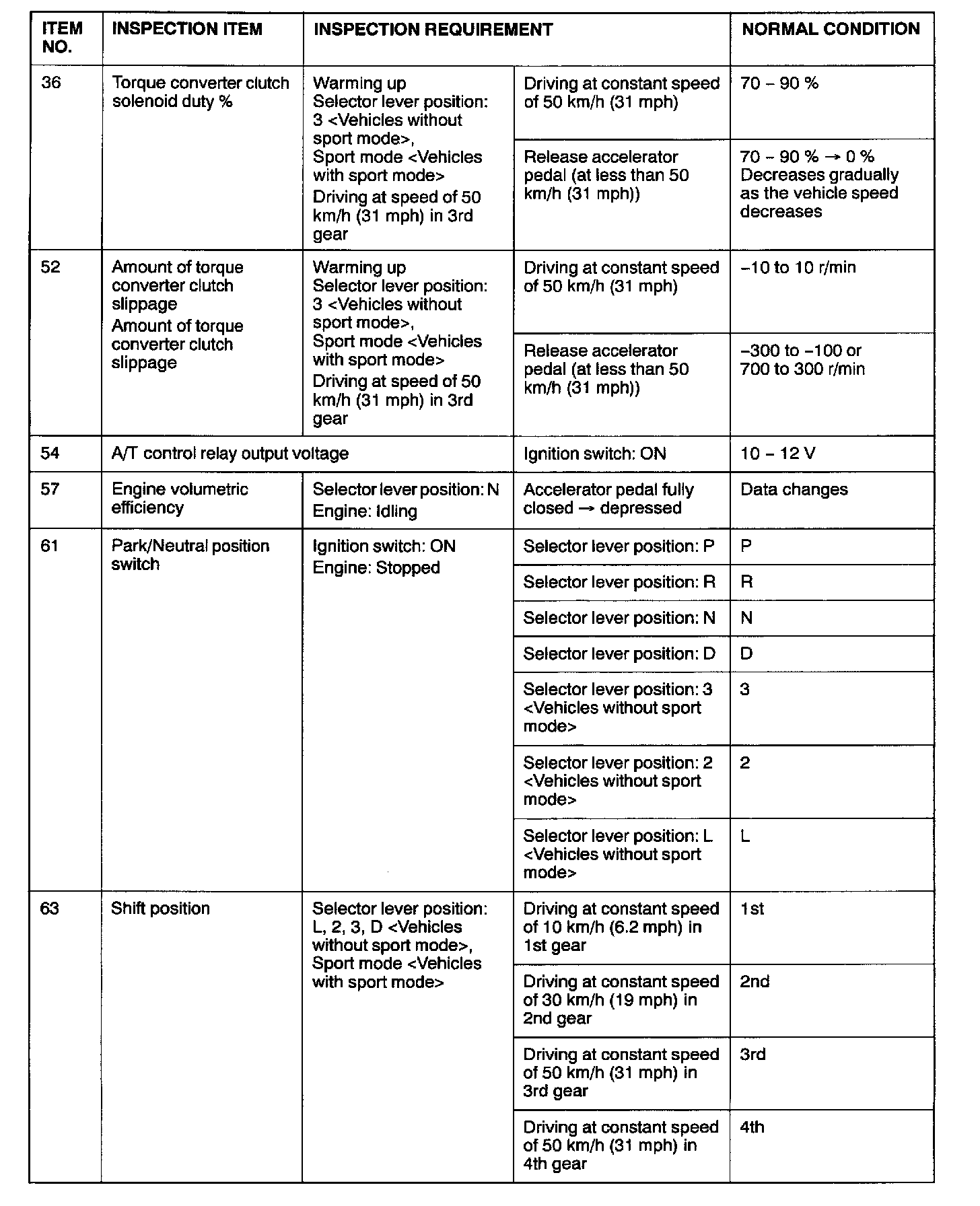

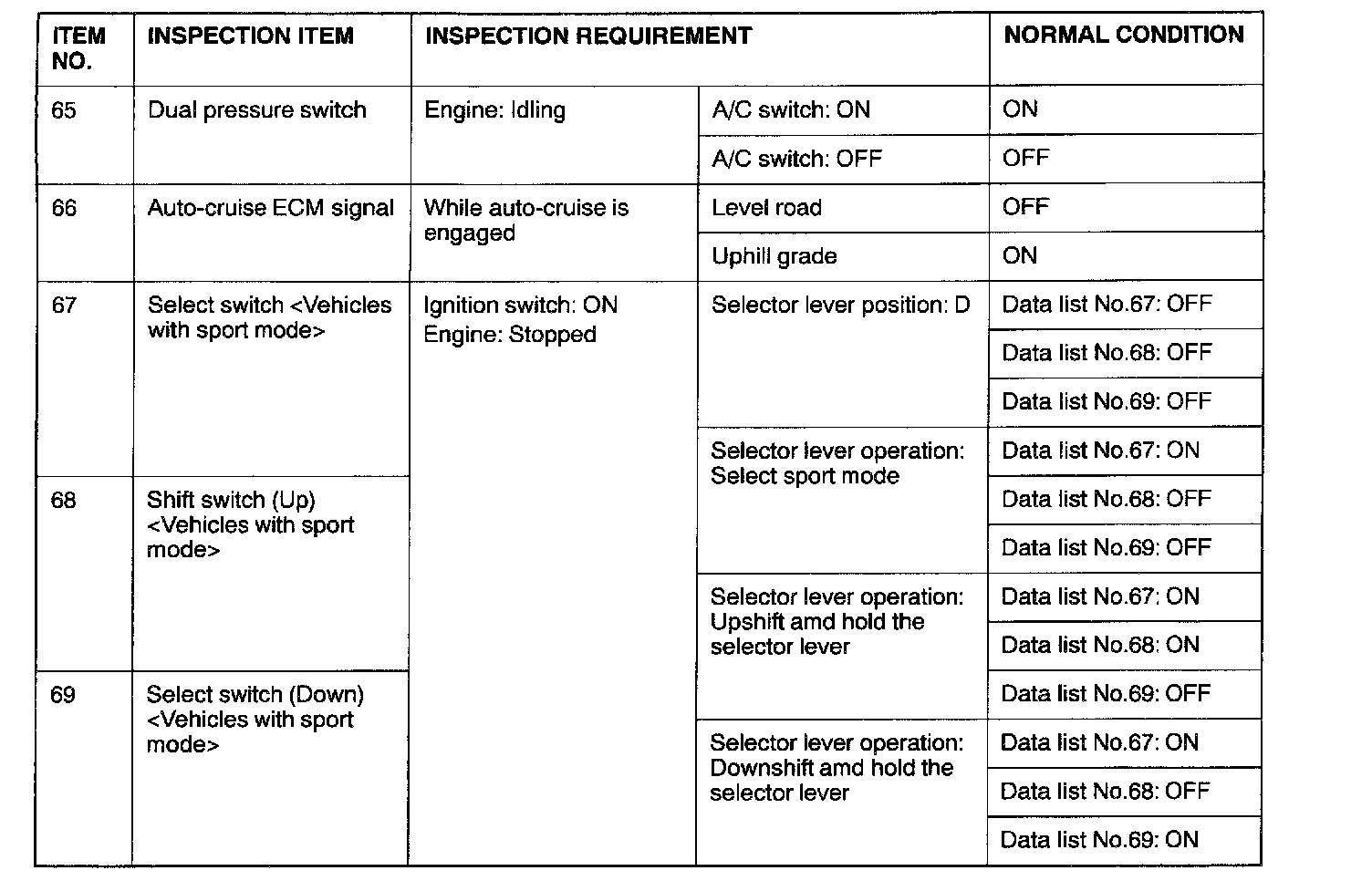

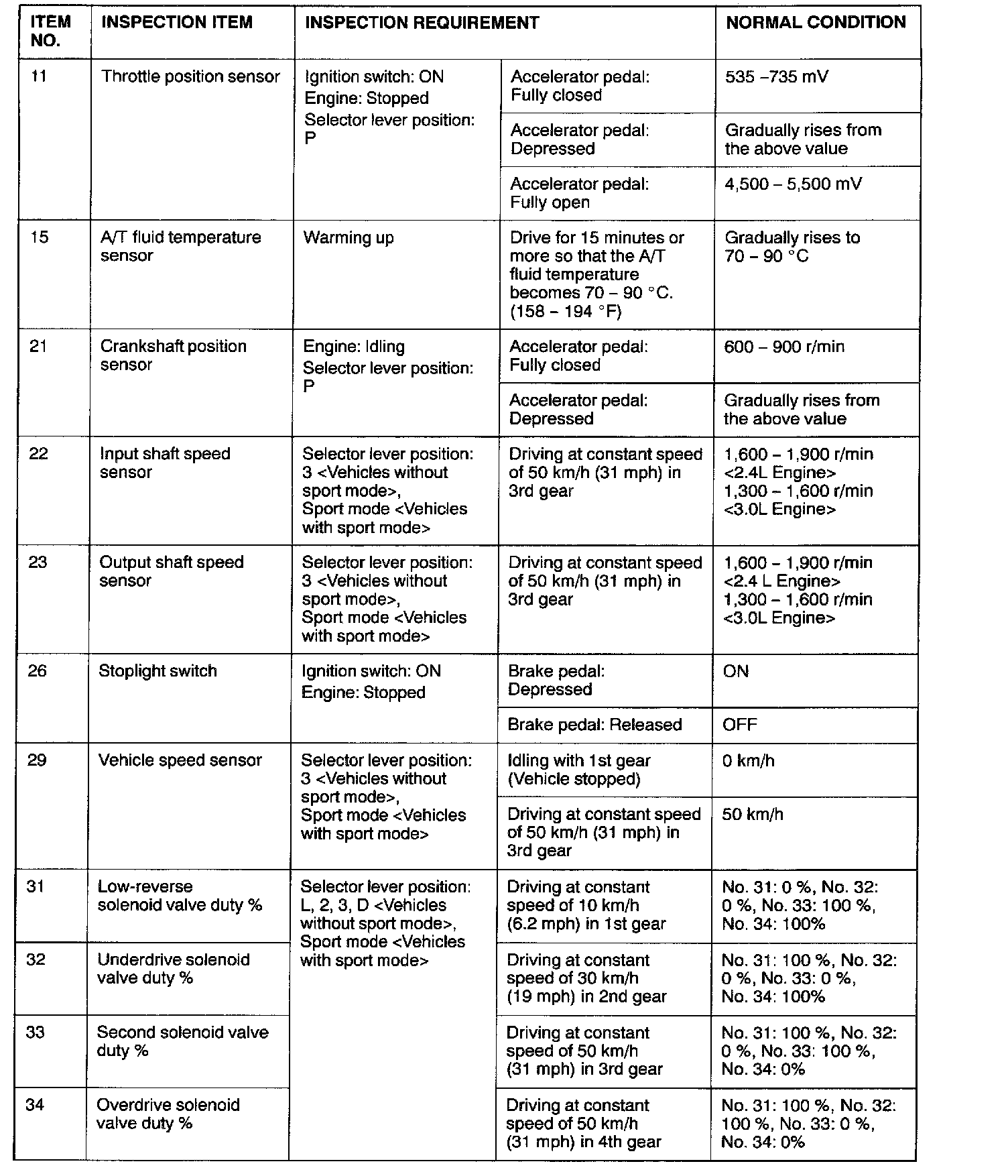

DATA LIST REFERENCE TABLE

Part 1 of 3

Part 2 of 3

Part 3 of 3

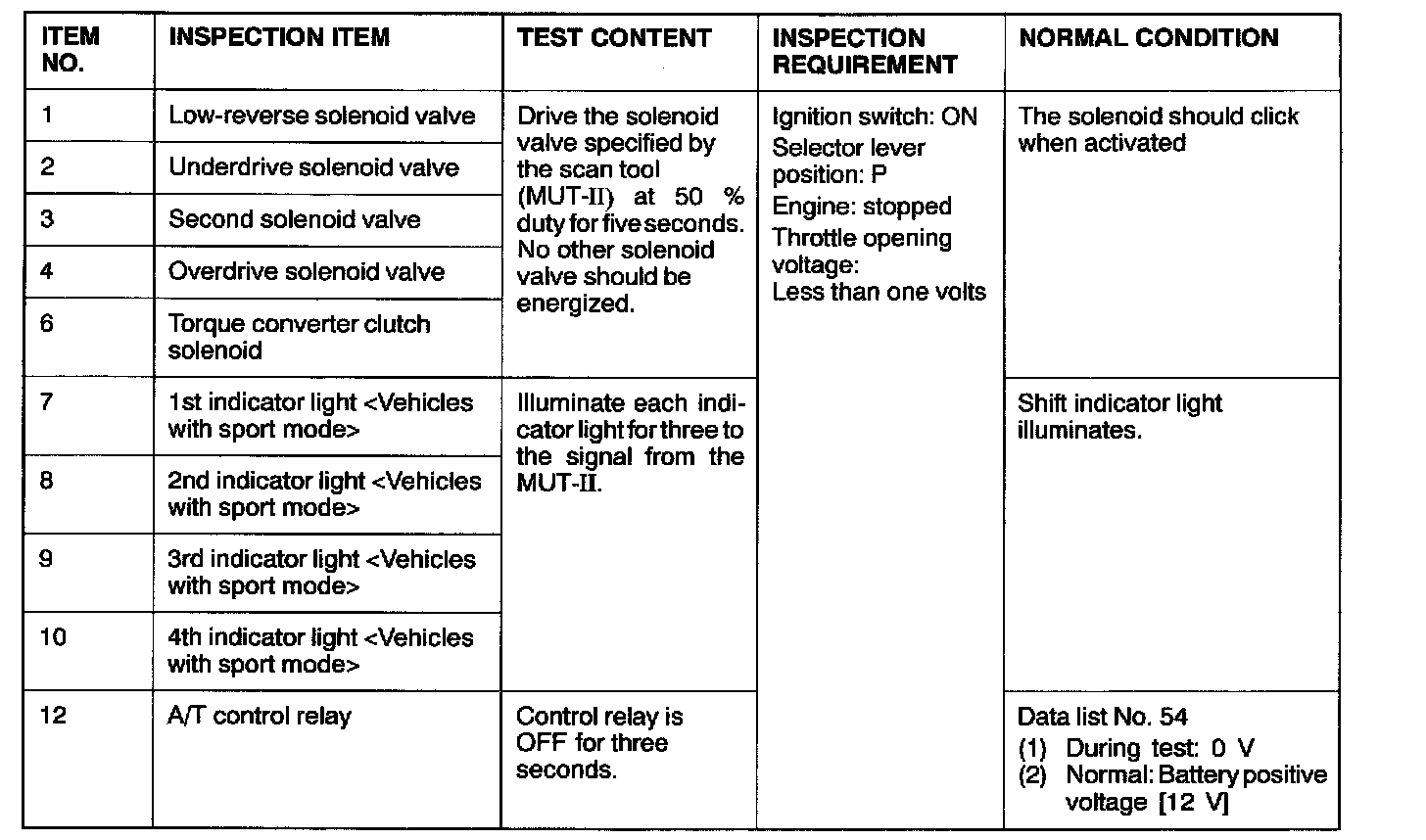

ACTUATOR TEST REFERENCE TABLE

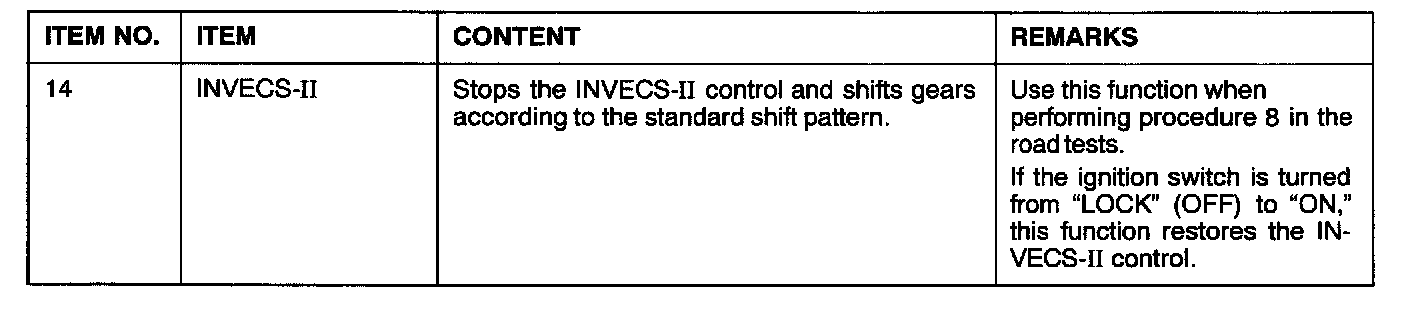

INVECS-II CANCEL COMMAND

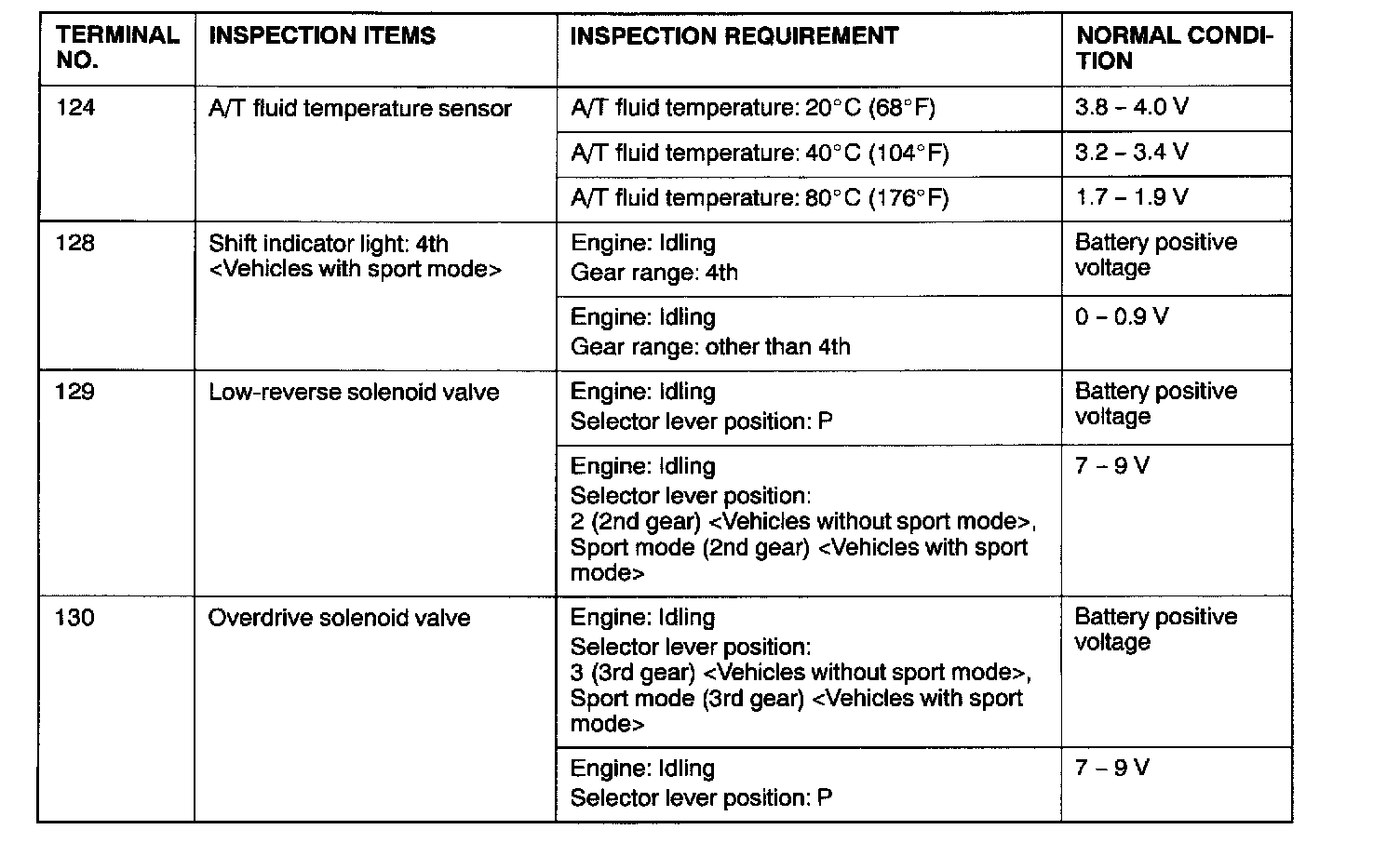

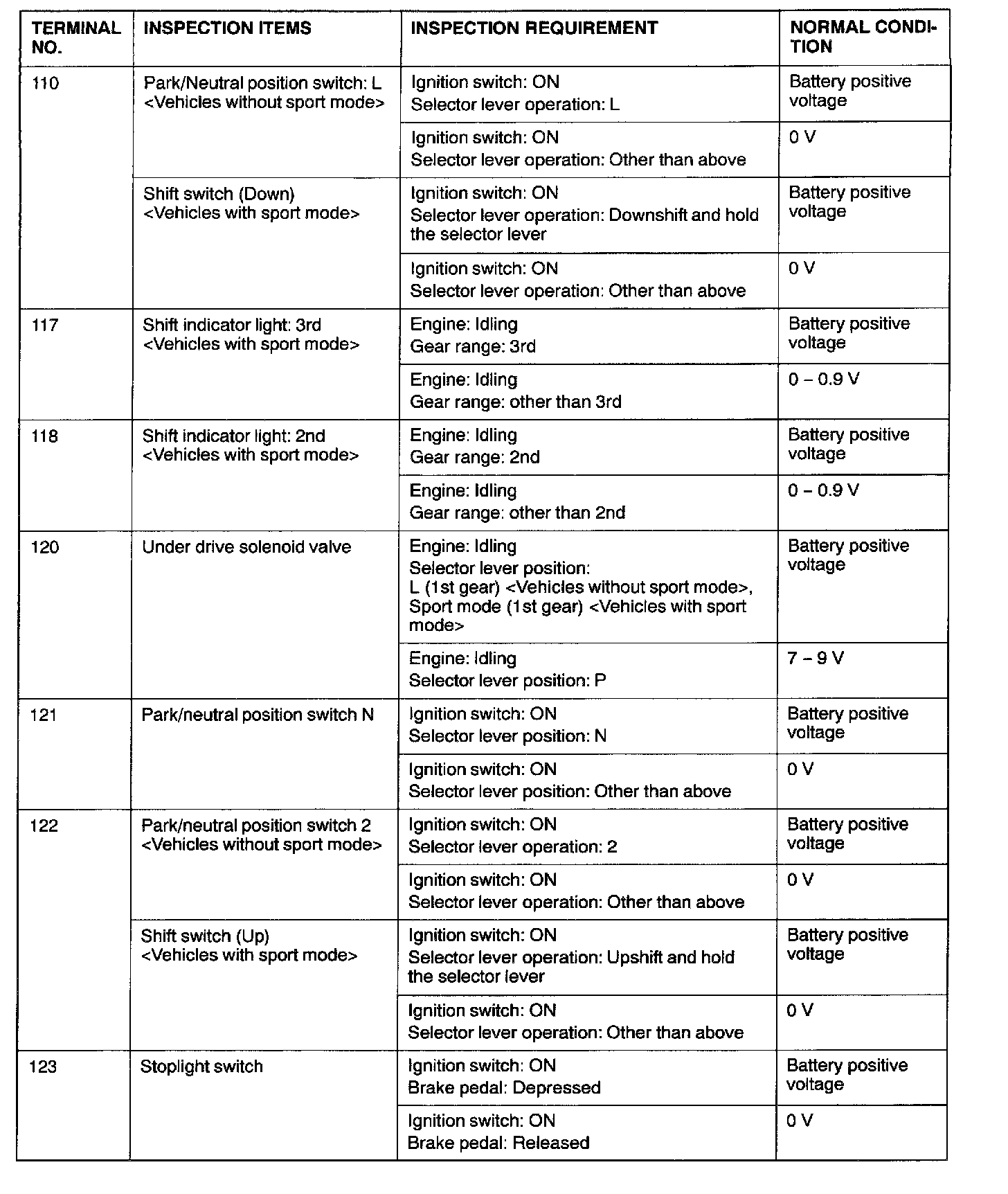

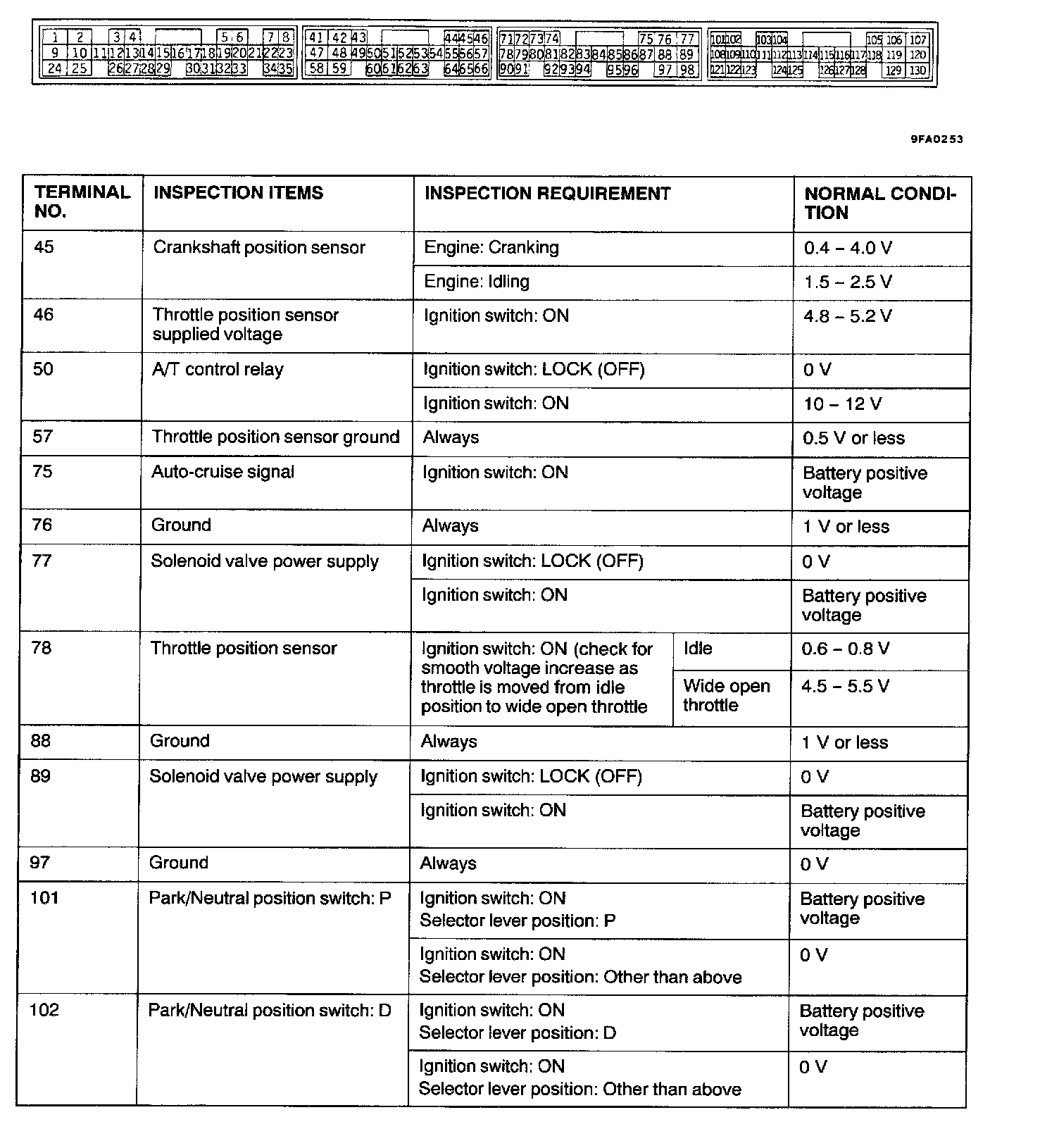

PCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSAXLE OPERATION

Part 1 of 4

Part 2 of 4

Part 3 of 4

Part 4 of 4

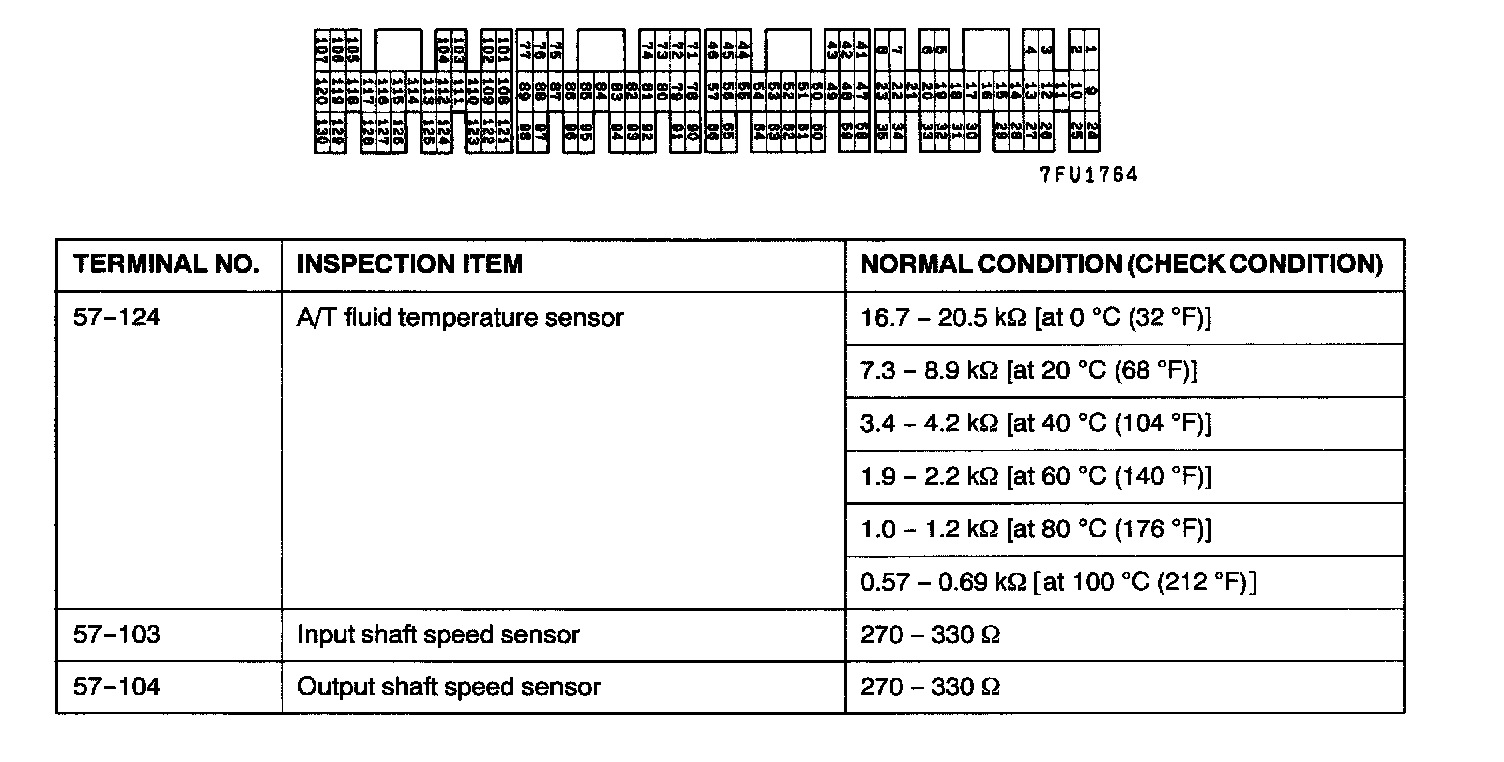

PCM TERMINAL RESISTANCE AND CONTINUITY INSPECTION CHART
