Fuel Pump Relay: Service and Repair

FUEL PUMP RELAY DISCONNECTION

WARNING: When removing the fuel pipe, hose, etc., release fuel pressure to prevent fuel spray.

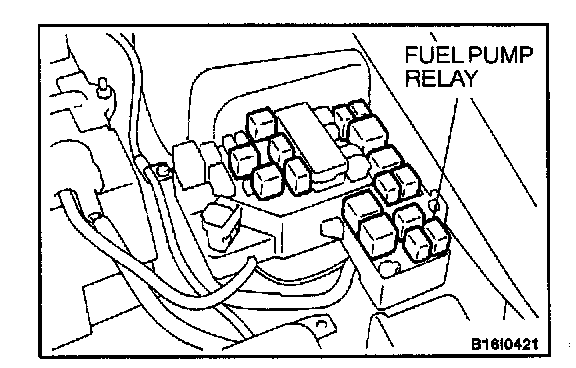

1. Disconnect the fuel pump relay.
2. Start the engine and let it run until it stops naturally. Turn the ignition switch off.
3. Connect the fuel pump relay.
