Removal and Installation

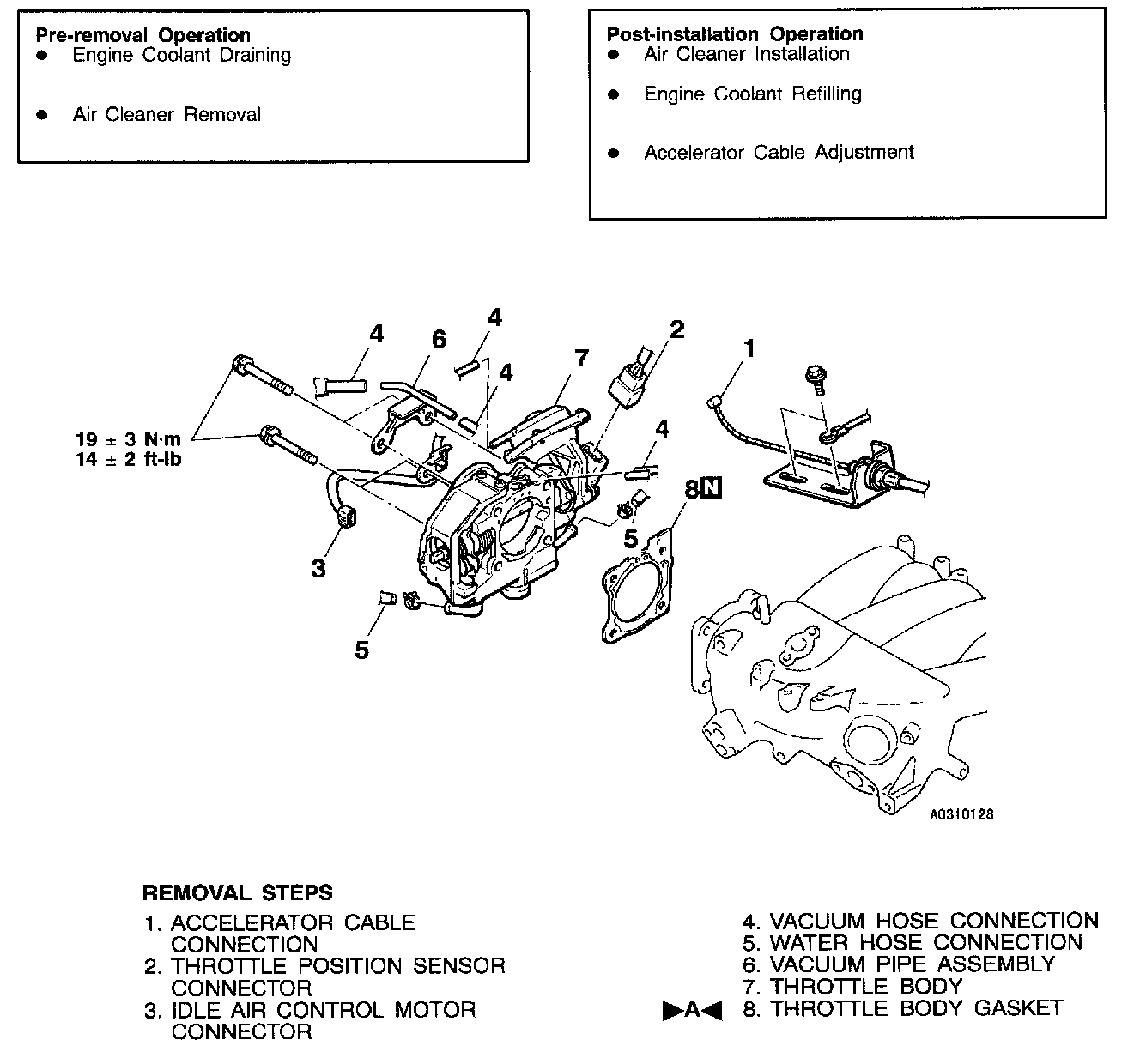

COMPONENTS

INSTALLATION SERVICE POINT




>A

CAUTION: Poor idling etc. may result if the throttle body gasket is installed incorrectly.

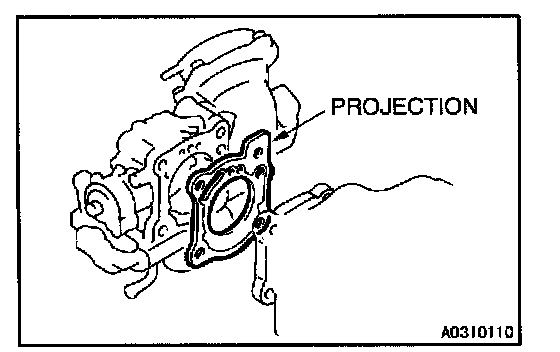

Install the throttle body gasket as shown in the illustration
