Disassembly and Reassembly

Disassembly And Assembly:

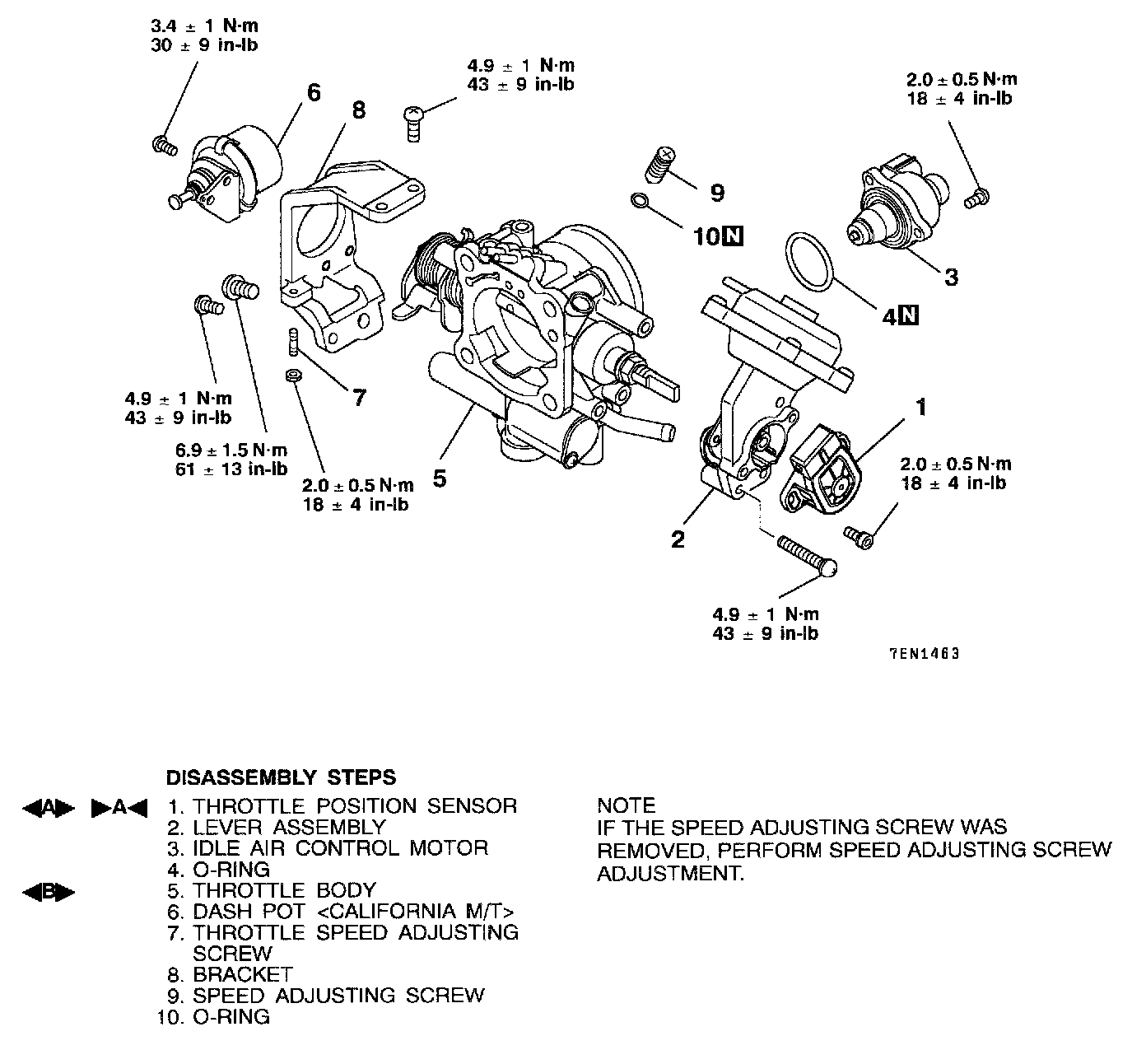

COMPONENTS

DISASSEMBLY SERVICE POINTS

THROTTLE POSITION SENSOR REMOVAL

1. Do not disassemble the sensor and motor.
2. Do not clean the sensor and motor by dipping them into cleaning solvent. Clean them with shop towel.

THROTTLE BODY DISASSEMBLY
1. Do not disassemble the throttle body.
2. Check if the vacuum port or passage is clogged. Use compressed air to clean the vacuum passage.

ASSEMBLY SERVICE POINTS

>A

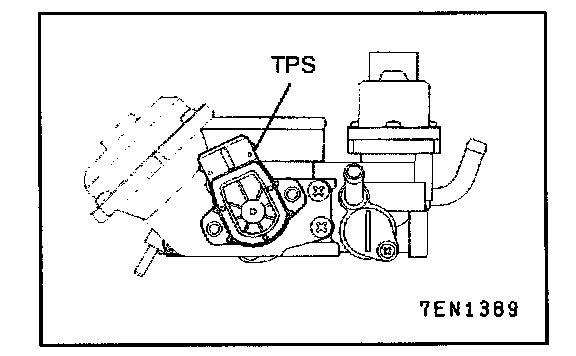

1. Install the throttle position sensor to the throttle body as shown in the illustration.

2. Turn the throttle position sensor 90 degree angle counterclockwise to set it, and tighten the screws.

Tightening torque: 2.0 ± 0.5 Nm (18 ± 4 in.lb)

3. Connect an ohmmeter between terminals 1 (ground) and 3 (output), or between terminals 3 (output) and 4 (power). Then, make sure that the resistance changes smoothly when the throttle valve is slowly moved to the fully open position.
