Vacuum Hose Check

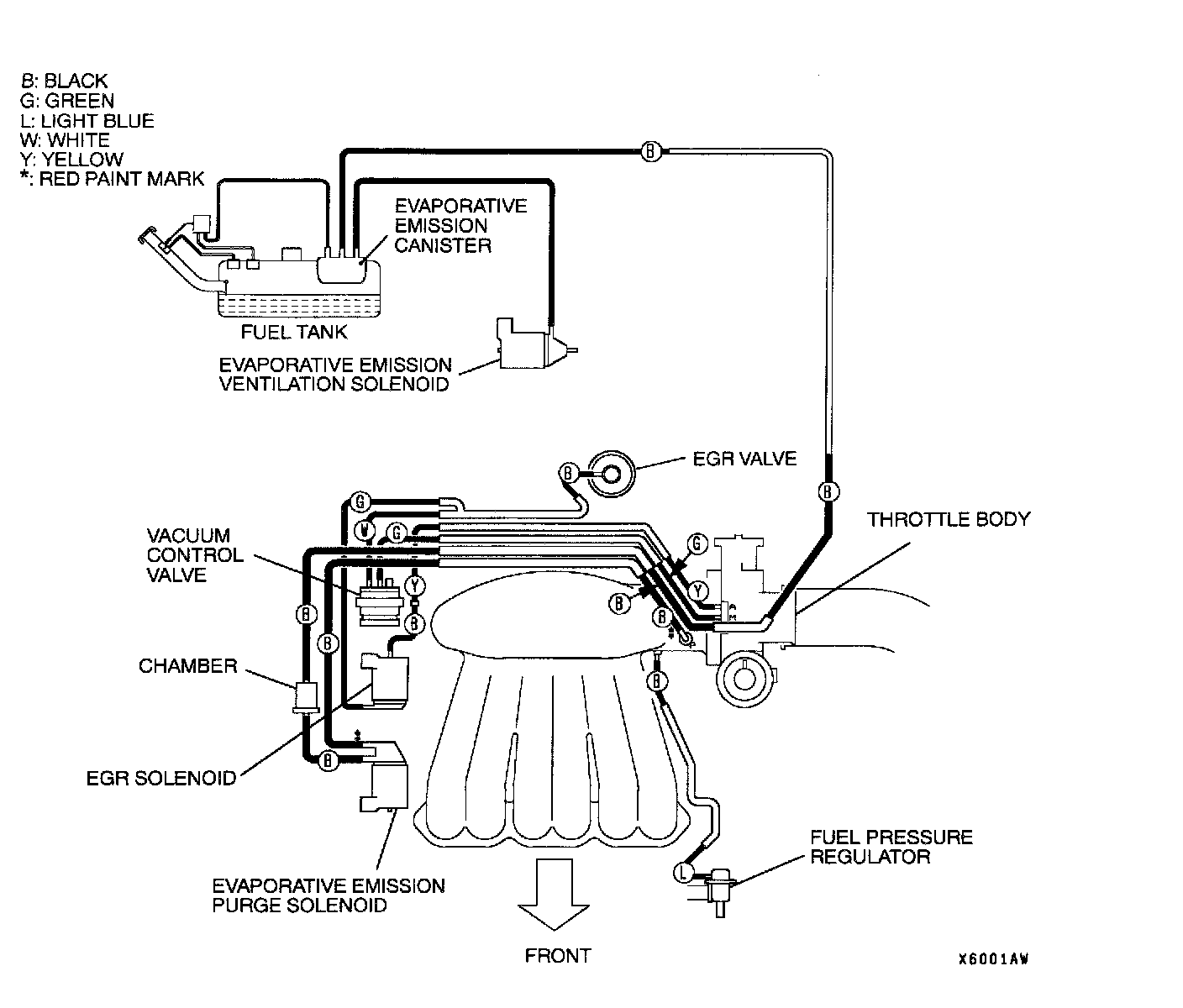

Vacuum Hose Routing - 2.4L:

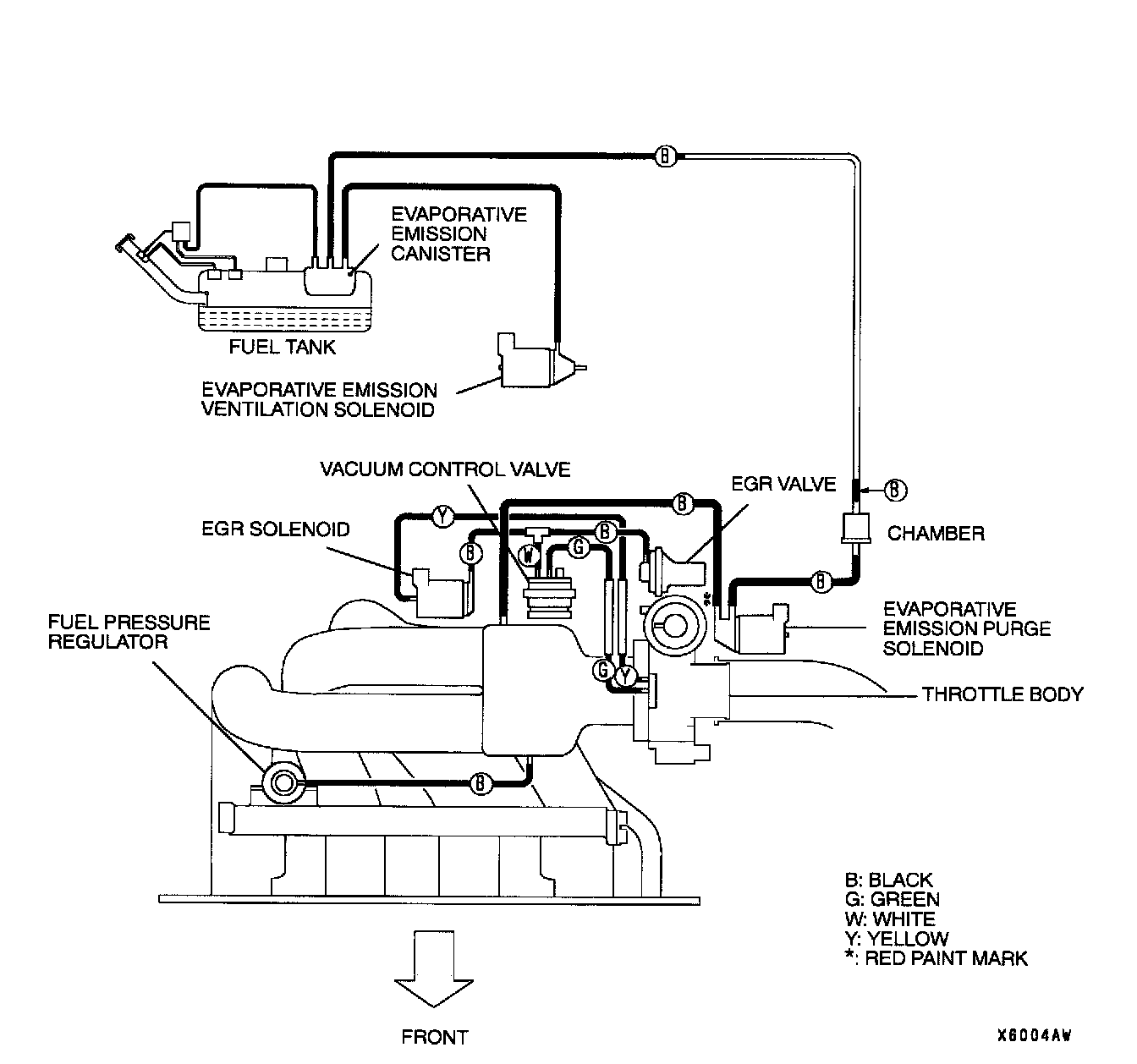

Vacuum Hose Routing - 3.0L:

VACUUM HOSE CHECK
1. Using the VACUUM HOSE ROUTING as a guide, check that the vacuum hoses are correctly connected.
2. Check the connection of the vacuum hoses, (removed, loose, etc.) and confirm that there are no sharp bends or damage.
