Home >> Mitsubishi >> 2000 >> Eclipse GT V6-3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Leak Detection Solenoid >> Service and Repair

Leak Detection Solenoid: Service and Repair

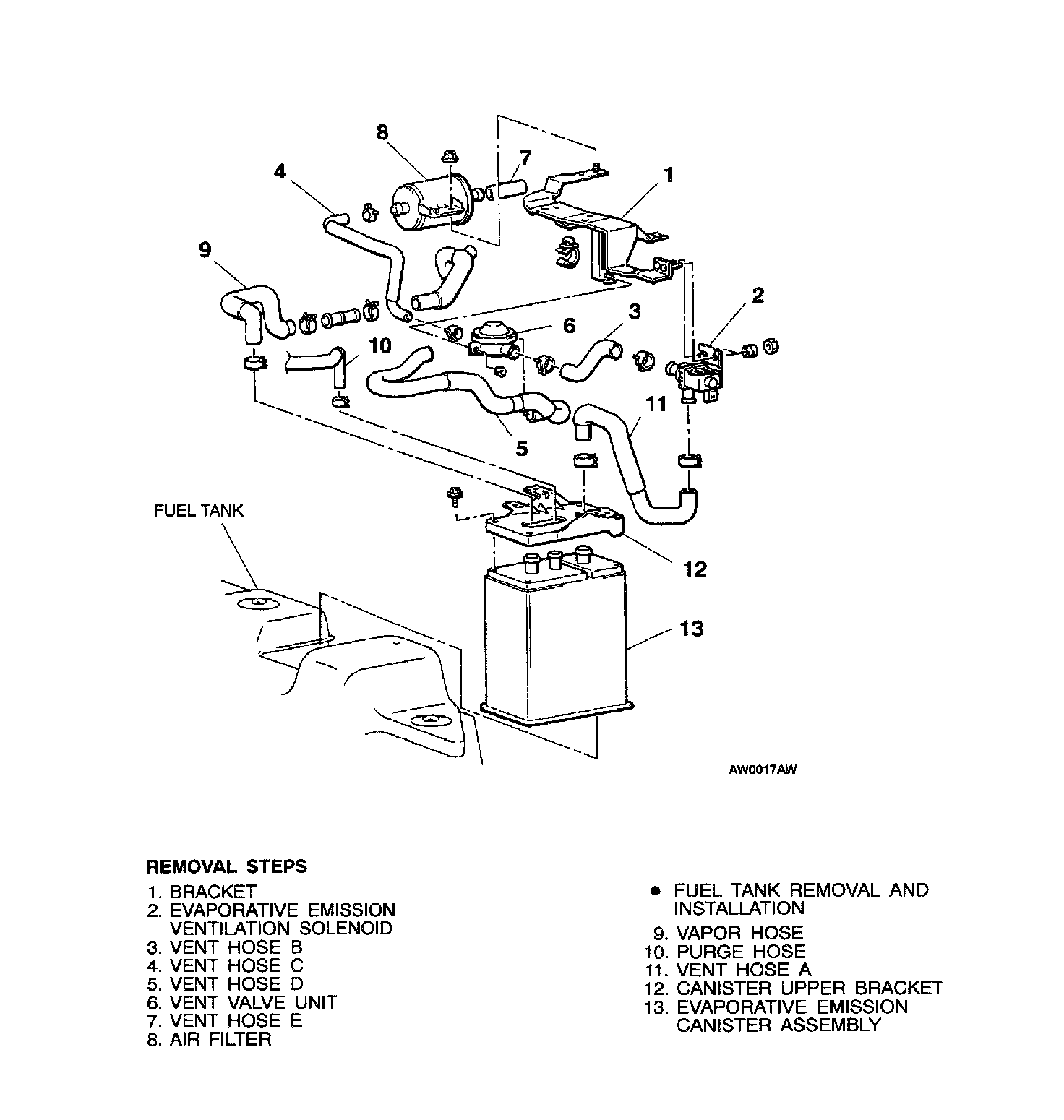

EVAP Canister/Vent Valve/EVAP Ventilation Solenoid/Air Filter - Removal And Installation:
